Old 02-26-2008, 11:16 PM   #161
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 93-SSE
Awesome!!

Glad that all worked out great, thats so cool to be able to build that more or less from scratch

and BTW, i Just noticed the sticker on the oil filler cap, very nice touch
That'* not a sticker. No surprise here, though:
http://www.bonnevilleclub.com/forum/...ighlight=laser (from a year ago)

Paul, probably 80-85 heatsoaked and after a sprint. My housing was always hotter than my nosedrive, but that'* typical wiht the faster spinning 62'*.
willwren is offline   Reply With Quote
Old 02-27-2008, 12:45 AM   #162
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

80-85 Wow. That is impressive. I have never seen less than 90 with my injection system.
2000SilverBullet is offline   Reply With Quote
Old 02-27-2008, 09:06 AM   #163
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll heatsoak it this morning and shoot it when i get to work.
willwren is offline   Reply With Quote
Old 02-27-2008, 11:39 AM   #164
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

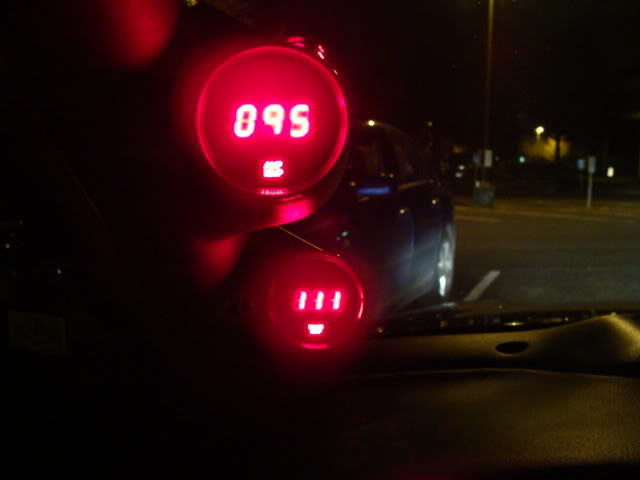

After a rather 'spirited' commute this morning to work:

Top is LIM (post intercooler) air temp in bypass (not flowing fully through the core), bottom is trans temp:
Name:  DSC01016.jpg
Views: 0
Size:  29.7 KB

If I were to close the bypass, the LIM air temp gauge would drop into the 80'*, as the air would be forced through the core as if it were in at least partial boost. Notice the AMP TEMP. Well, let'* call it a horsepower amplifier, shall we?

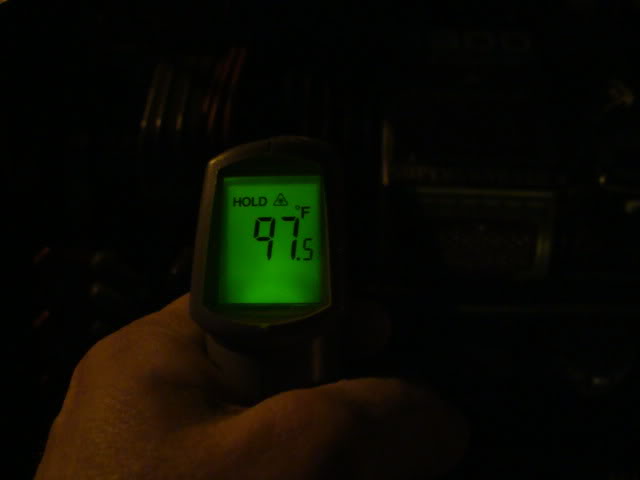

Body of the SC 30 seconds later:
Name:  DSC01018.jpg
Views: 0
Size:  21.7 KB

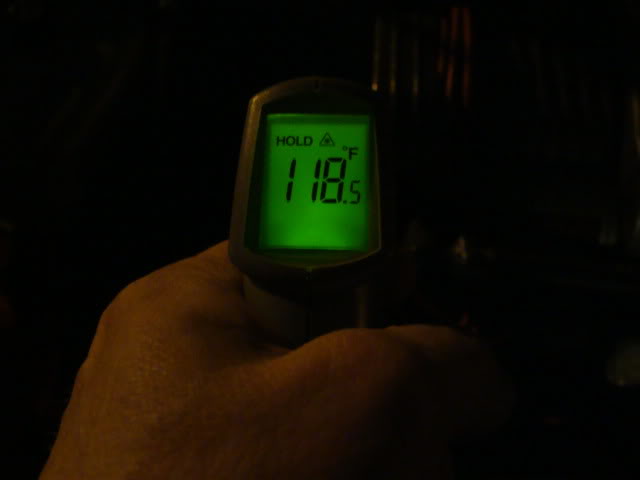

Nosedrive temperature at the same time:
Name:  DSC01019.jpg
Views: 0
Size:  22.6 KB

Nosedrive is normal temp or at least a little lower. SC housing temp is FAR lower than it normally is without the intercooler. My SC housing after running boost is always (or used to be) hotter than the nosedrive. Granted, my hood vents, high speed fan override, and coating help, but this was a significant change mostly due to the intercooler. The intercooler itself is thermally isolated from the LIM. It doesn't actually touch it anywhere, so this is a result of the temperature of the air in the LIM keeping the LIM temp down, in spite of the engine coolant running through it. Remember the S1 L67 LIM has a large water passage running right down the middle of each bank in addition to the cross flow from head to head.

My temp probe is less than a half inch from that long passage with coolant.
willwren is offline   Reply With Quote
Old 02-27-2008, 12:42 PM   #165
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

So from a cold engine, how long did you run it, assuming it was in town driving?

I know it'* only about a 5 minute drive to your work, and dropping Bo off takes what...10 minutes?

It takes mine about 30 minutes to fully warm up from dead cold.

Have you tried after a heat soak of turning it off once it'* warm for about 15 minutes and then starting it again?
2000SilverBullet is offline   Reply With Quote
Old 02-27-2008, 12:50 PM   #166
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

After letting it sit and soak, then starting, LIM temps come back down after about one minute.

This morning, I idled at home to warm up for 10 minutes, left with Bo, idled at 7-11 for 5 minutes, drove to the dogsitter. Idled there for 5 minutes while he ate his snacks. Ran a half-mile sprint to highway 20, laid into the boost another mile down to Circle Blvd, and sprinted another half mile from there to HP (85mph). Hit the parky lot and took these temps.

Total time about 20-30 minutes of running.
willwren is offline   Reply With Quote
Old 02-27-2008, 01:02 PM   #167
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

That really IS impressive.

You got me lusting now......
2000SilverBullet is offline   Reply With Quote
Old 03-05-2008, 01:19 PM   #168
Senior Member
Posts like a Turbo

Join Date: Aug 2005
Location: Grand Rapids,MI
Posts: 226
Thanks: 0
Thanked 0 Times in 0 Posts
Dirthead Racing is on a distinguished road
Default

Dirthead Racing is offline   Reply With Quote
Old 03-05-2008, 01:23 PM   #169
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Quote:
Originally Posted by Dirthead Racing
Have you taken any coolant temperatures going into and coming out of the front heat exchanger at all?
That would be a good test but alot of plumbing refit to get the temp probes in there. Shooting the outside jacket would have too many varibles to be accurate.
PontiacDad is offline   Reply With Quote
Old 03-05-2008, 01:48 PM   #170
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have seen variances on the front radiator when using it, but it'* already cooling off by the time I get the car stopped, run around, and shoot the face of the radiator.

I may be able to get some better ideas and see how well the hot water cools as it travels through the big radiator and back to the pump.
willwren is offline   Reply With Quote
