Default putting on a k & n air system to a non-supercharged 3800

i wont to put a k&n air system onto my non supercharged motor will i have to ajust any thing besides the air system like for instince the throttle body at all i dont think so but i aint the expert you guys are what do ya think?
wakefieldl is offline   Reply With Quote
Old 01-12-2006, 11:02 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No you won't. No adjustments or PCM resets are necessary. Shield it from heat and get your IAT as close to the filter as possible. Preferably in it.
willwren is offline   Reply With Quote
Old 01-12-2006, 11:09 AM   #3
Senior Member
Certified GM nut
Thread Starter

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

so i pretty much have to make it look like yours your red one the one that has the plexy glass around it [/quote]
wakefieldl is offline   Reply With Quote
Old 01-12-2006, 11:27 AM   #4
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

Quote:
Originally Posted by wakefieldl
so i pretty much have to make it look like yours your red one the one that has the plexy glass around it
[/quote]


Hey there Lucas,

I built a similar system for my 94 SE (Naturally Asperated). I used an intake pipe from Autozone (Part Number 8219), and the K&N RX-4750 filter.

You'll ned to cut about 3 inches off the end of the pipe to get it to fit comfortably, plus you'lll need to bore out the iat sensor hole inside the filter. Its really important that you put the IAT sensor in the filter and not in the pipe. Also, the support that the kit provides for the pipe is a bit flimsy and I wound up replacing it with a larger L bracket from Home Depot.

As for a heat shield (The plexiglass thing). A number of different designs were used. Personally, I made mine out of a sheet of lexan and covered it and the entire intake pipe up to the throttle body.

Hope that helps!
Mortehl is offline   Reply With Quote
Old 01-12-2006, 11:28 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

More than that really. Mine isn't totally sealed, because I have a ram-air feed from below preventing engine bay heat from reaching the filter. Without that, you want it totally sealed from the engine, open only to the back of the headlight and fender. Do not ATTACH it to those locations, as the thing moves somewhat.

Not as bad as this, but you get the idea:

http://www.williamwren.com/flex.mpg
willwren is offline   Reply With Quote
Old 01-12-2006, 12:43 PM   #6
Senior Member
Certified GM nut
Thread Starter

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

mine almost shakes that bad and i think that i am going to take three inches off the pipe and make a box of sheet metal and paint it black and only make it were it is open to the fender and the head light but make it to were it can move but i dont think mine shakes as bad as yours cause it isnt supercharged but i am going to save that media player film so i have a reminder when installing the air system then that way i wont break anything thanks willwren
wakefieldl is offline   Reply With Quote
Old 01-12-2006, 12:46 PM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

here is an idea of what to do
Name:  10-16newintake009.jpg
Views: 16
Size:  49.3 KB

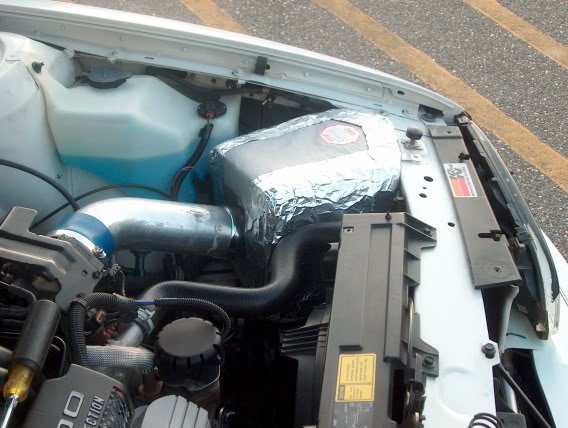

here is my insulated box
Name:  10-16newintake010.jpg
Views: 17
Size:  68.6 KB

Name:  10-16newintake011.jpg
Views: 16
Size:  58.7 KB

i also wrapped my pipe
Name:  10-16newintake014.jpg
Views: 14
Size:  50.6 KB

i insulated the pipe and box
Name:  10-16newintake017.jpg
Views: 16
Size:  49.4 KB

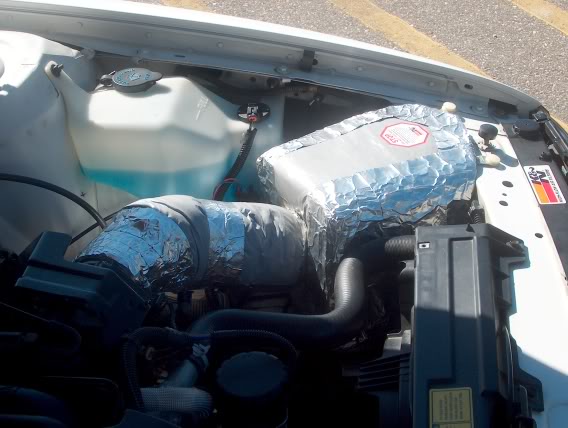

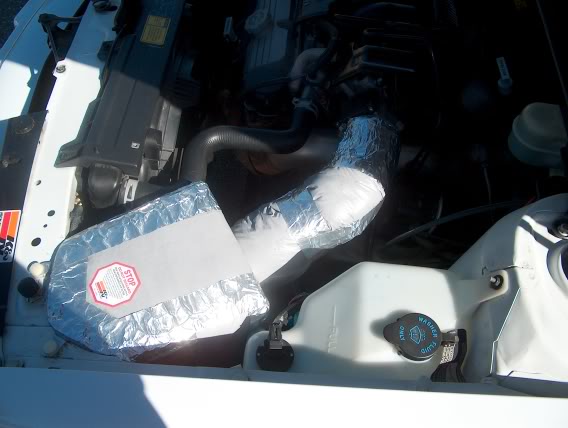

installed on car
Name:  10-16newintake018.jpg
Views: 17
Size:  61.6 KB

Name:  10-16newintake019.jpg
Views: 18
Size:  58.9 KB

Name:  10-16newintake020.jpg
Views: 17
Size:  51.2 KB

it has been said that my CAI is one of the best designs to keep out heat....and it really does....ive been nothing but pleased with this setup
1993 SLE is offline   Reply With Quote
Old 01-12-2006, 12:53 PM   #8
Senior Member
Certified GM nut
Thread Starter

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

that actually dont look that bad 1993 sle

question is yours supercharged but i would imagine that it works kid of like that pink panther stuff you use to insulate a house good job man
wakefieldl is offline   Reply With Quote
Old 01-12-2006, 12:56 PM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by wakefieldl
that actually dont look that bad 1993 sle

question is yours supercharged but i would imagine that it works kid of like that pink panther stuff you use to insulate a house good job man

i am not SC'd i have the exact same engine you do....

and yes all that insualtion really keeps out the heat
1993 SLE is offline   Reply With Quote
Old 01-12-2006, 01:00 PM   #10
Senior Member
Certified GM nut
Thread Starter

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by wakefieldl
that actually dont look that bad 1993 sle

question is yours supercharged but i would imagine that it works kid of like that pink panther stuff you use to insulate a house good job man

i am not SC'd i have the exact same engine you do....

and yes all that insualtion really keeps out the heat
so did you have to cun or modify any thing at all like

the tube or the throttle body

i dont think that u should have to modifiy the throttle body
