Default Missing a vaccum line? L32 Guys?

So all the L32 guys here, if that many at all, do you have these 2 sensors with vacuum lines running to them?

I have located one line that goes to one of the sensors (listed in imagery). The other sensor has a nipple fitting for a vacuum line, but no vacuum fitting/line present in the area. What goes to this, or is it left exposed to engine air? Trying to make this as easy as possible for you guys to help me by having good photos and marked the photos in photoshop.

History of area: When installing headers I broke off a L fitting adapter, found this part @ oreilys and replaced the fitting, but noticed in area there is a missing line

Overview of area I'm talking about:

Name:  overview1.jpg
Views: 40
Size:  38.5 KB

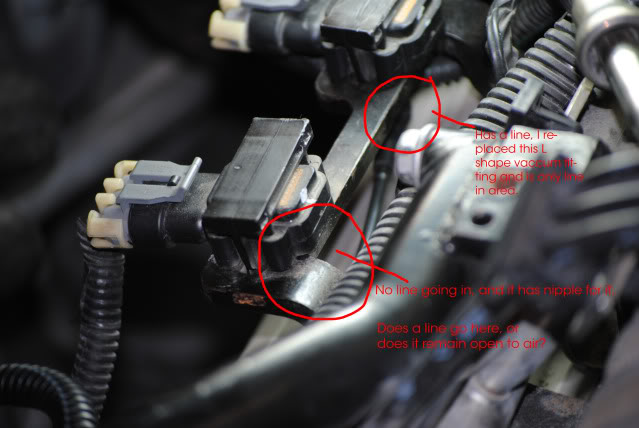

More specific view of the area:

Name:  122.jpg
Views: 115
Size:  45.0 KB

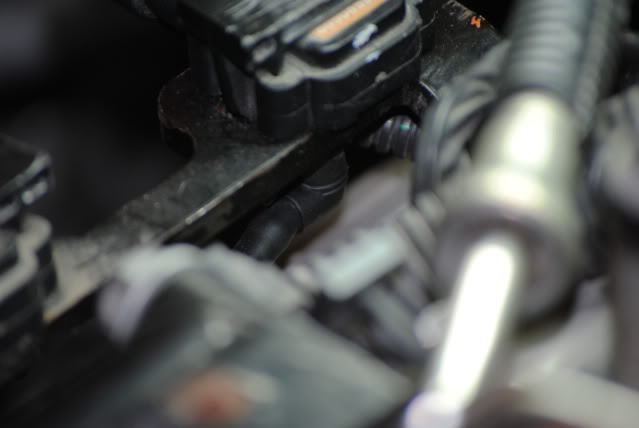

Close up on L Fitting I replaced:

Name:  Lfitting.jpg
Views: 36
Size:  23.7 KB

Close up of the sensor plug with missing vacuum fitting/line:

Name:  vacuumline.jpg
Views: 36
Size:  25.9 KB
Deathwish99 is offline   Reply With Quote
Old 01-09-2011, 08:08 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

MAP sensors. It'* fine.
Danthurs is offline   Reply With Quote
Old 01-09-2011, 01:46 PM   #3
Member
Posts like a V-Tak
Thread Starter

Deathwish99's Avatar

Join Date: Dec 2010
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
Deathwish99 is on a distinguished road
Default

Ya, apparently this is normal. It is a baro I believe.
Deathwish99 is offline   Reply With Quote
Old 01-09-2011, 02:21 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, on eis outside air pressure, the other is engine vacuum.
