i wanted to know where does the vacuum line run to on a 97 pics would be helpful
knight rider is offline   Reply With Quote
Old 12-12-2008, 03:47 AM   #2
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2008
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
knight rider is on a distinguished road
Default

The reason i was asking was because my 01 regal gs has a vacuum line running under the supercharger to fpr and to the map sensor and to the bbv. And if you take off the line there is vacuum there but on my girfriends ssei there is a vacuum line going to the fpr and to the bbv and there isnt any vacuum when you pull the line off.i just wanted to make sure everything is hooked up correctly.
knight rider is offline   Reply With Quote
Old 12-12-2008, 07:56 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The 96 & 97 B'villes 97 GP'* and 97 Regals all had a vacuum tree by the BBV on the supercharger. One of the branches heads over to the fpr, the other to the BBV or BCA for the SC'd term.

In 98 GM changed up and didn't drill the hole for the vacuum tree. From that point on they used a T under the snout into the LIM and ran line forward from the LIM.

All years had a branch going from the LIM to the map sensor(*). There is no difference in where you choose to get the vacuum on a 96-97 (LIM or vac tree). Many upgrade their chargers for ported ones and change over the vacuum lines since most vendors won't take 96-97'* as cores.

Side note: 96 was the only year of the Gen 3 M90 SC to have coating on the body. All years has a coated nosedrive.
BillBoost37 is offline   Reply With Quote
Old 12-12-2008, 10:29 AM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2008
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
knight rider is on a distinguished road
Default

this vacuum tree you are refering to is on top of the supercharger the black plastic one with the brake booster hose is the only one there. and on a 97 is there supposed to be vacuum at the fpr line at idle?
knight rider is offline   Reply With Quote
Old 12-12-2008, 10:31 AM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You should be able to see most of the vac lines here. This is on a 97.

Name:  P9060029.jpg
Views: 15
Size:  125.0 KB
Danthurs is offline   Reply With Quote
Old 12-12-2008, 10:43 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2008
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
knight rider is on a distinguished road
Default

well i see a problem my supercharger doesnt have that vacuum tree on the side and my car is a 97.
knight rider is offline   Reply With Quote
Old 12-12-2008, 10:52 AM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Are you saying there'* not even a spot for it, or it the tree missing?
Danthurs is offline   Reply With Quote
Old 12-12-2008, 11:13 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2008
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
knight rider is on a distinguished road
Default

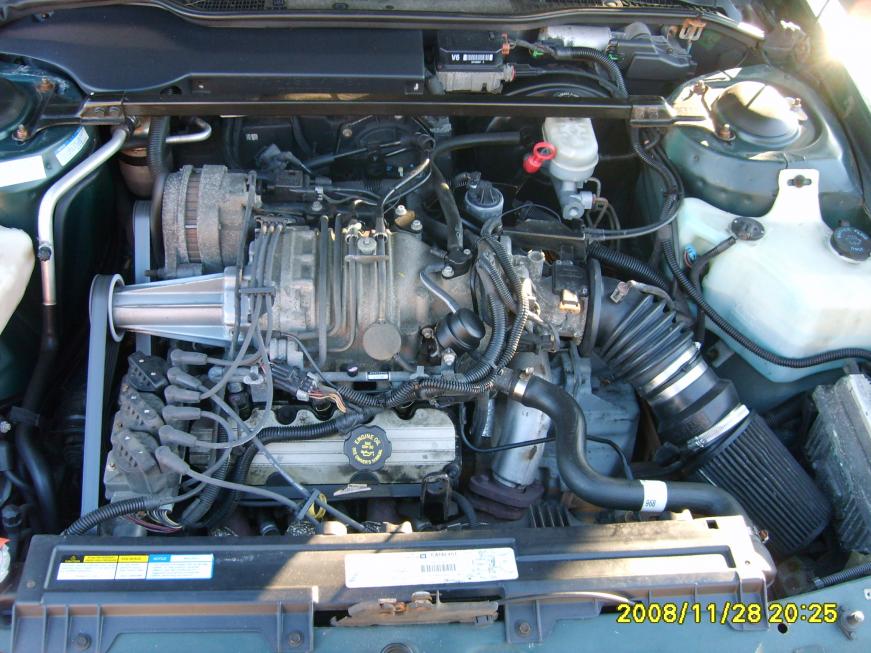

see if these pics help
Attached Thumbnails
97 ssei fpr vaccum line routing-tiffany-bonnie-003.jpg   97 ssei fpr vaccum line routing-tiffany-bonnie-004.jpg   97 ssei fpr vaccum line routing-tiffany-pic-003.jpg   97 ssei fpr vaccum line routing-tiffany-pic-002.jpg   97 ssei fpr vaccum line routing-tiffany-pic-001.jpg

knight rider is offline   Reply With Quote
Old 12-12-2008, 01:23 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ya, that does look different. I'll wait for Bill to take a look.
Danthurs is offline   Reply With Quote
Old 12-12-2008, 02:42 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Look at your production date. Maybe it was a very late 97 and they were ran out of the 97 chargers with trees.

In most peoples opinions you have the better design. Your vacuum for fpr and bcs comes from a T
BillBoost37 is offline   Reply With Quote
