Default Intense FWI

So i was lookin at the FWI'* offered by intense and the one for 98-03 cars is 179.99 which is about $80 more expensive then all the other applications, so i added all the stuff up
1. 3 ft of intake tubing about $36
2. 9" K n N Cone Filter $45
3. PCM Tray $16.99

All adds up to be a little under $100
not added in the cost would be the coupler and the ring tightner things
but i dont understand why they would be an extra $80??
94bonni is offline   Reply With Quote
Old 03-19-2007, 10:19 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

the coupler and the clamps are top notch....also the coupler has a specific hole for the IAT....its worth it
1993 SLE is offline   Reply With Quote
Old 03-19-2007, 10:21 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Central Illinois
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
94bonni is on a distinguished road
Default

yeah i really want to get one its just 180 is alot
94bonni is offline   Reply With Quote
Old 03-19-2007, 10:26 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

you can also relocate the IAT (i'm in the process of figuring out a way to do that/where I want it)...i can sell you the reinforced silicone coupler with IAT hole for cheap....
Hans is offline   Reply With Quote
Old 03-19-2007, 10:30 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Central Illinois
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
94bonni is on a distinguished road
Default

how cheap....
94bonni is offline   Reply With Quote
Old 03-19-2007, 11:22 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

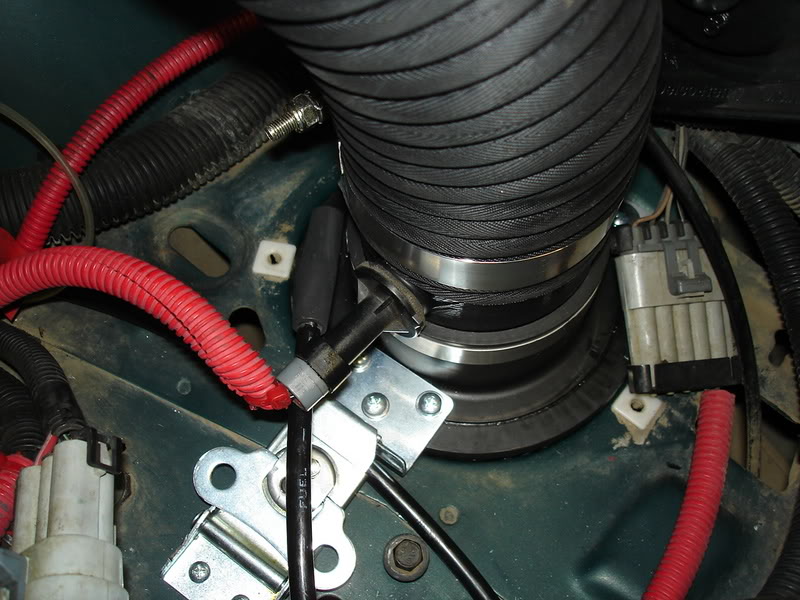

Get an extension harness and relocate the IAT to the filter or directly above it:

Name:  fwi1.jpg
Views: 0
Size:  94.1 KB

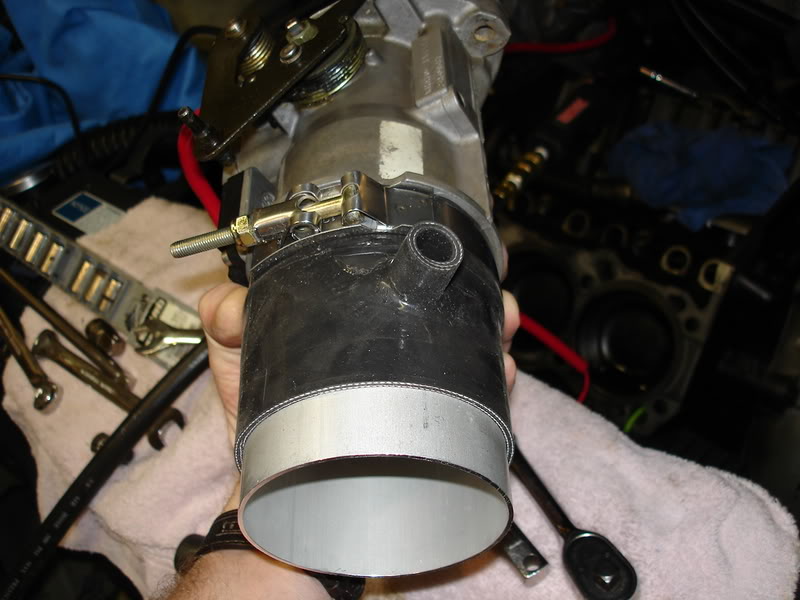

Not here:

Name:  fwi3.jpg
Views: 0
Size:  68.8 KB

I found 2 FWI'* at WCBF that had the IAT sensor body heatsoaked on a VERY hot day. Granted this is an extreme case, but the best bet is to go UPstream.
willwren is offline   Reply With Quote
Old 03-20-2007, 08:56 AM   #7
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by willwren
Granted this is an extreme case, but the best bet is to go UPstream.
wouldn't this only result in false readings. the IAT should be in the same location as the stock tubing, it is meant to measure air going into the engine, not into the airbox. All you are doing by moving it to the filter is forcing a slightly richer mixture. you might as well toss a resistor in parallel or series (whichever would be appropriate in this situation) to slightly lower the temp readings.


and yes, the t-bolt clamps and that coupler are not cheap parts
toastedoats is offline   Reply With Quote
Old 03-20-2007, 09:07 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

In the S1'* the sensor was in the airbox and therefore 92-95 I can see where this makes sense. For the 96-99'* however.. the pcm is programmed to expect the heatsoaked temps.

Overall..I doublt there'* much of a difference in either position.
BillBoost37 is offline   Reply With Quote
Old 03-20-2007, 09:17 AM   #9
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Overall..I doublt there'* much of a difference in either position.
i agree that there likely is no more than a minuscule difference in temps at the different locations, i just think that it is failed logic to move it to the filter area
toastedoats is offline   Reply With Quote
Old 03-20-2007, 09:20 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm not so sure I'd call it failed logic. In WillWren'* case it makes sense ... he'* keeping it in an area similar to stock. Therefore the PCM/ECU is seeing things as expected. With the lack of tuning ability on the S1'* and the restriction of no tuning or programming easily or quickly attainable.. it'* about the best that can be done.
BillBoost37 is offline   Reply With Quote
