Unhappy fwi intake issues

Been fighting this for about a month now and getting tired of it, I got the intake from sawgunner, installed it and am having major issues. For some reason he car is cutting timing big time on wot with the intake, the tranny shifts odd sometimes and it will even flash the ses at me if I keep trying to push it. We hooked a scanner to it and ran it without the intake and got 20-23 degrees timing at wit with the intake we got 8-10 degrees. I have no idea what the problem could be but it has something to do with the intake, I had no issues before installing it


Thoughts???
swampthing is offline   Reply With Quote
Old 04-05-2011, 12:49 AM   #2
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

you keep your maf screen in. how about the intake temp.
Nighthwk12 is offline   Reply With Quote
Old 04-05-2011, 08:32 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Intake shouldn't do that.. it'* very odd. The flashing SES is likely a serious misfire...which shouldn't be intake related unless there'* a different maf that you aren't programmed for etc.
BillBoost37 is offline   Reply With Quote
Old 04-05-2011, 09:00 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Actually the intake can effect timing. Check the intake air temp sensor. Timing is effected by a combination of MAF, MAP, TPS, IAT, and ECT
Danthurs is offline   Reply With Quote
Old 07-14-2011, 01:07 AM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

swampthing's Avatar

Join Date: May 2008
Location: Homosassa, Florida (yes it says Homo)
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
swampthing is on a distinguished road
Default

some of you may already know about my issues (not the mental ones) with the car as it sets, but for those that don't here goes

I bought sawgunners FWI and installed along with a new o2 a few months ago. since then my mileage has went to crap and the car hiccups and stutters on hard acceleration. I have removed and reinstalled the FWI several times and cleaned the MAF and filter several times as well. the intake shouldn't be causing these issues but it is.

I have also changed the spark plugs, fuel filter and reset the computer (disconnect the battery for 30 mins, all to no avail

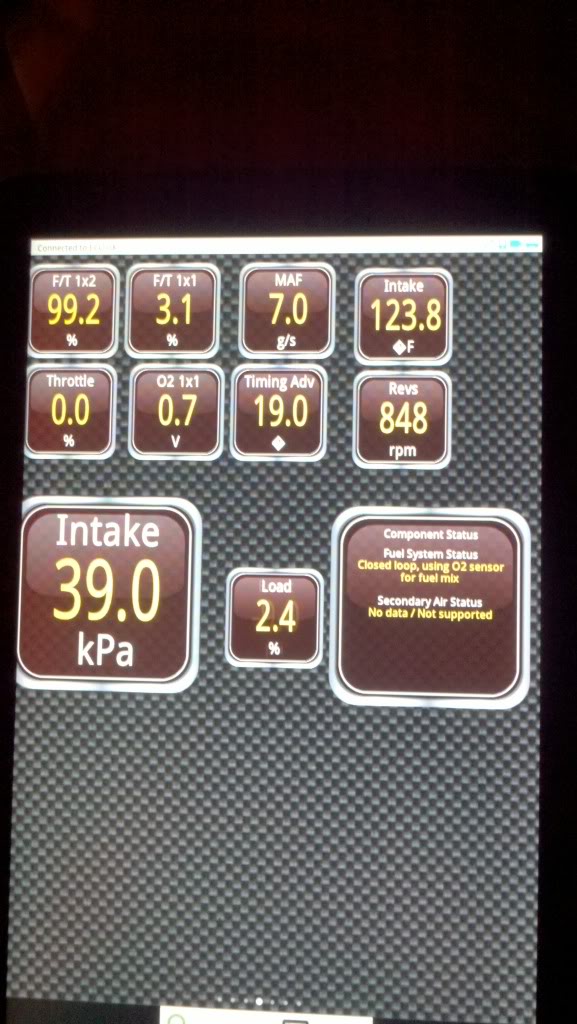

I now have torque on my tablet and a way to scan so here'* the first result from scanning the car tonight. torque offers data logging but so far I have not been able to get it to export in a format that makes any legible sense so I just took a picture of what it was reporting

Name:  2011-07-13_23-40-23_0.jpg
Views: 2
Size:  102.3 KB

this is what I can monitor with my current software. here is what it lists them as hopefully these numbers make sense to somebody
Fuel trim bank 1 sensor 2...Fuel Trim bank 1 sensor 1...MAF...Intake Temp

Throttle...o2...Timing advance...RPM'*

Intake Pressure...Engine Load...Fuel/Air status

the picture above was the car having ran for about 20 minutes in park a/c on and ambient temperature of 81 degrees, one logged fault which was P0440 evap system. one thing I noticed is that the intake temps seem to be rising rather quick, is this normal?
swampthing is offline   Reply With Quote
Old 07-14-2011, 01:25 AM   #6
-= Site Promoter =-
Posts like a Camaro

94cutlassvert's Avatar

Join Date: May 2010
Location: mesa az
Posts: 1,153
Thanked 0 Times in 0 Posts
94cutlassvert is on a distinguished road
Default

mine did that when i put an intake in the ga took it out and all was fine. im interested to see what you find as i want that sound back
94cutlassvert is offline   Reply With Quote
Old 07-14-2011, 01:31 AM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

swampthing's Avatar

Join Date: May 2008
Location: Homosassa, Florida (yes it says Homo)
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
swampthing is on a distinguished road
Default

its been driving me nuts, I wish I lived close to somebody that knew about these things. usually I can troubleshoot a problem but there are so many variables with this one that I am pretty much stumped
swampthing is offline   Reply With Quote
Old 07-14-2011, 08:49 AM   #8
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Have you scanned for DTC'*? The misfire will be throwing a code, and we need to know if it is on one cylinder, or multiple. Common sense says when you change something and problems start, whatever you changed caused the problem, but we can't rule out the possibility there is something unrelated to the CAI.

If you can't track this down, the simplest solution would be to reverse the intake installation and put back what you had on before. If the problem goes away, we can focus on why the intake would cause it. If the problem doesn't go away, there is something else going on.

It also may be as simple as you disturbed an electrical or vacuum connection while doing the install. Check everything.
2kg4u is offline   Reply With Quote
Old 07-14-2011, 09:49 AM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

swampthing's Avatar

Join Date: May 2008
Location: Homosassa, Florida (yes it says Homo)
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
swampthing is on a distinguished road
Default

No codes besides p0440 which is evap related. I haven't gotten the light to flash in a while but it still stutters and acts odd, but its not consistent
swampthing is offline   Reply With Quote
Old 07-14-2011, 10:04 AM   #10
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

A code would help us understand if it is a single cylinder misfire, or multiple. Go over all your connections (electrical and vacuum) that you might have disturbed when installing the CAI and look for something out of place. If you don't find anything, I would reverse the CAI installation and see if the problem goes away.
