Got a long ways to go on these but thought I would post what little I have done and describe what I'm planning.

I had planned to use that other set of rails but the stand offs are a different length, so I left them alone and will modify only the old set of L67s.

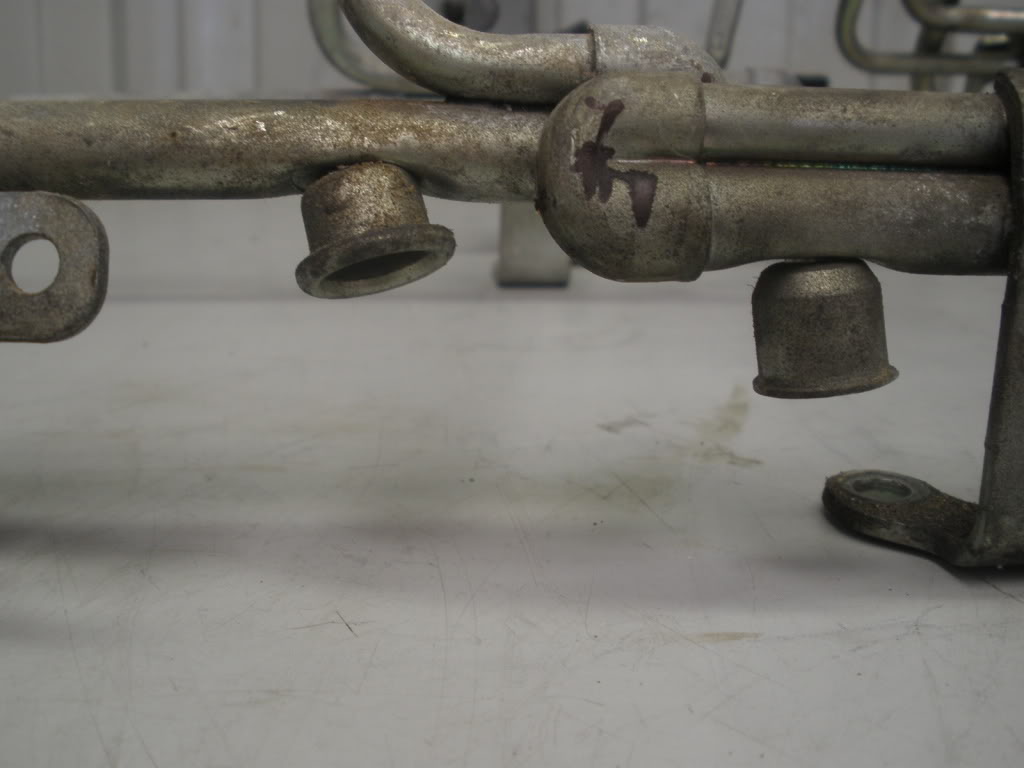

Name:  P4150015.jpg
Views: 0
Size:  66.8 KB

First I just cut the rails free of the cross over lines.
Name:  P4150016.jpg
Views: 2
Size:  93.0 KB

Tried using a dremmal but the cut off wheels kept braking so I went with my big disk cutter.
Name:  P4150017.jpg
Views: 0
Size:  112.2 KB

I cut a little above the weld so I don't think the fuel line. After I cut threw the first side I pulled it open with a channel locks.
Name:  P4150018.jpg
Views: 1
Size:  97.0 KB

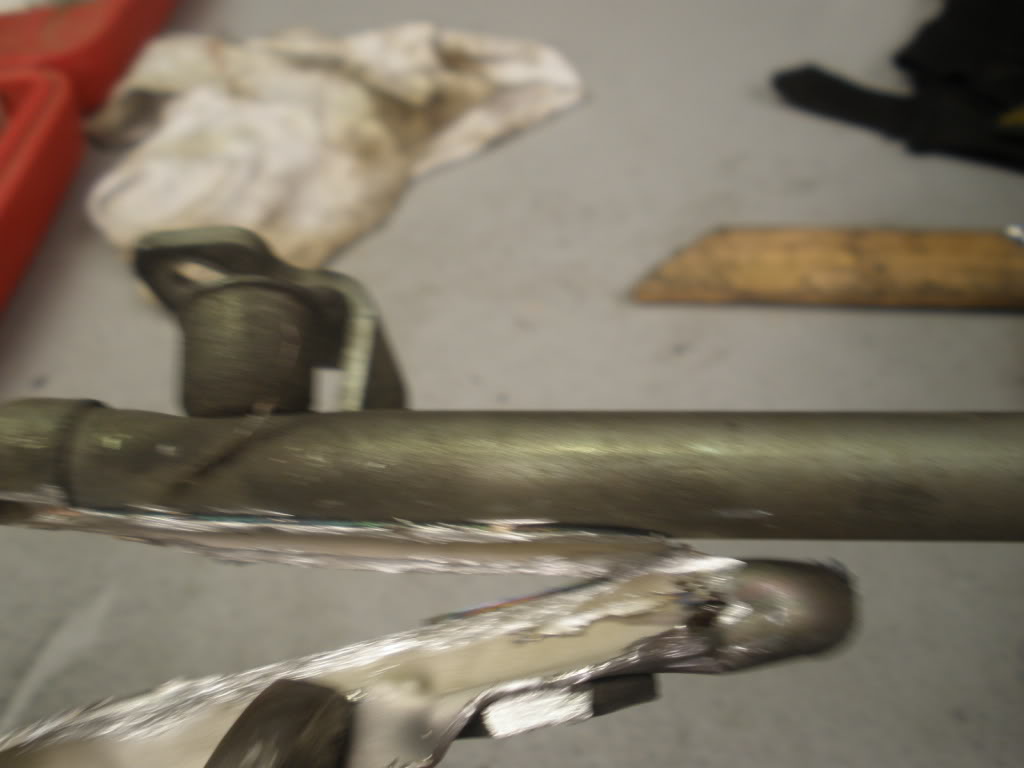

Then cut the other side and broke it off.


Name:  P4150020.jpg
Views: 1
Size:  59.6 KB

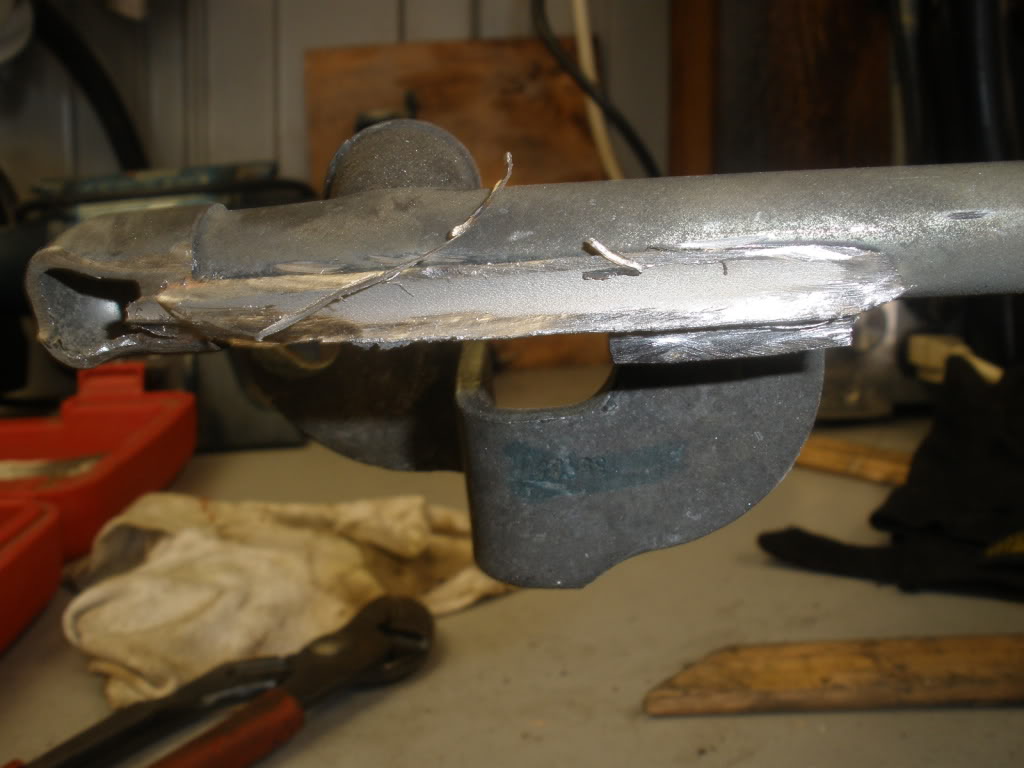

This left a rough cut.
Name:  P4150021.jpg
Views: 1
Size:  89.7 KB

Then started cleaning it up.

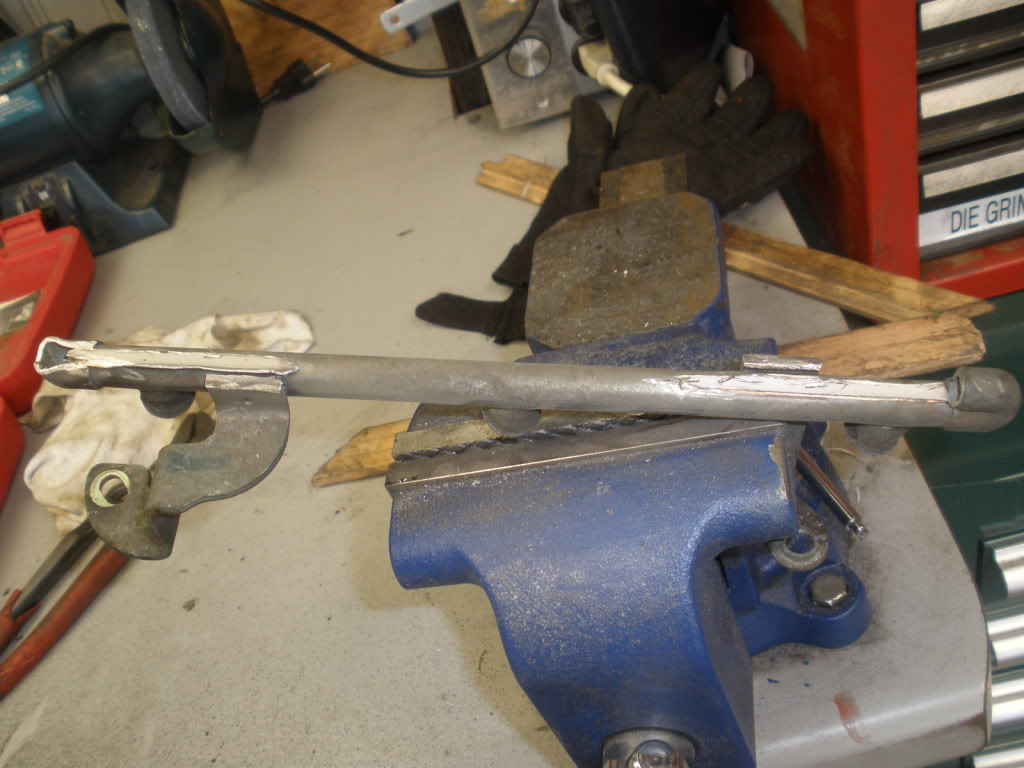

Name:  P4150022.jpg
Views: 1
Size:  107.5 KB

Don't care if they are perfect at this point. Just getting started.


Got started on the front rails. Taking a brake now.
Name:  P4150024.jpg
Views: 0
Size:  120.9 KB

My plan is to cover the remaining stock rails with a aluminum cover. Something I can pop on top, perhaps hold in place with JB weld. Just to make it look good. I'll get some threaded ends brazed on the rails to attach flexible fuel hose. The FPR will be mounted on the rails some where. Should make a easy cheep build.
Danthurs is offline   Reply With Quote
Old 04-15-2009, 04:02 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Looks like you are making progress. The modification sounds like a great idea and I'm looking forward to watching the progress.
Purplehazeir is offline   Reply With Quote
Old 04-15-2009, 04:27 PM   #3
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Dan is that the rail I gave you or is that the other one you had?
Toddster is offline   Reply With Quote
Old 04-15-2009, 05:25 PM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Your old rails are on my car Todd. Those are the rail I took off. The set you gave me wont work right. There are differences I don't feel like working threw. But I still might be able to do something with them.

I was able to get a bit more work done before the kids got home from school.

I was able to get the other rail all cut away and then I put together a mock up of the top of the engine. Still need to make some 1" spacers to lift up the supercharger to compensate for the IC core.

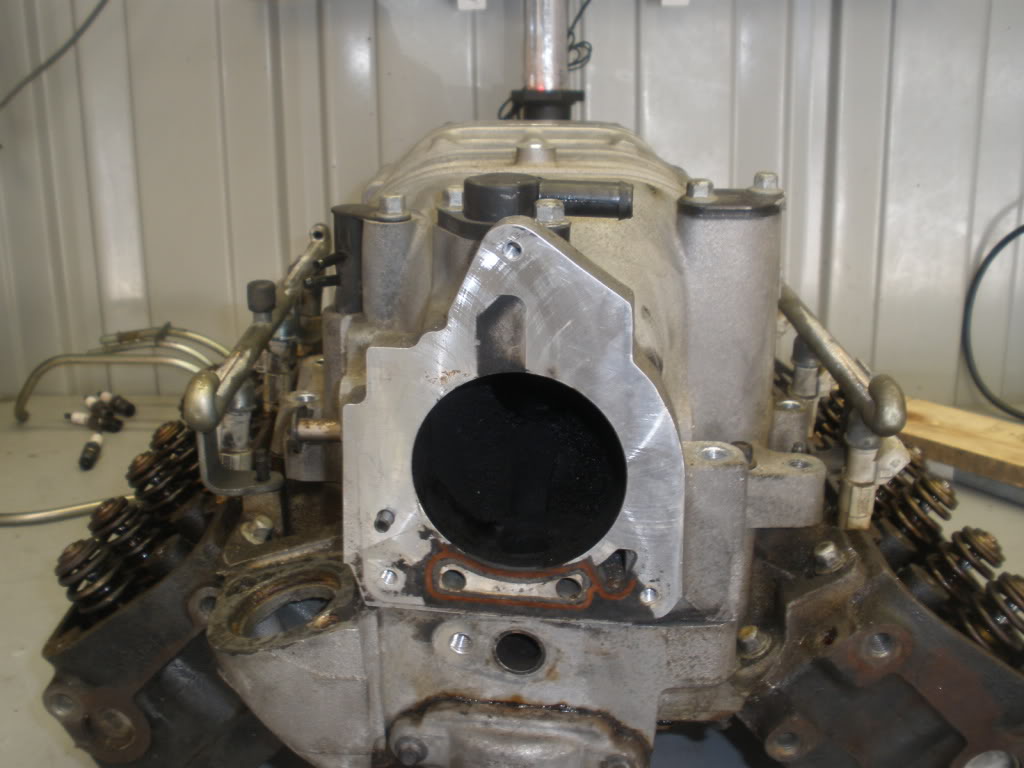

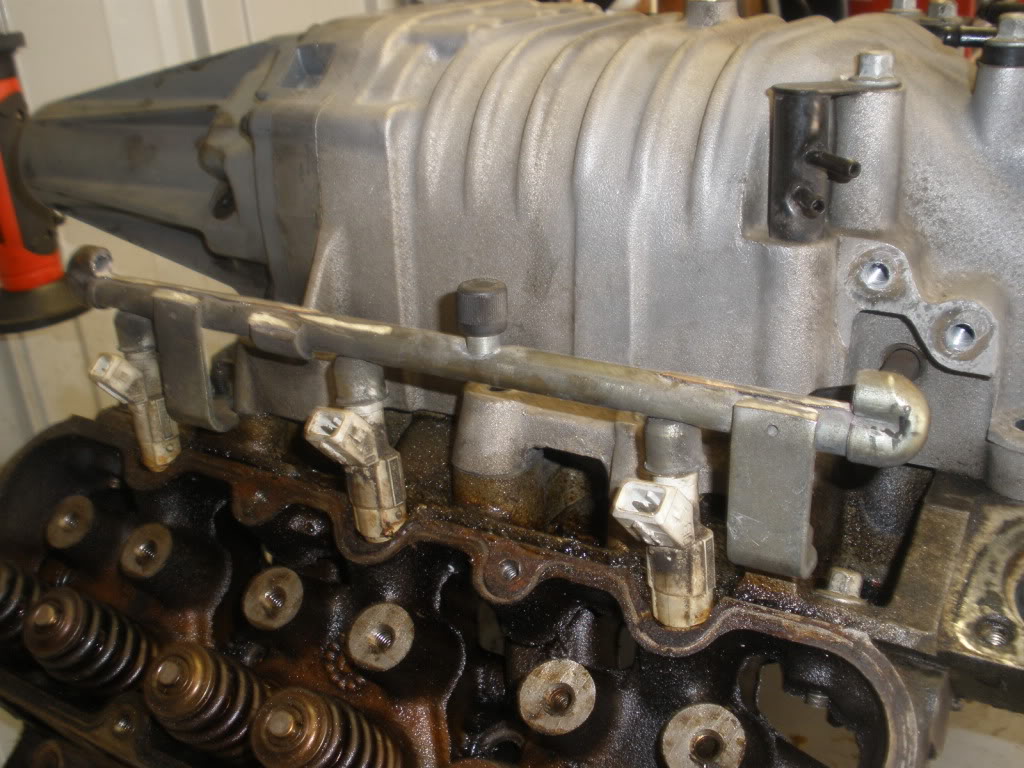

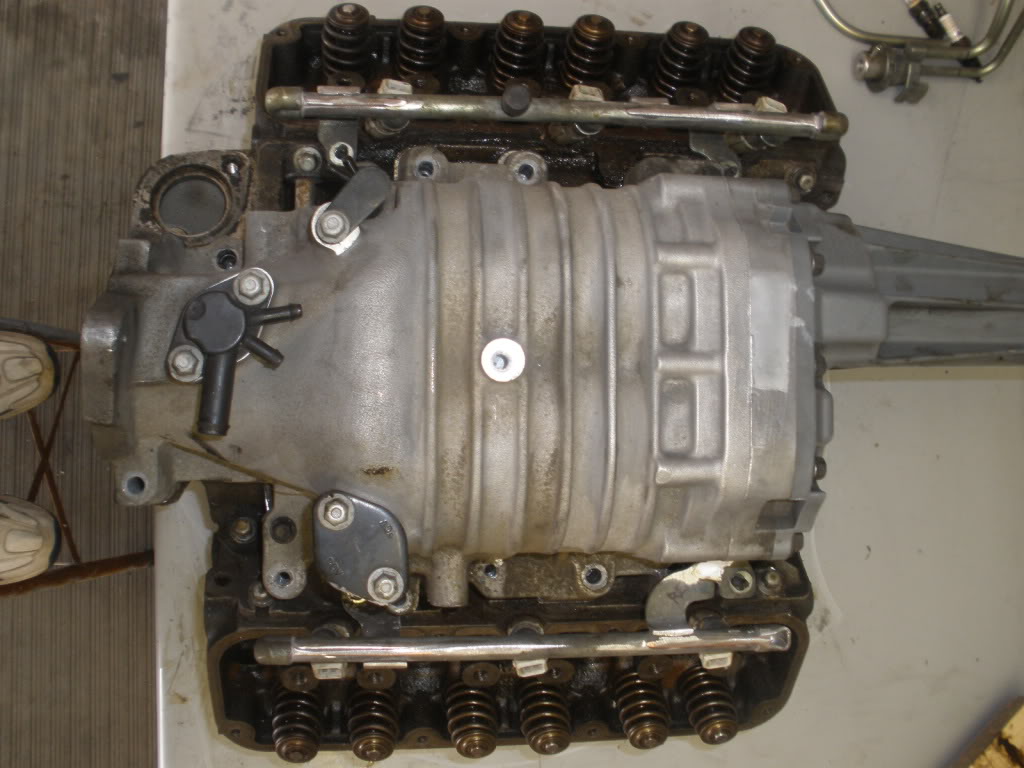

Name:  P4150001.jpg
