Default LIM gasket failure

As many of you know, I don't fall in to the DEX killed my gaskets. But I looked at everything I have here with a very open mind. I will give all the data I have here and let'* see if this helps us get closer to a answer.

My engine had DEX in it up to 92,200 miles. I know this to be fact as I removed it and I keep good records. The last just over 10,000 miles is on Peak coolant. I switched because I like the green and it'* easier to see.

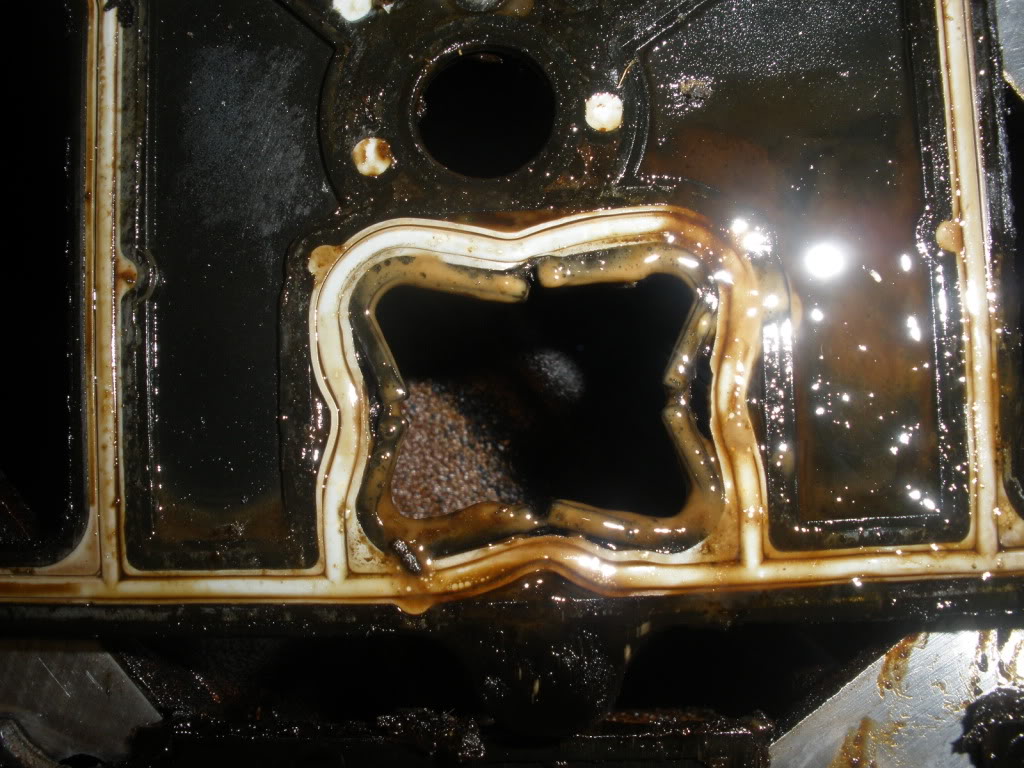

I looked at my gaskets real close, and they were failing. As you can see in this picture there was some foam but it looks like there was very little mixing of the coolant and oil.
Name:  P4090010.jpg
Views: 5
Size:  164.4 KB

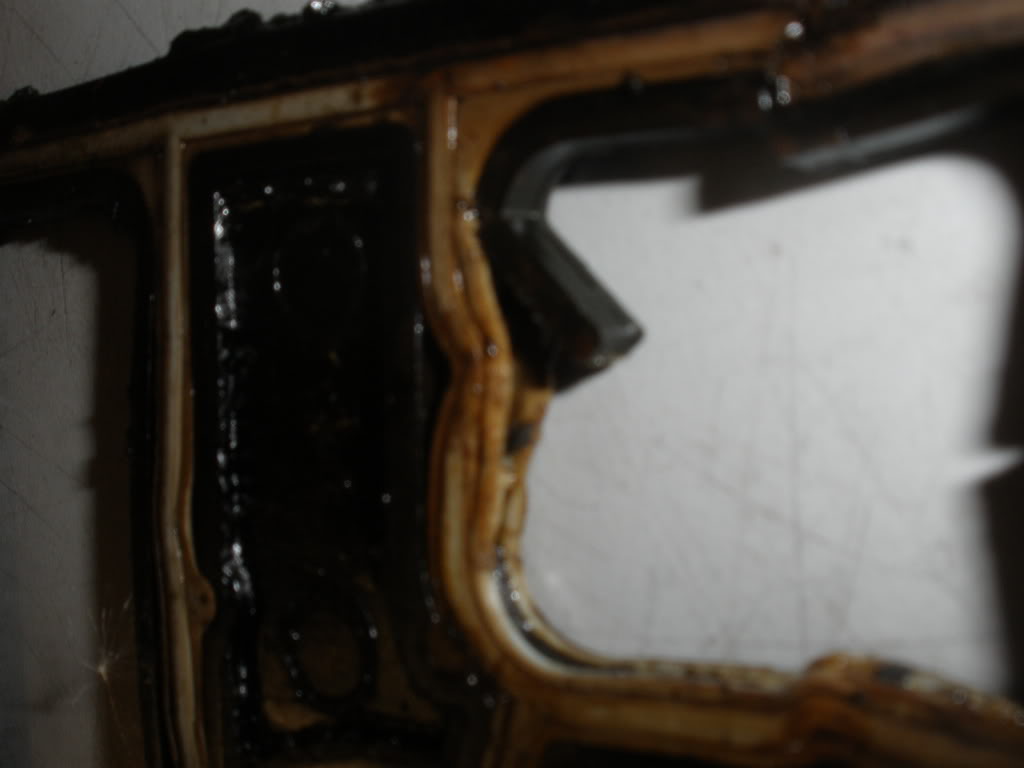

Looking closer one part fell off with very little pressure.
Name:  P4150005.jpg
Views: 5
Size:  50.7 KB

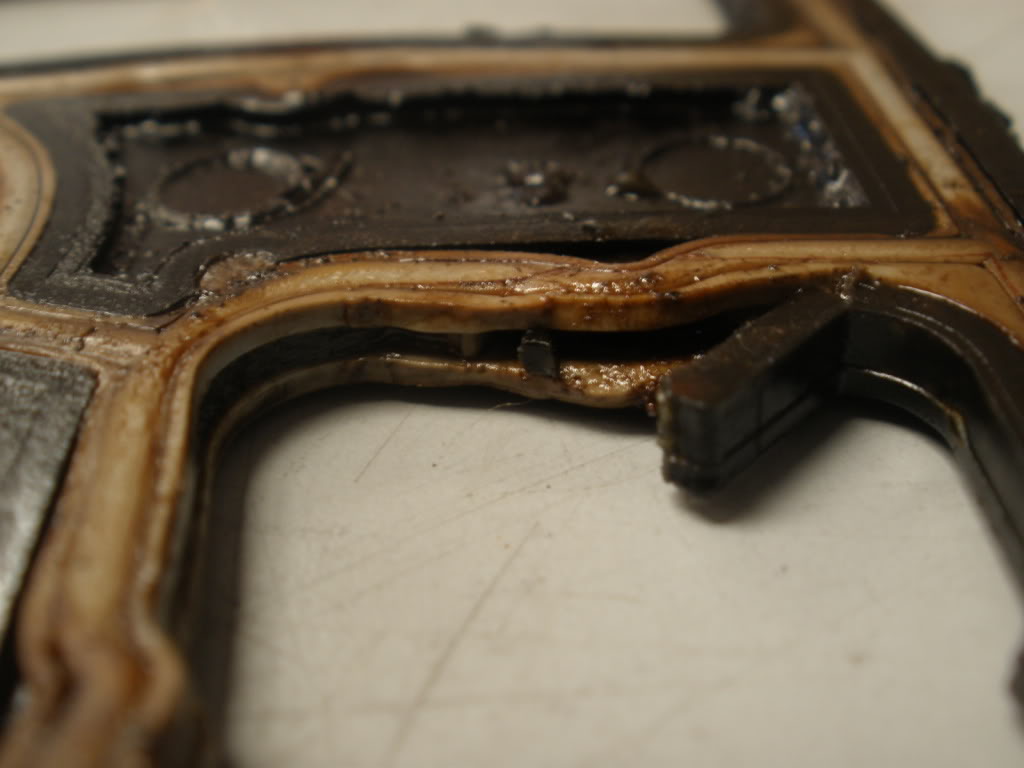

As you can see the design of the gasket gets very thin in the area it broke. This was done to provide room for the different gasket material.
Name:  P4150006.jpg
Views: 6
Size:  67.3 KB

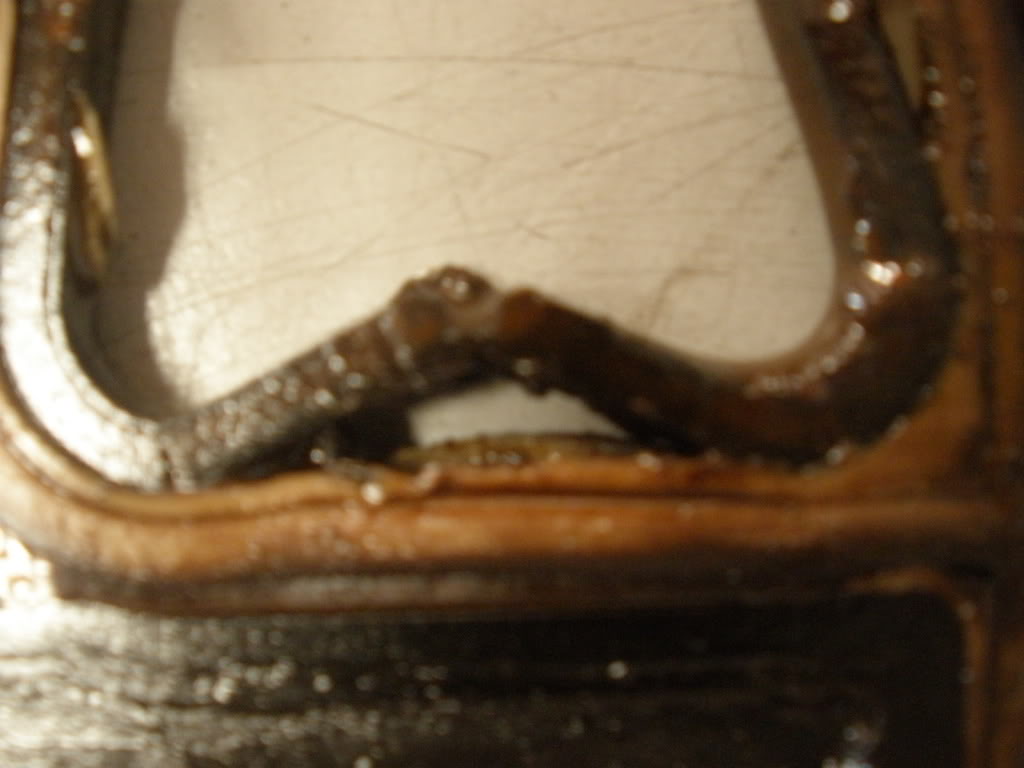

Another view of a different area. This plastic is rigid just like a new gasket and does not appear to be softened in any way, it'* contact point to the rest of the gasket simple broke away.
Name:  P4150008.jpg
Views: 7
Size:  65.7 KB

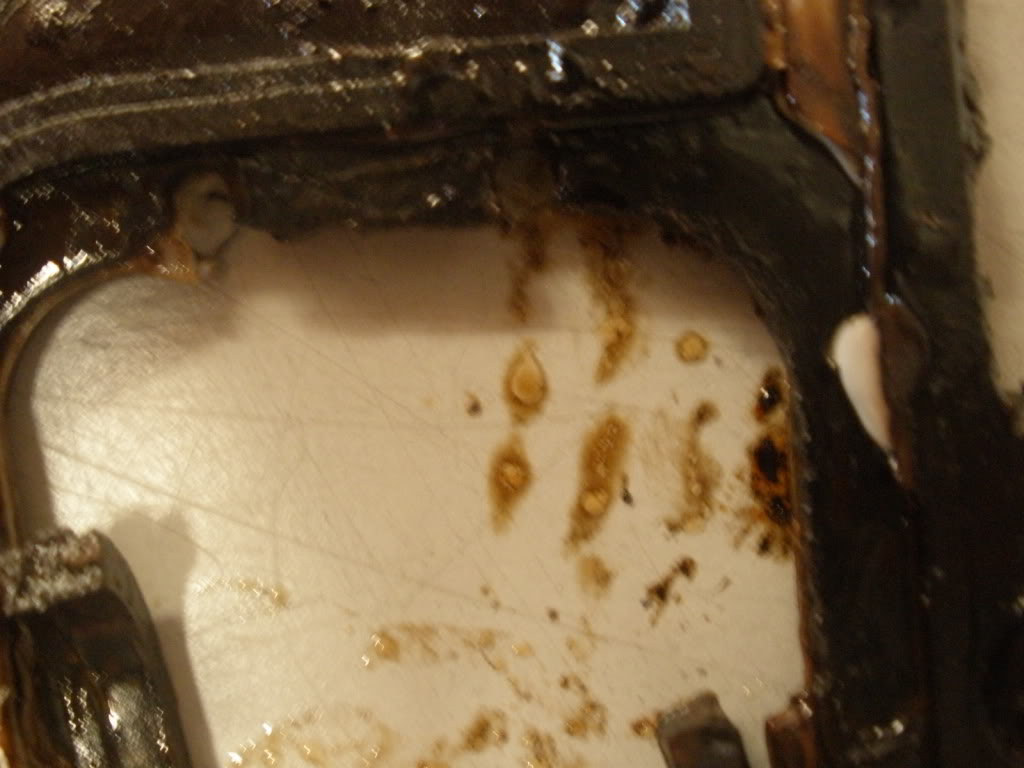

Here I have removed the rubberized part of the gasket to expose the under side. You can clearly see there are small holes to allow the rubberized gasket to be held in place. This further weakens the support.
Name:  P4150010.jpg
Views: 5
Size:  82.3 KB

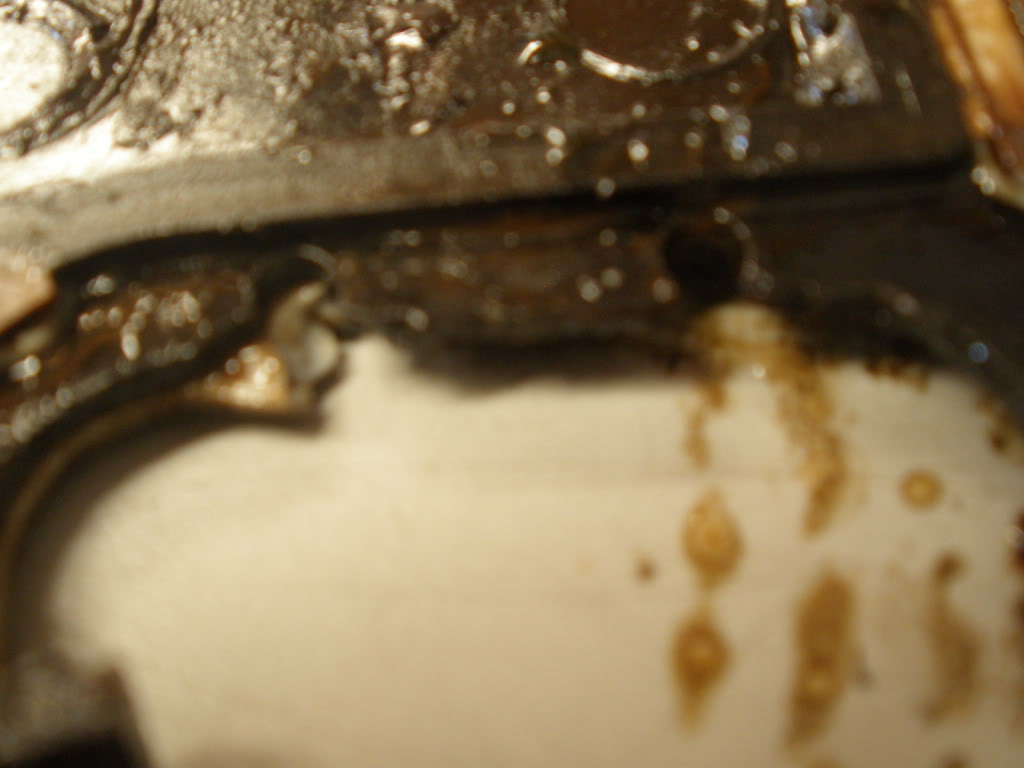

Another angle showing how the inner part of the hard gasket material broke away.
Name:  P4150011.jpg
Views: 3
Size:  65.4 KB

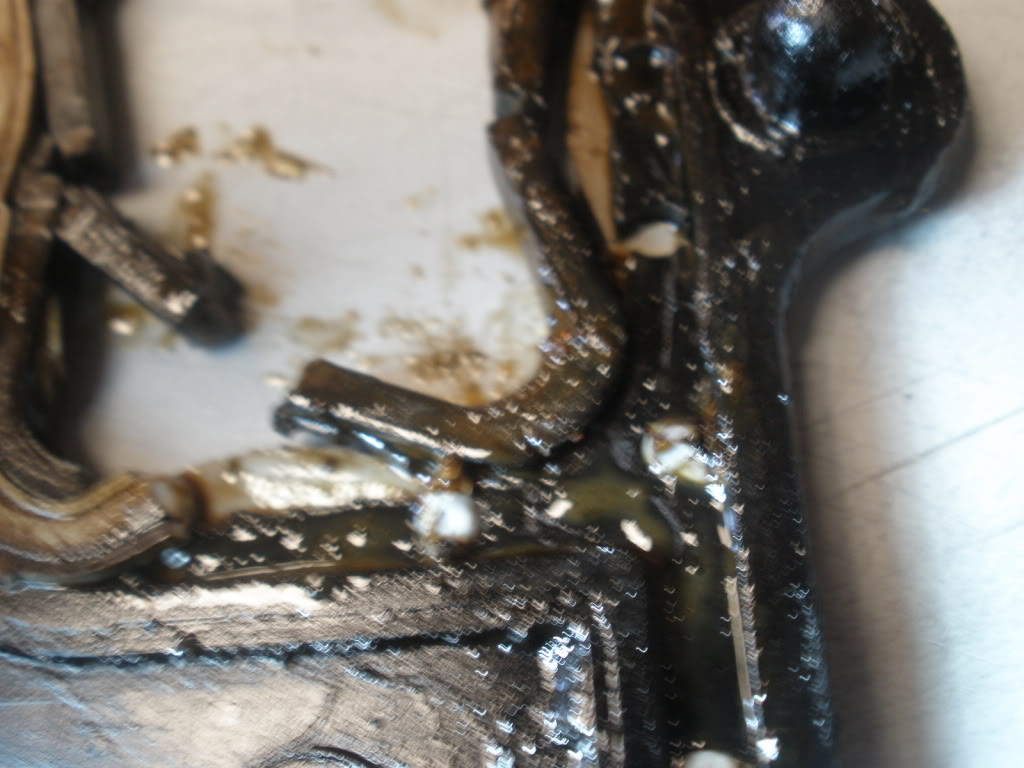

Here I was able to remove the rubberized part without breaking away the plastic part. From the looks of all the coolant jacket openings. The flat area is broken and pulled in and the corners still hold.
Name:  P4150013.jpg
Views: 6
Size:  103.7 KB

The rubberized part of the gasket can then move along it'* base reducing the sealing area and allowing coolant to leak from underneath. I see no softening of the gasket what so ever. I clearly see a total failure of the gaskets base. Gasket failures are the result of poor gasket design, not the coolant it'* self.
Danthurs is offline   Reply With Quote
Old 04-15-2009, 02:06 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Your first picture shows how it broke at all the relief areas. From there it'* my guess that it spreads.

Gotta ask yourself..did coolant make the gasket expand and crack at the expansion area that'* built into it? I'd doubt it. Probably more heat or pressure related.
BillBoost37 is offline   Reply With Quote
Old 04-15-2009, 02:43 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Totally agree with you Bill. The centers broke and allowed the rubber to slide and then loose contact. The seal is lost and coolant can seep past.
Danthurs is offline   Reply With Quote
Old 04-15-2009, 06:05 PM   #4
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: orlando fl
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
BADBUICK is on a distinguished road
Default

did this just happen are these from the meet a few weeks ago?
BADBUICK is offline   Reply With Quote
Old 04-15-2009, 06:12 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That'* the gaskets I pulled from my car last week. 102k miles. Stock gaskets are known to fail and should be replaced with new aluminum framed gaskets.
Danthurs is offline   Reply With Quote
Old 04-15-2009, 06:38 PM   #6
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: orlando fl
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
BADBUICK is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
That'* the gaskets I pulled from my car last week. 102k miles. Stock gaskets are known to fail and should be replaced with new aluminum framed gaskets.
got ya thats in the plans for me as well when i do the lower port
BADBUICK is offline   Reply With Quote
Old 04-15-2009, 06:44 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* good piece of mind. And really not that hard to do.
Danthurs is offline   Reply With Quote
Old 04-16-2009, 12:56 AM   #8
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

i think that it could be a combo of poor gasket design and the dex cool, but who knows. from everything i've herd and seen i think that dexcool is a load of crap.
judgemikdredd is offline   Reply With Quote
Old 04-16-2009, 08:14 AM   #9
Senior Member
Posts like a Turbo

Y2KSTARSHIP's Avatar

Join Date: Feb 2009
Location: Belgium, Wisconsin
Posts: 204
Thanks: 0
Thanked 0 Times in 0 Posts
Y2KSTARSHIP is on a distinguished road
Default

Who produces/distributes the afore mentioned aluminum-framed gaskets? The more I hear, and the more I see, I'd just as soon get mine changed as a preventative maintaince before things turn ugly. I have had issues with Dex-cool seeping into an engine and causing the rod bearing to fail, so I personally will be switching to the green coolant after the LIM job. Just my opinion....
Y2KSTARSHIP is offline   Reply With Quote
Old 04-16-2009, 09:14 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Aluminum gaskets are currently dealer only parts. Intense and ZZP have better prices than the dealer typically.
BillBoost37 is offline   Reply With Quote
