Pretty annoying not to have homelink the the daily driver. It'* in everything else, even though they didn't come with it. I happen to have a few Homelink'* laying around. Tested this one up and it worked great on the bench. Headed out to the Regal. Using GM'* manual to remove the visors was unsuccessful. All this meant was that I'd improvise a bit more.

Pulled the visor center clips down and inspected the wiring of the mirror for a battery voltage and ground.
Name:  IMG_5037.jpg
Views: 1
Size:  53.5 KB

Name:  IMG_5038.jpg
Views: 1
Size:  43.0 KB

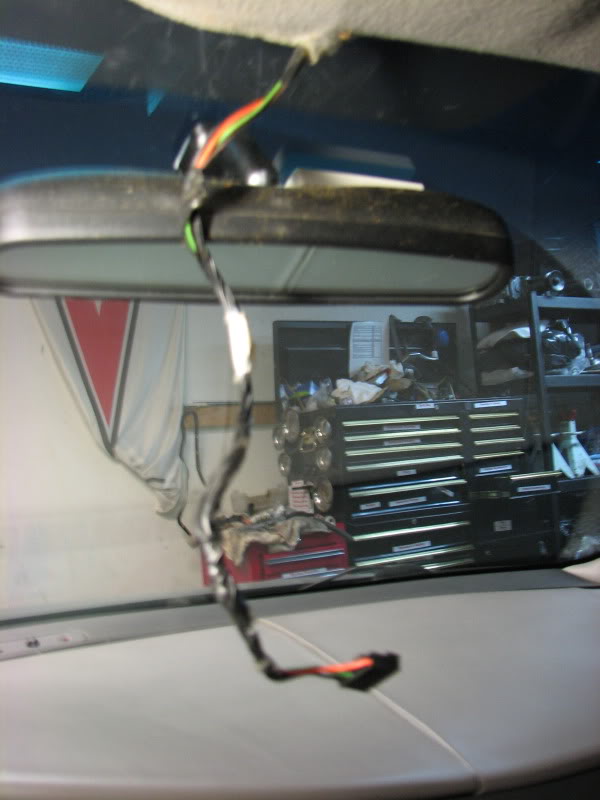

Successfully tested the Homelink by pushing the wires into the mirror connector. Homelink didn't stay in the connector for the pic.
Name:  IMG_5039.jpg
Views: 1
Size:  59.5 KB

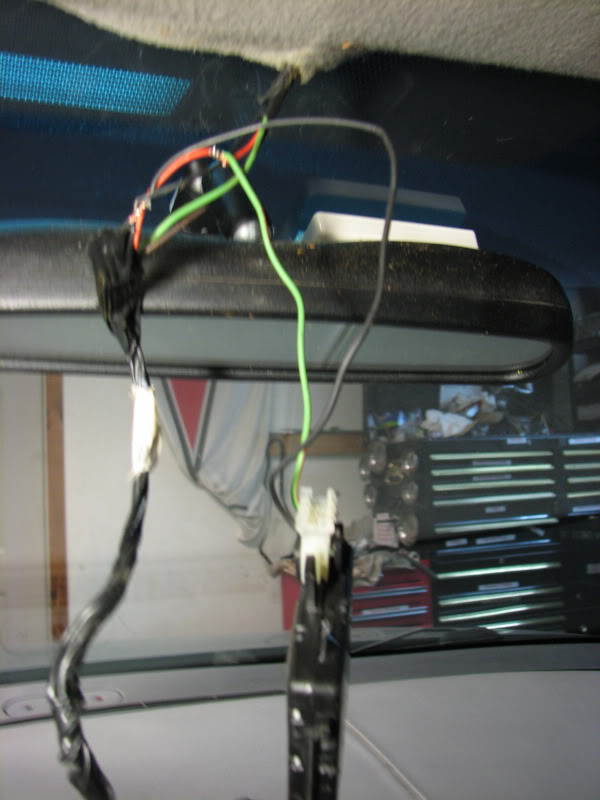

Stripped back the orange (12+ battery) and black (ground) then twisted the wires of the Homelink to the wiring harness of the mirror.
Name:  IMG_5040.jpg
Views: 1
Size:  62.4 KB

Always solder and tape connections, then there won't be an issue. Heatshrink whenever possible.
Name:  IMG_5041.jpg
Views: 1
Size:  65.3 KB

Grew a huge set, reached up and cut/pulled the backing of the headliner out of a section big enough for the Homelink.
Name:  IMG_5044.jpg
Views: 1
Size:  60.7 KB

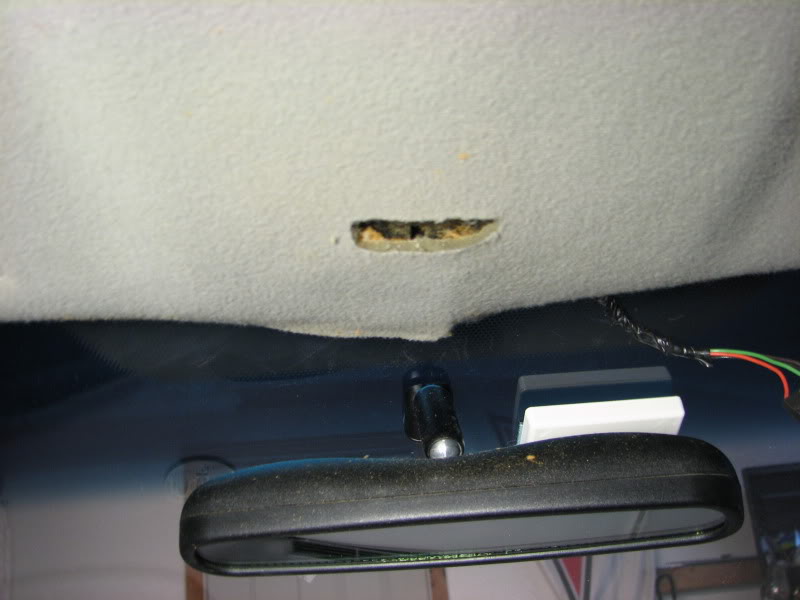

Grew an even bigger set and cut into the headliner where I believed the buttons should go. Doing all this w/o measuing or any reference point was a bit risky.
Name:  IMG_5042.jpg
Views: 1
Size:  53.6 KB

Clipped the buttons and face place back onto the module, only to find out I put the Homelink in the same place GM puts the sunroof button on a Regal....slightly closer to the driver.
Name:  IMG_5043.jpg
Views: 1
Size:  54.2 KB

Retested with success

Total time was 30 minutes.
BillBoost37 is offline   Reply With Quote
Old 01-13-2010, 09:53 PM   #2
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

See I'd do that but my next mod would be to create a garage
Nighthwk12 is offline   Reply With Quote
Old 01-14-2010, 12:52 AM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I need to get one of those. I have my door opener on my key chain, and I'm always closing the door be mistake.
Danthurs is offline   Reply With Quote
Old 01-14-2010, 12:57 AM   #4
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks stock nice job like it was always there!!
sawgunner is offline   Reply With Quote
Old 01-14-2010, 08:09 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

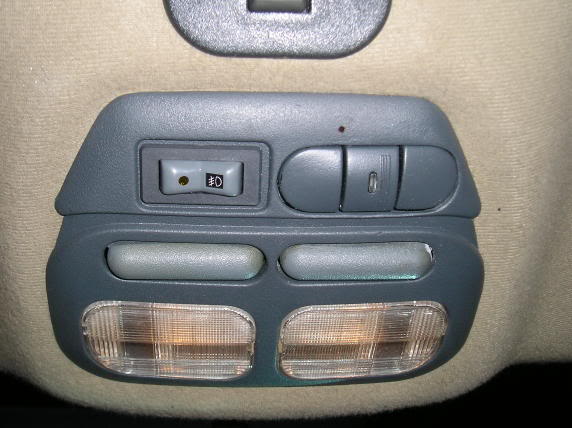

On the Bonneville, this was my first attempt. It worked..but it didn't match the interior well.
Name:  p1010730.jpg
Views: 1
Size:  40.9 KB

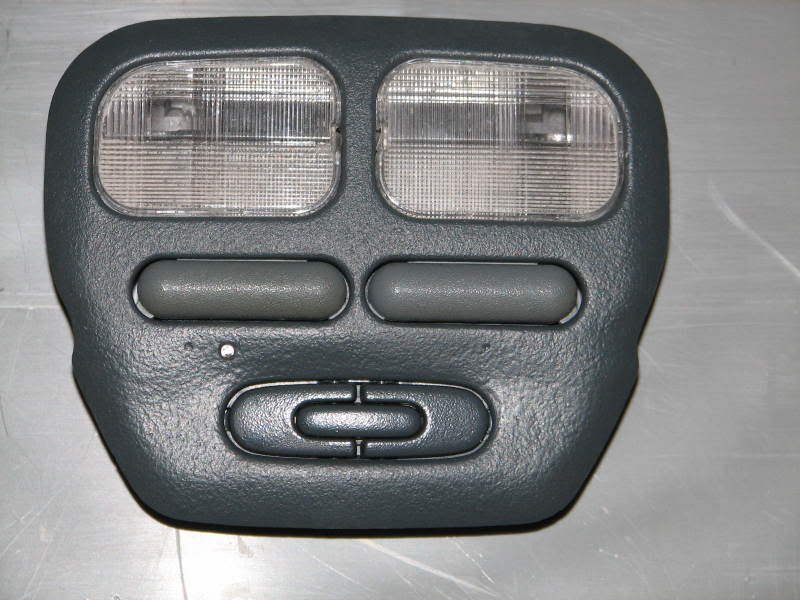

My second attempt and current one
Name:  IMG_0972.jpg
Views: 1
Size:  67.2 KB

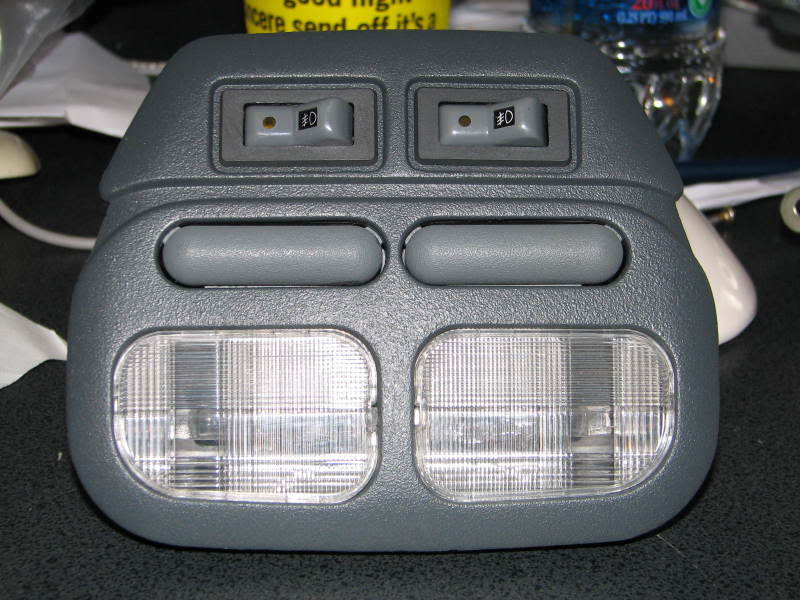

Another setup that was requested by a member
Name:  IMG_0992.jpg
Views: 1
Size:  78.1 KB

And the three muskateers. Homey, Dually and original
Name:  IMG_0993.jpg
Views: 1
Size:  64.9 KB

Someone else saw dually and wanted one.
Name:  IMG_1014.jpg
Views: 1
Size:  88.0 KB

And later on another member wanted a homey, and I pulled mine to fix a blemish I had originally left.


I've seen your body work skill level Dan. You could easily handle adding a homelink. The first picture homelink is from a Park Ave, the ones I decided upon were from an Aurora or Riviera, they share the same part. The one in the Regal came from a Ford Exploder I believe. It was in a visor.
BillBoost37 is offline   Reply With Quote
Old 01-14-2010, 08:21 AM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

One of these days I need to run to the salvage yard.
Danthurs is offline   Reply With Quote
Old 01-14-2010, 08:57 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Think of it as winter stuff you must do in a heated area. Staying warm and doing the mods that you will see while driving.
BillBoost37 is offline   Reply With Quote
Old 01-14-2010, 09:00 AM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Today I need to box up some shipments, pick up some kerosene, pick up some tools, port out a LIM, and get started on a supercharger. I'm sure I'll have more to do.
