Default Alternator Question

would a alternator from a 98 SE work on mine 94 SSE
GAMEOVER is offline   Reply With Quote
Old 05-11-2005, 10:21 PM   #2
Senior Member
Certified GM nut

Join Date: Feb 2003
Location: Georgia
Posts: 2,095
Thanks: 0
Thanked 0 Times in 0 Posts
DrJay is on a distinguished road
Default

Not sure but I doubt it. There were a few years of transition between the CS-130 and CS-130D. The CS-130 AND CS-130D was used from '93-96 on some GM cars, not sure when the Bonneville switched over though. If your '94 has a square plug on the alternator it'* a CS-130, the CS-130D used an oval plug.

There might be adapters out there for the wiring, if you want I could help you find one. I'm not sure about the mounting though.
DrJay is offline   Reply With Quote
Old 05-12-2005, 12:07 AM   #3
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Vin C 3800 Alternator... same set up as the L if memory serves...



Vin K Alternator



I'm not sure about the mounting either... I haven't had the units side by side, but the L36 95-99 seem to use a larger unit, also the L36 alternator has 3 bolts as opposed to the 2 thats used on the LN3-L27..

Anyone know if the 95-99 L36 alternator can be swapped to the L27?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 05-12-2005, 12:26 AM   #4
Senior Member
Certified GM nut

Join Date: Feb 2003
Location: Georgia
Posts: 2,095
Thanks: 0
Thanked 0 Times in 0 Posts
DrJay is on a distinguished road
Default

Here, this may help:

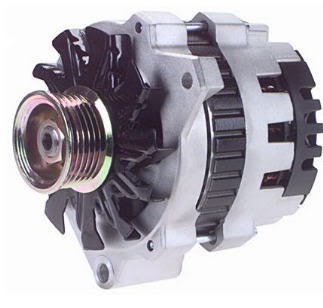

CS-130
Name:  CS130F.jpg
Views: 1
Size:  15.5 KB
Name:  Cs130e.jpg
Views: 0
Size:  21.7 KB

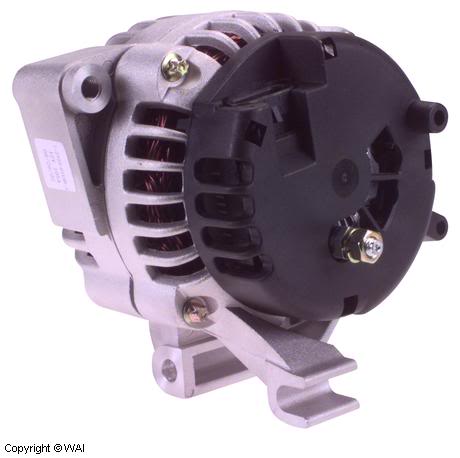

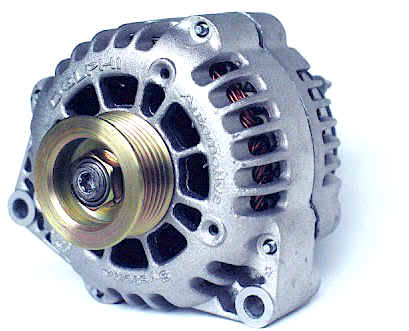

CS-130D
Name:  ad-230-p.jpg
Views: 0
Size:  17.4 KB
Name:  112322101DR11.jpg
Views: 0
Size:  19.8 KB
DrJay is offline   Reply With Quote
Old 05-12-2005, 12:36 AM   #5
Senior Member
True Car Nut
Thread Starter

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

ok they are both CS-130 with slighty different mountly points?
let me get some pics
GAMEOVER is offline   Reply With Quote
Old 05-12-2005, 02:36 PM   #6
Senior Member
True Car Nut
Thread Starter

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

HERES THE mine

HERES THE 98


Can i cut the bracket on the 98 to fit?
GAMEOVER is offline   Reply With Quote
Old 05-12-2005, 02:37 PM   #7
Senior Member
True Car Nut
Thread Starter

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

all the plugs fit
GAMEOVER is offline   Reply With Quote
Old 05-13-2005, 05:12 PM   #8
Senior Member
True Car Nut
Thread Starter

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

well it works i chopped the bracket to make it fit
GAMEOVER is offline   Reply With Quote
Old 05-13-2005, 05:37 PM   #9
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Cool....

You may hear some whistling from that alternator at times, its totally normal... I got 90,000 miles out of the first Ac Delco.... So far the reman AC Delco is giving me good service too...
