Old 10-12-2007, 03:04 PM   #41
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Very cool Bill, I likes it.

On your year model will this cause damage over time without dampening of some kind?

Anyway I know what you mean about power to the wheels fast, because when Jake put his "special" mount in my car it was a day and night difference. Lay rubber for all of us!
Allmachtige is offline   Reply With Quote
Old 10-12-2007, 05:21 PM   #42
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I gave Paul a couple high-durometer thick washers for his 2k. These will go on the OUTSIDE, just under the bolt head and nut. They won't flex much (1/8" max under load) but will damp out alot of vibration, especially at low RPM'*. I had a couple scraps laying around.

It'll be interesting to see how my washers work, and how he likes the change when he gets home on his own car.

Bottom line is YES, you can dampen out some of the vibrations without inducing more flex.
willwren is offline   Reply With Quote
Old 10-12-2007, 06:00 PM   #43
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Quote:
Originally Posted by willwren
I gave Paul a couple high-durometer thick washers for his 2k. These will go on the OUTSIDE, just under the bolt head and nut. They won't flex much (1/8" max under load) but will damp out alot of vibration, especially at low RPM'*. I had a couple scraps laying around.
flex.
Interesting. My low RPM'* feel like a hotrod. 1 for the top and 1 for the buttom nut?
Allmachtige is offline   Reply With Quote
Old 10-12-2007, 06:51 PM   #44
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yup. One for the top and bottom. The bolt and nut don't touch the steel halves of the mount that way. They are isolated/insulated with elastomeric material.

For mine, I'm unsulating/isolating where the bolts for the trans and subframe meet the mount instead. Different location, same effect.
willwren is offline   Reply With Quote
Old 10-12-2007, 07:28 PM   #45
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

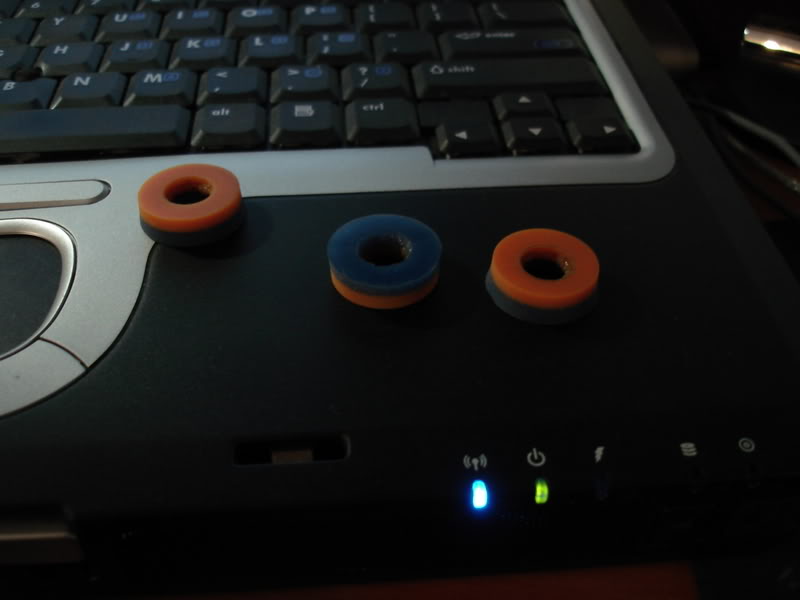

Name:  DSC05064.jpg
Views: 2
Size:  31.4 KB


Ready to go in as soon as Paul moves his Cherokee (Testing his battery and alternator with my new toy).
willwren is offline   Reply With Quote
Old 10-12-2007, 08:57 PM   #46
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Uh oh.
More details to come......
2000SilverBullet is offline   Reply With Quote
Old 10-12-2007, 09:25 PM   #47
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

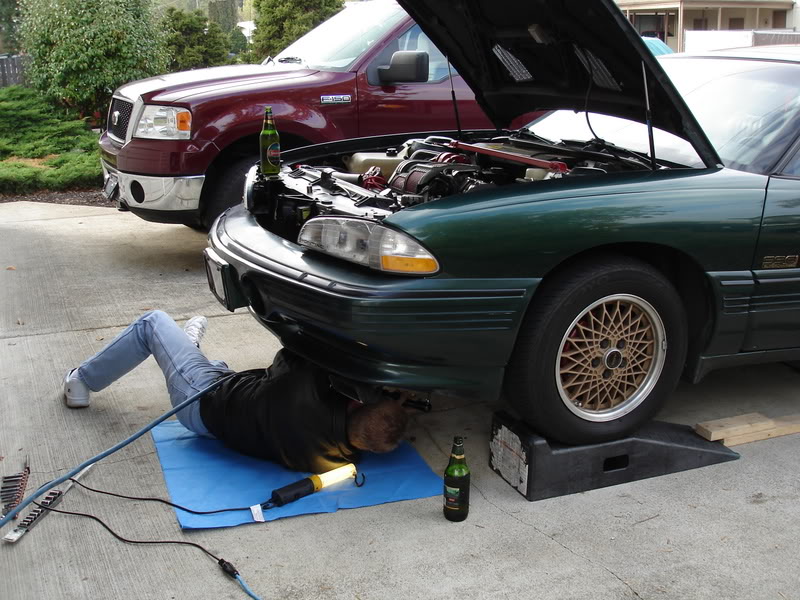

Paul nailed my camera.

Name:  DSC05065.jpg
Views: 2
Size:  106.3 KB

Name:  DSC05066.jpg
Views: 2
Size:  119.1 KB

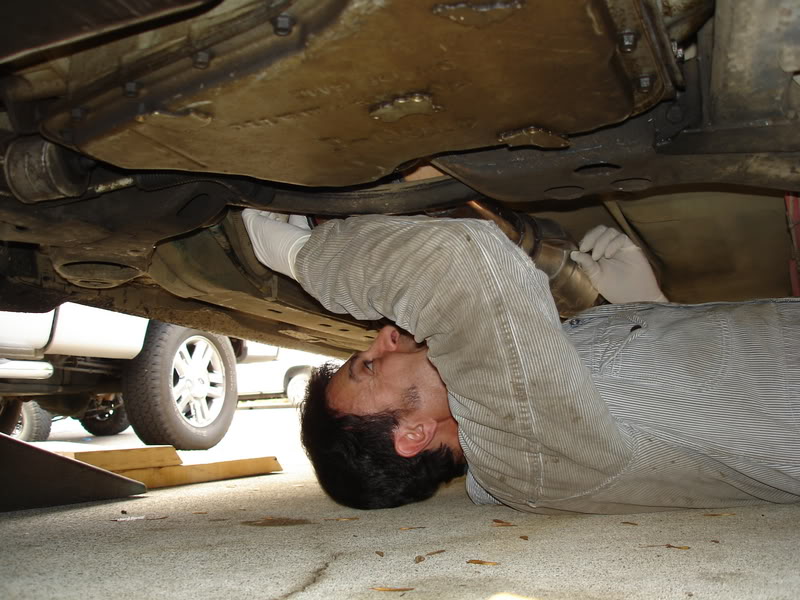

Then he went into inspection mode:

Name:  DSC05067.jpg
Views: 3
Size:  93.4 KB

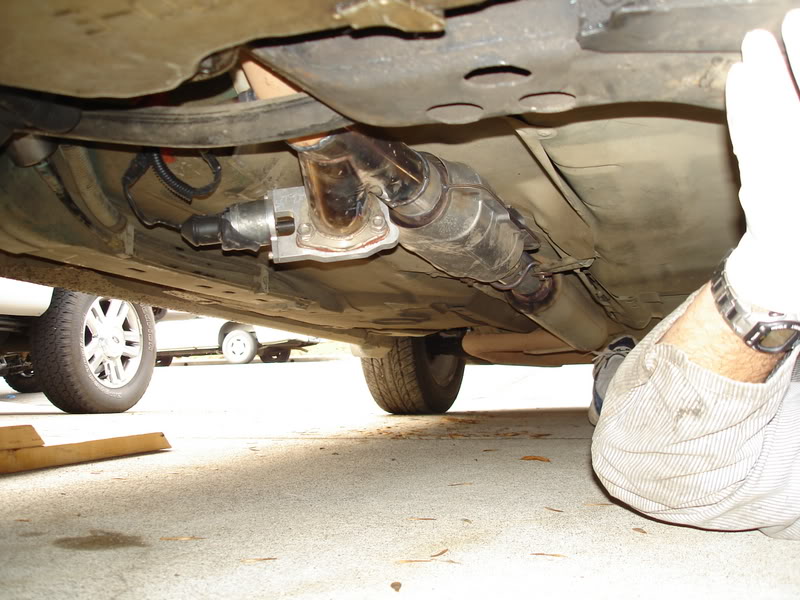

Name:  DSC05072.jpg
Views: 2
Size:  92.8 KB

We found a bit 'o rubber. Wonder where that came from?

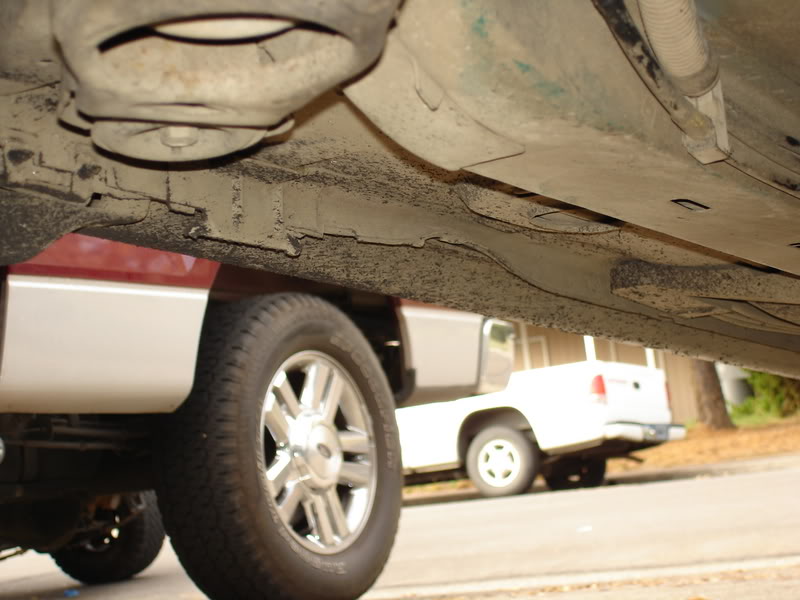

Name:  DSC05071.jpg
Views: 3
Size:  67.1 KB

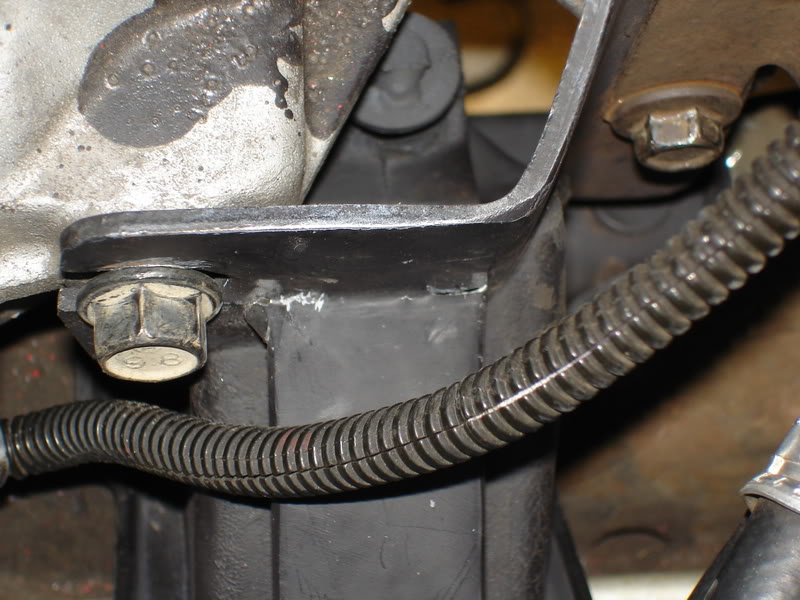

Before we put the washers in, we found a small stress crack:

Name:  DSC05073.jpg
Views: 1
Size:  85.8 KB

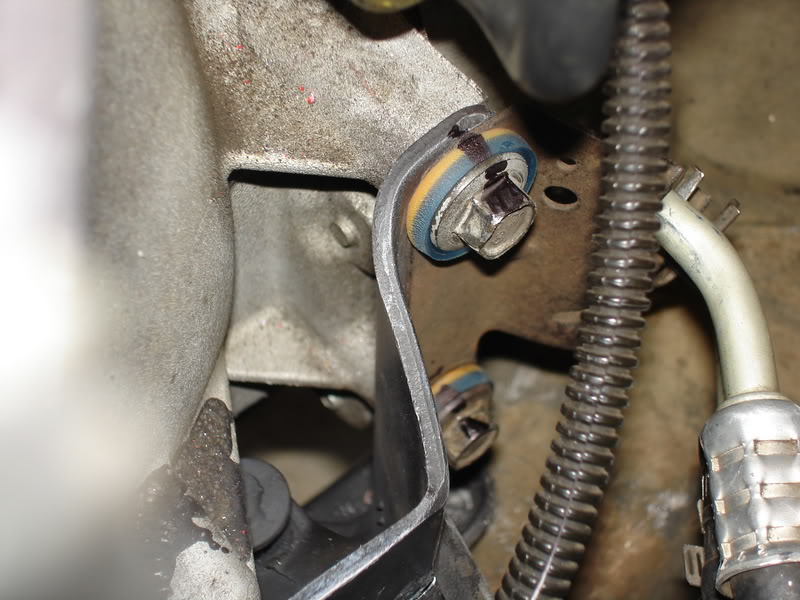

Marked the bolts and washers to make sure they don't shift over time (before testing):

Name:  DSC05076.jpg
Views: 2
Size:  83.0 KB

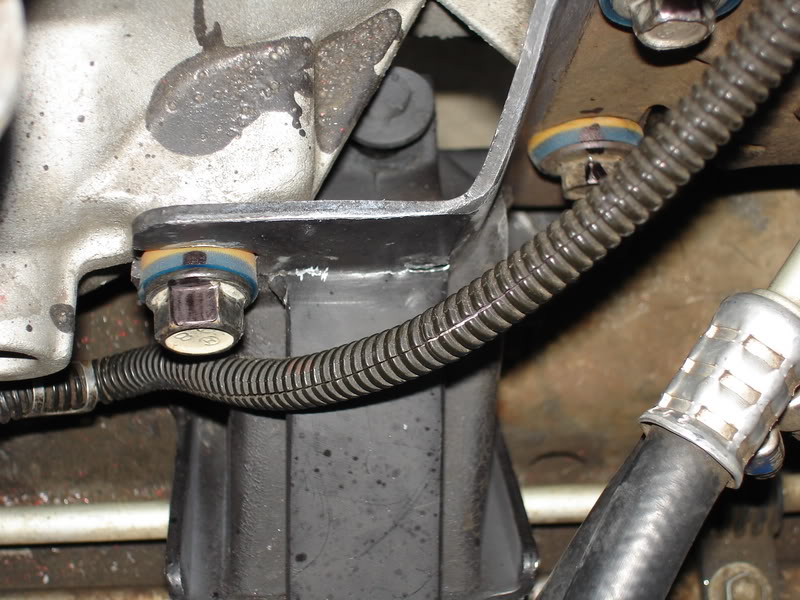

After we tested it, we realized Paul broke it. Why? Not enough reinforcement. We've discussed future plans.

Name:  DSC05078.jpg
Views: 1
Size:  96.0 KB


The mount needs to be stiffer, but the vibration damping definitely took out about half the vibration in the steering wheel. That part worked, but the mount itself needs to be much stronger:




We'll drink a few somethings or other and talk about it some more.
willwren is offline   Reply With Quote
Old 10-13-2007, 03:52 PM   #48
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Hahaha, do you have a cutout for open "headers"?

Anyway, it looks like the engine is still moving a decent amount. Did it move less before the washers?
Allmachtige is offline   Reply With Quote
Old 10-13-2007, 04:31 PM   #49
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Washers aren't causing the movement. The mount needs to be stiffer.
willwren is offline   Reply With Quote
Old 10-13-2007, 09:52 PM   #50
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by willwren
Washers aren't causing the movement. The mount needs to be stiffer.
you need some angel braces
