Default Allow me to introduce you to:

The 92-99 solid front trans mount.


I'm sick and damn tired of ripping these suckers apart in less than 1000 miles.

isclaimer:

This is for the TOY car. Excess vibration and brutal forces to the differntial will be the end result if you try this. This mod is for the serious balls-out performance vehicle only. Test-fit and test-ride are at least 3 months away. This is just showing you the IDEA:

I have two spare front trans mounts here. One from Badnit, one from jr's3800. Badnit'* was in FAR better condition, so I used it to create the welding jig, as it was very obvious and easy to get it re-aligned. It'* important to start with a good template to make sure it'll bolt up to the car later.

After the jig was made, I stripped the rubber and epoxy out of jr's3800'* mount, cleaned it up, and custom cut the pieces I needed:

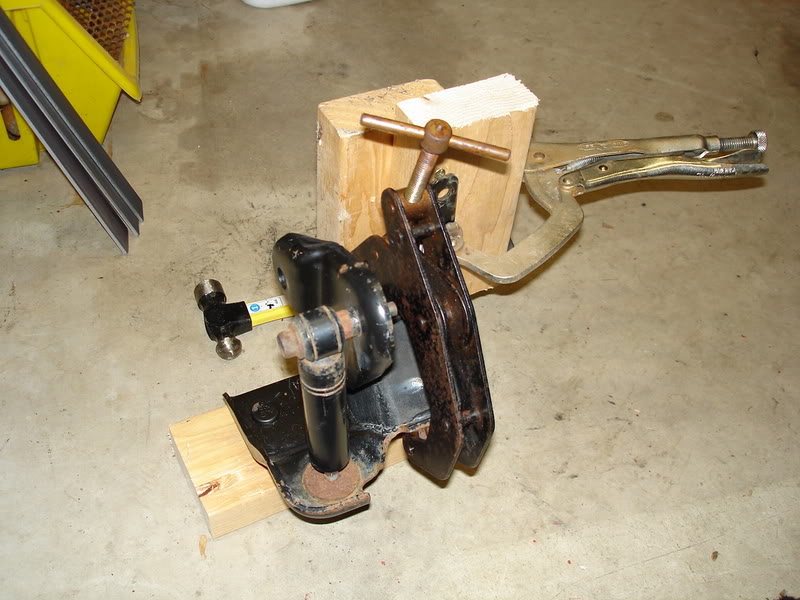

Note the clamps holding the mount in the 'OEM' configuration, and to the jig:
Name:  DSC05016.jpg
Views: 2
Size:  52.3 KB

Name:  DSC05017.jpg
Views: 0
Size:  84.2 KB

Name:  DSC05018.jpg
Views: 0
Size:  64.8 KB

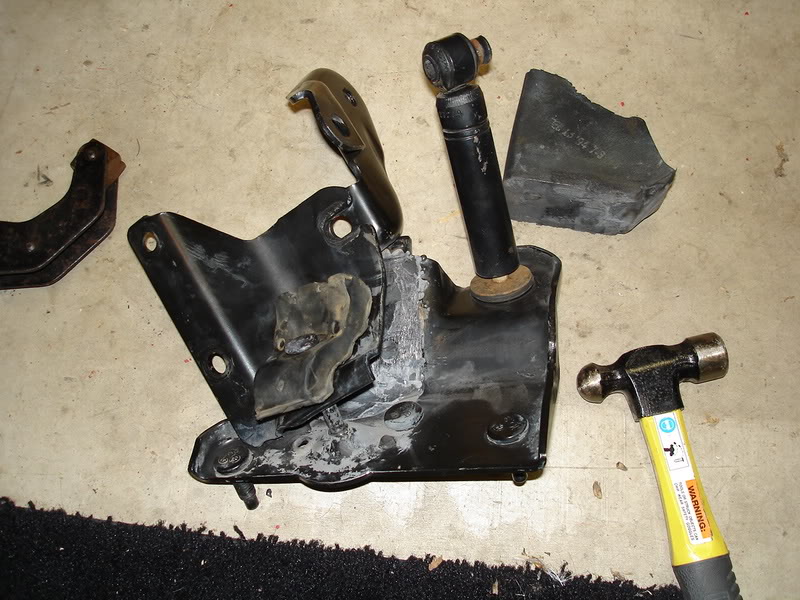

Now strip your 'victim'.
Name:  DSC05019.jpg
Views: 0
Size:  112.8 KB

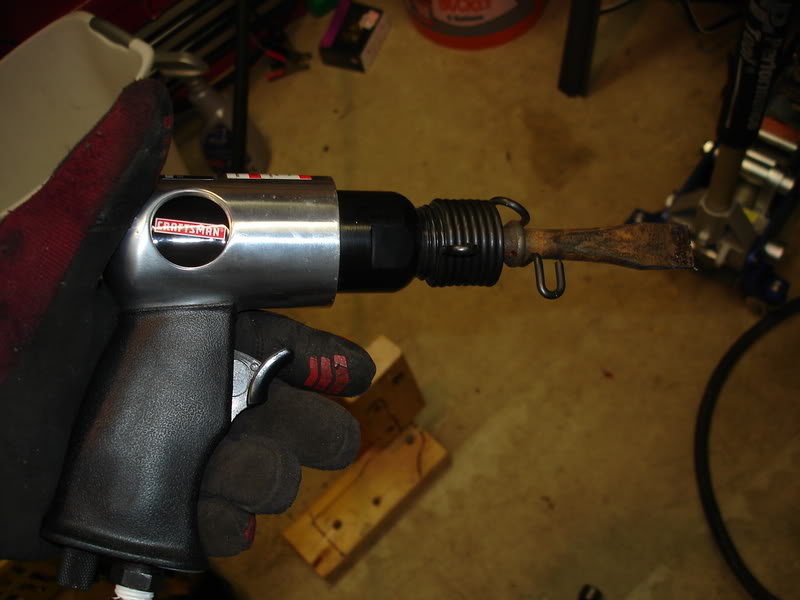

This is what it took to get that pesky rubber out:
Name:  DSC05020.jpg
Views: 1
Size:  51.7 KB

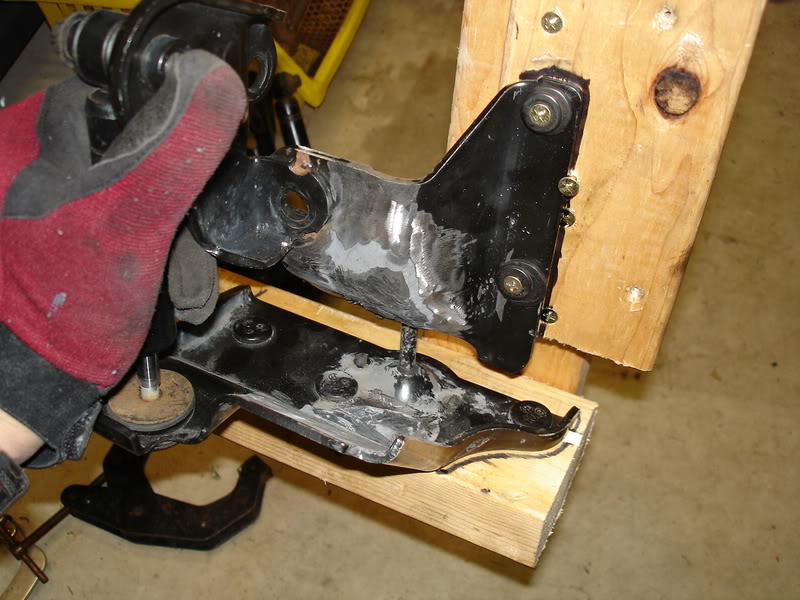

Fixtured in the jig:
Name:  DSC05021.jpg
Views: 0
Size:  90.2 KB

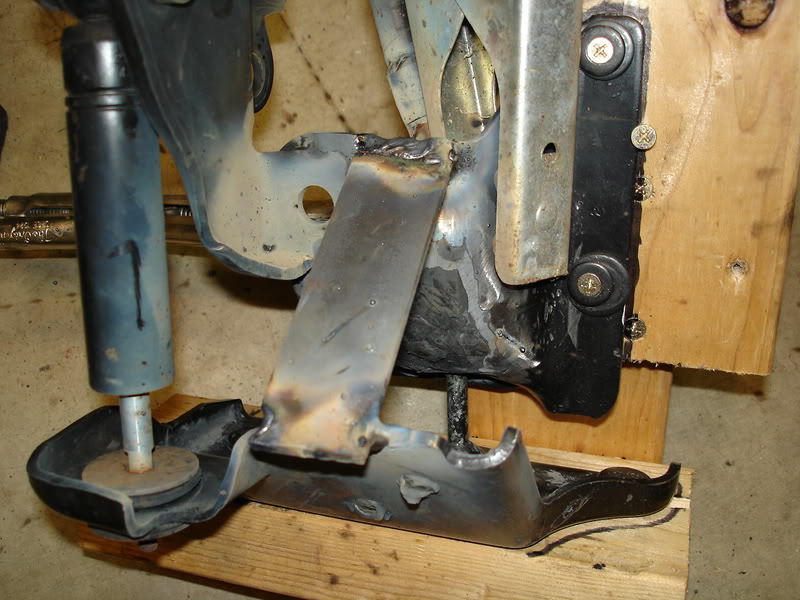

First piece welded on. It'* important to know the load axis and forces before selecting the areas to beef up:
Name:  DSC05022.jpg
Views: 0
Size:  91.2 KB



Safety first. This is so you don't get beer in your eye:
Name:  DSC05024.jpg
Views: 0
Size:  47.1 KB

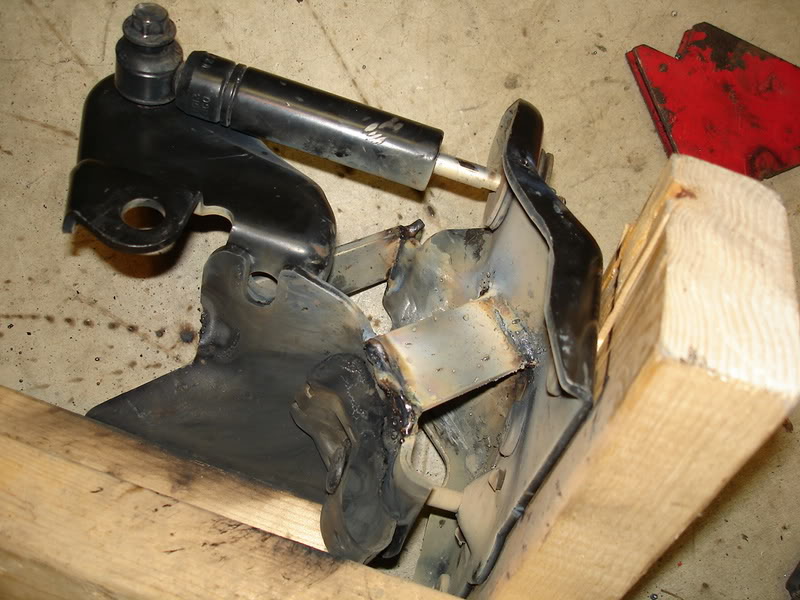

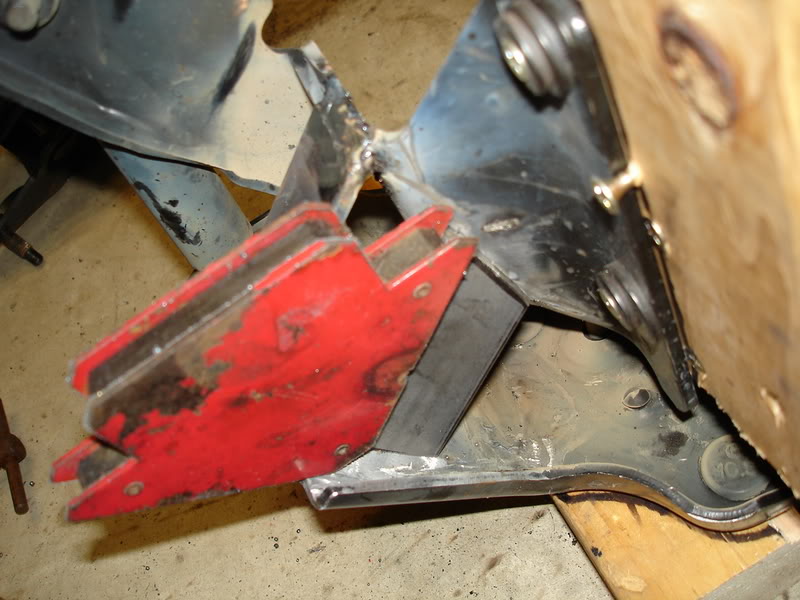

Continuing to weld in reinforcements:
Name:  DSC05025.jpg
Views: 0
Size:  91.3 KB

Name:  DSC05026.jpg
Views: 0
Size:  76.9 KB

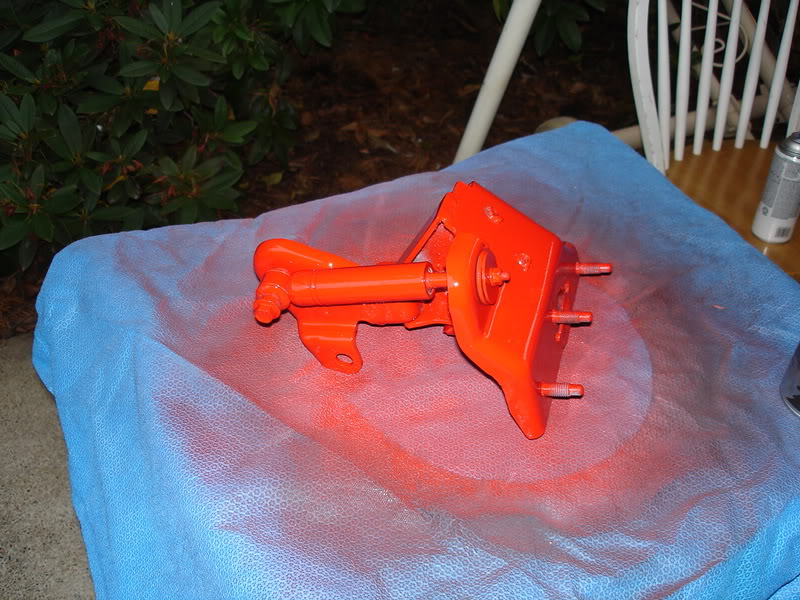

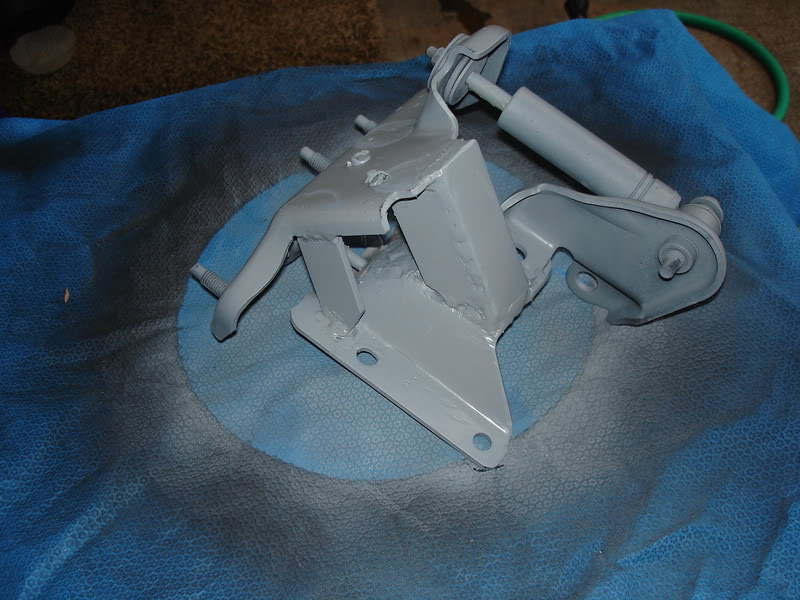

Got 'em all in, now for the cleanup (flash distorts the paint color........it'* actually red):

Name:  DSC05027.jpg
Views: 0
Size:  87.7 KB

Name:  DSC05028.jpg
Views: 0
Size:  87.2 KB

Name:  DSC05029.jpg
Views: 0
Size:  117.3 KB

Name:  DSC05030.jpg
Views: 0
Size:  106.7 KB



Excess engine vibration will be the result of this, as well as an early differential death if proper precautions aren't taken. I have another idea for dampening out those vibrations with this uber-solid mount. That idea will come later.

Just thought I'd share the work so far.
willwren is offline   Reply With Quote
Old 10-06-2007, 10:40 PM   #2
Senior Member
Posts like a Northstar

Join Date: Jul 2007
Location: Memphis,TN Originally from MA
Posts: 571
Thanks: 0
Thanked 0 Times in 0 Posts
roadtech195 is on a distinguished road
Default

Its always a treat to see what your going to do next, kind of like a really long but interesting story.
roadtech195 is offline   Reply With Quote
Old 10-06-2007, 11:08 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default Re: Allow me to introduce you to:

Quote:
Originally Posted by willwren
Excess engine vibration will be the result of this, as well as an early differential death if proper precautions aren't taken. I have another idea for dampening out those vibrations with this uber-solid mount. That idea will come later.
Why would a solid mount kill your diff? I'm not following the line of thought here. Wouldn't it simply transmit more torque to the wheels?
big_news_1 is offline   Reply With Quote
Old 10-06-2007, 11:17 PM   #4
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Yes, I agree. The dampening is more for the luxury passenger isolation of vibration than the effect on the drivetrain.

Not sure why you kept the shock in place.

Nice modding Bill.

Come on now Wait for me. I want to play too
2000SilverBullet is offline   Reply With Quote
Old 10-06-2007, 11:36 PM   #5
Senior Member
Posts like a Turbo

Join Date: Aug 2007
Location: Lebanon, oregon
Posts: 297
Thanks: 0
Thanked 0 Times in 0 Posts
03BONNY is on a distinguished road
Default

sweet
03BONNY is offline   Reply With Quote
Old 10-07-2007, 12:19 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The first instantaneous torque on the drivetrain is absorbed by the 4 mounts. If you stiffen it up, that shock load is transmitted to the differential. It'* the weak point between the road and the engine.

Think of an electric motor attached to a fan blade with a plastic coupler. Start the fan with the blades stuck against the floor. What'* going to break? Simple. The weakest point in the system.

I kept the shock in place because there'* no point in removing it. It'* not in the way, and there'* still limited flex in the mount, and shock may assist resistance to that. FYI, I taped the shaft of the shock before painting.

Paul, I have another one to do this to if you want to play, or we can install this one.
willwren is offline   Reply With Quote
Old 10-07-2007, 12:34 AM   #7
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I'm bringing my coveralls.

.....and no, I don't work in my bare feet.
2000SilverBullet is offline   Reply With Quote
Old 10-07-2007, 02:27 AM   #8
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Eeek. I guess there was no gas shielding?
95naSTA is offline   Reply With Quote
Old 10-07-2007, 02:37 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You'd guess this is the prototype and I used my Arc welder.

The final version if this works will be made out of the other one, and a full-box wedge will replace the rubber.
willwren is offline   Reply With Quote
Old 10-07-2007, 03:19 AM   #10
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

Quote:
Originally Posted by 95naSTA
Eeek. I guess there was no gas shielding?
Almost as bad as the welds on my exhaust!


Not bad for a prototype, Bill. I ought to do this someday.
big_news_1 is offline   Reply With Quote
