Old 01-13-2007, 02:20 AM   #221
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Meh its as good as it will get with a dremel hahaha...
We shall see what tomorrow brings, I gotta work..soo..stuff might happen?
SSEimatt93 is offline   Reply With Quote
Old 01-14-2007, 09:51 PM   #222
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Okay boys and girls, i present to you my freshly machined TB..

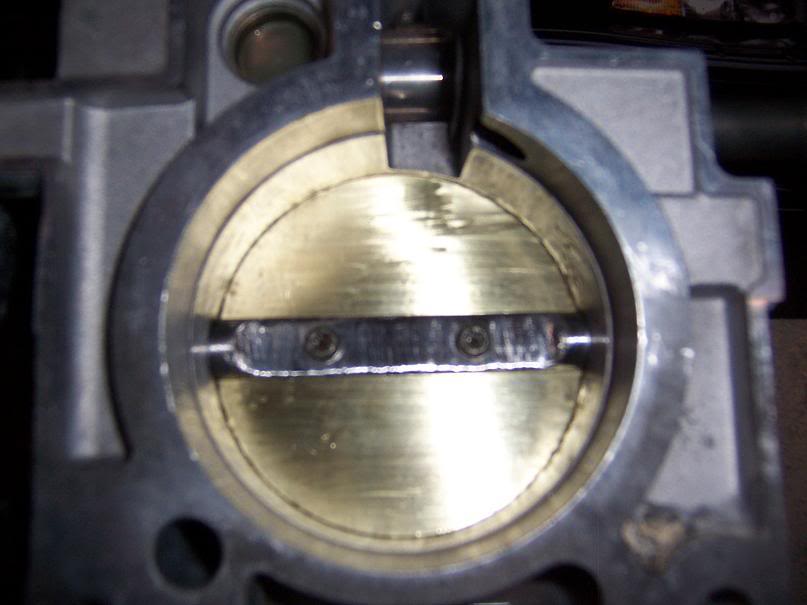

Name:  100_2960.jpg
Views: 3
Size:  44.0 KB

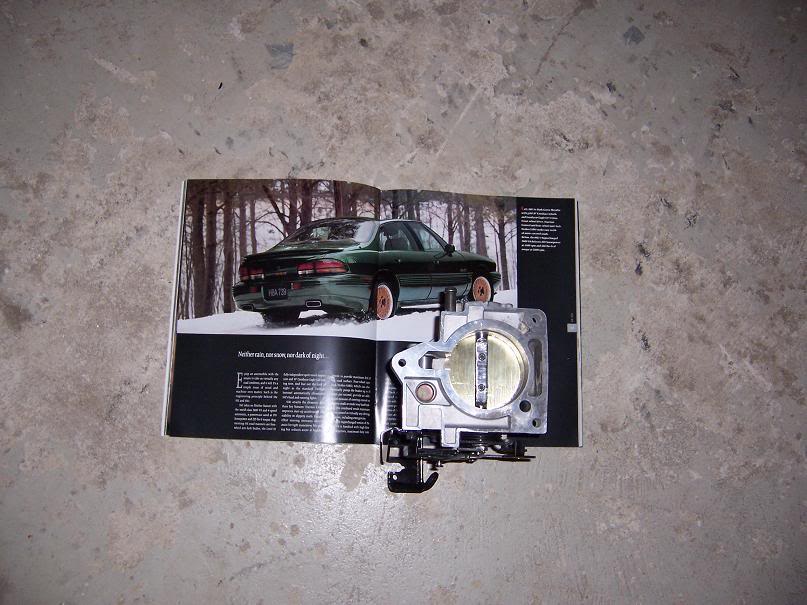

Name:  100_2958.jpg
Views: 4
Size:  79.0 KB

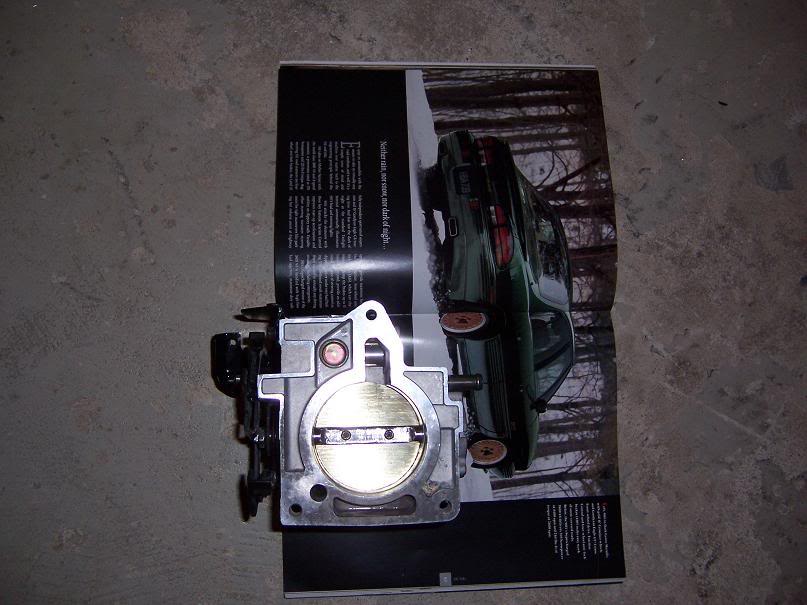

Name:  100_2957.jpg
Views: 4
Size:  67.3 KB

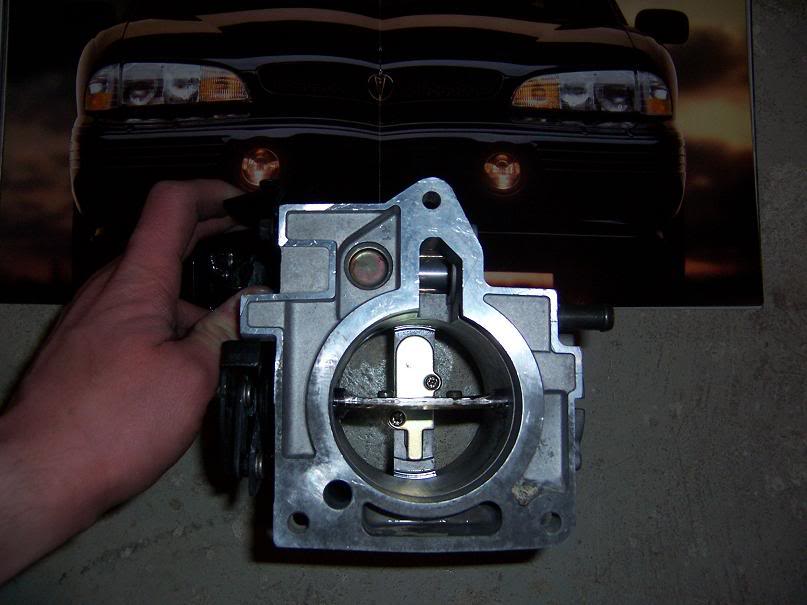

Name:  100_2961.jpg
Views: 2
Size:  55.4 KB
Name:  100_2970.jpg
Views: 6
Size:  34.5 KB
I was really suprised at how cheap the machining of the TB actually was..didnt cost me much at all..worth every penny though.
The guy that did this has never really machined a TB befor..doesnt suprise me lol..
Vertical End Mill/Drill press.
SSEimatt93 is offline   Reply With Quote
Old 01-14-2007, 10:29 PM   #223
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

What is that big wide post in behind it. That seems far more significant of an obstruction than a sliver of shaft.

Is it your MAF sensor
2000SilverBullet is offline   Reply With Quote
Old 01-14-2007, 11:07 PM   #224
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

MAF support, yep. 97'* have a crappy design compared to the 99+ it seems.
dillcc is offline   Reply With Quote
Old 01-15-2007, 12:38 AM   #225
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Maf support is staying lol...ill upgrade TBs eventually.but i wanna try this one out first..
FYI, I did that all myself today, went into work while we were closed...
came out pretty good
SSEimatt93 is offline   Reply With Quote
Old 01-15-2007, 01:15 AM   #226
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Looks great Matt. You did a pretty good job.
2000SilverBullet is offline   Reply With Quote
Old 01-15-2007, 01:35 AM   #227
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

she turned out okay, the real test is to come
SSEimatt93 is offline   Reply With Quote
Old 01-15-2007, 02:47 AM   #228
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have a problem with it. That'* WAY too thin. I'm sorry Matt, but I think that TB is going to cause you problems. Over time, and under load, that throttle plate may not ever close right. Not to mention the fact that you didn't use countersunk flat head screws?
willwren is offline   Reply With Quote
Old 01-15-2007, 02:49 AM   #229
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

I left the Screws as is, and I realize how thin that shaft has gotten...that was the only questionable item in my mind.
The plate closes as it did before, this I know....but that shaft is thin..I had to remove more material then I would of like to get it even.
SSEimatt93 is offline   Reply With Quote
Old 01-15-2007, 02:52 AM   #230
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

At this point, I'd actively seek a replacement.

Think about losing one of those screws into your rotors. How many threads on those dinky M4 screws are actually still holding with the shaft that thin?

Did you compare it to the throttle bodies I've machined in the past?
willwren is offline   Reply With Quote
