Unhappy Never Seen This Before!

So this morning I started up the Oldsmobile and let it run for a few minutes. Right when I went to back out of the driveway the car quit. I started the car and it died after about 20 seconds. When I turned the key off and back to the ON position again without the engine running the fuel injectors were firing just like the engine was running, but the Engine was OFF.
I then also noticed the dash lights flickering including the engine light. When I tried to scan for codes the computer and radiator fan kept flickering on and off making it hard to see the codes. I then let the car sit for about 6 hours and then it started right up with no problems but seems to be misfiring more than usual. Changed the computer and the car still had the missfire and it came close to stalling, battery terminals are tight,

any ideas,

Matt
pjmia96 is offline   Reply With Quote
Old 05-07-2016, 08:40 AM   #2
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

Model year engine codes ???
REGAL GUY is offline   Reply With Quote
Old 05-07-2016, 11:07 AM   #3
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Assuming it actually was the injectors firing, there had to be a serious meltdown of the computer for it to think it was running, and firing injectors accordingly.

I don't know if you investigated it however. The purge valve can also make a similar noise (bit louder though), and would be more consistent with what was going on.

If the computer was not the cause, I would be checking power feeds (wiring, ignition switch, etc) and grounding (contact points, busses, etc).

And according to his profile, it'* a '90 Delta 88.
rjolly87 is offline   Reply With Quote
Old 05-07-2016, 11:36 PM   #4
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2016
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
pjmia96 is on a distinguished road
Default

Yes it threw code 34, ,41 ,and 42 when it died the first time and they never came back. It is a 1990 delta 88 and yes I could feel each injector clicking away just like the car was running, but it wasnt.
pjmia96 is offline   Reply With Quote
Old 05-08-2016, 01:12 AM   #5
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2016
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
pjmia96 is on a distinguished road
Default

Quote:
Originally Posted by rjolly87 View Post
Assuming it actually was the injectors firing, there had to be a serious meltdown of the computer for it to think it was running, and firing injectors accordingly.

I don't know if you investigated it however. The purge valve can also make a similar noise (bit louder though), and would be more consistent with what was going on.

If the computer was not the cause, I would be checking power feeds (wiring, ignition switch, etc) and grounding (contact points, busses, etc).

And according to his profile, it'* a '90 Delta 88.
I'll take a look at the bus bars under the carpet on each side.

Matt
pjmia96 is offline   Reply With Quote
Old 05-08-2016, 01:48 PM   #6
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2016
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
pjmia96 is on a distinguished road
Default

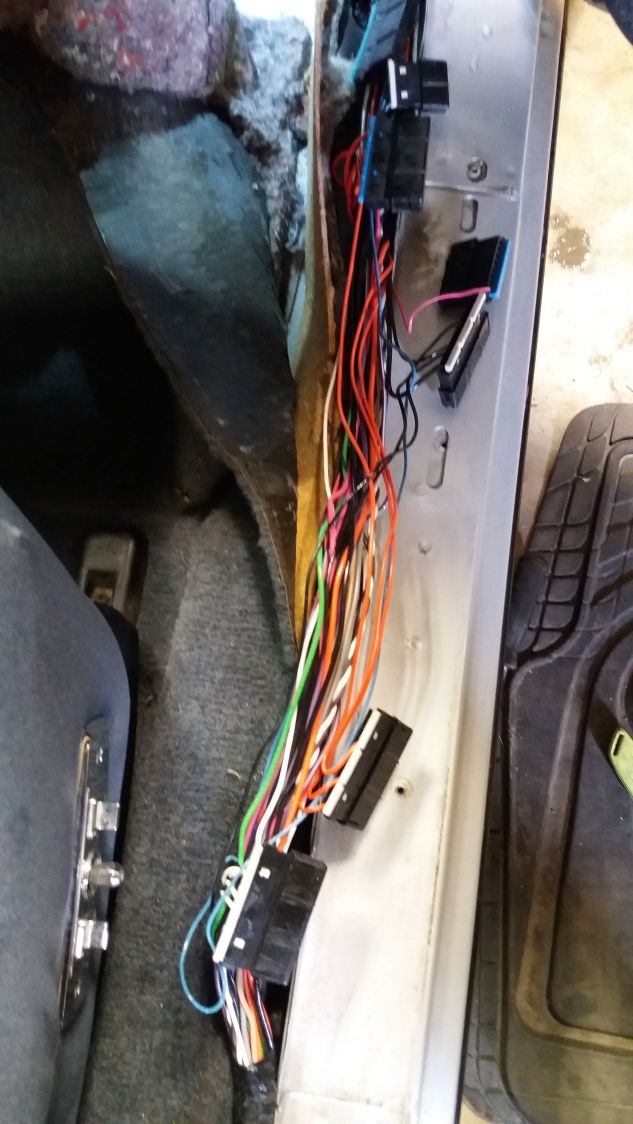

All the bus bars look good on the passenger side!

Matt



Attached Thumbnails
Never Seen This Before!-80-20160508_123158_8a1f658bbc5cc035c7bdcf7b99e2fc726a366ac8.jpg
pjmia96 is offline   Reply With Quote
Old 05-30-2016, 10:52 PM   #7
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2016
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
pjmia96 is on a distinguished road
Default A Little Update!

First off, sorry for not getting back sooner. Buss Bars / Grounds look good. I think my injectors are shorted or messed up in some way. I ordered this set from Ebay last year due to my old ones leaking. They are made by Uremco. Anyways, I took the plug off a properly working injector and switched the plug to a poorly working injector (has a skippy feel to the pulse) and the problem injector did not switch spots with the one next to it. This tells me it is not the injector signal but the injectors themselves that are causing the Idle Missfire problem.

Could the shorted injectors have caused or played a role in the electrical problems I was having with the car? SES Light Flashing, Pulsing injectors by themselves, radiator fan flickering, ect?

Thanks again,

Matt
pjmia96 is offline   Reply With Quote
Old 05-31-2016, 12:02 PM   #8
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Methinks you have a PCM/ECM problem....
Tech II is online now   Reply With Quote
Old 06-13-2016, 02:26 PM   #9
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2016
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
pjmia96 is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Methinks you have a PCM/ECM problem....
Ok, I found something that I think is interesting. I ran my negative probe on my multi meter to the negative post on my battery and tested all of the ECM Ground wires that go from the computer back to ground and they all tested good. I tested for 02 Sesnor ground for the heck of it and that was also good.

There is a black wire on the Orange Connector that goes into the computer called "Sensor Ground" it is pin D5 on the orange Connector. When I tested from that pin back to ground I got no beep. Does that mean there is a sensor somewhere that has a short?

Thanks Again,

Matt
pjmia96 is offline   Reply With Quote
Old 06-13-2016, 10:38 PM   #10
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Since that circuit is just a ground, you have an open, not a short....
Tech II is online now   Reply With Quote
