Default EGR valve location

I have a 1992 Oldsmobile regency 98 3.8l v6 non turbo, and I am trying to replace the egr valve. The kick in the pants is, I can not locate it on this car. This is my parents car so I'm not 100% familiar with the diagrams from Google are not helping, any ideas where it located?
thacker89 is offline   Reply With Quote
Old 03-30-2016, 09:25 PM   #2
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

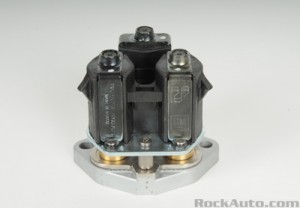

Not sure, but I believe it is behind the valve cover and to the right of the fuel injectors, should look like this.

Attached Thumbnails
EGR valve location-214-5002_primary__ra_p.jpg
WilliamE is offline   Reply With Quote
Old 04-27-2016, 07:02 PM   #3
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 246
Thanked 39 Times in 37 Posts
CathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura about
Default

Find the transmission dipstick/filler tube. Immediately forward (towards the front bumper) of that is an electric-motor looking thing about 2-3 inches in radius with an electrical connector on top. That'* your EGR valve. Next thing forward of this should be the plastic beauty/sound cover.

Careful with the gaskets. Get the old one all the way off before you put the new one on.
CathedralCub is offline   Reply With Quote
Old 04-30-2016, 12:05 AM   #4
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

92, with the aluminum UIM, had no EGR valve.
rjolly87 is offline   Reply With Quote
The Following User Says Thank You to rjolly87 For This Useful Post:
WilliamE (04-30-2016)
Old 05-13-2016, 02:43 PM   #5
Senior Member

Posts like a Turbo

Join Date: Feb 2015
Location: Earth
Posts: 246
Thanked 39 Times in 37 Posts
CathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura aboutCathedralCub has a spectacular aura about
Default

Sorry was thinking Series 2. For series 1 plastic UIM it is same as series 2 except on front side as in the pic. Agree on aluminum UIM, I can't seem to find one.


Attached Thumbnails
EGR valve location-80-3800_series_1_egr_df2cdd492574295f5777ff6aa8a66b44c272c67e.jpg
