Default 94 cutlass superme sl, 3.1, diagrams of throttle body removal

My 94 has been giving me some trouble, stalling at stop signs, signals. I cleaned the IAC and found the bolts were not tight and it was very dirty. I put it'* back together and it a bit worse . Tomorrow i want to do MAF sensor and throttle body. What I need are pictures showing the disassembly of the throttle body along witha list of any gaskets or lubes etc.,, are the vacuume lines going into the body intake press fit? I don't want to tug on them and breaking something. That vacuum line from throttle body to ccr is a very loose fit at the manifold, the rubber seal looks like it would fall out if the line wasn't held down with all the other engine parts around it. I cant even get my hands into the area to check it better. Any ideas? I hope this makes sense and someone can give me some advice. Thanks in advance to all of you for reading this and for any guidance you may be able to offer.
94 olds cuttlass supreme */l ,3.1 with 130,000 miles on it.

Last edited by gary r; 03-01-2016 at 01:20 AM.
gary r is offline   Reply With Quote
Old 03-01-2016, 08:28 AM   #2
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Make sure to clean the MAF with MAF cleaner only.

Your Throttle Body Gasket is FEL-PRO 60983

I am pretty sure all Vac lines are just press fit, if any are soft rubber ones you can get replacement hose from your local parts store for pretty cheap, just take a piece of the hose you need to replace in to them, and they can help you..

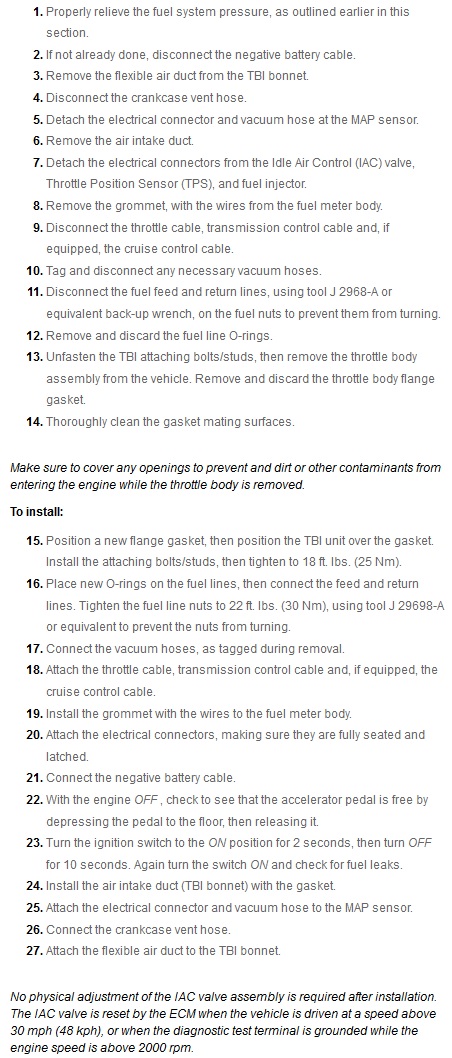

Here is some info on removal of the TB.
Attached Thumbnails
94 cutlass superme sl, 3.1, diagrams of throttle body removal-1994-cutlas-supreme-throttle-body-directions.jpg   94 cutlass superme sl, 3.1, diagrams of throttle body removal-1994-cutlas-supreme-throttle-body-1.gif   94 cutlass superme sl, 3.1, diagrams of throttle body removal-1994-cutlas-supreme-throttle-body-2.gif
WilliamE is offline   Reply With Quote
The Following User Says Thank You to WilliamE For This Useful Post:
gary r (03-01-2016)
Old 03-02-2016, 02:35 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,141
Thanked 779 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

William, that is a throttle body for a 2.2/2.5, not a 3.1....
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
gary r (03-03-2016)
Old 03-02-2016, 04:58 PM   #4
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Hmmm,. that is weird, I got the info from Autozone, shrugs.
Just double checked, and I entered the year/model correctly, I guess Autozone goofed.
