Old 10-12-2011, 07:25 AM   #21
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

do you hear the pump prime when you turn the key?
jwfirebird is offline   Reply With Quote
Old 10-12-2011, 02:52 PM   #22
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
allisswell is on a distinguished road
Default

Quote:
Originally Posted by allisswell View Post
hi, battery was bought about 4 years ago...72month battery. i will try to post a vid of what it sounds like when its trying to start. any other thoughts..Thanks!!!
Quote:
Originally Posted by jwfirebird View Post
do you hear the pump prime when you turn the key?
not when i turned the key only when i had the wire connected to the postive battery terminal
allisswell is offline   Reply With Quote
Old 10-12-2011, 02:58 PM   #23
Senior Member
Posts like a Corvette

94 olds vert's Avatar

Join Date: Apr 2011
Location: Michigan
Posts: 1,548
Thanked 22 Times in 20 Posts
94 olds vert will become famous soon enough94 olds vert will become famous soon enough
Default

That is strange. You should be able to here it prime when you turn the key. It'* still works when you connect the test wire to the battery.

I wonder if there is a bad ground or short that could cause that.
94 olds vert is offline   Reply With Quote
Old 10-12-2011, 11:53 PM   #24
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
allisswell is on a distinguished road
Default

Quote:
Originally Posted by 94 olds vert View Post
That is strange. You should be able to here it prime when you turn the key. It'* still works when you connect the test wire to the battery.

I wonder if there is a bad ground or short that could cause that.
when i check for spark i only get an orange spark. should i be getting a blue spark? is there a way to test the battery to see if it wont take a full charge?
allisswell is offline   Reply With Quote
Old 10-13-2011, 07:37 AM   #25
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i would be looking at the fuel pump relay, if you have a relay thats the same swap it, see if it works. if not pull the relay see if the pin that has the orange wire has 12v, and the blk/white has ground when you turn on the key.

Attached Thumbnails

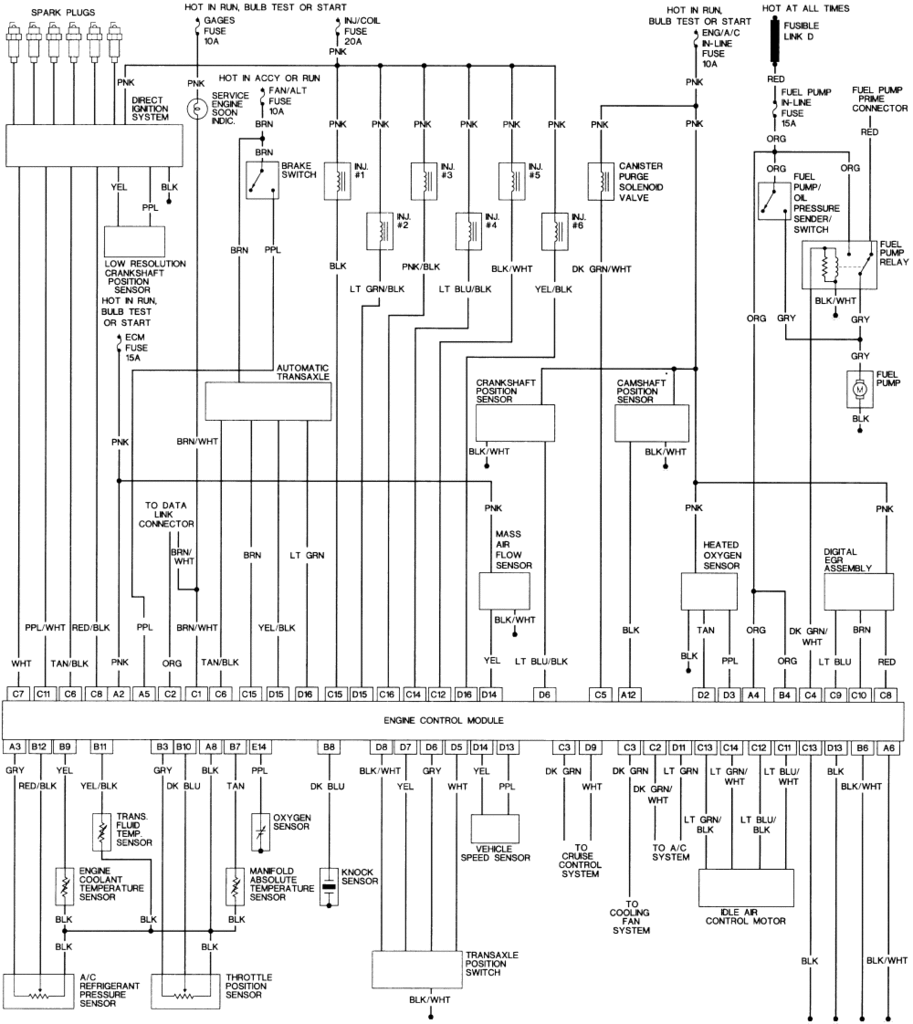

Hi! New here, 95 olds cutlass ciera 3.1 V6-95cra3-1.gif
jwfirebird is offline   Reply With Quote
Old 10-13-2011, 02:56 PM   #26
Senior Member
Posts like a Corvette

94 olds vert's Avatar

Join Date: Apr 2011
Location: Michigan
Posts: 1,548
Thanked 22 Times in 20 Posts
94 olds vert will become famous soon enough94 olds vert will become famous soon enough
Default

I think autoZone or similar store can test batteries for you. All you need to do is take it up there and they can test it for you.
94 olds vert is offline   Reply With Quote
Old 10-13-2011, 04:39 PM   #27
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
allisswell is on a distinguished road
Default

Quote:
Originally Posted by jwfirebird View Post
i would be looking at the fuel pump relay, if you have a relay thats the same swap it, see if it works. if not pull the relay see if the pin that has the orange wire has 12v, and the blk/white has ground when you turn on the key.

ok but when i bypass the relay and the pump comes on why will it still not start?
allisswell is offline   Reply With Quote
Old 10-13-2011, 04:54 PM   #28
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you have to have the right pressure to start, does it suputter at all? it doesnt sound like a battery issue unless the starter isnt cranking very fast i think you would know.
jwfirebird is offline   Reply With Quote
Old 10-14-2011, 01:06 AM   #29
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
allisswell is on a distinguished road
Default

ok so if i am getting fuel to the rails, and the spark is orange and not blue, i am begining to think maybe a bad coil and or crank sensor? any thoughts?
allisswell is offline   Reply With Quote
Old 10-14-2011, 09:54 AM   #30
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

when coil fails the engine will start and run bad on the other 4 cyl. usually when the crank sensor goes you get no spark or an intermittent start then no start but when its not starting you get no spark. weak spark is really confusing, possibly the icm is bad. possibly bad ground.testing icm for 3800 but i would think its similar:https://www.gmforum.com/trouble-shooting-test-procedures-141/icm-test-299761/

you should pull a inj connector you should have volotage on one side, then you can make a tester to see if you have the inj. pulse with a 12v bulb. run one wire to the 12+ the other to the inj connector, the pulse from the computer is the ground. with someone trying to crank it the bulb should flash.
jwfirebird is offline   Reply With Quote
