'89 GMC Sierra - fuel pump problems - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


GMC/Chevrolet Truck/SUV When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 07-10-2013, 10:39 AM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2013
Location: Savannah, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
Acer is on a distinguished road
Default '89 GMC Sierra - fuel pump problems

Truck won't start; dribbled some gas in carb and it wanted to start; replaced fuel pump relay; replaced blown 10amp ECM B fuse.
Next thing to do is check the wiring to the tank. How hard is it to slip the bed? And does anyone have electric schematics for the fuel pump?

Thanks in advance
Acer is offline   Reply With Quote
Old 07-10-2013, 11:16 AM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

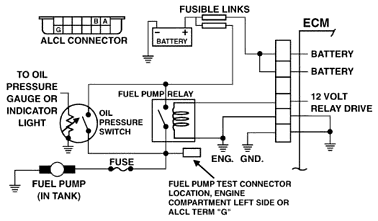

I did a quick Google and come across this diagram...

Attached Thumbnails
'89 GMC Sierra - fuel pump problems-12900_oil_sending_unit_and_fuel_pump_circuit_99.gif
Mike is offline   Reply With Quote
Old 07-10-2013, 12:08 PM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i had 89 full size and i did the pump by removing the bed. seemed way easier than fooling with rusted lines and tank straps. you only really have to prop one side up enough to access the top of the tank. having a impact really eases the bed bolt removal
jwfirebird is offline   Reply With Quote
Old 07-10-2013, 03:06 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2013
Location: Savannah, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
Acer is on a distinguished road
Default

Thanks Mike & Justin,
I can't find the fuel pump test connector. My truck has a window washer tank where the pump test connector should be. Tomorrow morning while its still cool: heat index 104 right now.
I have a impact wrench; are the bolts hard to locate? I have been thinking about just cutting a hole in the bed, I can weld it back; the truck is a work horse for us (strange as it may seem, though, we both like to take it out for a ride every once in a while; manual shift, no air conditioning....sigh).
Acer is offline   Reply With Quote
Old 07-10-2013, 05:18 PM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

not so easy cutting a hole because most things make sparks as does the welder and sparks and gas dont mix well. the bolts were fairly obvious, frame to bed
jwfirebird is offline   Reply With Quote
