Old 09-04-2007, 09:21 PM   #41
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Did you put that thing in the hole yet?
J Wikoff is offline   Reply With Quote
Old 09-04-2007, 09:39 PM   #42
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

jUsT gOt HoMe. GoT bEeR, gOiNg OuT tO pLaY.
willwren is offline   Reply With Quote
Old 09-04-2007, 09:47 PM   #43
Senior Member
Posts like a Corvette

Join Date: Feb 2007
Location: Sanford Michigan
Posts: 1,200
Thanks: 0
Thanked 0 Times in 0 Posts
crash93ssei is on a distinguished road
Default

ohhhh, let us know


and drink one for me... I have to go to work in about 2 hours
crash93ssei is offline   Reply With Quote
Old 09-04-2007, 09:51 PM   #44
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I bet he puts it in all six before he reports back. I know I would.
J Wikoff is offline   Reply With Quote
Old 09-04-2007, 10:21 PM   #45
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

2 down, opening the third. Very hard to hold position and take pics. I'm rotating the piston up right now.

I've seen the damage. I'll explain it when I get pics.
willwren is offline   Reply With Quote
Old 09-05-2007, 12:37 AM   #46
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

We've shot clear by 20 minutes, rounding 45...
J Wikoff is offline   Reply With Quote
Old 09-05-2007, 12:47 AM   #47
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

He must be having fun playing with his snake.
It'* been hours now.

.....anxiously waiting......
2000SilverBullet is offline   Reply With Quote
Old 09-05-2007, 12:48 AM   #48
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Rumor has it there'* a Dale Earnhart movie on CMT...
J Wikoff is offline   Reply With Quote
Old 09-05-2007, 12:49 AM   #49
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Yeah, lets see some carnage!
SSEimatt93 is offline   Reply With Quote
Old 09-05-2007, 12:54 AM   #50
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

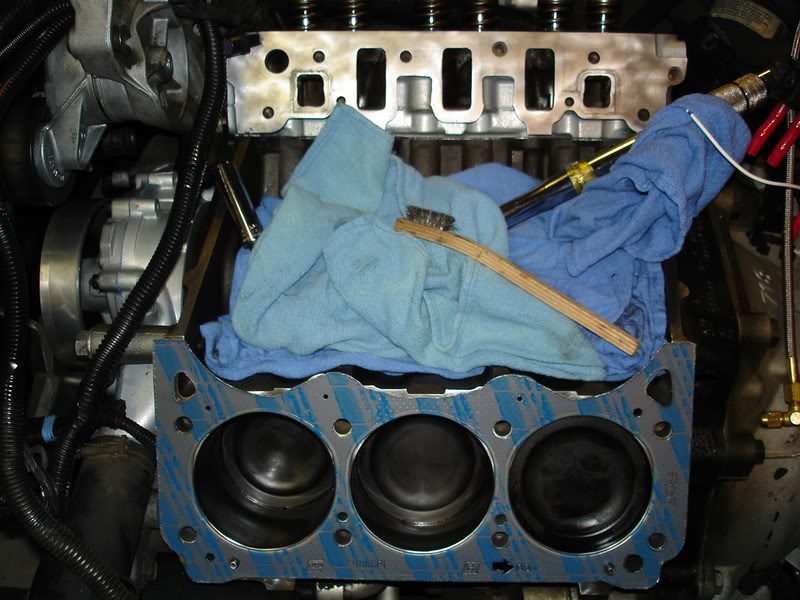

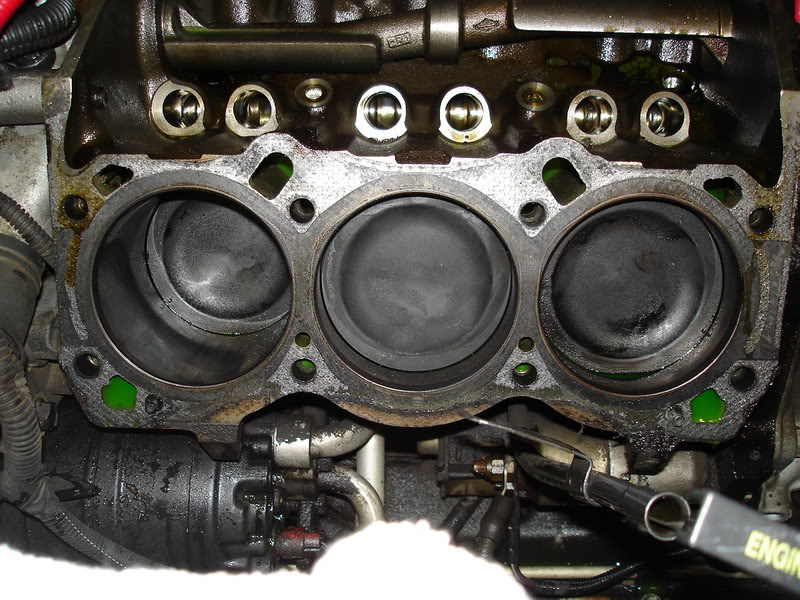

Here we go........I need to explain what we're looking at first. This is the Zilla'* motor less than 1000 miles ago:

Name:  progress2-1.jpg
Views: 15
Size:  139.6 KB
Name:  DSC03749.jpg
Views: 15
Size:  95.7 KB
Notice the rim of the piston above the rings is flat, and the piston is cupped in the center.

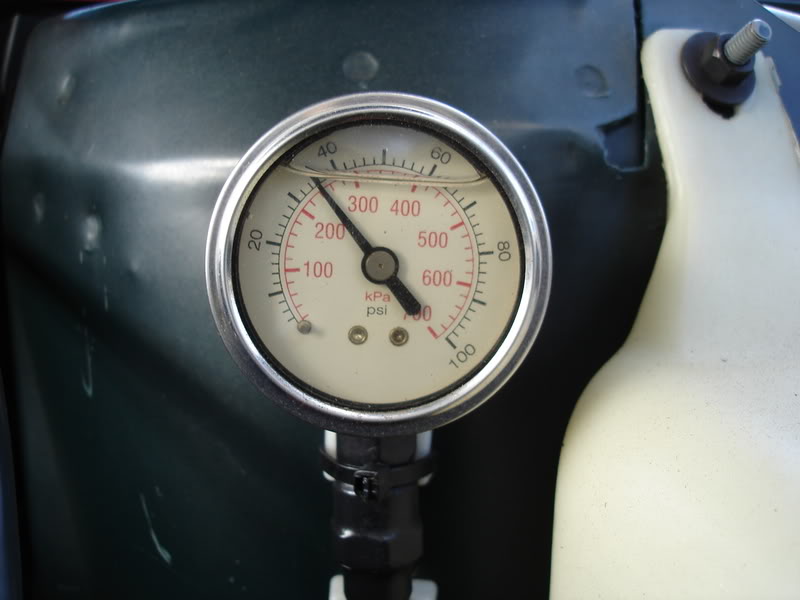

Off topic, first pic shows what a GOOD fuel pump and FPR can do. 2 days since this pump has seen power or pressure. Still holding fuel pressure:

Name:  DSC04797.jpg
Views: 15
Size:  47.8 KB

On to the problem:
Name:  DSC04798.jpg
Views: 15
Size:  13.4 KB

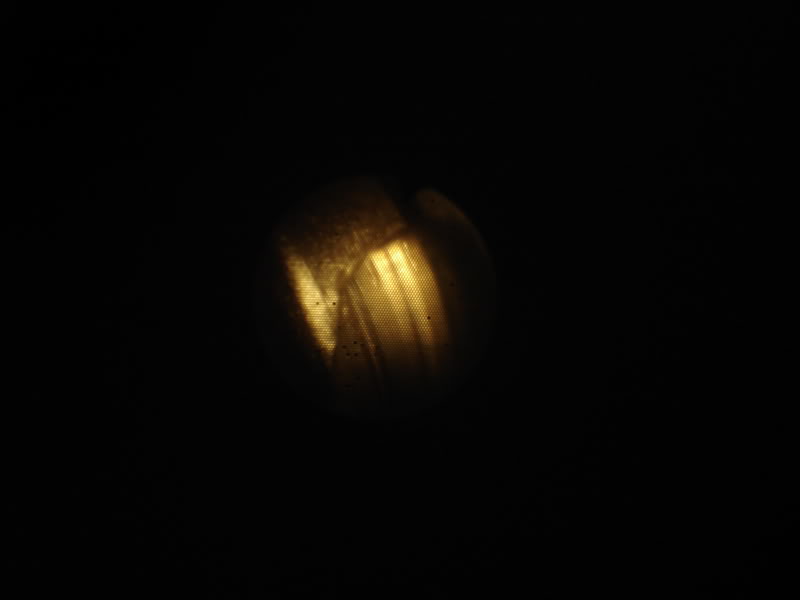

You're looking through the spark plug hole of the #1 cylinder. The 'cupped' portion of the piston is the dark to the left. Cylinder wall is to the right. The jagged 'cut' from 2 o'clock down to 6 o'clock is a break in the piston. The area below that is the top piston ring.



Name:  DSC04801.jpg
Views: 15
Size:  12.4 KB

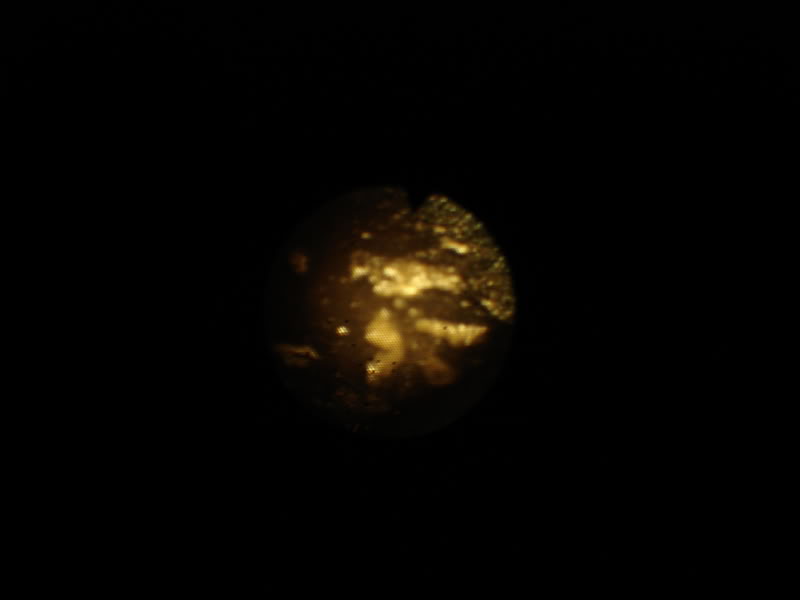

Molten aluminum from the piston disintegration in the CENTER of the piston 'cup'. This would not move when the borescope pushed against it.




Name:  DSC04802.jpg
Views: 15
Size:  12.3 KB

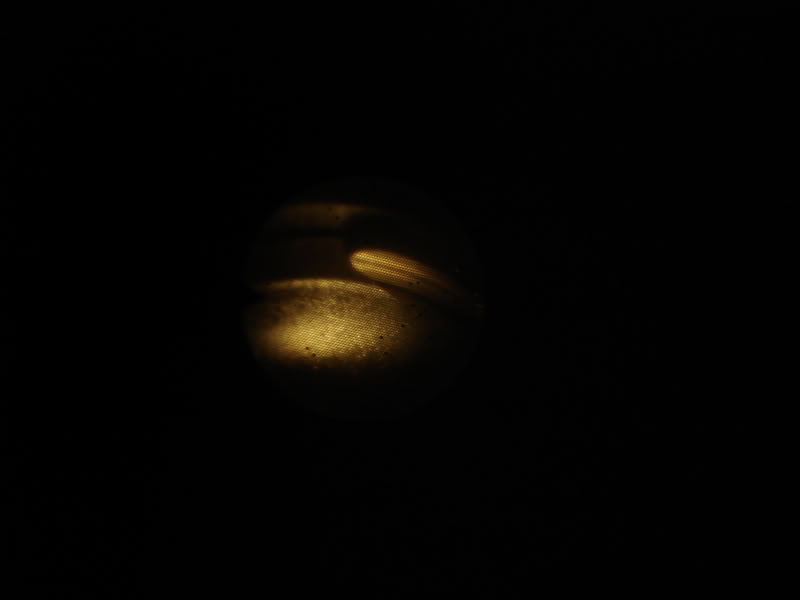

Here you can see the large bright area is the piston 'cup'. the smaller area to the upper right is the exposed upper ring.




Name:  DSC04803.jpg
Views: 15
Size:  13.8 KB

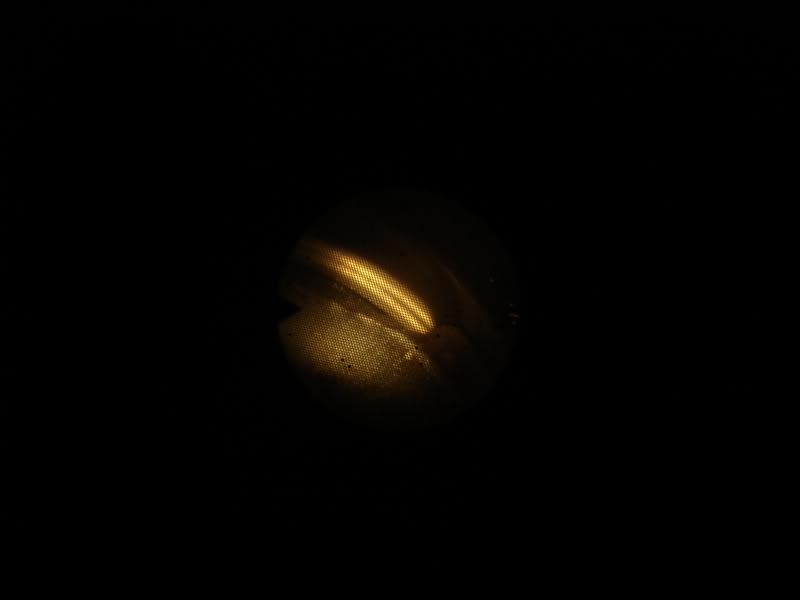

the bright area is the ring. The dimmer area is the piston.

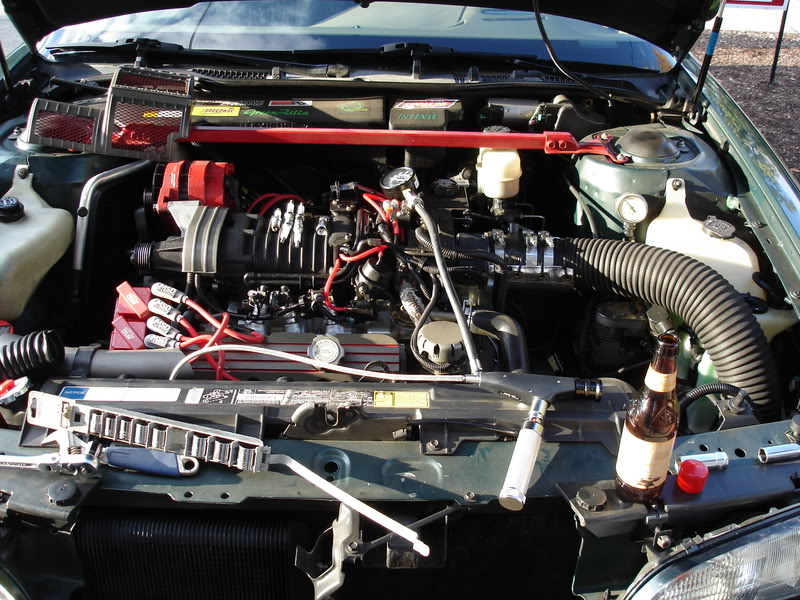

The deceased:
Name:  DSC04807.jpg
Views: 15
Size:  137.7 KB

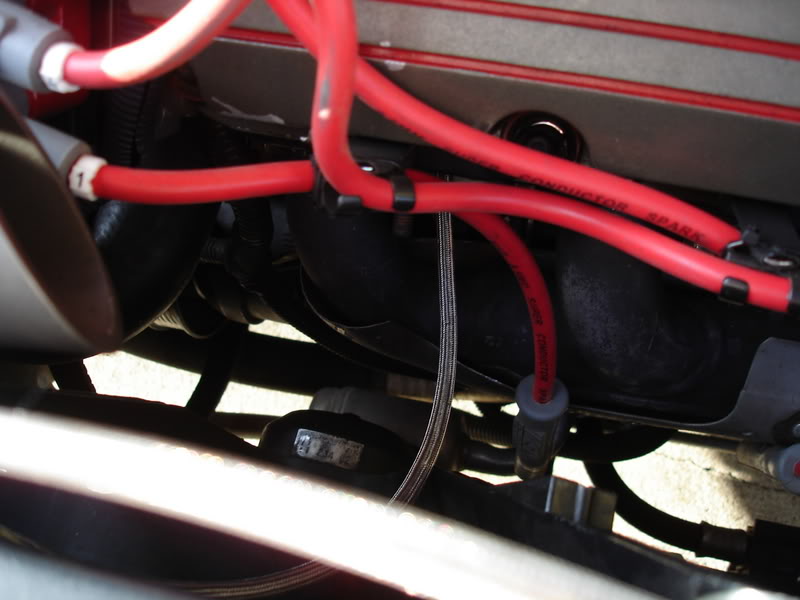

Borescope in the #1:
Name:  DSC04808.jpg
Views: 14
Size:  54.9 KB



Bo and Griffen have patience. They look forward to a newer, stronger, louder Zilla:
Name:  DSC04811.jpg
Views: 15
Size:  103.4 KB

Now let me get on my soapbox:


This car ran PERFECTLY on 92 octane pump gas with a 2.3" pulley on a Gen 3 (94/95) top end. Why? Because of MASSIVE porting, rockers, and all the supporting goodies. But ONE tank of 87 octane due to a gas station rookie cost me my motor. This motor ran with ZERO KR on 92 pump gas on a HOT day. Matt and Slayer will testify to this. Even with the 2.2, we only had random knock counts, and no KR.

Let this be a lesson to every L67 owner out there that chooses to save a buck by running lower octane.
willwren is offline   Reply With Quote
