Old 09-06-2007, 06:46 PM   #91
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll have a surprise for posting a little later tonight.
willwren is offline   Reply With Quote
Old 09-06-2007, 08:08 PM   #92
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

A Series 2 maybe?!
McGrath is offline   Reply With Quote
Old 09-06-2007, 08:23 PM   #93
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by McGrath
A Series 2 maybe?!
i was gonna say the same thing but hes to suck on S1
bandit is offline   Reply With Quote
Old 09-06-2007, 10:03 PM   #94
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have a secret. It'* embarassing, but I may have to spill the beans shortly........
willwren is offline   Reply With Quote
Old 09-06-2007, 10:05 PM   #95
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

embarassing

huh


hmmm... this could mean a lot for things for you bill...
bandit is offline   Reply With Quote
Old 09-06-2007, 10:09 PM   #96
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Colorado Springs C.O.
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
duffer26 is on a distinguished road
Default

and this is the point i ask myself why i just now find this


sorry tohear about the zilla bill and good luck with the new stuff
duffer26 is offline   Reply With Quote
Old 09-06-2007, 10:38 PM   #97
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

First of all, remind me to Kill sonoma_zr2 when I see him in MN in about 2 weeks for hiding my air ratchet in the toolbox, instead of on the shelf with the rest of the air tools.

Long story short, after carefully inspecting all 6 cylinders (see page 3 for the borescope images of #1), I found only some POSSIBLE minor damage to the #5, and all the 'loose' material from #1 has been conveniently melted, fused, and deposited in the dished center of the piston.

Consider that I STILL have acceptable compression on the #1 per the factory service manual, I decided to cut my losses temporarily while I obtain a replacement bottom end in better shape (and this bottom end to be rebuilt at my leisure at a later date).

So what I did was install 5 original plugs, a new plug in #6, reconnected my injectors, and swapped out the large 2.3" pulley for a rather monstrous 2.5". I just couldn't bring myself to put a 2.55" on there. I have a reputation to think about.

Hang your head in shame, Bo. We have a 2.5" pulley on the Zilla.
Name:  DSC04811.jpg
Views: 0
Size:  103.4 KB

The 2.5" pulley requires me to remove my extra idler. That'* ok, though, cuz we've been wearing it out. I think it'* 2.95" in diameter now, and needs to be replaced with a steel pulley next round.

Car is purring like a kitten. I still need to boost up my octane a bit. By my calculations, the 16 year old blonde chick that dumped 87 octane in my car left me with about 88.4 octane (I had about 3 gallons of 92 in the tank already). I just happen to have a gallon of toluene handy. My net octane in about 5 minutes will be 91.26 until I fill up again with 92.

I'll drive easy for the next 5-10 miles with nothing over 3000 rpm'*. After the higher octane hits the rail, I can drive like those normal people we've heard about. I had no KR on a 2.2" pulley with the ported heads and rockers, so I should be safe from further damage running a 2.5" pulley once the octane is bumped up a bit.

Some pics of the afternoon'* work:

Name:  DSC04829.jpg
Views: 0
Size:  116.8 KB

Let'* see someone ELSE try to kill a moth on the TOP of the hood. This was my last kill other than my #1 piston:
Name:  DSC04830.jpg
Views: 0
Size:  61.1 KB

Get off! It'* not dead yet!
Name:  DSC04831.jpg
Views: 1
Size:  86.0 KB

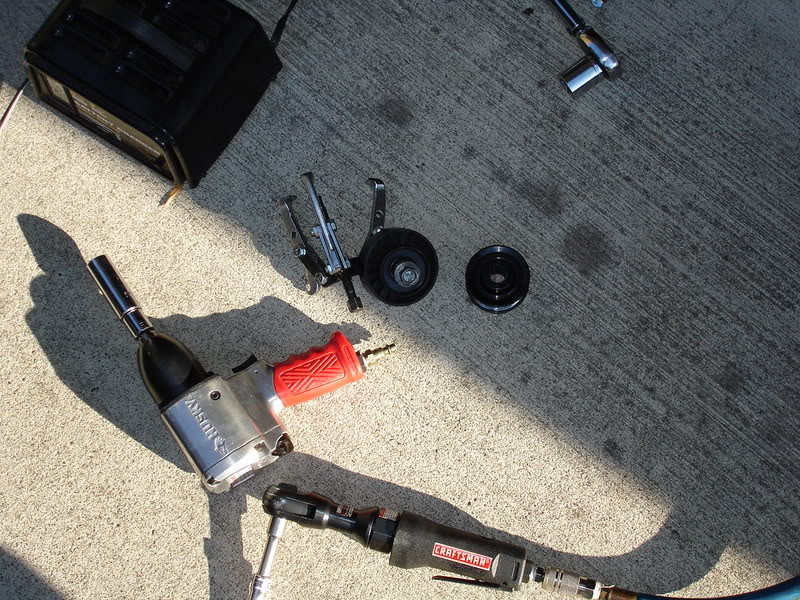

2.3" pulley and magic Zilla extra idler removed:
Name:  DSC04832.jpg
Views: 1
Size:  176.7 KB

Absolutely monstrous 2.5" pulley installed:
Name:  DSC04834.jpg
Views: 1
Size:  89.3 KB

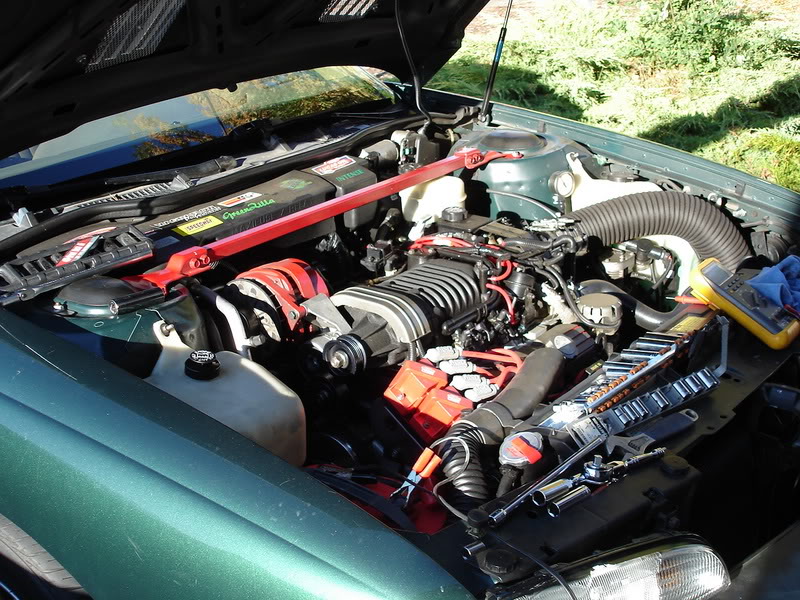

Looks good from a distance:
Name:  DSC04835.jpg
Views: 0
Size:  151.6 KB

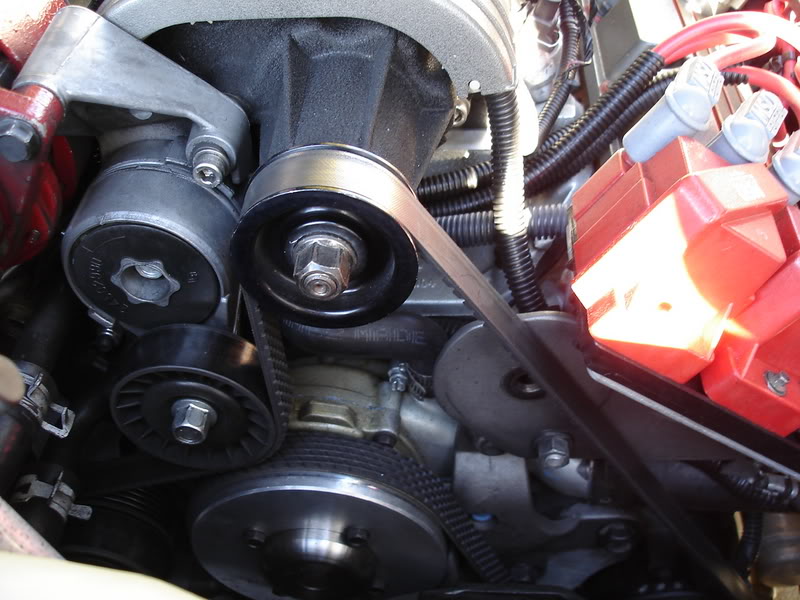

Here'* an idea of what the belt path looks like now. Think about a 3" idler pulley being mounted to the hole in the bracket beneath the ICM. That'* what I normally run:
Name:  DSC04836.jpg
Views: 1
Size:  90.3 KB

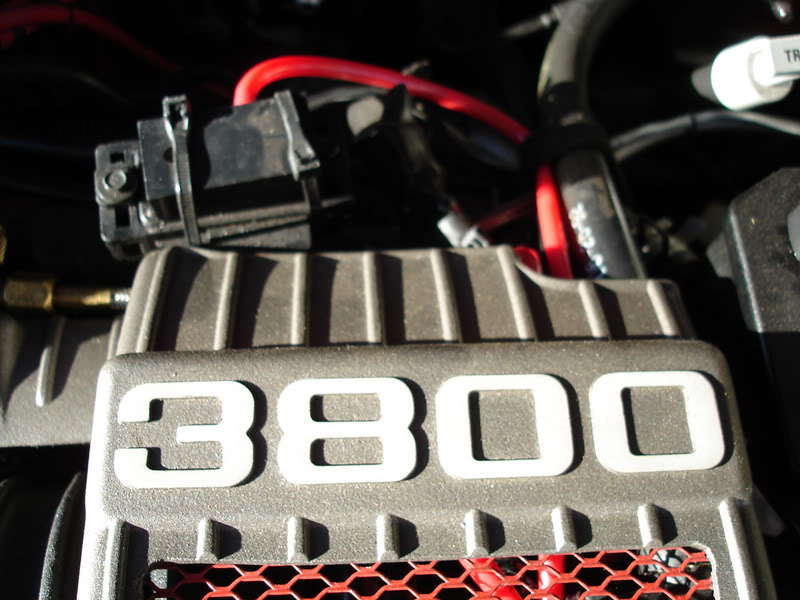

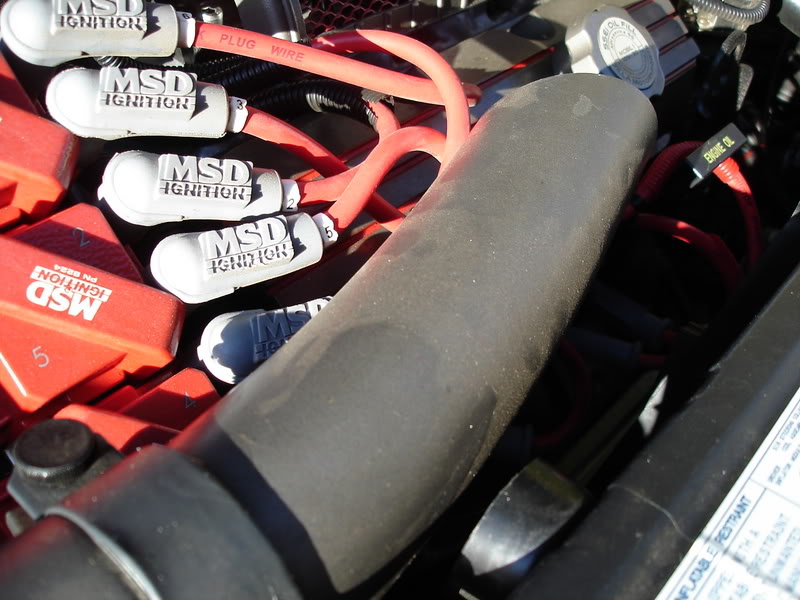

Further embarassment. Look at the DUST!
Name:  DSC04837.jpg
Views: 0
Size:  83.6 KB

Name:  DSC04838.jpg
Views: 0
Size:  81.2 KB

Name:  DSC04839.jpg
Views: 1
Size:  107.7 KB

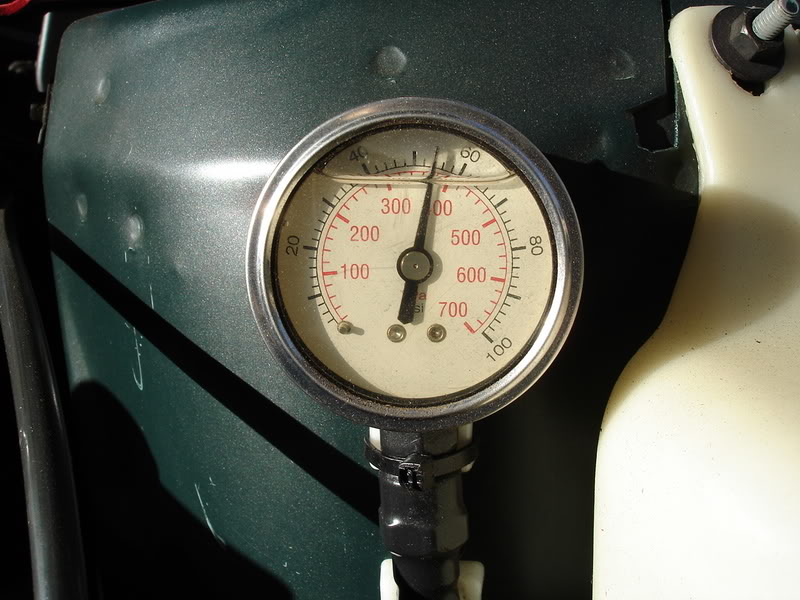

A little fuel pressure anyone? I have some to spare now:
Name:  DSC04840.jpg
Views: 0
Size:  89.4 KB

Time to back that fuel pressure off a bit for the 2.5" pulley. And it'll stay there. The next injectors will be a bit bigger when they get here.

I'm going out to dump some Toluene in the tank, and Bo and I are going for a leisurely drive to run that higher octane up to the rail so tomorrow morning'* drive to work doesn't have any surprises.

Video of the startup:
willwren is offline   Reply With Quote
Old 09-06-2007, 11:28 PM   #98
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Sounds good . I am glad you got your car running for the moment till you get a new bottom end. If you miss the 2.3" pulley so much, throw it on the SLE
OLDsman105 is offline   Reply With Quote
Old 09-06-2007, 11:39 PM   #99
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Thanks, Olds.

10.1 miles on the ticker. Should be in the 'octane safe' zone. Car is running like a champ, and is now off the injured reserve list, and back at least in a daily driver role for the time being.
willwren is offline   Reply With Quote
Old 09-06-2007, 11:41 PM   #100
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Don't you have another Bonneville to fall back on? I hope nothing happens to those cylinder bores you want to be ok for a rebuild.
J Wikoff is offline   Reply With Quote
