Old 01-12-2010, 03:20 PM   #91
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Here'* some info I copied from the BPro post on it.
General Info
Supply line is 3/8" or -6AN
Return line is 5/16" or -5AN
Quote:
With mine I adapted the return line to 3/8" (-6AN) so I would be able to use all the same fittings seeing as 5/16" (-5AN) size fittings are more difficult to get a hold of
Connectors to keep the stock type fuel rails
Russel 3/8 Connector
Russel 5/16 Connector
The the fittings for the other side (assuming the plastic fuel line is heated and shrunk to the metal line w/o any clips.
3/8 Earl -6an fitting to connect to metal line
3/8 Earl -6an fitting to connect to metal line
I think this fitting will screw into the filter and head back to the tank
Screw on connector
A different connector suggestion
Swagelok SS-600-6-6an
Hose 10' braided rated for 300F and 1,000psi
10' Summit braided hose

Thought I posted it here, but can't find it.
BillBoost37 is offline   Reply With Quote
Old 01-12-2010, 03:20 PM   #92
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Quote:
Originally Posted by BillBoost37 View Post
Please tell me you will drive to a dealer and get that end gasket instead of paying ZZP'* shipping costs. It'* a dollar or two gasket.
Since that will end up getting done in Dixon if it does get done, I will grab that from the dealer. My step dad works at a dealership there so I can get it discounted even more.

If I was going to be doing it up here, it would probably cost me the same in gas and highway tolls to go pick one up than to just order it.
ymmot04 is offline   Reply With Quote
Old 01-12-2010, 03:24 PM   #93
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

More info. This is the parts I used on my setup.
To go from hard metal lines to fuel rails.
EAR-165006ERL Fitting, -6 AN Male to 3/8 in. Tube, Aluminum, Red/Blue, Each 1 $9.25


EAR-165056ERL Fitting, -6 AN Male to 5/16 in. Tube, Aluminum, Red/Blue, Each 1 $9.25


EAR-981506ERL Fitting, Coupler, Straight, Male -6 AN to Male -6 AN, Aluminum, Blue, Each 2 $5.90


SUM-220687 Fitting, Hose End, 90 Degree, -6 AN Hose to Female -6 AN, Aluminum, Red/Blue Anodized, Each 2 $25.90


SUM-220690 Fitting, Hose End, Straight, -6 AN Hose to Female -6 AN, Aluminum, Red/Blue Anodized, Each 2 $9.76


SUM-230610 Hose, Braided Stainless Steel, -6 AN, 10 ft. Length, Each 1 $36.95

--------------------------------------------------------------------------------

Parts Total: $97.01
Handling Charge: $9.75

Total Order: $106.76
Total amount charged at this time: $106.76
BillBoost37 is offline   Reply With Quote
Old 01-12-2010, 03:54 PM   #94
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Tom grab that stuff for the fuel lines and whenever you get it we will do it, because it needs to be done ASAP for safety IMHO
Rockstar04 is offline   Reply With Quote
Old 01-12-2010, 08:21 PM   #95
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Quote:
Originally Posted by Rockstar04 View Post
Tom grab that stuff for the fuel lines and whenever you get it we will do it, because it needs to be done ASAP for safety IMHO
Sounds like a plan. Maybe next weekend? I'll go double check the parts that I'm going to need and get it ordered.
ymmot04 is offline   Reply With Quote
Old 01-13-2010, 08:22 AM   #96
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I felt the same way when I saw my fuel lines bent and kinked. When we remember that these are glorified plastic..eeeek.

BTW, you'll enjoy the fact that the 2000+ fuel lines come up by the brake booster where there is decent room to do the work. I coerced the 97 lines out from behind the strut tower and around the AC drier to work on them near the alt.
BillBoost37 is offline   Reply With Quote
Old 01-14-2010, 11:04 AM   #97
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

here is my post on how i did my Brades SS Lines

All the Info in in there, in the length, and all the fittings to make it happen

http://www.bonnevillepro.com/forums/...79&hilit=lines

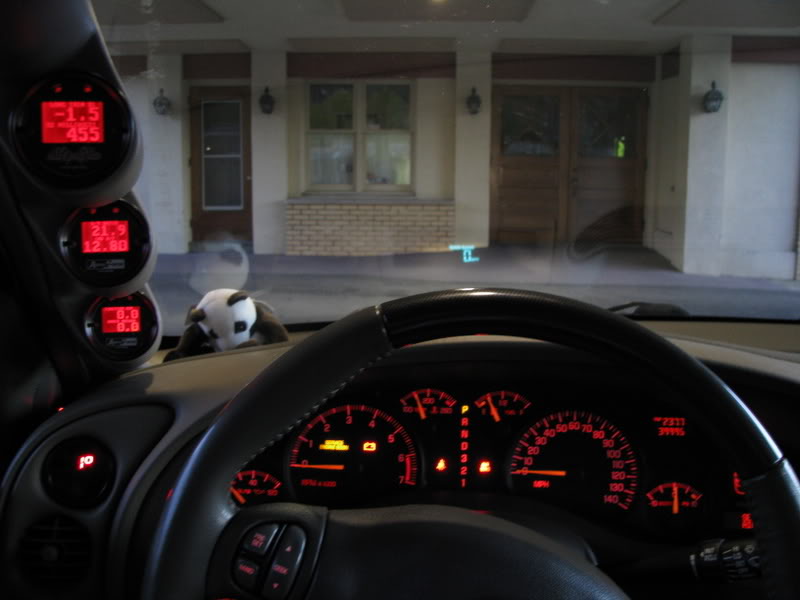

and BTW the Pillar pod is the way to go
Name:  TripleAeroforces014.jpg
Views: 0
Size:  48.2 KB
1993 SLE is offline   Reply With Quote
Old 01-14-2010, 12:13 PM   #98
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

[QUOTE=1993 SLE;1419932]here is my post on how i did my Brades SS Lines

All the Info in in there, in the length, and all the fittings to make it happen

http://www.bonnevillepro.com/forums/...79&hilit=lines

and BTW the Pillar pod is the way to go

Sweet mother of $800 gauges. . . . .
Rockstar04 is offline   Reply With Quote
Old 01-14-2010, 12:23 PM   #99
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Actually the gauges were cheap. The panda was the expensive part.
BillBoost37 is offline   Reply With Quote
Old 01-14-2010, 12:52 PM   #100
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE View Post
here is my post on how i did my Brades SS Lines

All the Info in in there, in the length, and all the fittings to make it happen

http://www.bonnevillepro.com/forums/...79&hilit=lines

and BTW the Pillar pod is the way to go
Sweet! How did you connect all the scan gauges? Did you tap into the ODB connection or??
Purplehazeir is offline   Reply With Quote
