Default The ymmot04 project

He got here right about 11am and we got right to work. Turned on the heater and hoped it would warm up. 15*, not fun.

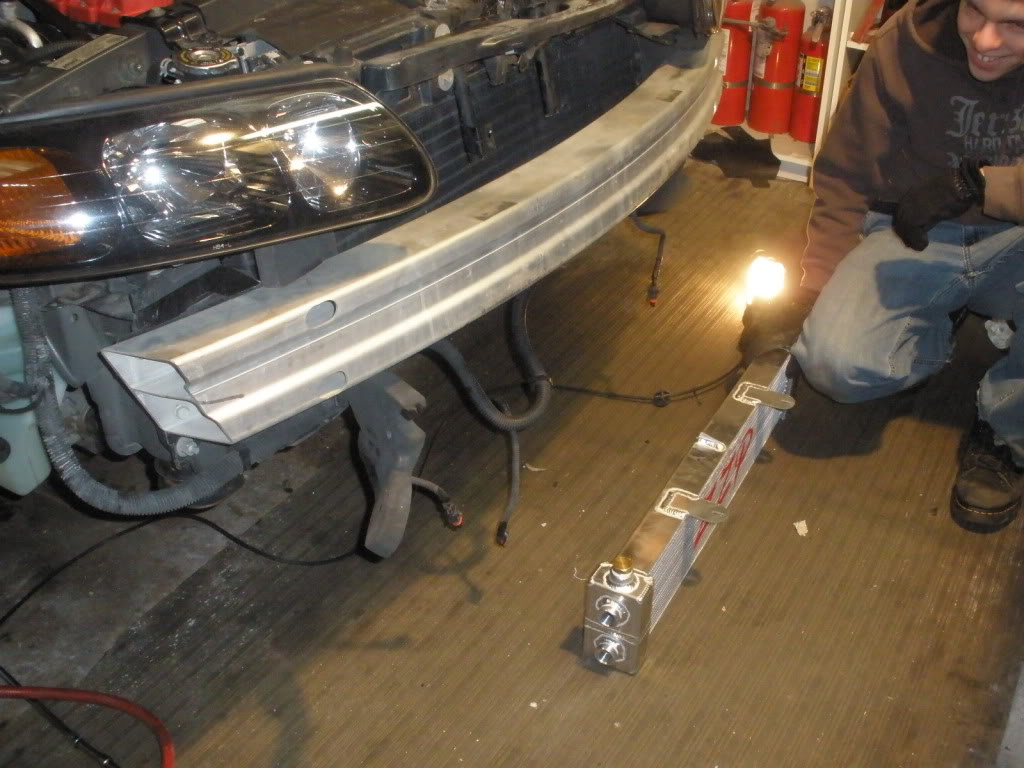

We got the front bumper off to install the heat exchanger.
Name:  PC290001.jpg
Views: 0
Size:  137.1 KB

Kind of forgot about the camera, so not to many pictures. To busy freezing.

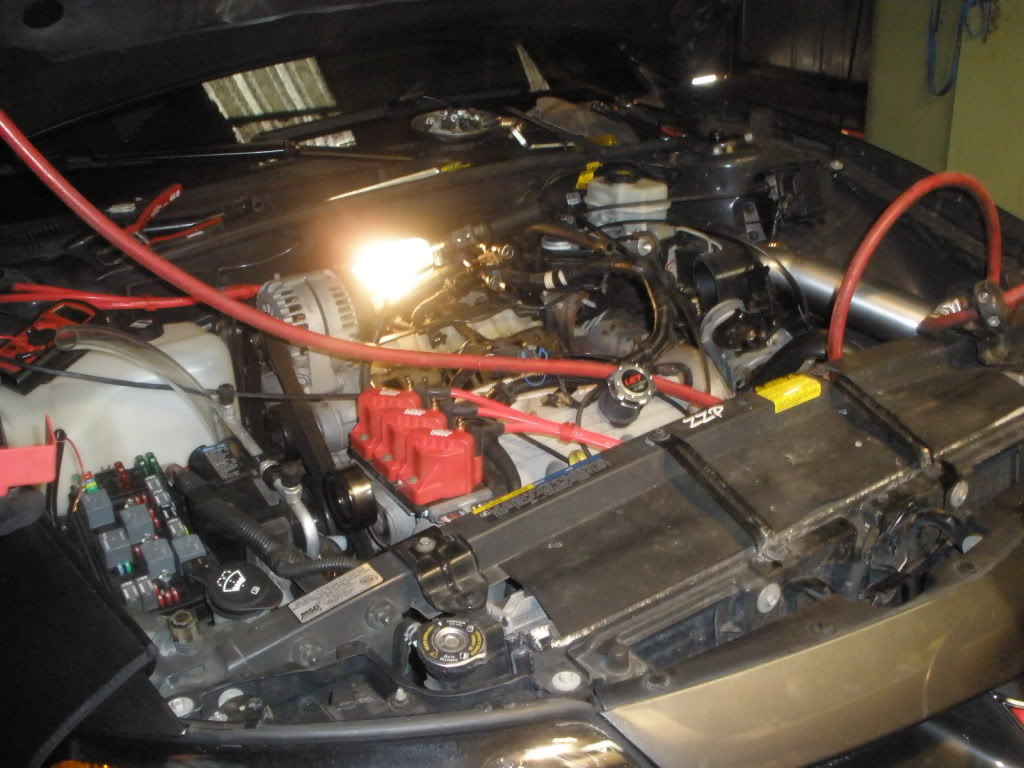

Got the heat exchanger installed and now the top comes off.
Name:  PC290002.jpg
Views: 0
Size:  138.6 KB

Tom was working on hooking up the intercooler pump.
Name:  PC290003.jpg
Views: 0
Size:  129.0 KB

New LIM installed.
Name:  PC290006.jpg
Views: 0
Size:  162.1 KB

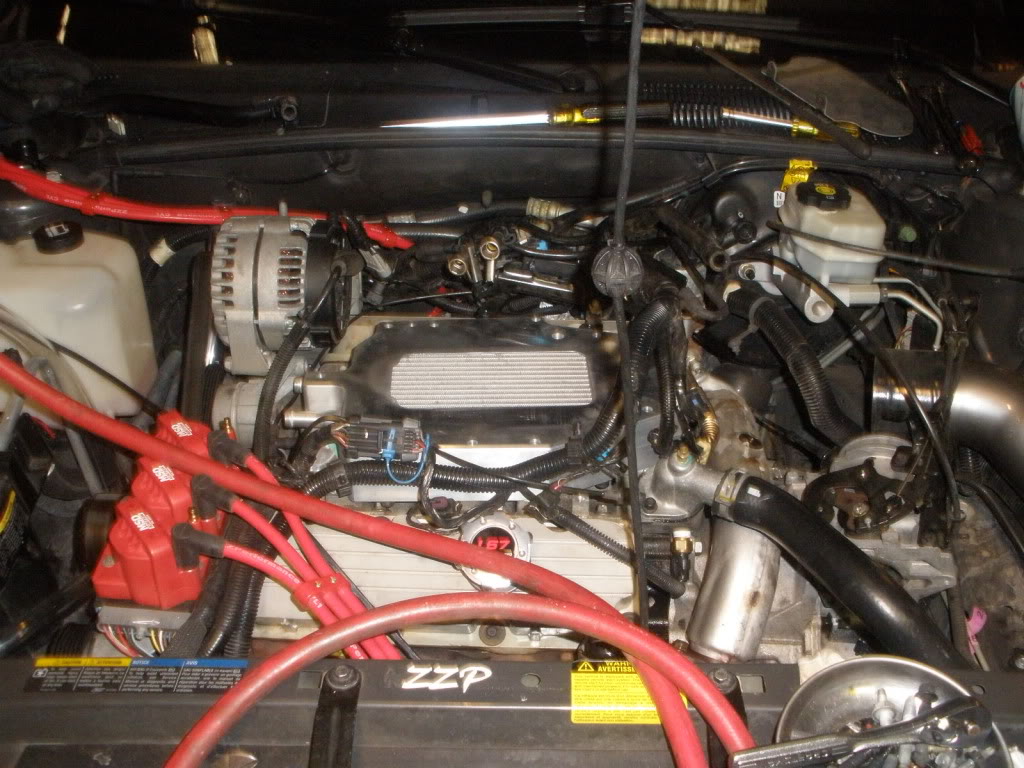

Stage 2 intercooler in place.
Name:  PC290007.jpg
Views: 0
Size:  172.5 KB

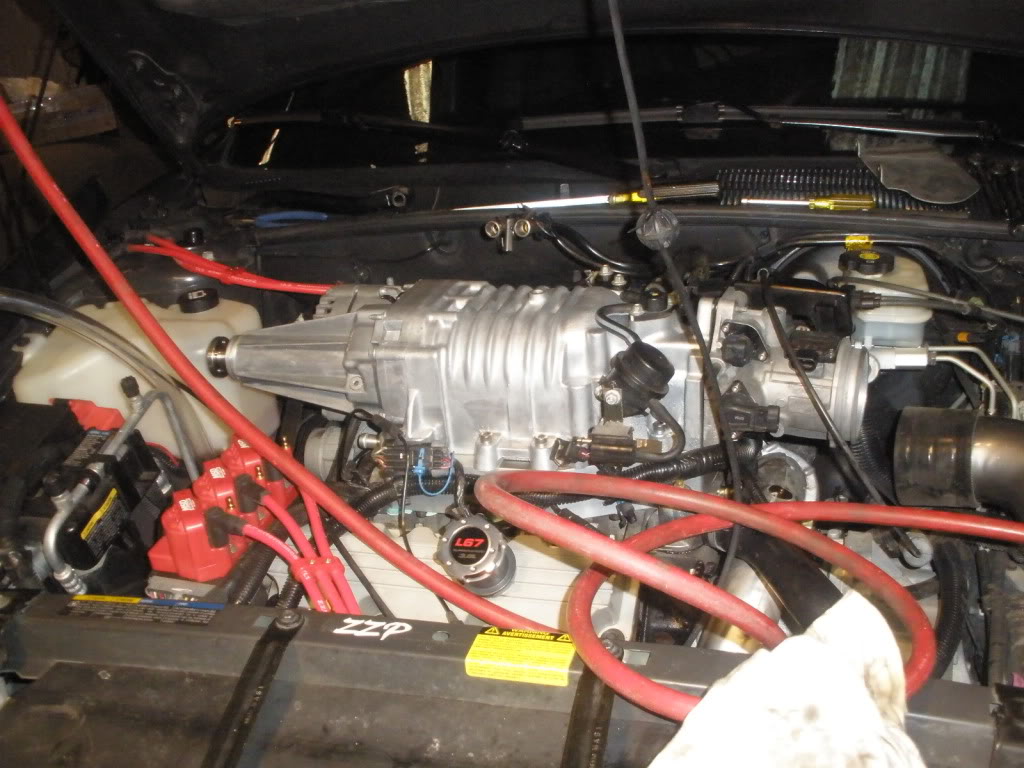

New supercharger installed.
Name:  PC290008.jpg
Views: 0
Size:  147.7 KB

Took 7 hours. The PRJ fuel rails were a pain. I should have installed them before I put the supercharger on.

The worst part is Tom had the wrong size belt. He had a 716, WAY to short. I had a 725 on the shelf. Close, so close, but just couldn't get it on. He had to drive home without the supercharger working. He'* going to need to find a 730 belt.

The heater ran out of fuel part way threw the day. Got up to 40*, then cooled off fast.

All in all, it wasn't to bad. Yes, wrong belt size, ya, the fuel rails were a pain. About 2 hours wasted because to stupid things. But, the car did start right up.
Danthurs is offline   Reply With Quote
Old 12-29-2009, 09:34 PM   #2
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks like a productive day good work guys!!!
sawgunner is offline   Reply With Quote
Old 12-29-2009, 09:36 PM   #3
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Besides the cold, it sounds like it was alot of fun
Black Pearl is offline   Reply With Quote
Old 12-29-2009, 10:31 PM   #4
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Thumbs up

Its gonna be coming into the shop Saturday for the new belt, and a new belt tensioner, plus we keep the shop at about 75*~80* all the time. Wood fired heat is the way to go.
Rockstar04 is offline   Reply With Quote
Old 12-29-2009, 10:38 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Much better. There'* no way that belt was going to fit, even if we could move the tensioner. You will also need to mount the MAP bracket. That might not be possible with that supercharger so high. Also, it hits the hood. Might help to run the plug wires under the snout. The vacuum lines need to be redone. I had to jerry rig the FPR line
Danthurs is offline   Reply With Quote
Old 12-29-2009, 10:46 PM   #6
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Much better. There'* no way that belt was going to fit, even if we could move the tensioner. You will also need to mount the MAP bracket. That might not be possible with that supercharger so high. Also, it hits the hood. Might help to run the plug wires under the snout. The vacuum lines need to be redone. I had to jerry rig the FPR line
Should be no problem at all, Im a crack fab go to guy, so we should be able to get something set up for that MAP sensor, and I redid all the vac lines on our bonnie so that part will be easy.
Rockstar04 is offline   Reply With Quote
Old 12-29-2009, 10:53 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Check the torque on the supercharger bolts. 204 inch pounds. They are such long bolts they can be a real pain. And they change the torque after heating up. My biggest worry is the SC hitting the hood. You need to push a bit to get it to close.
Danthurs is offline   Reply With Quote
Old 12-29-2009, 10:55 PM   #8
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

over time will that hurt the fiberglass/alumminum hood?
sawgunner is offline   Reply With Quote
Old 12-29-2009, 10:57 PM   #9
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

What I/C did he go with?

His hood won't crease will it?
Black Pearl is offline   Reply With Quote
Old 12-29-2009, 10:58 PM   #10
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Not sure if it'* hitting the metal of the hood, but it is hitting the padding. Wont take long to tear that all up. Guess someone needs a new scooped cowled hood.
