Old 10-03-2006, 05:13 AM   #11
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

At least he'* doing this the right way....

He has an HD trans already, now he'* taking a higher compression block and */Cing it.

That'* the way to go, vs everyone with a regular trans and a N/A motor....I'll possibly be in that boat this winter....

As for the boost levels, I can't imagine that with the stock pulley, that you'd be running any higher boost than maybe what a 2.5 pulley would put into the L67 motor....Possibly even less boost than that...
LakevilleSSEi is offline   Reply With Quote
Old 10-03-2006, 09:34 AM   #12
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
At least he'* doing this the right way....

He has an HD trans already, now he'* taking a higher compression block and */Cing it.

That'* the way to go, vs everyone with a regular trans and a N/A motor....I'll possibly be in that boat this winter....

As for the boost levels, I can't imagine that with the stock pulley, that you'd be running any higher boost than maybe what a 2.5 pulley would put into the L67 motor....Possibly even less boost than that...
L27'* and L67'* have the same CR, so there will not be any noticeable difference in power levels in that respect (though with the lower miles engine, it *might* have higher compression compared to what was in the SSEi). As far as boost levels are concerned, yes the levels should be the same, but an L27 may not like the same levels an L67 can do and may be more prone to KR. I am fully aware that this may happen, and if it does, going to a gen 3 M62 pulley should bump me down a few psi, should I need to do that.

So far, this is what is going to find its way into the L27 (aside from the normal L67 components), and all of these are new: lifters, oil pump, knock sensor, gaskets, plugs, wires, water pump, fuel filter. Fuel pump will be fully tested when the engine is in running shape, and that will be replaced if pressure is even slightly below spec. All of this will help ensure this motor will survive in its new environment...hopefully
sandrock is offline   Reply With Quote
Old 10-03-2006, 06:48 PM   #13
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

The compression ratios are still different. The N/A'd motor has a higher compression ratio than the */C'd does.....Higher compression with the addition of an */C equals out to higher boost than what an L67 would have with the same */C and pulley?
LakevilleSSEi is offline   Reply With Quote
Old 10-03-2006, 07:44 PM   #14
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
The compression ratios are still different. The N/A'd motor has a higher compression ratio than the */C'd does.....Higher compression with the addition of an */C equals out to higher boost than what an L67 would have with the same */C and pulley?
The L27 had a 8.5-1 compression as did the series 1 L67. The benefit he would have is a lighter rotating mass of the lighter parts.

Sandrock are you going to contact Gm tuners to make the adjustments to the PCM?
OLDsman105 is offline   Reply With Quote
Old 10-03-2006, 10:04 PM   #15
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I would only need to make PCM adjustments if I want more fuel, timing, etc. As far as the computer is concerned, it will still see an L67...all the sensors are the same, cubic inches are the same. And remember, I am not looking for performance out of this...just a good running substitute.
sandrock is offline   Reply With Quote
Old 10-03-2006, 10:07 PM   #16
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by sandrock
I would only need to make PCM adjustments if I want more fuel, timing, etc. As far as the computer is concerned, it will still see an L67...all the sensors are the same, cubic inches are the same. And remember, I am not looking for performance out of this...just a good running substitute.
right on Brad, the PCM will not care what block is in the car and will be setup just like a L67
1993 SLE is offline   Reply With Quote
Old 10-03-2006, 10:21 PM   #17
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by sandrock
I would only need to make PCM adjustments if I want more fuel, timing, etc. As far as the computer is concerned, it will still see an L67...all the sensors are the same, cubic inches are the same. And remember, I am not looking for performance out of this...just a good running substitute.
right on Brad, the PCM will not care what block is in the car and will be setup just like a L67
Don and I were talking about this too...I would almost bet an S2 L67 can be run on an S1 L67 PCM...so long as all the sensors are in place and functioning...it may not run to the best of it'* capabilities, but I imagine it could be done....
sandrock is offline   Reply With Quote
Old 10-04-2006, 09:42 PM   #18
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Ok, now for all of y'all interested in how all this is shaping up...

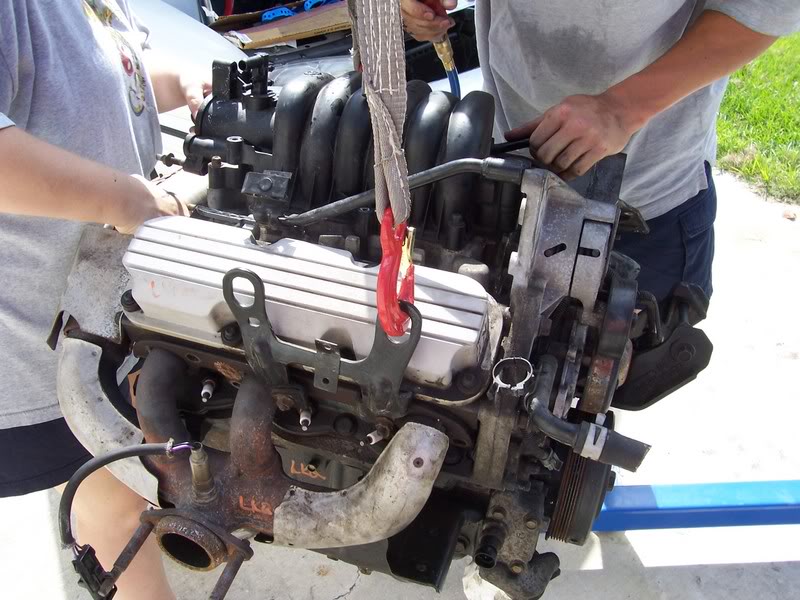

Here is what we started with...93 L27 with about 92k on the ticker...sure looks grimey!
Name:  100_1278.jpg
Views: 1
Size:  101.0 KB

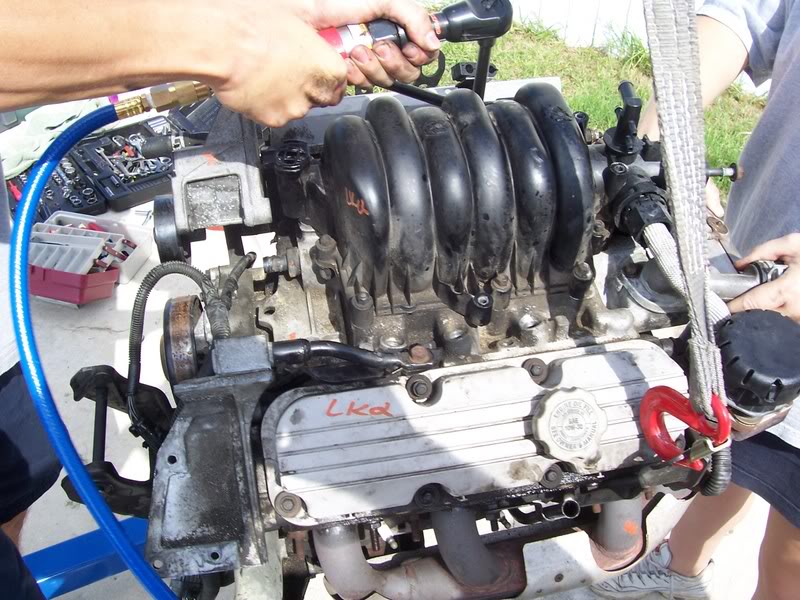

Now let'* pop off the top and see what'* inside....
Name:  100_1279.jpg
Views: 1
Size:  121.2 KB

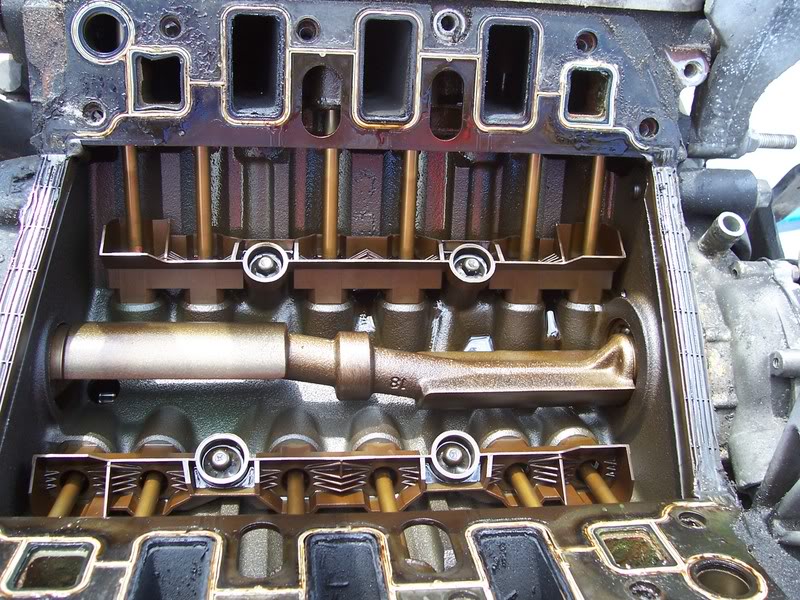

Hmmm....very VERY clean in there...
Name:  100_1280.jpg
Views: 1
Size:  149.5 KB
Nearly bare...
Name:  100_1283.jpg
Views: 1
Size:  104.0 KB
Don and I scratching our heads on something...
Name:  100_1284.jpg
Views: 1
Size:  118.0 KB

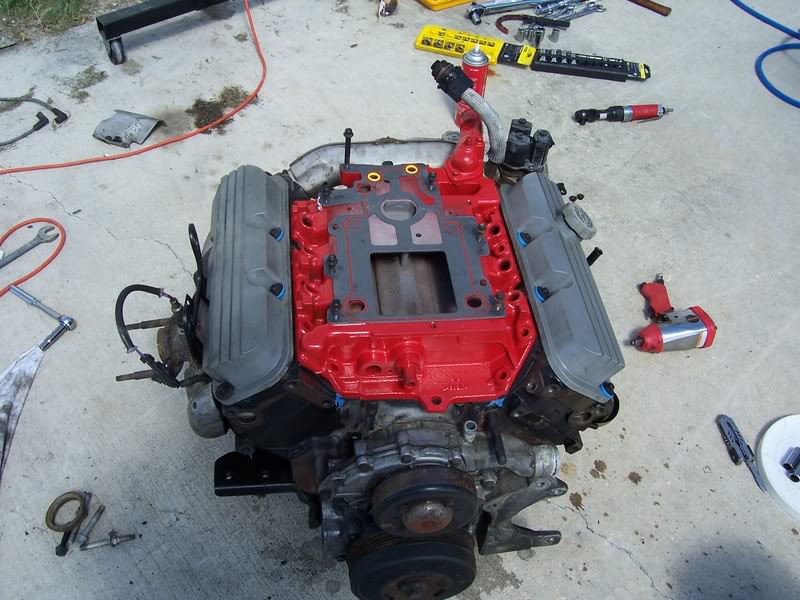

Freshly painted manifold with new sensors.
Name:  100_1285.jpg
Views: 1
Size:  103.7 KB
Name:  100_1286.jpg
Views: 1
Size:  96.8 KB

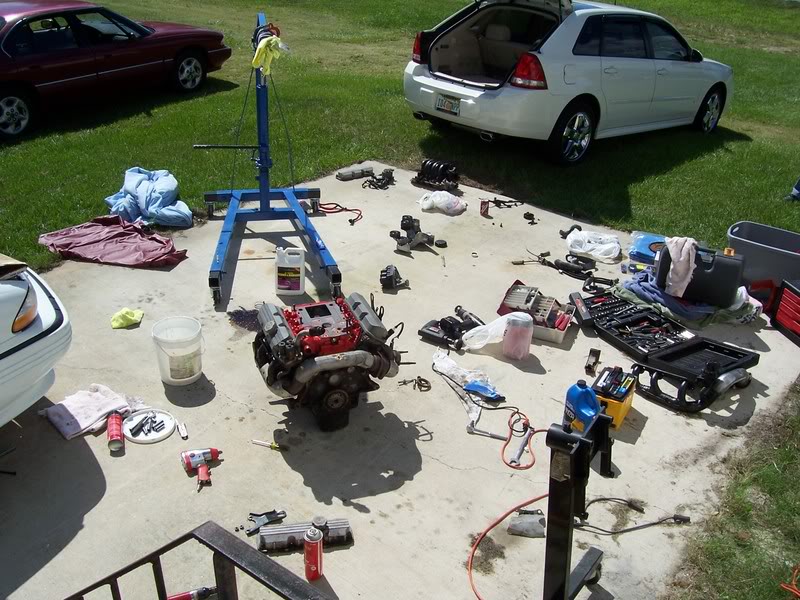

Take a look at the carnage all over the pad...
Name:  100_1290.jpg
Views: 1
Size:  126.0 KB

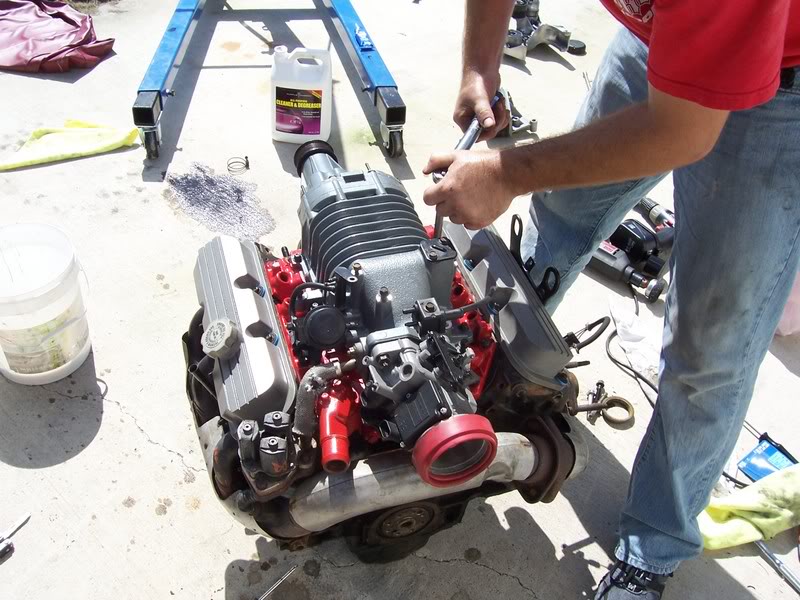

Supercharger goin on....
Name:  100_1293.jpg
Views: 1
Size:  107.7 KB

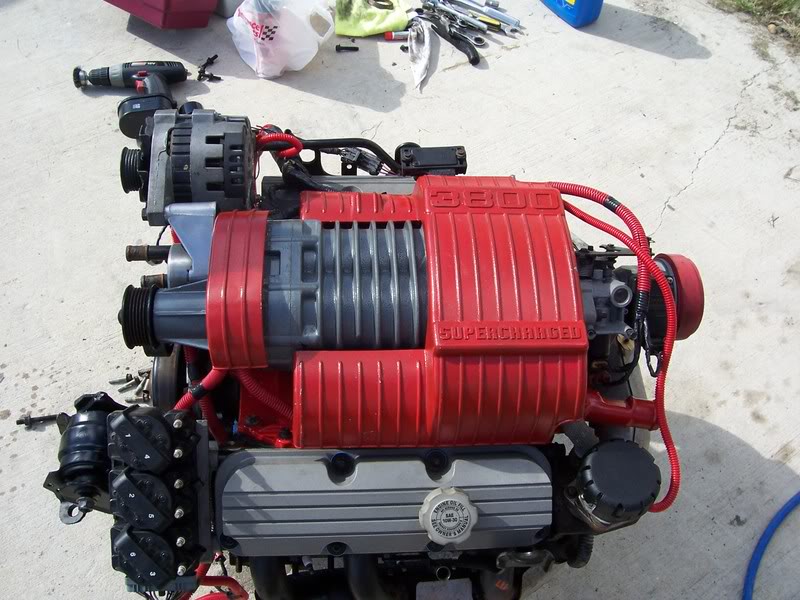

Now with damn near everything needed
Name:  100_1304.jpg
Views: 1
Size:  100.7 KB

Next steps are to put on coated front exhaust manifold, new oil pan, L67 balancer, a/c bracket, and...??
sandrock is offline   Reply With Quote
Old 10-04-2006, 09:45 PM   #19
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default



Looks like ya makin some serious progress there

Can't wait for final assebbly and the first test run
dbeast420 is offline   Reply With Quote
Old 10-04-2006, 10:06 PM   #20
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

That was one clean lifter valley.

I didn't think 93 had a heated O2 sensor.
J Wikoff is offline   Reply With Quote
