To cold to get much done today.

Did the oil pressure mod right away.
Name:  DSC03524.jpg
Views: 4
Size:  180.0 KB

Put my 105# springs in.
Name:  DSC03525.jpg
Views: 2
Size:  107.8 KB

Installed the push rods.
Name:  DSC03526.jpg
Views: 3
Size:  128.1 KB

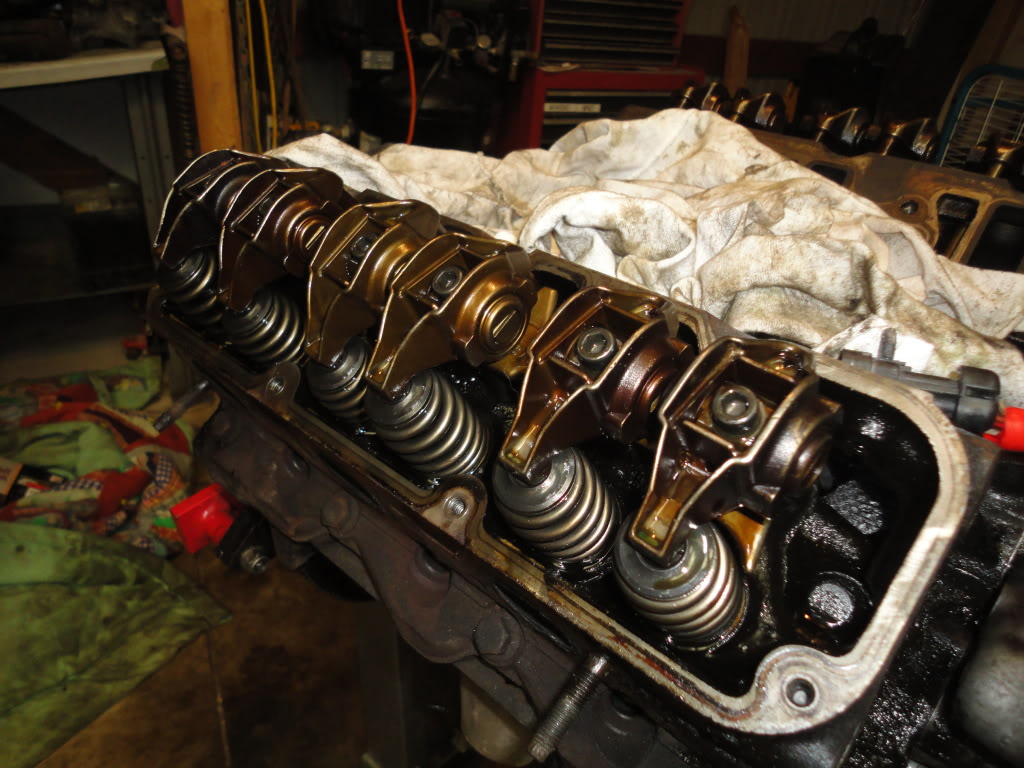

Then the rockers.
Name:  DSC03527.jpg
Views: 4
Size:  146.6 KB

Got the ported LIM in place.
Name:  DSC03529.jpg
Views: 2
Size:  128.0 KB

Finished up the front end. Need to pick up gaskets for the supercharger, so I just set it in place until next week.
Name:  DSC03530.jpg
Views: 3
Size:  172.2 KB

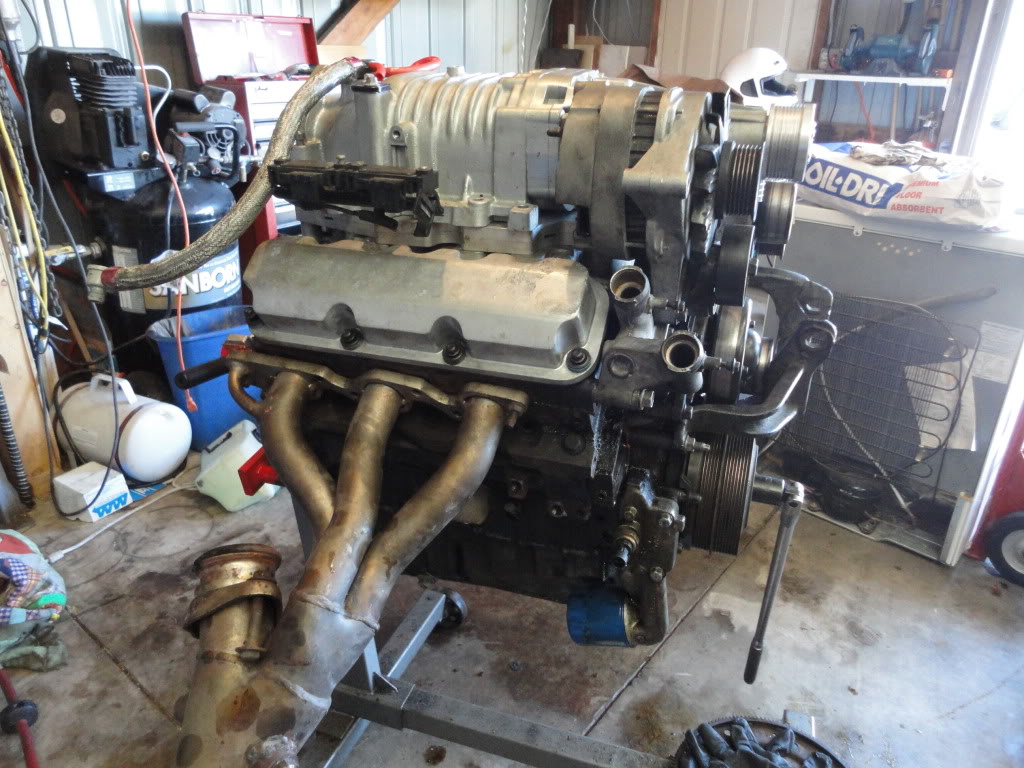

Stuck the headers on as well, just to get them out of the way.
Name:  DSC03531.jpg
Views: 2
Size:  156.5 KB

Name:  DSC03532.jpg
Views: 2
Size:  142.4 KB
Danthurs is offline   Reply With Quote
Old 03-02-2011, 04:01 PM   #222
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Looks like its coming together!

I don't have gaskets on mine... I have RTV'd the supercharger onto the IC the last 2-3 times.

I'm a little iffy on that oil pressure mod. Do you or Bill know how it raises the oil pressure? Whether it actually raises it or just tricks the engine into thinking it'* higher? Just curious...
ymmot04 is offline   Reply With Quote
Old 03-02-2011, 04:42 PM   #223
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* just a shim that makes it just a little harder to push the bypass valve out of the way. Give you about 10 more PSI
Danthurs is offline   Reply With Quote
Old 03-02-2011, 05:01 PM   #224
Senior Member
Posts like a Turbo

espee1989's Avatar

Join Date: Dec 2010
Location: New York City
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
espee1989 is on a distinguished road
Default

Are you tapping the gas lightly and then all of a sudden a jolt happens?
espee1989 is offline   Reply With Quote
Old 03-02-2011, 05:02 PM   #225
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Are you replying to the wrong thread?
Danthurs is offline   Reply With Quote
Old 03-02-2011, 08:22 PM   #226
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

I see how that would increase the pressure, but it also seems to me like it would bring some added negatives with it like restricting the flow of oil or something since you are raising the required pressure to open the valve.
ymmot04 is offline   Reply With Quote
Old 03-02-2011, 08:27 PM   #227
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That'* just the bypass valve, It'* not restricting anything.
Danthurs is offline   Reply With Quote
Old 03-02-2011, 09:04 PM   #228
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Sorry for all the questions, but how does the bypass valve work?
ymmot04 is offline   Reply With Quote
Old 03-03-2011, 12:35 AM   #229
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* just a plunger with a spring. When the oil pressure goes up, the plunger moves and the oil runs back in to the oil pan instead of going up. So it holds the pressure more steady.
Danthurs is offline   Reply With Quote
Old 03-03-2011, 07:21 AM   #230
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Being cold etc..you got a ton of stuff done. Soon it'll be alive again.
