Old 03-01-2011, 03:56 PM   #211
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Just a real nice grove. The chain and tensioner from my old engine only has a few thousand miles on it, so it'* fine..
Danthurs is offline   Reply With Quote
Old 03-01-2011, 06:38 PM   #212
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Found a little more time, and a little helper, so got more done. First had to pick up a new T30 socket. And was finally able to get the old cam out.
Name:  DSC03510.jpg
Views: 0
Size:  142.8 KB

Prepping the new cam with assembly lube.
Name:  DSC03511.jpg
Views: 0
Size:  104.1 KB

In it goes, and oh so slimy.
Name:  DSC03512.jpg
Views: 0
Size:  140.0 KB

Name:  DSC03513.jpg
Views: 0
Size:  122.6 KB

Very careful.
Name:  DSC03514.jpg
Views: 0
Size:  119.5 KB

Name:  DSC03515.jpg
Views: 0
Size:  124.2 KB

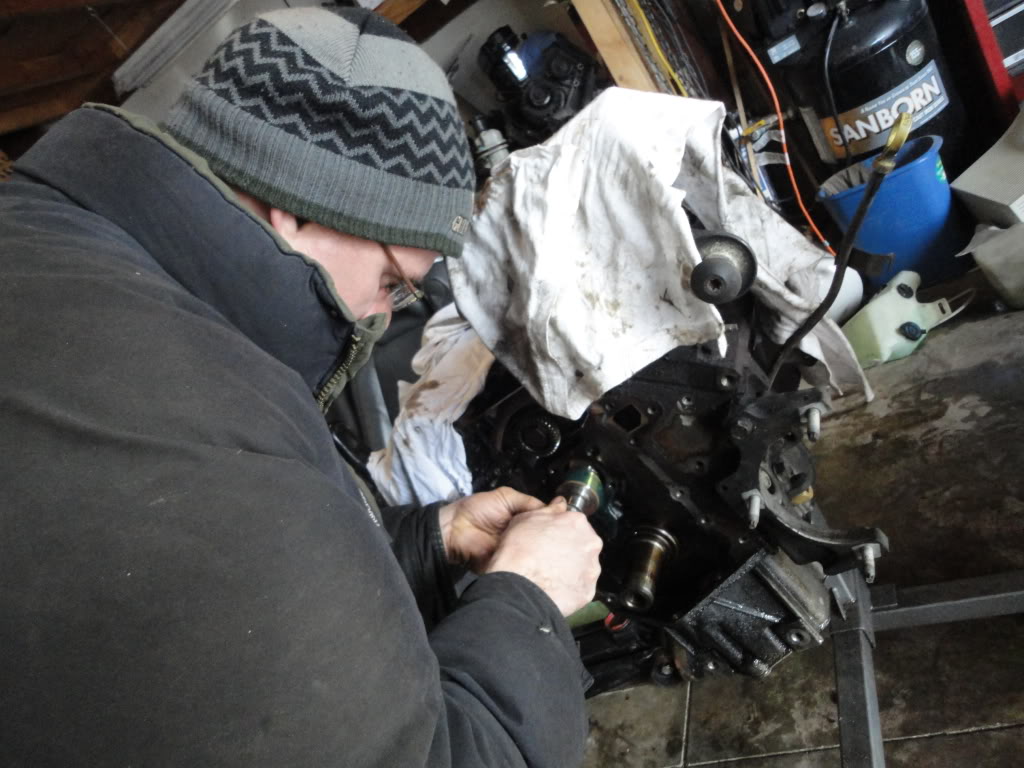

Last bearing is the tricky one. This is where a cam holder comes in real handy.
Name:  DSC03516.jpg
Views: 0
Size:  111.5 KB

Success.
Name:  DSC03517.jpg
Views: 0
Size:  119.9 KB

Lining up the balancer shaft.
Name:  DSC03518.jpg
Views: 0
Size:  242.8 KB

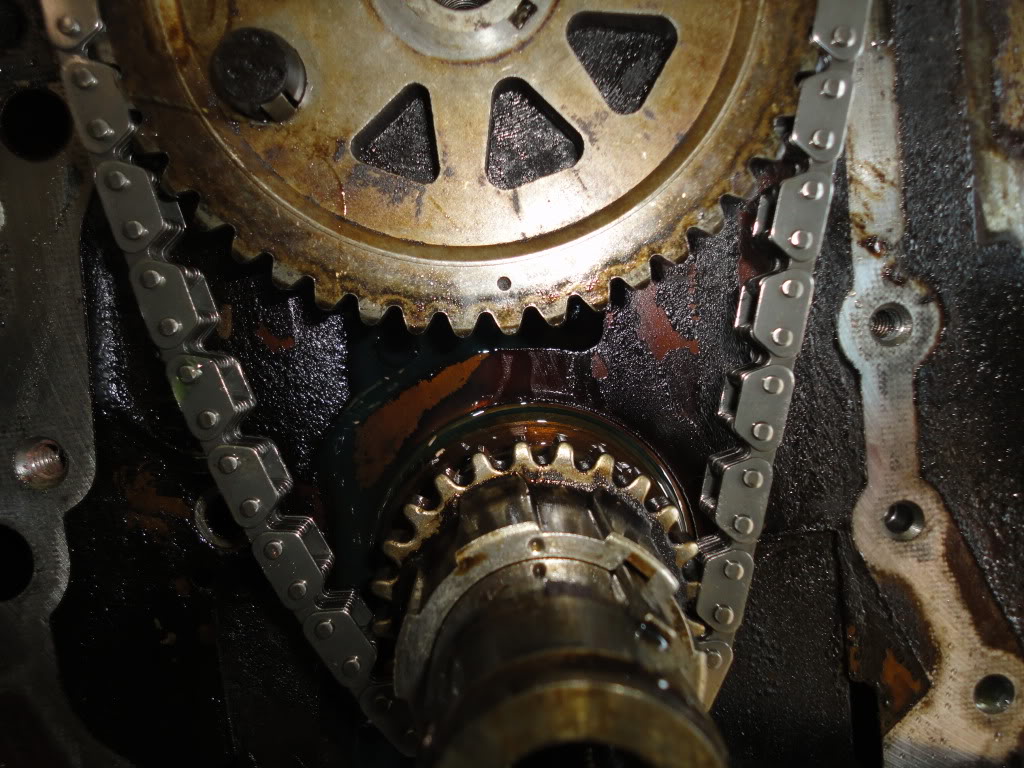

Then the timing chain and sprockets.
Name:  DSC03519.jpg
Views: 0
Size:  168.9 KB

Surfaces all cleaned up and gasket in place.
Name:  DSC03520.jpg
Views: 0
Size:  130.6 KB

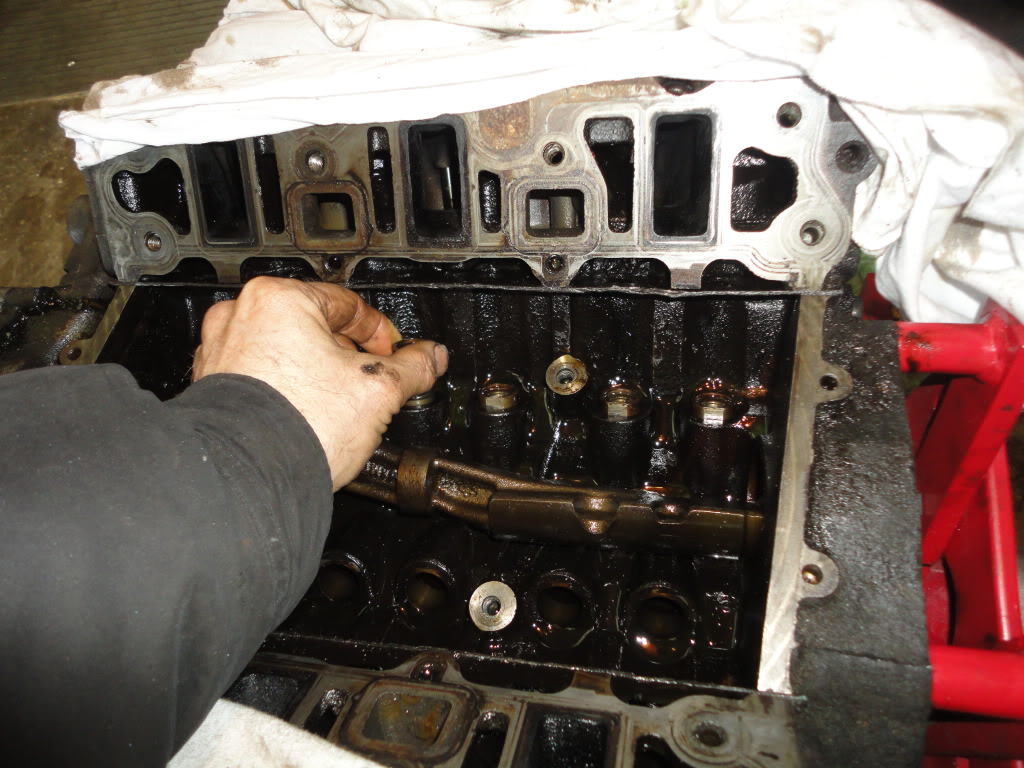

Putting the lifters back in.
Name:  DSC03521.jpg
Views: 0
Size:  155.2 KB

Got that all closed up.
Name:  DSC03522.jpg
Views: 0
Size:  184.5 KB

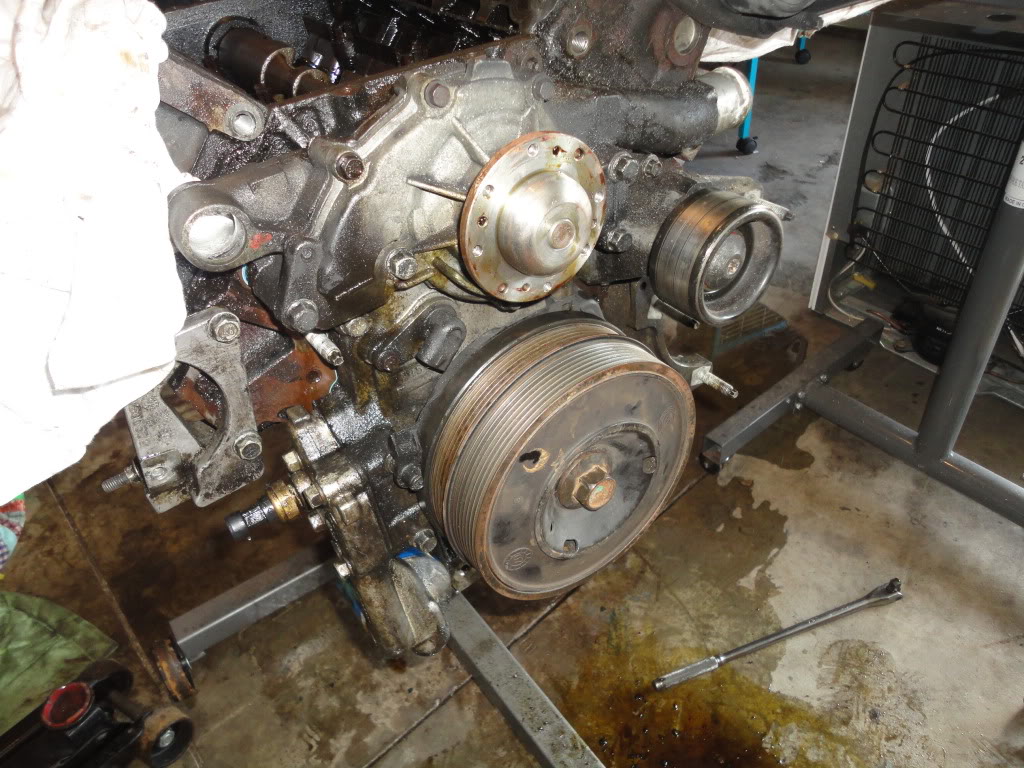

Harmonic balancer and one idler, that 8 rib setup is sure big.
Name:  DSC03523.jpg
Views: 0
Size:  176.6 KB

That'* it for today. Tomorrow after the kids are in school I'll get to work again. Going to finish up the front of the engine, then swap the flex plate. Need to remove the oil filter adapter to put the oil pressure mod in place. Then swap out the stock valve springs with 105# springs, put the OR push rods in, rockers, then get to work on the LIM, intercooler plate and supercharger. Then it'* ready to lift in to place. My hope is to get it back in the car tomorrow, but don't expect to get it running until I have off work next week Monday.
Danthurs is offline   Reply With Quote
Old 03-02-2011, 07:55 AM   #213
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You are using stock rockers right? I'm not understanding why you'd use Oil Restricted pushrods. The thought on them was that when you get roller rockers, you can hold back some oil to bump pressure and keep the lifters pumped up a little more since the rockers supposedly don't require as much oil. Yet.. some rocker vendors have found issues from lack of oiling.

Don't hate the messanger. Just tossing it out there.


Uh Gunner.. how frequent were your oil changes buddy? I'm asking..because we need to change it just a little more often. Some tell me I change mine too often, yet my motors stay sparkling clean inside. A little early on a change is often not a bad thing.
BillBoost37 is offline   Reply With Quote
Old 03-02-2011, 08:19 AM   #214
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Uh Gunner.. how frequent were your oil changes buddy? I'm asking..because we need to change it just a little more often. Some tell me I change mine too often, yet my motors stay sparkling clean inside. A little early on a change is often not a bad thing.
changed them every 5k following the DIC and always used mobil clean 5000
sawgunner is offline   Reply With Quote
Old 03-02-2011, 09:00 AM   #215
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I used the OR push rods when I had rollers. Stock rockers right now. Some day I need to send in those HS 1.6:1 rollers for a rebuild. I forgot they were on the shelf. I guess I could put the stock push rods back in and use the ORs when I go to rollers.

Gunner, the engine was sludged rather bad on the top. The lifters were stuck. But it'* all better now.
Danthurs is offline   Reply With Quote
Old 03-02-2011, 09:06 AM   #216
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

news to me. been a while since i went in there for more than an oil change or plugs. Kevin has some 1.6. roller rockers in his parts bin give him a holler
sawgunner is offline   Reply With Quote
Old 03-02-2011, 09:24 AM   #217
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Even with a roller rocker, I'd stick with a normal pushrod. Many have changed their thoughts about the best way to do things on these motor.
BillBoost37 is offline   Reply With Quote
Old 03-02-2011, 09:31 AM   #218
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I have a set of 1.6:1 rockers as well. Just need to send them back to HS to be freshened up.

I will do that Bill. Never really put much thought in to it I guess.
Danthurs is offline   Reply With Quote
Old 03-02-2011, 10:51 AM   #219
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dan.. me either for the longest time. Recently I've come across many folks making different recommendations which gets one thinking about it. Once you start looking into it, the pro'* and con'* start to point in one direction.

It'* like when your woman says someting to you. At first it sounds off the wall and totally nuts. A bit more info or time and she seems to almost start making sense.
BillBoost37 is offline   Reply With Quote
Old 03-02-2011, 10:58 AM   #220
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Well, I'm about to go out and get cold, only 15* today.
Danthurs is offline   Reply With Quote
