Default Looking for pics/info of fuel sending units (92-96)

After removing the fuel tank in the 90 and inspecting the fuel sender rheostat it became clear that I can't install it on the 97 sending unit to cure the fuel gauge problem. I don't know if that is because it is a replacement instead of the original though. Does anyone have a sending unit from a 92-96 laying around?

Tomorrow, I'll post a pic of what the 97 rheostat looks like and the way it attaches to the sending unit. It is easily removed and I'm hoping the other years mount in the same way.

Thanks
randman1 is offline   Reply With Quote
Old 06-04-2005, 11:32 PM   #2
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

I realized that the above description was a little vague so I made a special trip to get the sender. I would like someone with a spare sending unit to compare the following pics to what they have in order to determine what years, if any, have this style of rheostat assembly mounting. With this information, I can find one on a junk yard unless what you have is for sale.

this is the rheostat assembly as it appears on the complete sending unit. Take note of the white plastic piece which locks the rheostat onto the steel lines. With this removed, the rheostat simply slides downward and off of it'* mounting perch.

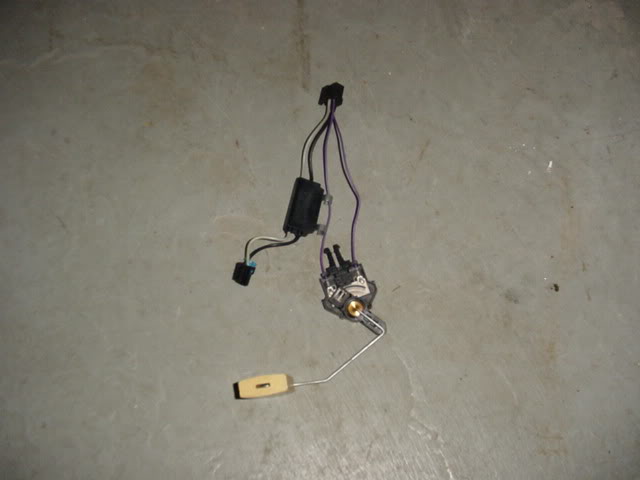

This is the rheostat assembly removed from the sending unit

Name:  DSC01689.jpg
Views: 0
Size:  24.2 KB

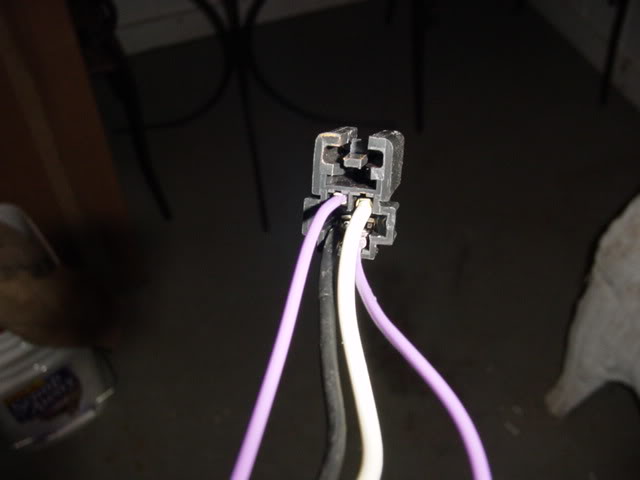

And finally the connector

Name:  DSC01690.jpg
Views: 2
Size:  21.9 KB


I need to find one that has an operating range of 0 ohms empty and 90 ohms full. I believe 97 was the first model year that began the 40/250 range but I'm not positive. If you happen to have a multimeter kickin' around too, you'd be my hero if you could measure the range.
randman1 is offline   Reply With Quote
Old 06-05-2005, 12:00 AM   #3
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

i have a multi meter, but its at my parents house and youd have to pay me more than a few bud lights to go get it in NH and bring it to enfield tomorrow
toastedoats is offline   Reply With Quote
Old 06-05-2005, 12:04 AM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Lunch too??

I have a multimeter but I need someone who has a sending unit laying around to confirm both the mounting and operating range.
randman1 is offline   Reply With Quote
Old 06-05-2005, 12:05 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by toastedoats
i have a multi meter, but its at my parents house and youd have to pay me more than a few bud lights to go get it in NH and bring it to enfield tomorrow
A whole bunch of Bud Lights, a pile of Rollin Rocks...Over a case of Coronas...and say 2 gallons of margaritas.


How'* that sound? See you in the morning!!!!
BillBoost37 is offline   Reply With Quote
Old 06-05-2005, 12:11 AM   #6
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by randman1
I need someone who has a sending unit laying around to confirm both the mounting and operating range.
cant help you there...
but i could definately help with the booze if the girly wouldnt cut my dick off because i went out to work on cars all weekend
toastedoats is offline   Reply With Quote
Old 06-05-2005, 01:06 AM   #7
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Quote:
Originally Posted by toastedoats
Quote:
Originally Posted by randman1
I need someone who has a sending unit laying around to confirm both the mounting and operating range.
cant help you there...
but i could definately help with the booze if the girly wouldnt cut my dick off because i went out to work on cars all weekend


AAAAAAAH! TMI TMI!
rjolly87 is offline   Reply With Quote
Old 06-06-2005, 02:07 AM   #8
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

93-94 don't look like that. There'* no black box inline with the pump wires and the rheostat is white plastic with the metal strip in a straight horizontal line. Pump looks the same...
Damemorder is offline   Reply With Quote
Old 06-06-2005, 10:07 AM   #9
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Thanks, Dame. Maybe I can approach this in another direction by using the complete sender assembly instead of just the rheostat. The lines would need to the same length and diameter and have the correct ends in order to connect to the 97 fuel lines.



The overall length of the londest line is about 16" measuring from the center of the sender in-tank body. The supply line off the sender is 3/8" diameter, the return is 5/16" and the vapor is 5/16". Only the supply and return have the fittings for the quick release nylon fuel lines.
randman1 is offline   Reply With Quote
Old 06-06-2005, 12:26 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by randman1
Thanks, Dame. Maybe I can approach this in another direction by using the complete sender assembly instead of just the rheostat. The lines would need to the same length and diameter and have the correct ends in order to connect to the 97 fuel lines.



The overall length of the londest line is about 16" measuring from the center of the sender in-tank body. The supply line off the sender is 3/8" diameter, the return is 5/16" and the vapor is 5/16". Only the supply and return have the fittings for the quick release nylon fuel lines.
Wow..a great engineering feat was accomplished. He'* got the sender and tape measure balanced on a single bottle of 409? Impressive!
BillBoost37 is offline   Reply With Quote
