Improved MPG
#21
Senior Member
True Car Nut
As to the vacuum lines, I personally recommend a two-fold approach. First, I prefer a detailed and thorough visual and physical review of all the vacuum lines.
Go ahead and start at the throttle body and feel and view each vacuum line, following them all the way to their terminal ends. That includes under the airbox and to the evap/charcoal cannister. Review each vaccum line in turn this same way. The common places for cracks and splits is at the rubber connectors. If you have any suspect connectors, I suggest replacing them all. It'* low cost and get'* the job done once and for all. All of the straight connectors can be replaced with a simple cut piece of rubber vacuum line purchased at your local parts store.
Even a small split or crack can cause more grief than would seem possible.
Second approach that many use is to spray some intake cleaner around all lines while the car is running and listen for any engine sound change. IMO, this is a secondary check and should not be substituted for the actual on-hands check mentioned above.
Go ahead and start at the throttle body and feel and view each vacuum line, following them all the way to their terminal ends. That includes under the airbox and to the evap/charcoal cannister. Review each vaccum line in turn this same way. The common places for cracks and splits is at the rubber connectors. If you have any suspect connectors, I suggest replacing them all. It'* low cost and get'* the job done once and for all. All of the straight connectors can be replaced with a simple cut piece of rubber vacuum line purchased at your local parts store.
Even a small split or crack can cause more grief than would seem possible.
Second approach that many use is to spray some intake cleaner around all lines while the car is running and listen for any engine sound change. IMO, this is a secondary check and should not be substituted for the actual on-hands check mentioned above.
#22
Senior Member
Posts like a Northstar
Thread Starter
Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Boosty. My current wires are AC Delco. I haven't changed them or plugs, and I have had the car 6 years and 75,000 miles. They must be ready for a change
I have a Checker auto les than a half mile away. Thanks for the tip
I have a Checker auto les than a half mile away. Thanks for the tip
#23
Senior Member
Posts like a Northstar
Thread Starter
Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Likes: 0
Received 0 Likes
on
0 Posts
Thanks lash...That helps... How many vacuum lines can there be? Are they soft flexible lines? (I feel like a simpleton asking this)
Any pictures maybe? I think I did read a thread about a connector that cracked, and the guy thought he did something bad.
I will check them this weekend
Thanks all.... this is great stuff
Any pictures maybe? I think I did read a thread about a connector that cracked, and the guy thought he did something bad.
I will check them this weekend
Thanks all.... this is great stuff
#24
Senior Member
Certified GM nut
Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BillBoost37
Skippy...recent experience with TJ was that the warranty on Beldens is a pain to use. Autolite Professionals or AC Delco are just as good from th Parts America group Advance/Checker etc. and they store your phone number for warranty. You won't be badgered for a box and receipt both before they will make good on the warranty. (Anyone tell that Napa got under my skin on that one?)
#25
Senior Member
True Car Nut

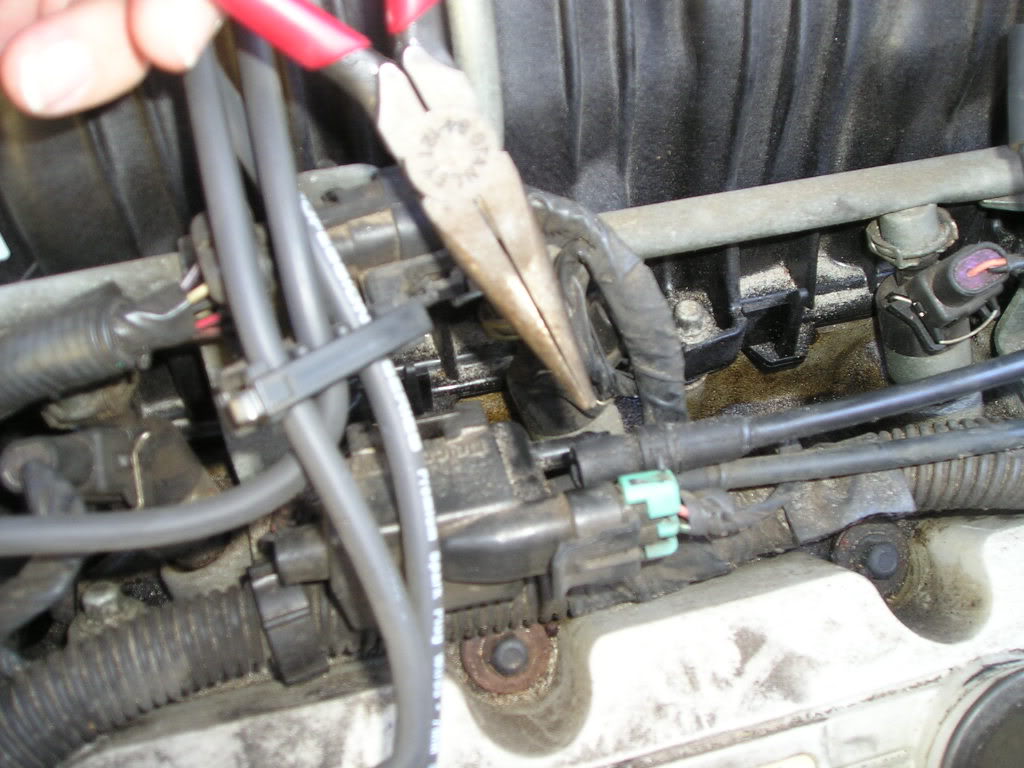

Your vacuum lines are typically a hard plastic small diameter line using rubber connectors. They run from the throttle body to the brake booster and the evap./charcoal cannister under your airbox. Here'* an old pic where the needle-nosed pliers are pointing at a rubber vacuum connector that has a crack in it. That hard plastic line running to the right is a vacuum line.
Check all the lines and more specifically the rubber connectors. This includes any elbow-shaped and "T"-shaped rubber connectors.
Check all the lines and more specifically the rubber connectors. This includes any elbow-shaped and "T"-shaped rubber connectors.
