Been a while since an update. I got some work done around the Missus birthday, a long camping weekend, a meet I hosted at my place etc etc. And I've been talking to some guys on ways to solve some fitment issues.

On with the pics.

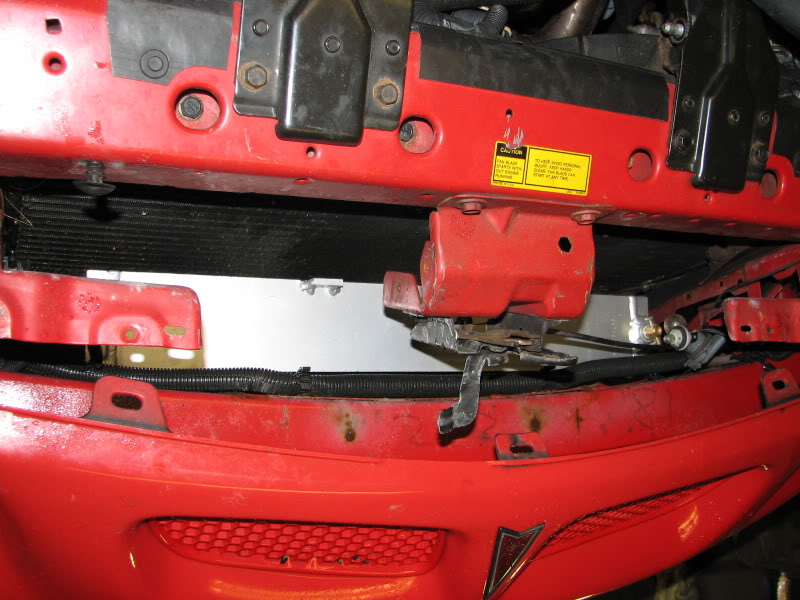

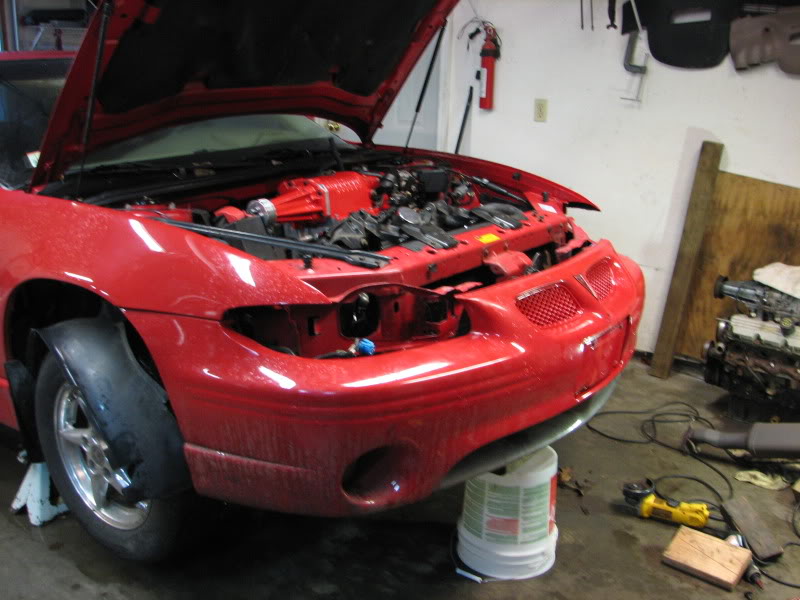

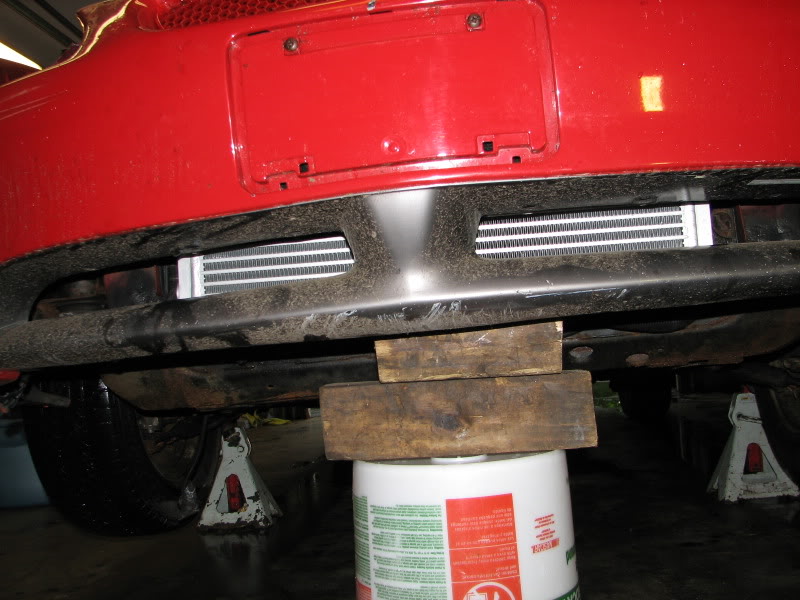

In the garage with the IC FMHE sitting in place and checking fitment etc.
Name:  IMG_7343.jpg
Views: 1
Size:  77.3 KB

Name:  IMG_7344.jpg
Views: 1
Size:  89.2 KB

Name:  IMG_7345.jpg
Views: 0
Size:  96.8 KB

Got some steel stock and cut, bent, drilled, painted etc to use as a top bracket. Did a little light work on the radiator support to mount to that. Once I make any cut or have any steel exposed, it'* painted or orubberized with undercoating. For a clean install, body clips are installed so that the bolts are held by the clips and not a thin layer of sheetmetal.

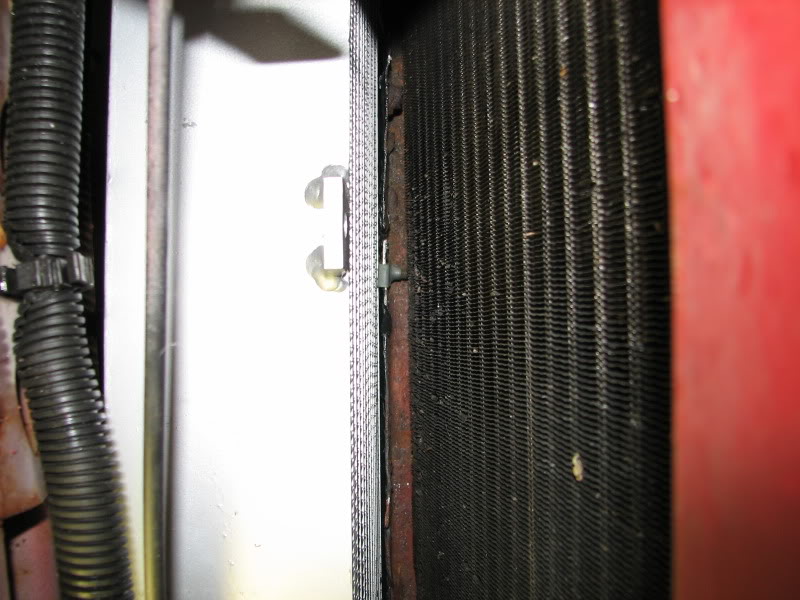

The clip is at the bottom of the heat exchanger in this pic
Name:  IMG_7351.jpg
Views: 1
Size:  87.8 KB

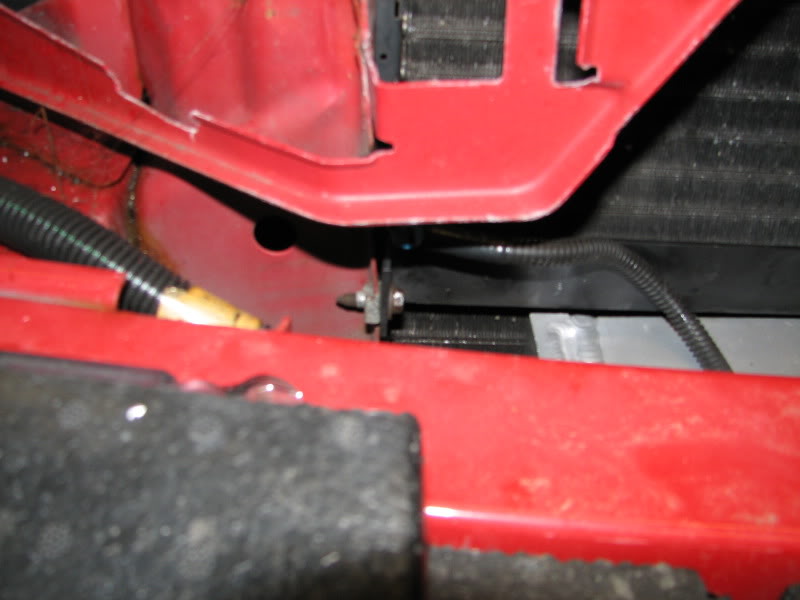

Used holes already in the rad support side piece with the clip to mount the top mount of the heat exhchanger
Name:  IMG_7355.jpg
Views: 1
Size:  52.1 KB

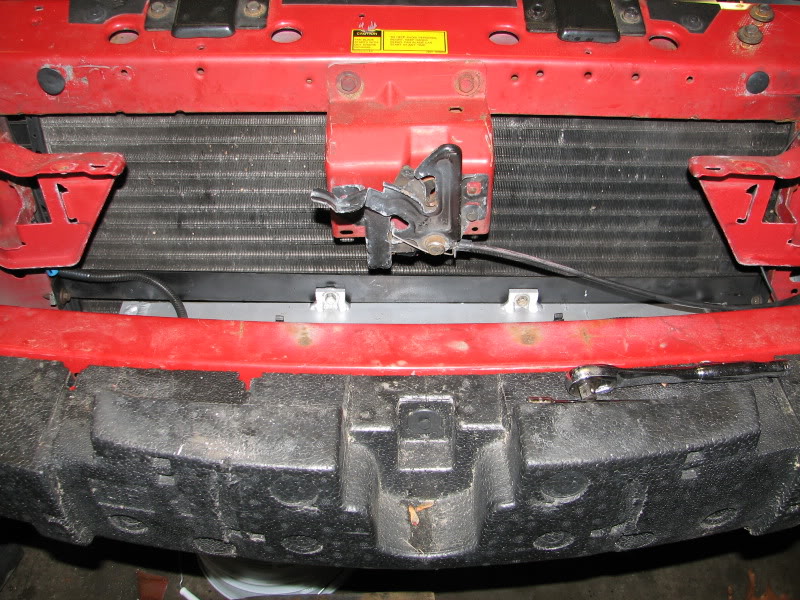

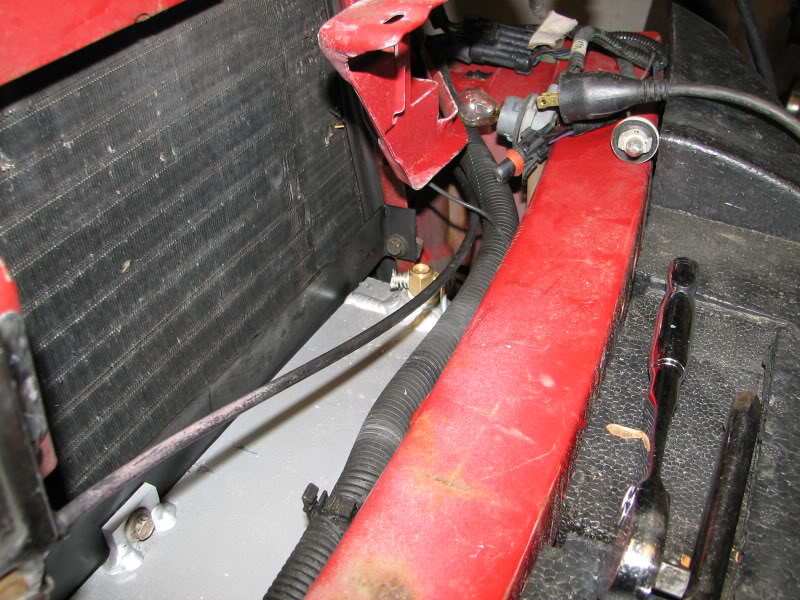

Every hole has clips and factory bolts. To me it'* the way it would have been done from the factory if this were a factory part.
Name:  IMG_7353.jpg
Views: 2
Size:  142.4 KB
Name:  IMG_7354.jpg
Views: 0
Size:  135.5 KB

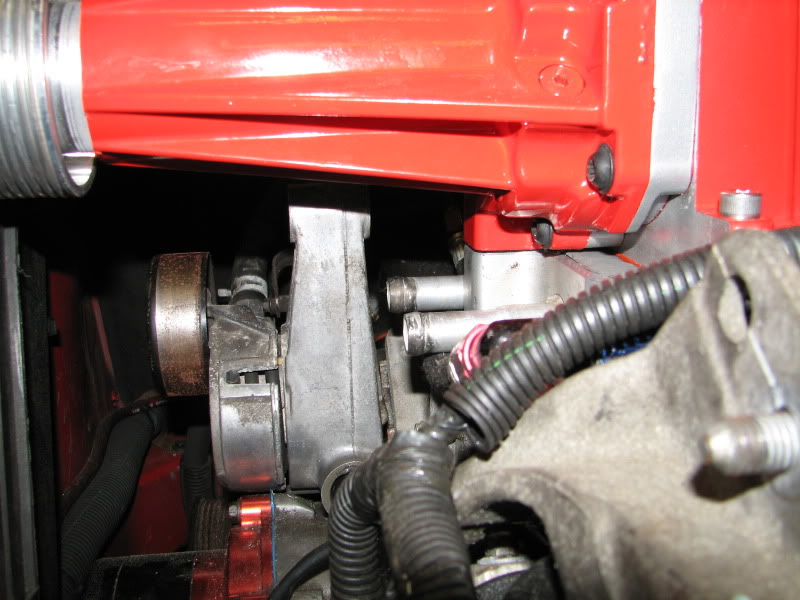

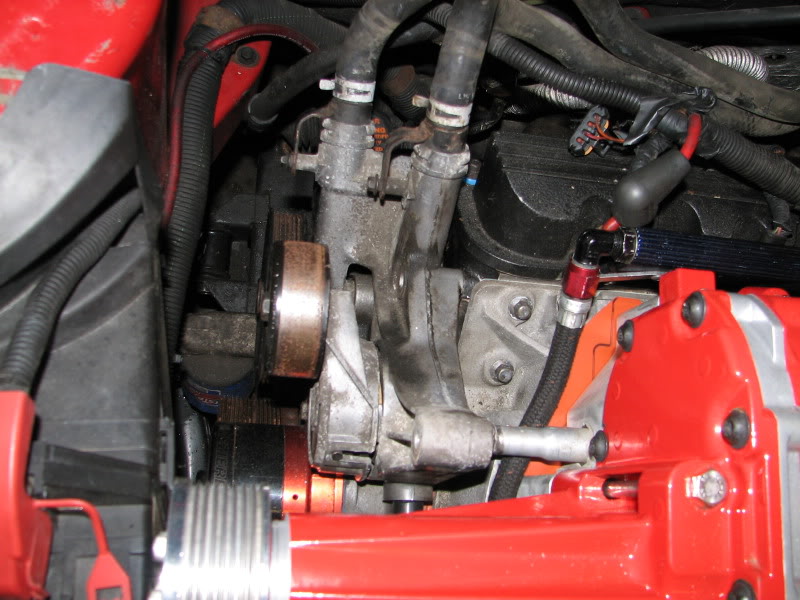

On to a couple small issues, IC outlet pipe is in line with the 98 alt bracket
Name:  IMG_7347.jpg
Views: 1
Size:  83.9 KB
Name:  IMG_7346.jpg
Views: 0
Size:  96.7 KB

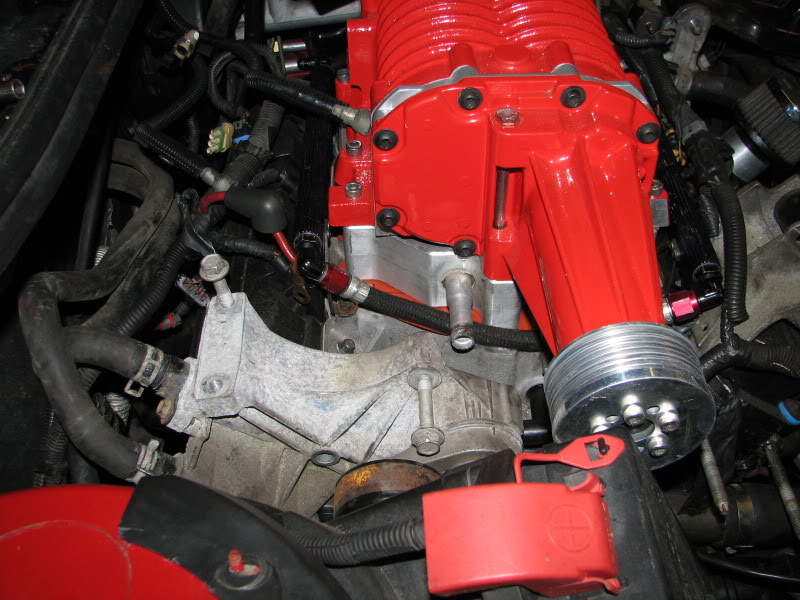

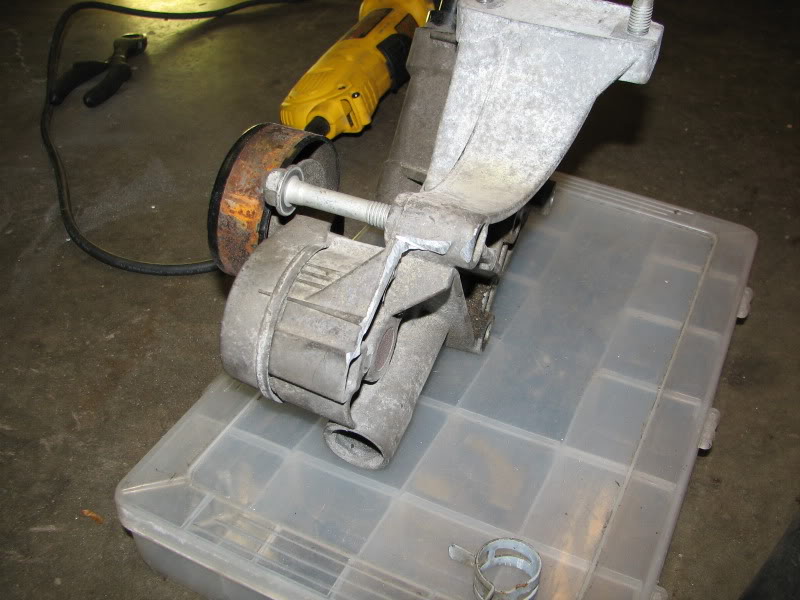

One option being discussed is the newer alt bracket and alt. Slightly modding the bracket gives a nice clearnace.
Name:  IMG_7356.jpg
Views: 0
Size:  75.2 KB
Name:  IMG_7362.jpg
Views: 0
Size:  104.3 KB

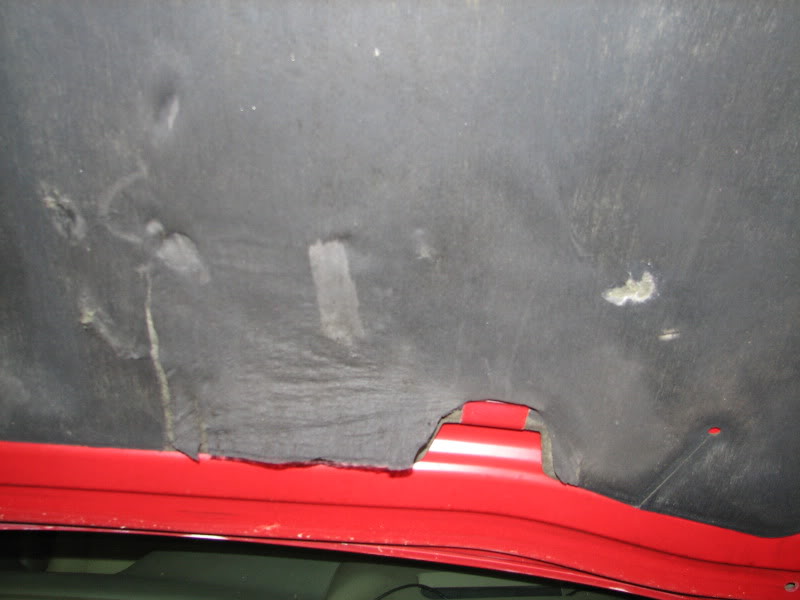

Hood clearance.. we'll work on that.
Name:  IMG_7358.jpg
Views: 0
Size:  49.0 KB

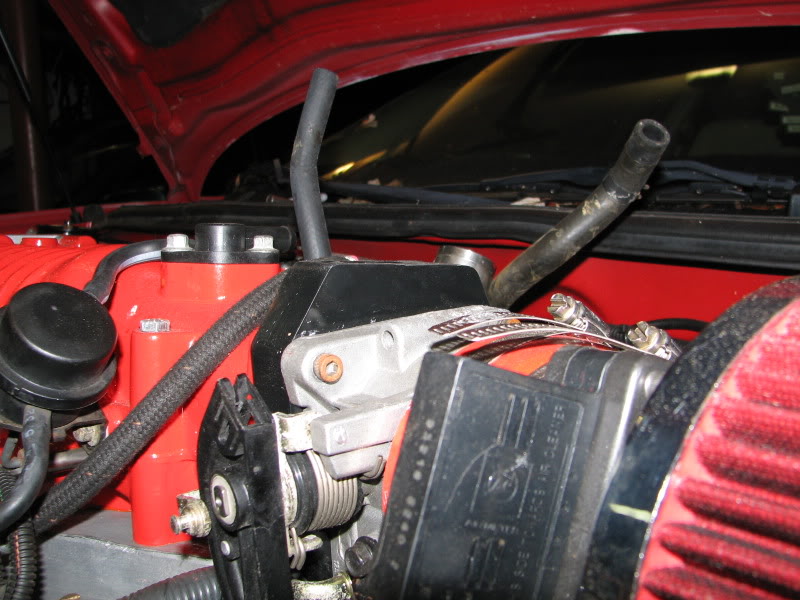

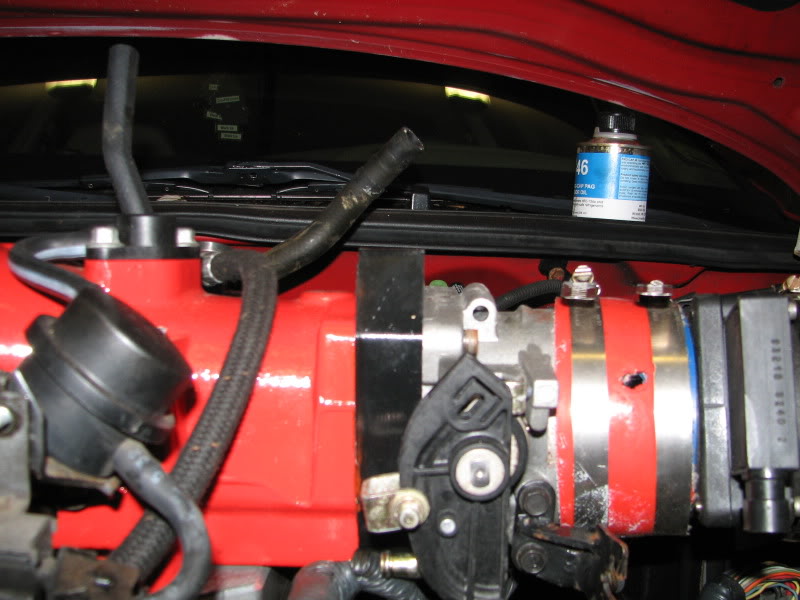

Maybe shave off a little of the extra TB adapter
Name:  IMG_7359.jpg
Views: 1
Size:  95.5 KB
Name:  IMG_7360.jpg
Views: 0
Size:  77.0 KB

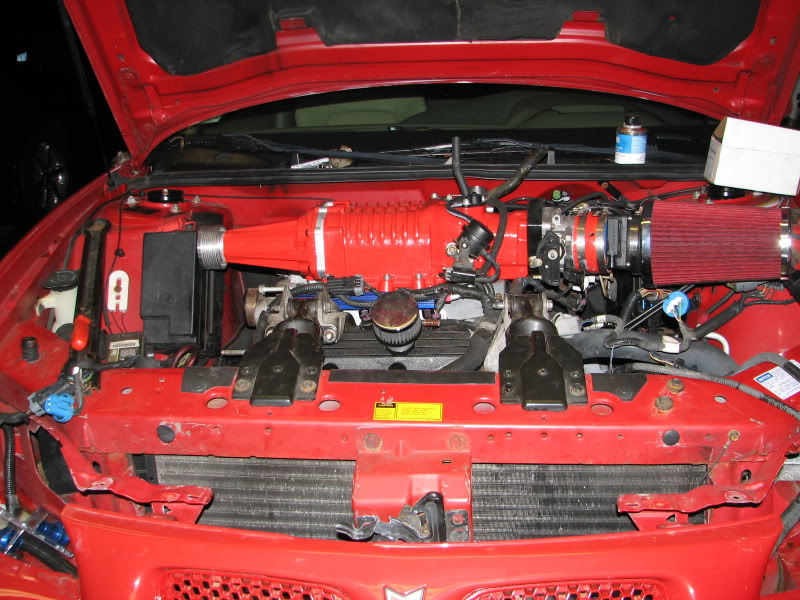

And what you've been waiting to see.
Name:  IMG_7357.jpg
Views: 1
Size:  127.8 KB
