Default Build I'm doing (Four Sixer)

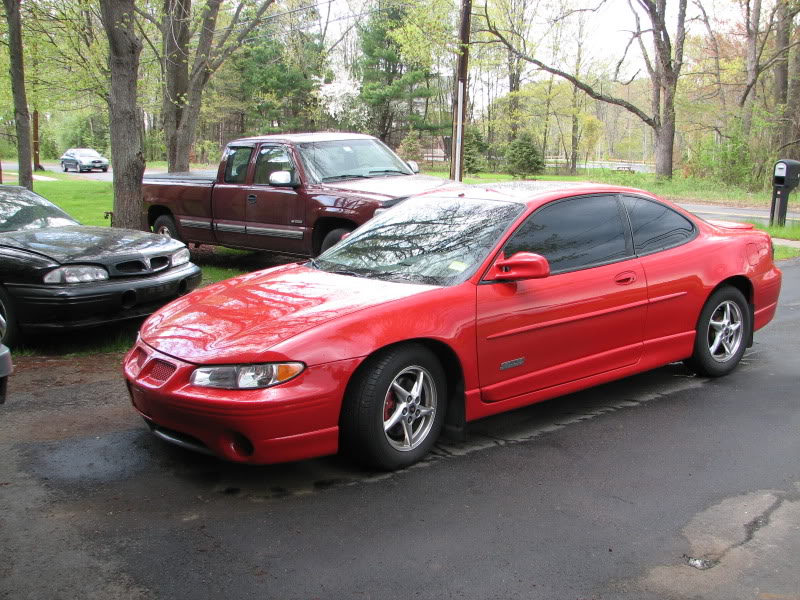

Len is building up his ride. It'* a 98 GTP in "police love me" red.
He'* about to take his stock drivetrain and upgrade a bit. Parts include
S1X cam
S3 Prj heads (with front drilled for L26 mount)
1.8 HS rockers
Titanium retainers
130# Crowe springs
CC HD valve locks
Reusable rocker bolts
Intense pushrods
Meziere EWP
Rollmaster DR timing chain
8 rib SC belt
Bonneville tensioner
Alt relocation bracket (unless I talk him outta it)
Ported LIM
S2 ZZP IC
Gen V ported
3.4 MPS (gonna change to a 2.9 quick)
Frozen boost FMHE
Meziiere IC pump (20 gpm)
60lb injectors
ZZP IC pump controller
LS1 TB
SSAC headers
PRJ fuel rails
Tim King transmission
ATI torque converter
and there'* more I'm forgetting
Name:  IMG_7234.jpg
Views: 9
Size:  142.1 KB

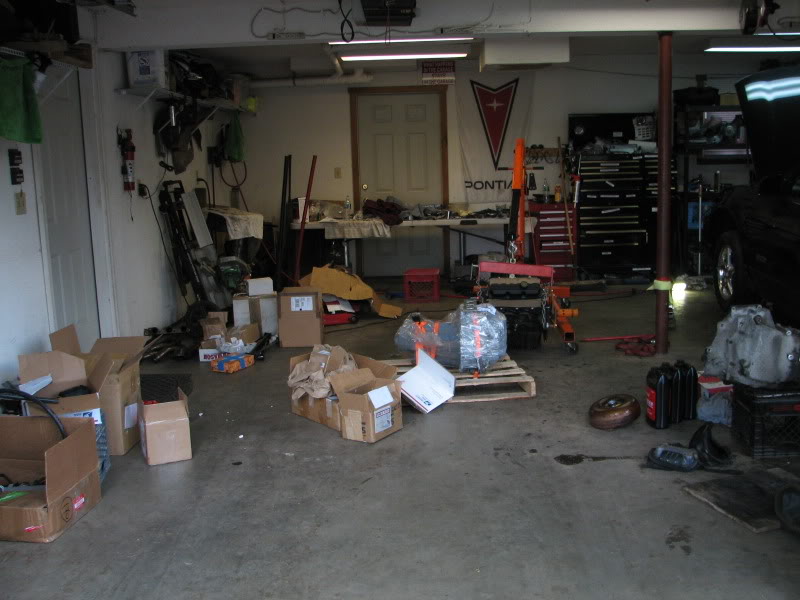

The piles of parts
Name:  IMG_7236.jpg
Views: 10
Size:  73.4 KB
Checking it out

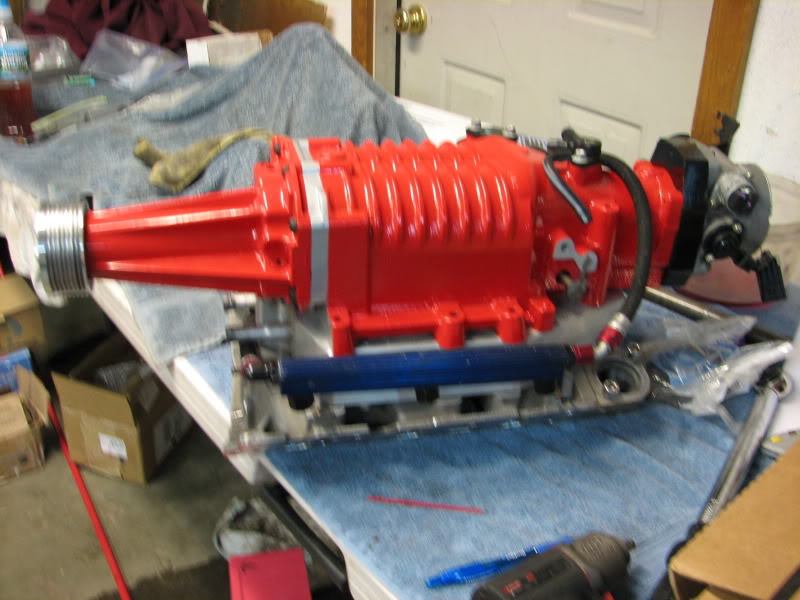

Name:  IMG_7264.jpg
Views: 10
Size:  77.1 KB
Dirty wires

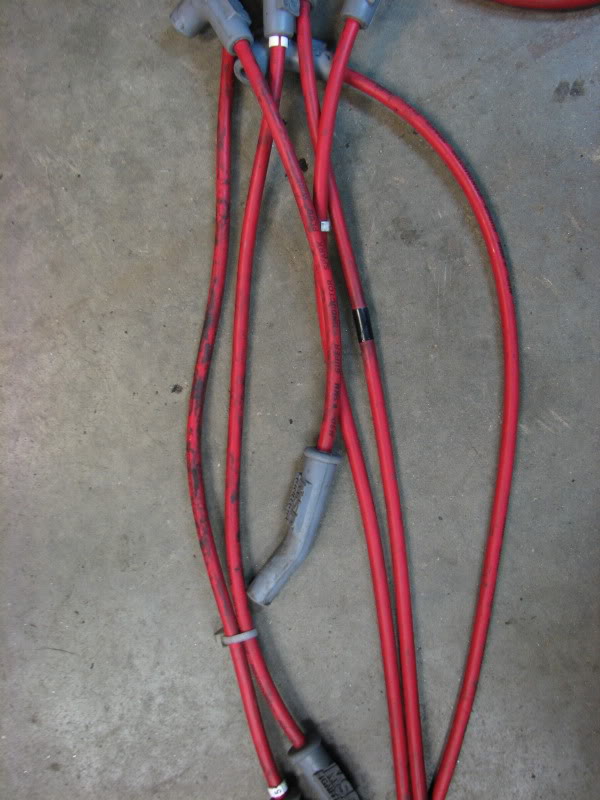

Name:  IMG_7261.jpg
Views: 7
Size:  75.2 KB
Cleaned wires

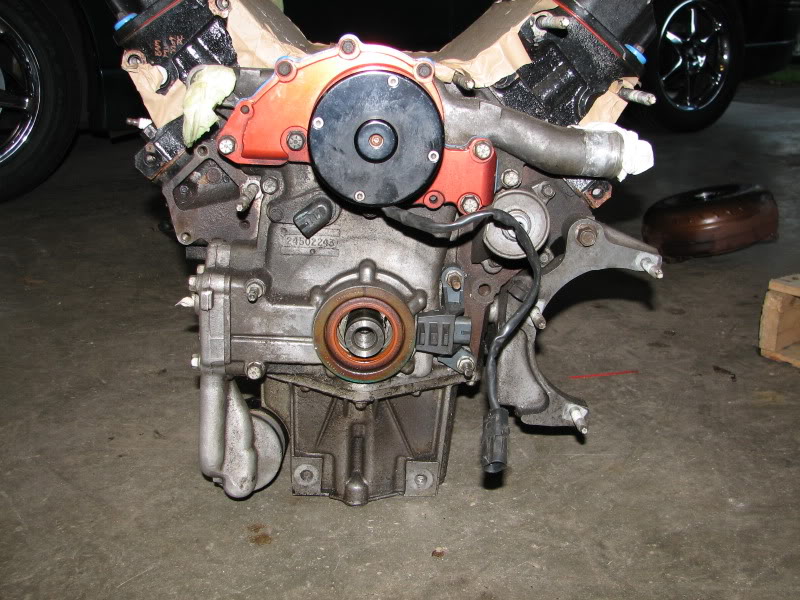

Here she is.. (This motor was in my Bonne)
Name:  IMG_7242.jpg
Views: 9
Size:  118.7 KB

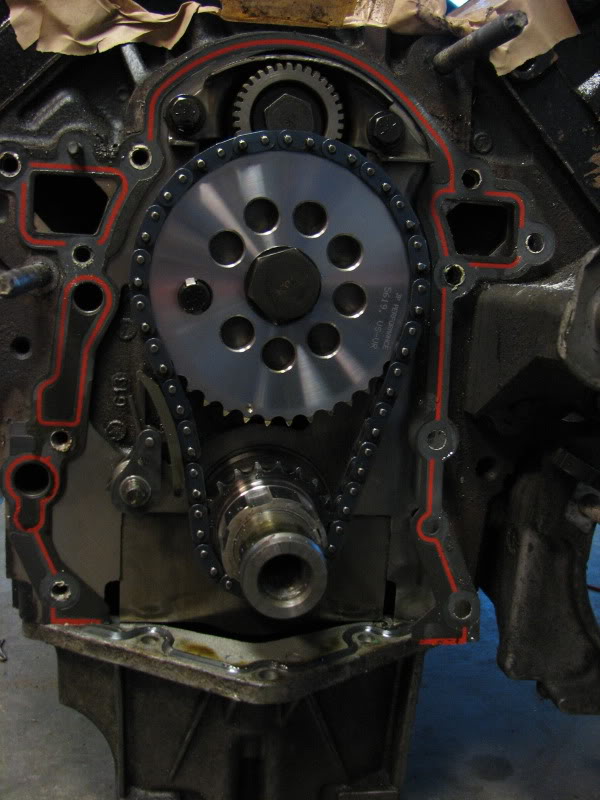

JP Single timing chain that I ran. Considering..this looks good.
Name:  IMG_7245.jpg
Views: 10
Size:  76.4 KB

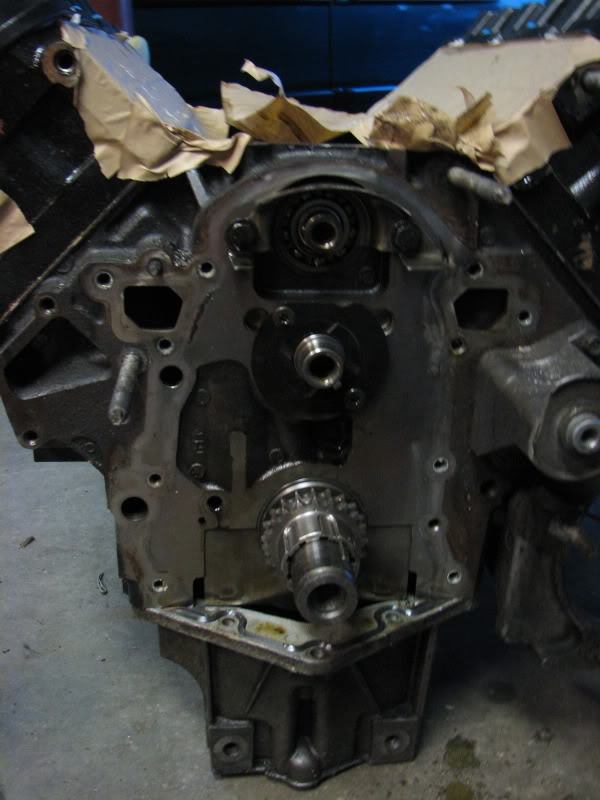

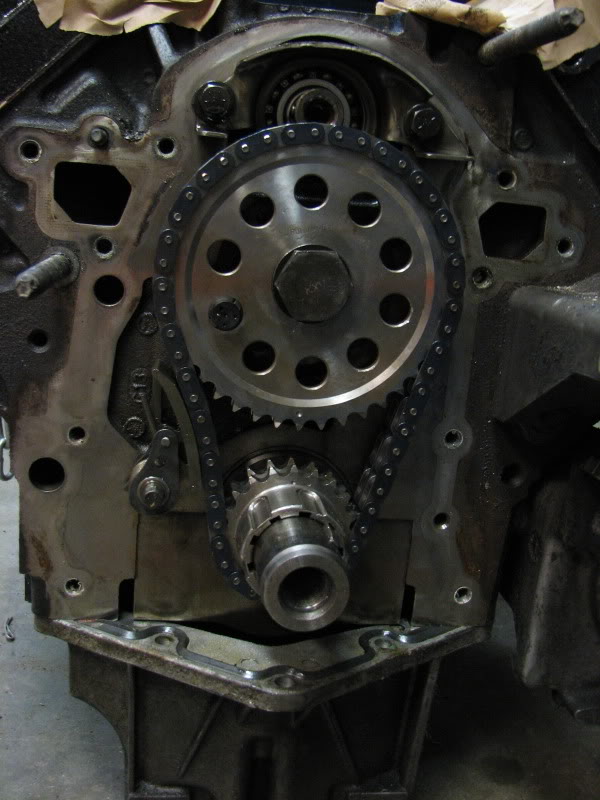

Here comes a DR
Name:  IMG_7248.jpg
Views: 12
Size:  64.5 KB
Name:  IMG_7249.jpg
Views: 11
Size:  76.2 KB
Name:  IMG_7251.jpg
Views: 11
Size:  56.8 KB

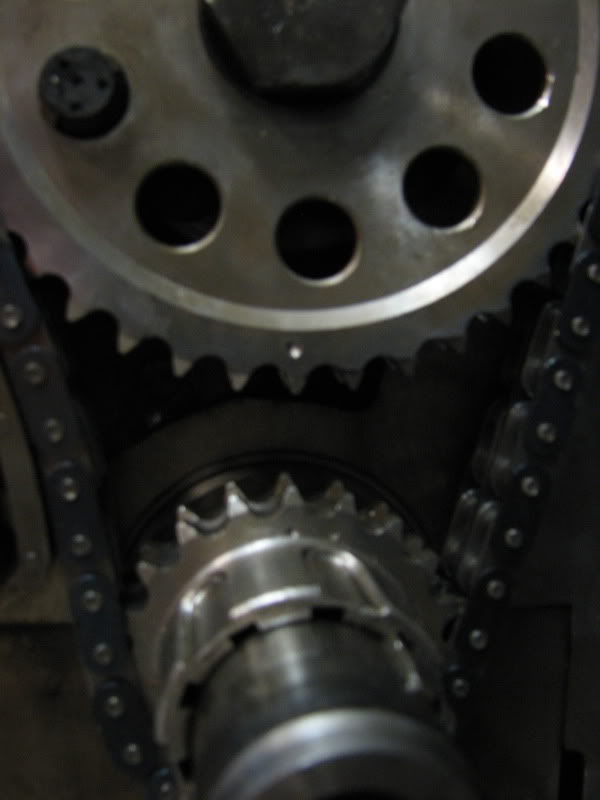

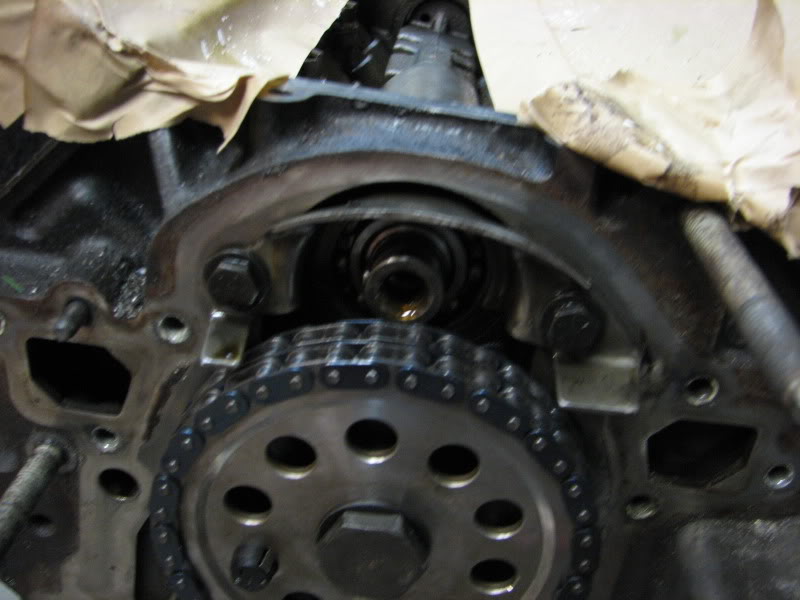

the money shot (I always take this picture)
Name:  IMG_7250.jpg
Views: 14
Size:  33.1 KB

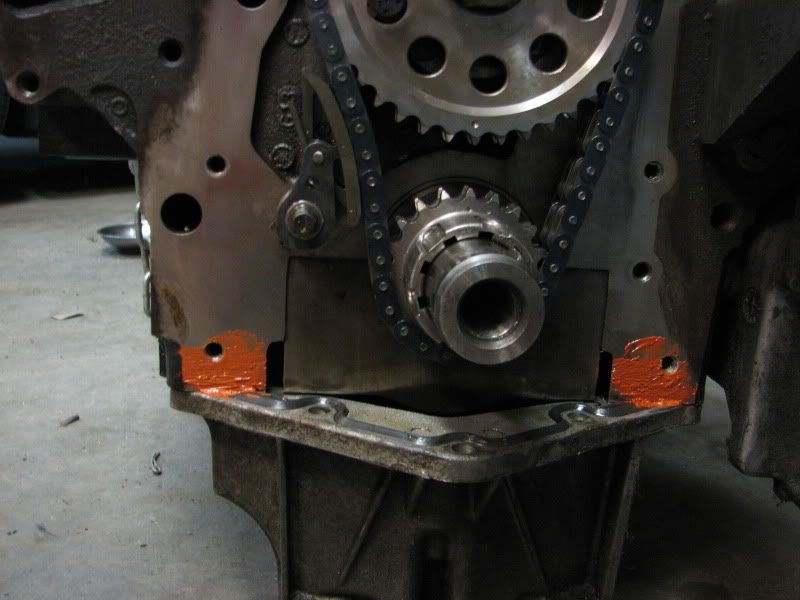

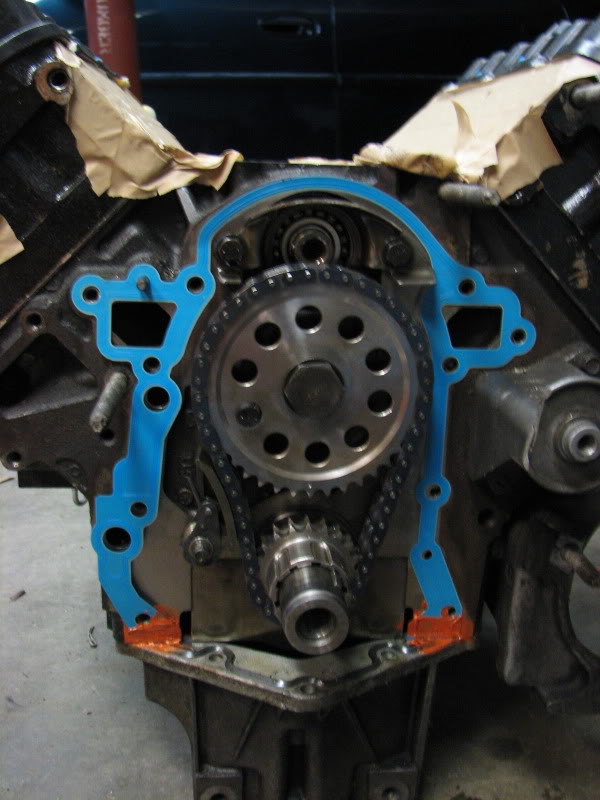

GM FSM tells us to use RTV at the bottom of the gasket
Name:  IMG_7252.jpg
Views: 7
Size:  60.8 KB
Name:  IMG_7253.jpg
Views: 10
Size:  71.3 KB

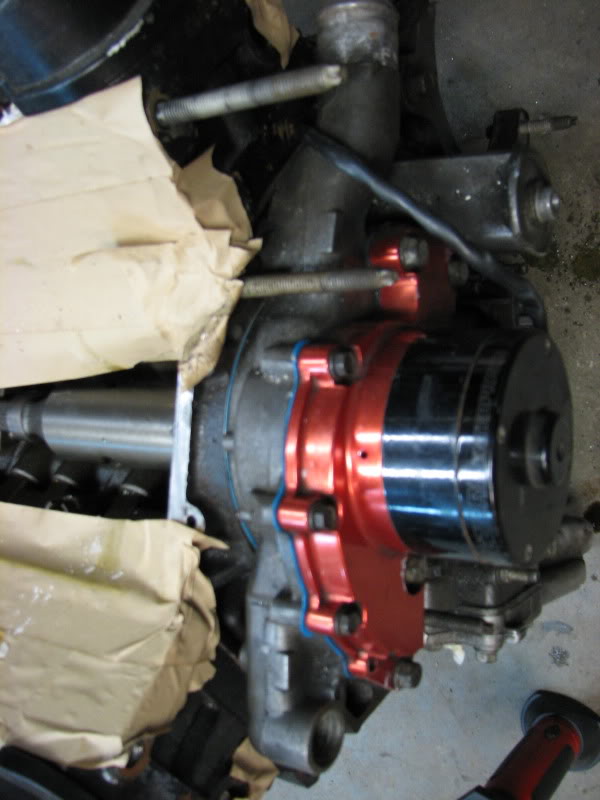

And back together
Name:  IMG_7255.jpg
Views: 10
Size:  56.8 KB

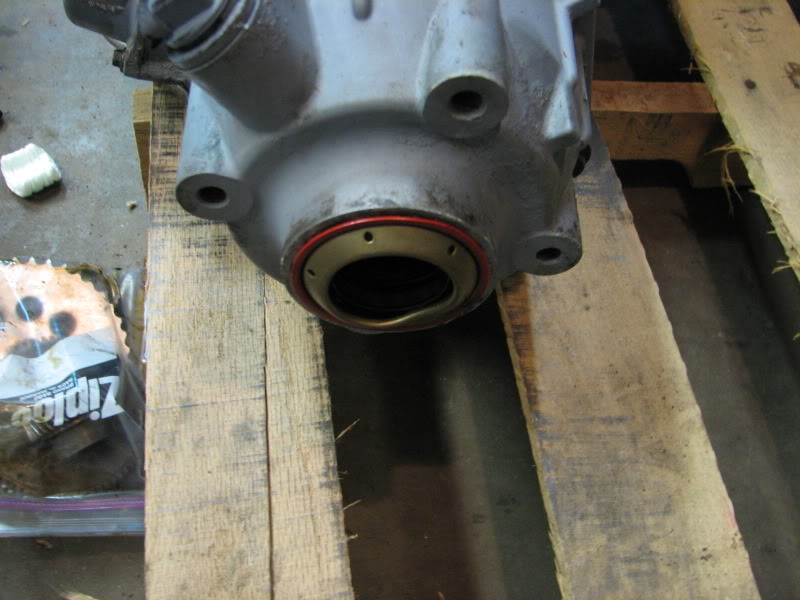

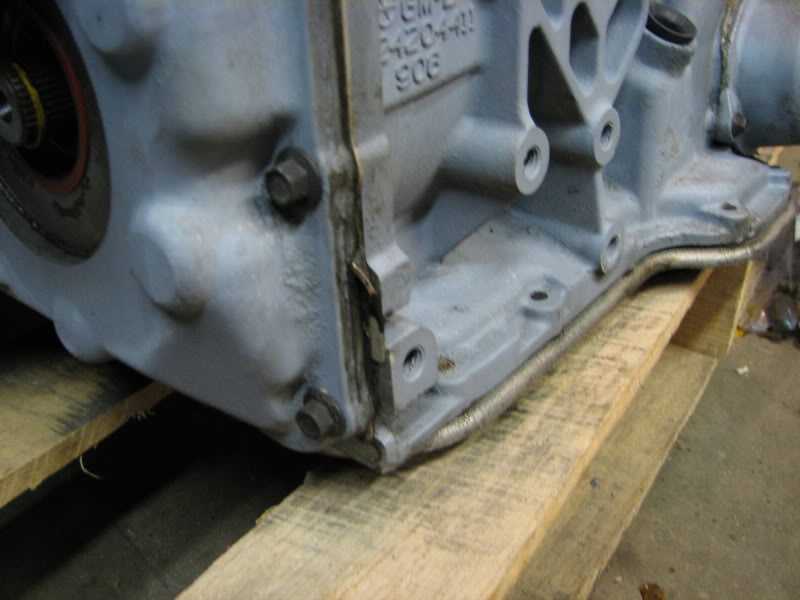

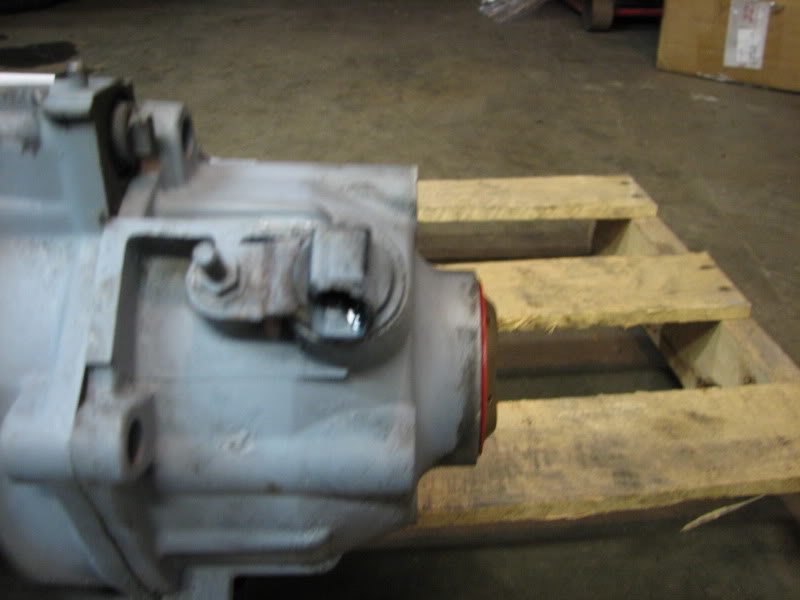

Took the wrap off the transmission and noticed it'll need work before going in. Dinged up axle seal and VSS sensor is broken
Name:  IMG_7257.jpg
Views: 9
Size:  69.8 KB
Name:  IMG_7259.jpg
Views: 7
Size:  41.1 KB
Name:  IMG_7260.jpg
Views: 12
Size:  54.7 KB
Need to order
1/4" NPT plugs
1/2" NPT to 3/4" hose fittings
Washers for IC bolts
LIM Gaskets
Gasket material for IC gaskets (make own)
Metal to mount IC
Rubber to isolate IC pump
Lower conversion gasket set (on hand)
Permatex 26B gasket maker (IC gasket)
GM Pipe sealant with PTFE
BillBoost37 is offline   Reply With Quote
Old 05-10-2011, 09:25 AM   #2
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Who broke the transmission?
Jonpro03 is offline   Reply With Quote
Old 05-10-2011, 10:28 AM   #3
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by BillBoost37 View Post
Here she is.. (This motor was in my Bonne)
Wait, you're giving him the Bonnie'* motor?
SignOfZeta is offline   Reply With Quote
Old 05-10-2011, 10:57 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It probably got dinged up in shipping.

I don't think gave is the right term on the motor. There was a trade, I traded him a motor, he traded me a pile of green paper.
BillBoost37 is offline   Reply With Quote
Old 05-10-2011, 11:01 AM   #5
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by BillBoost37 View Post
I don't think gave is the right term on the motor. There was a trade, I traded him a motor, he traded me a pile of green paper.
Fair enough. I hope you're replacing it with something even better.
SignOfZeta is offline   Reply With Quote
Old 05-10-2011, 11:11 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I sold it before Christmas.

I replaced it with an invisble motor that doesn't tear ISS reluctors off the drive gears in transmissions. There'* only so much breakage a person can take before they scream "uncle". I said I would give the Bonne one last chance when i built the transmission myself. That trans has a power related issue inside of it and I pulled the drivetrain. No more of that...I'll stick to a mild build in my "stock" Regal thanks.
BillBoost37 is offline   Reply With Quote
Old 05-10-2011, 11:14 AM   #7
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

NICE Bill. But, what.... no crinkle finish */C paint that'* "cooler to the touch? Guess he didn't read the WW memo.
GXP Venom is offline   Reply With Quote
Old 05-10-2011, 11:20 AM   #8
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

I see your reasoning Bill. It'* hard to take an engine to it'* brink of self destruction and use it on the street with any reliability. Best left to track guys and shops selling performance parts. No such thing as Max Power and Reliable. You can't have your cake and eat it too.

So I guess we have to wait for Danthurs now for the next installment of, "What I broke this time" ;-P.

Despite the "fail'*" the Forum owes you both alot of kudo'* for all you have done to prove out what can be done with the 3800, and how to overcome some of the frailties of deep modding.
GXP Venom is offline   Reply With Quote
Old 05-10-2011, 03:55 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You hit something on the head there John. The motor was always and has always been rock solid for me. My first..I goofed on the engine stand, second was junk when I got it, this block was the third and a good motor. My issue has always been the transmissions. Sure they are built up and built to take punishment, yet the daily and constant pummelling I gave mine proved out only one thing.. that I had this crazy abilty to rip input shaft sensor reluctor wheels off the drive gear. I've only heard of one other person with that uncanny ability and one day maybe we'll have a couple of beers over that one. It'* a simple little wheel that goes around in front of a sensor, I trashed three channel plates in the process, tore 5 or so of them off the drive gears. It'* unheard of in the 3800 community. Yet my build wasn't the biggest, baddest or most powerful out there. I'm kinda thinking that my right foot was/is a mean character.
BillBoost37 is offline   Reply With Quote
Old 05-10-2011, 04:05 PM   #10
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

You know Im bored when I find my way back home to see whats kickin on the dark side...

That will be one mean GTP... and is that a Gen V or a nicely bored and powdercoated Gen III SC on the table?


btw I feel for that tranny going in with the history behind your beastly motor... hope you gave the guy the 411 on the number of trannies that engine has destroyed

<epic... your engine to transmissions
