Default Anyone have a pic

Does anyone have a pic of a power steering pump on a series 1 supercharged engine, If so can you post my ps is really getting loud and I need to replace, any pics of the pump mounted on the motor,
(Im tryig to see were an electrical connector plugs in)
thanks all
tripscarcare95 is offline   Reply With Quote
Old 03-08-2008, 12:23 PM   #2
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

I don't have a pic but can tell you it would be a tough place to get a clear shot as its buried below the alt and rear mani.

The electrical connector is located on the bottom of the unit, you can see a clearer view of it by removing the passenger side tire and the inner rear fender skirt.
PontiacDad is offline   Reply With Quote
Old 03-08-2008, 01:13 PM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Couldn't find the info you needed from here?

http://www.bonnevilleclub.com/forum/...light=#1038295
J Wikoff is offline   Reply With Quote
Old 03-08-2008, 03:36 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Pdad speaks from recent experience. He had to spot for me through the wheelwell to get mine hooked up while I kneeled over the open engine bay. You can't see it from above, and only barely with the wheelwell opened up. Above the oil pressure sender.
willwren is offline   Reply With Quote
Old 03-09-2008, 03:10 PM   #5
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

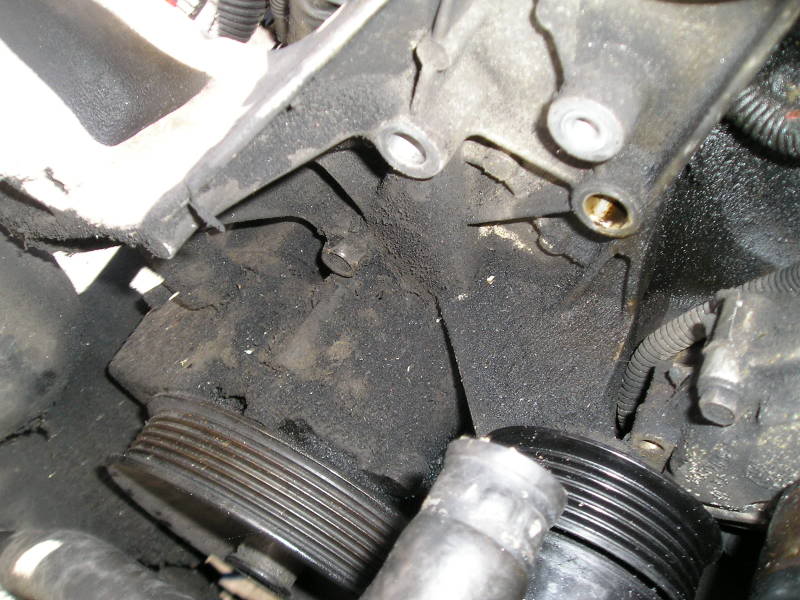

Here'* a shot of my power steering pump:
Name:  P1010557.jpg
Views: 2
Size:  83.2 KB

The furthest-left part of this is where the alternator goes, and the furthest-right part is the bottom. The PS pump goes on top of the two arches by the bottom tensioner pulley and the idler pulleys.

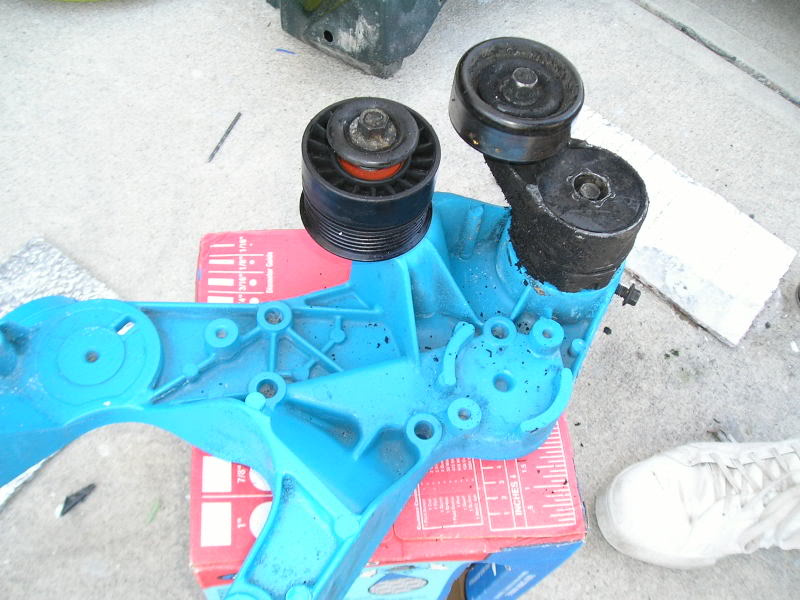

Name:  P1010559.jpg
Views: 2
Size:  78.9 KB

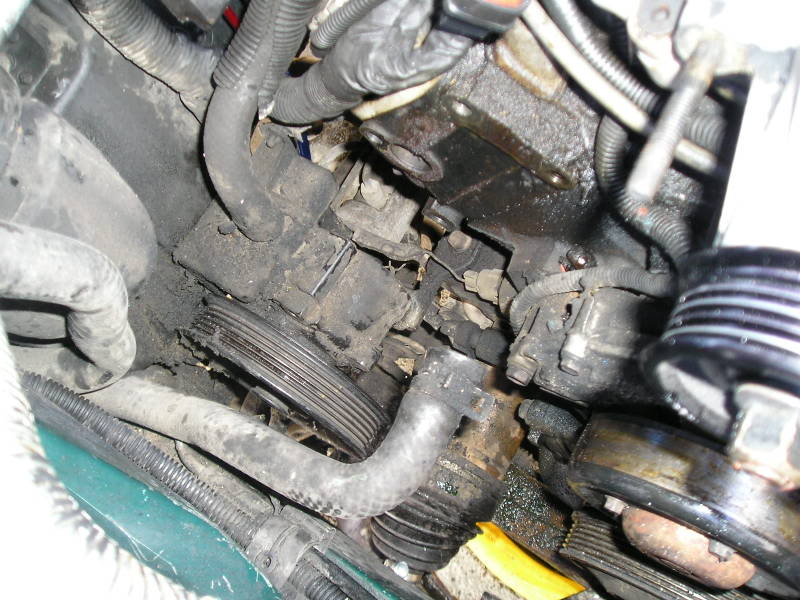

Here'* another picture of the power steering pump with no rear accessory bracket mounted to the engine:
Name:  P1010563.jpg
Views: 1
Size:  88.0 KB

And another one:
Name:  P1010565.jpg
Views: 4
Size:  83.6 KB

This is my painted rear accessory bracket with cleaned arms. You can once again see the arches by the far right and the bottom tensioner pulley arm. I've shown this picture so you can get an idea of how this faces since the upper tensioner pulley arm is at the far left and mounted as it should sit on the plate.

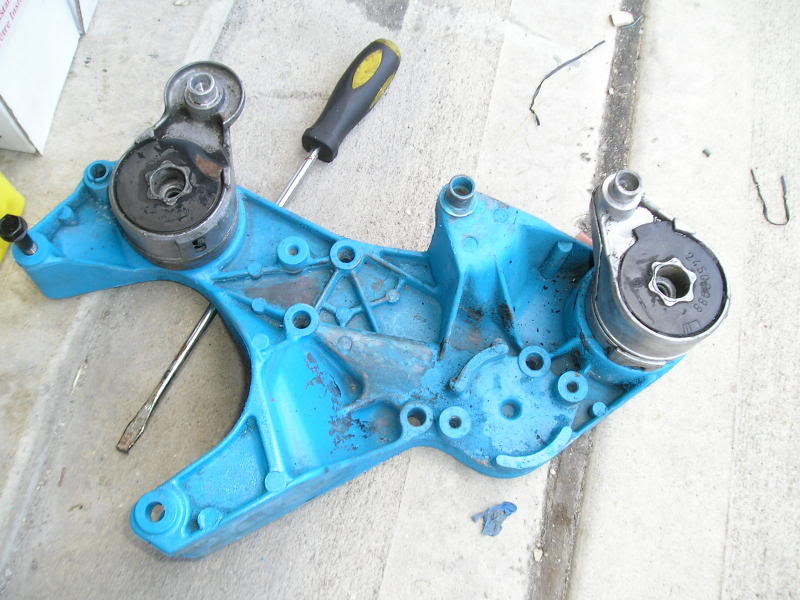

Name:  P1010581.jpg
Views: 1
Size:  78.9 KB

We should all take a moment to appreciate how I've riced my engine so that we can tell the dirt from the rice-blue plate.
Name:  P1010622.jpg
Views: 2
Size:  67.4 KB

ANOTHER ANGLE FTW

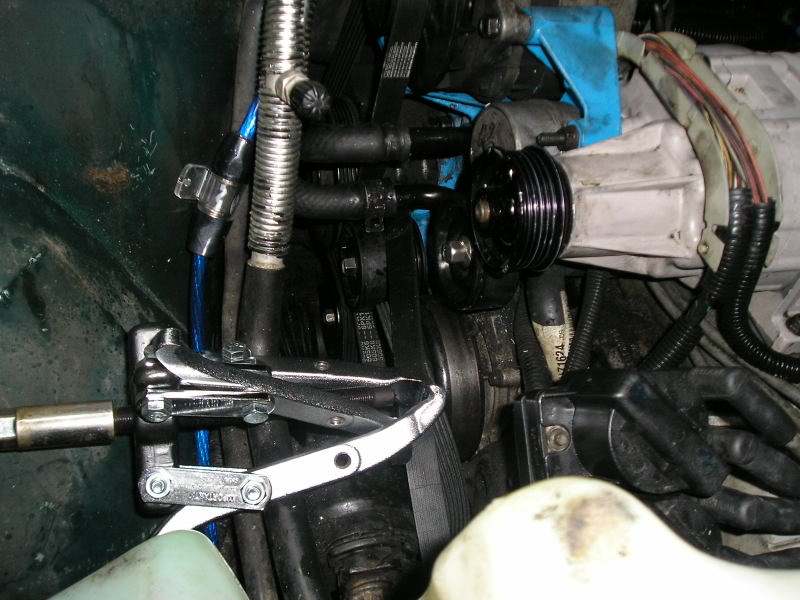

Name:  P1010625.jpg
Views: 3
Size:  78.4 KB

Have fun. I pulled these pictures from page 2 on my Work Whorage post.
http://www.bonnevilleclub.com/forum/...ic.php?t=84630
radomirthegreat is offline   Reply With Quote
Old 03-09-2008, 08:15 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Radomir, I don't see how any of your pics relate to the topic whatsoever.

He'* trying to see where the electrical connector for the T2V option connects. Please try to stay on topic (and clean your motor).
willwren is offline   Reply With Quote
Old 03-09-2008, 08:31 PM   #7
Senior Member
Posts like a Northstar

Join Date: Aug 2007
Location: Ladysmith B.C. Canada
Posts: 620
Thanks: 0
Thanked 0 Times in 0 Posts
JMH1950 is on a distinguished road
Default

Quote:
Originally Posted by willwren
Radomir, I don't see how any of your pics relate to the topic whatsoever.

He'* trying to see where the electrical connector for the T2V option connects. Please try to stay on topic (and clean your motor).
JMH1950 is offline   Reply With Quote
Old 03-09-2008, 09:44 PM   #8
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default Re: Anyone have a pic

Quote:
Originally Posted by tripscarcare95
Does anyone have a pic of a power steering pump on a series 1 supercharged engine, If so can you post my ps is really getting loud and I need to replace, any pics of the pump mounted on the motor...
I figured the pictures would help with the ripping off of the power steering pump. Yeah, there'* more to it, but it'* stuff in parentheses and a thanks, so even though I couldn't provide an answer to that, and least I got the unparenthesized goods attended to.

You have my sincerest apologies for both the happy little mud bath pics and the lack of power connector pictures.
