Default AeroTech Gauge in Vent Install.....56k no

After a month of waiting it finally came today www.aeroforcetech.com OBD2 scan gauge with record.
I had looked a few months back at installing it in the left hand vent and removed the unit this morning. Back then I thought I could mount with out cutting anything but a dry fit showed me wrong
Removing the vent unit is easy I didnt get a pic, just start with a flat screw driver in the bottom left corner, pops right out.

Removing the trim is easy enough too, insert flat screw driver into relief cuts and twist, pop right off.
Name:  100_1856.jpg
Views: 2
Size:  75.5 KB

With the trim removed you can pop the grill off, there are 4 push tabs. You will have to 'nip' the ends of air deflector to remove it, tough bar but easy to remove.
Name:  100_1857.jpg
Views: 1
Size:  82.7 KB

You see its close with the frame, it will need to be hogged out.
Name:  100_1858.jpg
Views: 1
Size:  51.7 KB

Better view of the hole with grill and deflector out of the way.
Name:  100_1859.jpg
Views: 1
Size:  85.1 KB

I used the course sanding drun to hone it out


Starting to get there
Name:  100_1861.jpg
Views: 1
Size:  93.8 KB

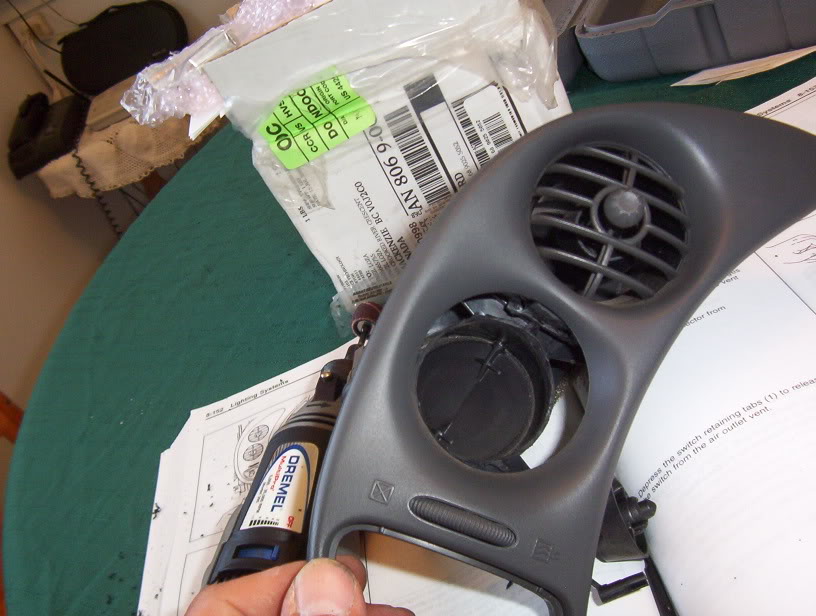

Bowled out and trim back on. You will need to test fit several times in and out before you have enough clearance.
Name:  100_1862.jpg
Views: 1
Size:  84.6 KB

You can tweak it up and down left and right before snugging down the supplied bracket.

Name:  100_1863.jpg
Views: 1
Size:  92.3 KB

Side shot with cable attached. Be sure to attatch the cable before mounting in the hole, this will make it easier than trying to fish it back through.
Name:  100_1864.jpg
Views: 1
Size:  98.5 KB

Rear view of supplied bracket, I cut the butterfly axle so the bottom vent stays shut. Didnt want any extra heat from the hvac system blowing on the gauge.
Name:  100_1865.jpg
Views: 1
Size:  96.6 KB

Ready to go back into the car, well almost.



Usually to wire this gauge all you need to do is plug in the obd2 port, but because Pontiac has a touchy security sytem you have to wire the gauges 12v+ to a switched source other than the obd2 connector.
Easy for us 2k+ guys with HUD, the brown wire going into the hud switch is a switched source. First thing your going to notice is there'* 2 brown wires, you want the one beside the yellow wire

Vent hole and Hud switchs.
Name:  100_1868.jpg
Views: 1
Size:  71.1 KB

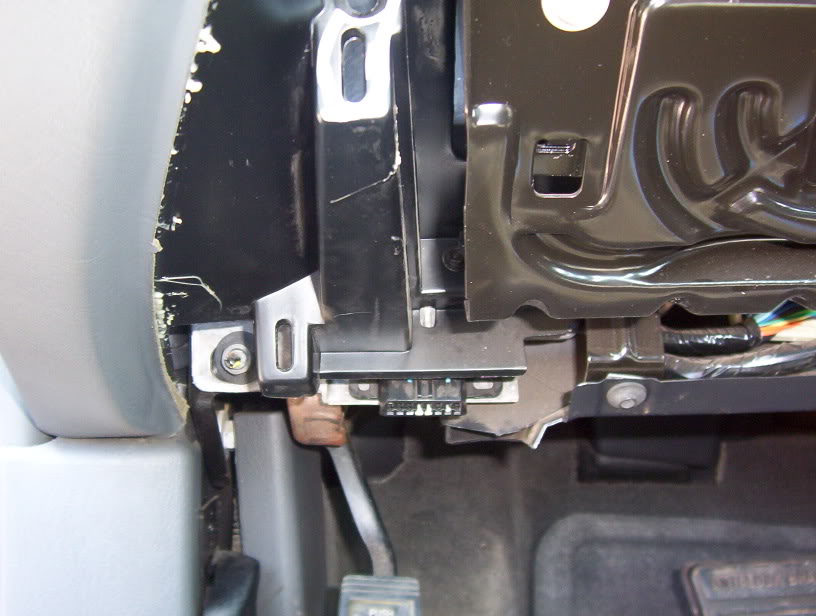

Hush panel removes by pulling straight out, OBD2 connector lower left.
Name:  100_1869.jpg
Views: 1
Size:  72.6 KB

I fished the supplied harness down below the hush panel and removed the hud switch, this easier to do with the hush panel removed. Notice that brown wire?
Name:  100_1870.jpg
Views: 1
Size:  76.1 KB

I soldered and used heat shrink tubing to secure the connection. Hud switch pops back in.


With everything secure and all wires neatly ty-wraped you can replace the hush panel. The harness plugs directly into the obd2 port.

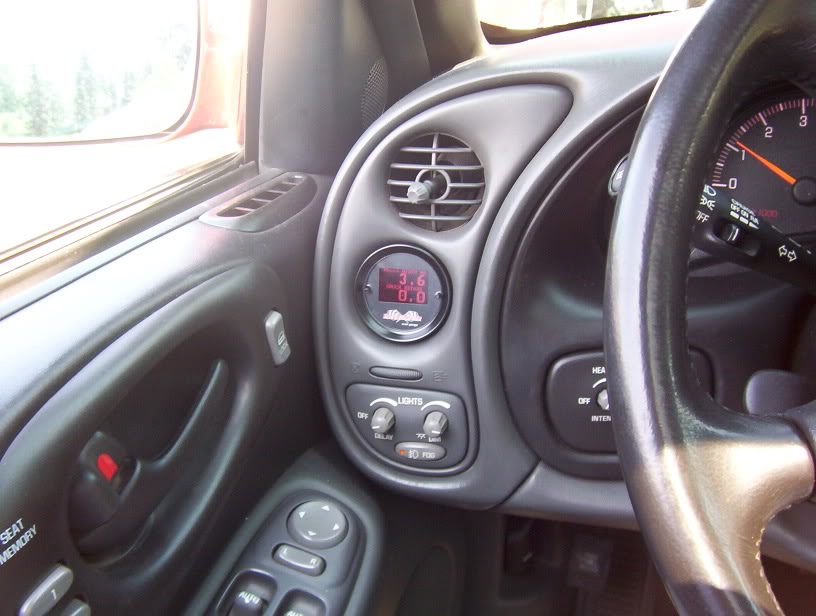

When you first turn on the ignition the scanner goes through its learn procedure and displays the pontiac logo
Name:  100_1873.jpg
Views: 1
Size:  76.6 KB

Not a bad install, took about 2 hours total.
Name:  100_1874.jpg
Views: 1
Size:  64.0 KB

Even in direct sunlight
Name:  100_1875.jpg
Views: 1
Size:  79.0 KB

This unit works great and easy to use, I like that it goes kinda polar in the sunlight and its actually easy to see. Cant wait for tonight for a bright view

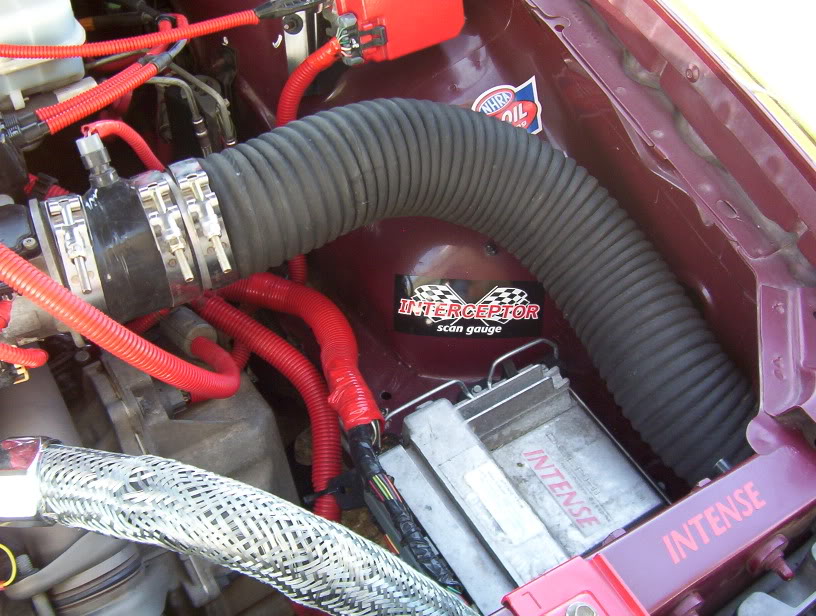

And now I'm done, sticker in place
Name:  100_1878.jpg
Views: 1
Size:  120.1 KB
PontiacDad is offline
Old 08-08-2005, 07:44 PM   #2
Senior Member
True Car Nut

Join Date: Jan 2003
Location: Bonney Lake/Ellensburg, Washington- WCBF '04, '05, '06, '07 Survivor-
Posts: 7,098
Thanks: 0
Thanked 0 Times in 0 Posts
driverjohn2005 is on a distinguished road
Default

:o

THAT IS BADDASS!!!!
driverjohn2005 is offline
Old 08-08-2005, 07:50 PM   #3
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Whoa!! Jackpot, nice work O'Neil!
SSEimatt93 is offline
Old 08-08-2005, 08:21 PM   #4
Senior Member
True Car Nut

Join Date: May 2003
Location: Grand Rapids, Mi
Posts: 3,244
Thanks: 0
Thanked 0 Times in 0 Posts
L27Buick is on a distinguished road
Default

i like, but how do u like?
L27Buick is offline
Old 08-08-2005, 08:37 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

This scan tool is great!!
you can adjust the scan rate and scroll the recorded data for up to 40 sec. more than enough time to stage and make a 1/4 mile pass

I inverted the image so the back ground is orange and the numbers are black

It tells you what dtc is set by number only, no explanation or description but it does reset the ses light and will store the dtc in memory.
PontiacDad is offline
Old 08-08-2005, 08:38 PM   #6
Junior Member

Join Date: Dec 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacMom is on a distinguished road
Default

Oh yes and tell them how you cleaned up after yourself....NOT!
PontiacMom is offline
Old 08-08-2005, 09:18 PM   #7
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Quote:
Originally Posted by PontiacMom
Oh yes and tell them how you cleaned up after yourself....NOT!


Way to go PDad. Boy, that trans temp would have come in handy about a week ago
Echo SSEI is offline
Old 08-08-2005, 09:25 PM   #8
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

WOW, looks AWESOME.... whyd you choose the lower vent..? wouldnt the top one be easier to see?
toastedoats is offline
Old 08-08-2005, 09:36 PM   #9
Senior Member
Posts like a Camaro

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

that is really sweet..
looong4 is offline
Old 08-08-2005, 09:41 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Quote:
Originally Posted by toastedoats
WOW, looks AWESOME.... whyd you choose the lower vent..? wouldnt the top one be easier to see?
I could have gone anywhere with it, it comes with a 5' cable so I could have used a center vent? I chose the bottom one after driving down to wcbf and thinking about where my arm was, where my eye would rest etc. Also I like the out of the way look, when its lit at night you could see it in the upper mount?

This is so easy to use and it displays 2 items at once
PontiacDad is offline
