Old 02-23-2012, 02:10 PM   #21
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by sseidriver97 View Post
So far that Engine isnt looking bad...Gonna be nice to have a sleeper eh
That is the intent. SEi FTW
Mike is offline   Reply With Quote
Old 02-23-2012, 03:58 PM   #22
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Haha heck yeah man!
sseidriver97 is offline   Reply With Quote
Old 02-23-2012, 04:53 PM   #23
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The valley does look clean.
Danthurs is offline   Reply With Quote
Old 02-24-2012, 02:35 PM   #24
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Last night I went out and bought new gaskets, coolant elbows etc for it. Got most of everything reinstalled except a few minor missing LARGE parts.

2 things I'm not really sure what to do about here...

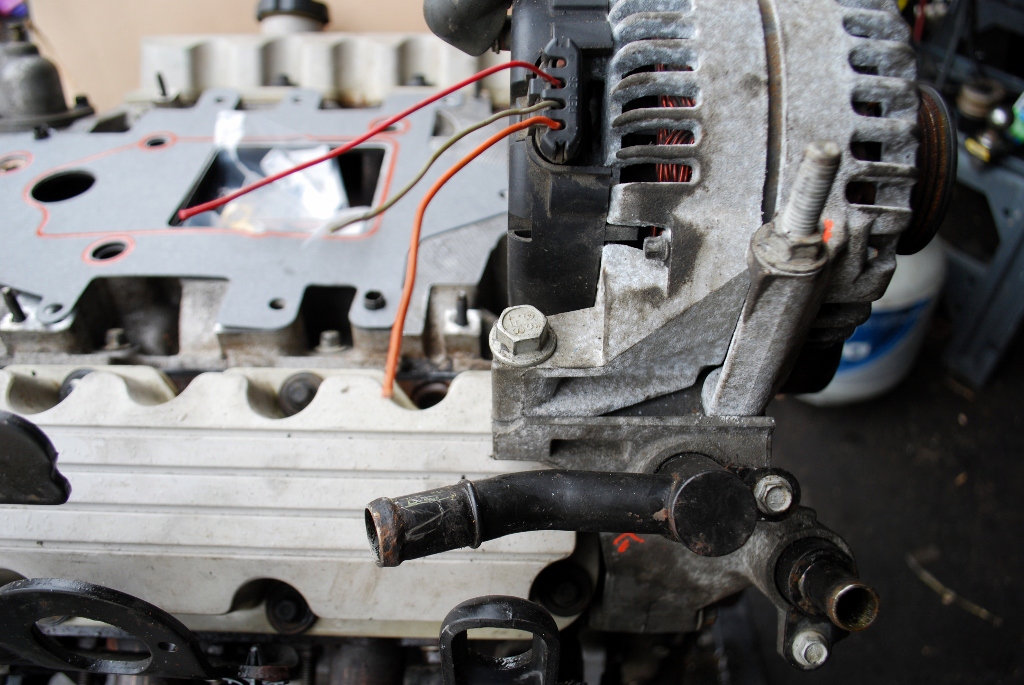

1. The heater core pipes on the engine are different than mine. The one on the bottom I can deal with, but the top one points in the opposite direction. I have 2 original spares, but the pipe would get in the way for the bolt.

2. This alternator has a 3 wire system vs my 2 wire system. I don't think the connectors are even the same.




Also, considering I am short on L67 fuel injectors, would it be possible to tune this to use L36 injectors with HpTuners?
Attached Thumbnails
4th Engine coming up- L36 to L67 Swap-heatercorepipe.jpg
Mike is offline   Reply With Quote
Old 02-24-2012, 02:50 PM   #25
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

bonnies dont have the sense wire hooked up, so sometimes they are a little slow to react. you can hook it up to the post or hook it up to something in the fuse box if you want it to sense real voltage at the box.

The use of the "P", "F", and "*" terminals is optional. The "P" terminal is connected to the stator, and may be connected externally to a tachometer or other device. The "F" terminal is connected internally to field positive, and may be used as a fault indicator. The "*" terminal may be connected externally to a voltage, such as battery voltage, to sense the voltage to be controlled
jwfirebird is offline   Reply With Quote
Old 02-24-2012, 02:56 PM   #26
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

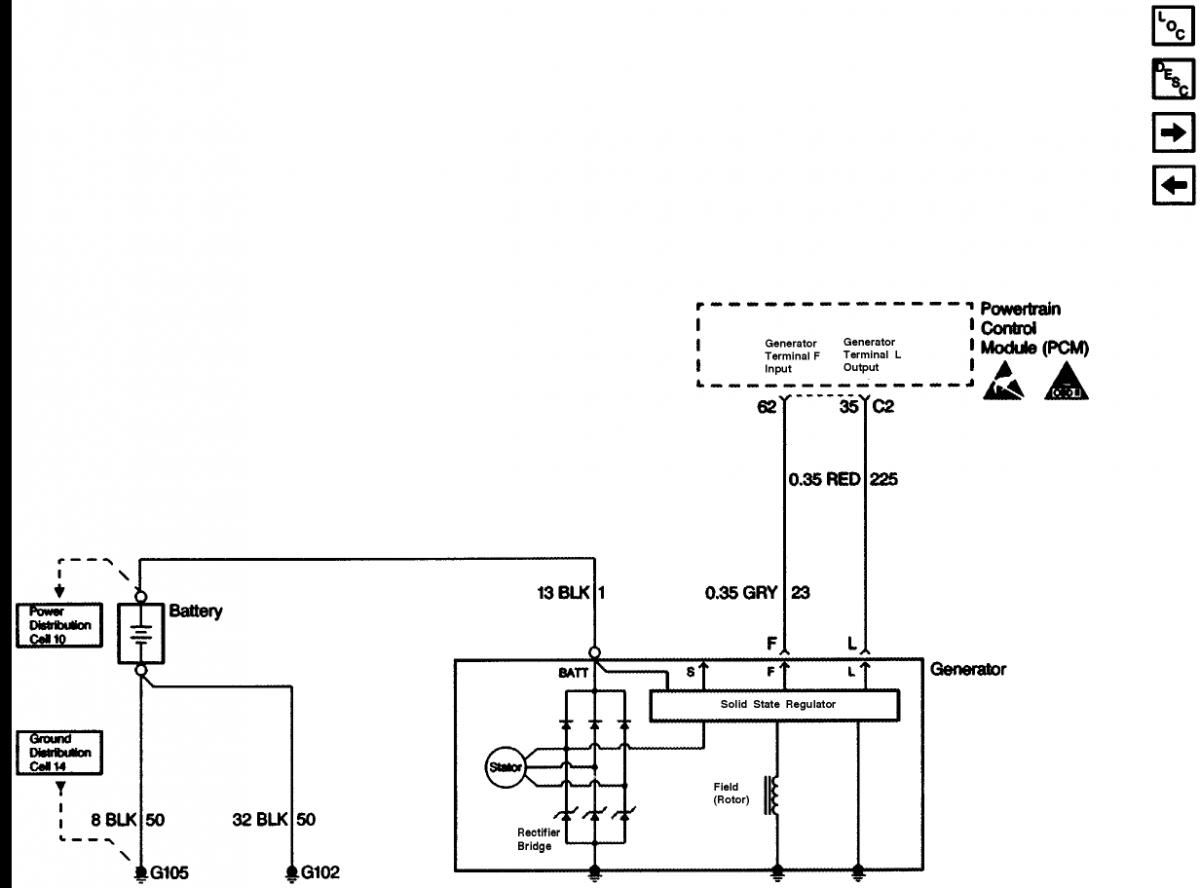

This is the schematic for my current car, so what your saying is, as long as I connect terminals "F" and "L" and leave the 3 wire disconnected, I should be fine?

Attached Thumbnails
4th Engine coming up- L36 to L67 Swap-alternatorwire.jpg
Mike is offline   Reply With Quote
Old 02-24-2012, 03:04 PM   #27
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

is the other one labeled *? if it is you might as well hook it to +12v
jwfirebird is offline   Reply With Quote
Old 02-24-2012, 03:05 PM   #28
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by jwfirebird View Post
is the other one labeled *? if it is you might as well hook it to +12v
On the alternator?
Mike is offline   Reply With Quote
Old 02-24-2012, 03:13 PM   #29
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

yes, maybe on the plug or alt?
jwfirebird is offline   Reply With Quote
Old 02-24-2012, 03:25 PM   #30
Senior Administrator








Certified Car Nut
Thread Starter

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

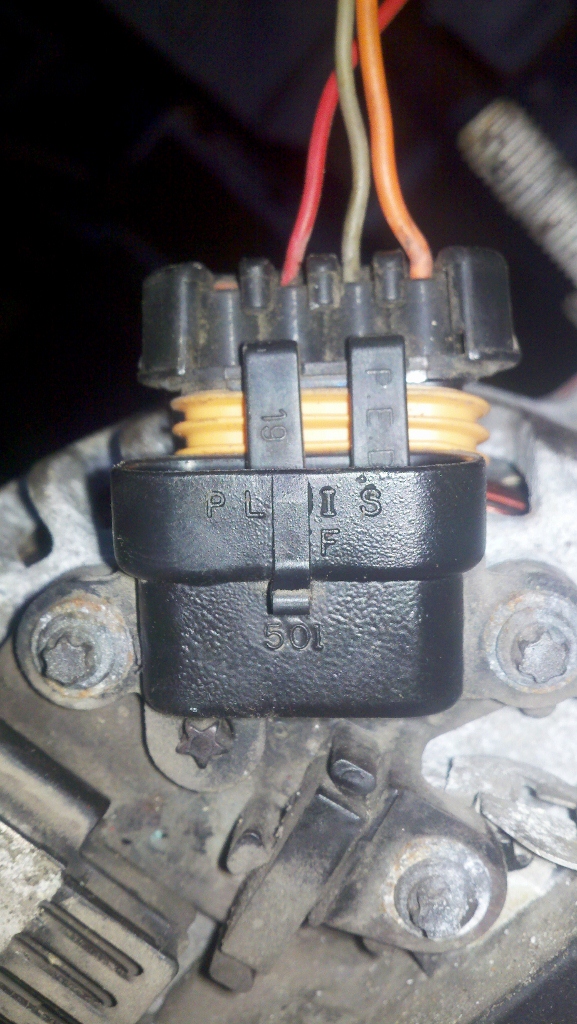

This is a 4 wire connector, but its only using 3 wires, from the looks of it,

RED is L
TAN is I or F
ORN is *
P no connect.



Attached Thumbnails
4th Engine coming up- L36 to L67 Swap-altconn.jpg
Mike is offline   Reply With Quote
