Default 2003 Silverado 3500 evap question

Hey everyone.. I just did an engine swap form a 2003 silverado 3500 into my 1977 chevy c30. I've connected the evap canister up just like on the silverado. The fuel pump from the 3500 does not have a fuel pressure sensor so Im wondering how the canister works..

I live in california and need to smog it. When i took it to smog, the evap said ready, but the tech didn't see any tank pressure values.. . (as i don't have a fuel pressure sensor)

can someone please let me know if this is right so i'll some information for when i go back to smog. all help is appreciated..
Keilamym is offline   Reply With Quote
Old 04-07-2013, 09:38 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i assume it would be on top or in the side of the tank. it has to have one and alot are not part of the sending unit. if it was me i would look up the part on rock auto or what ever and you could probably find a way to put it in your tank. just have to get a wiring diagram to connect it to the right pins on the pcm
jwfirebird is offline   Reply With Quote
Old 04-07-2013, 09:45 PM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

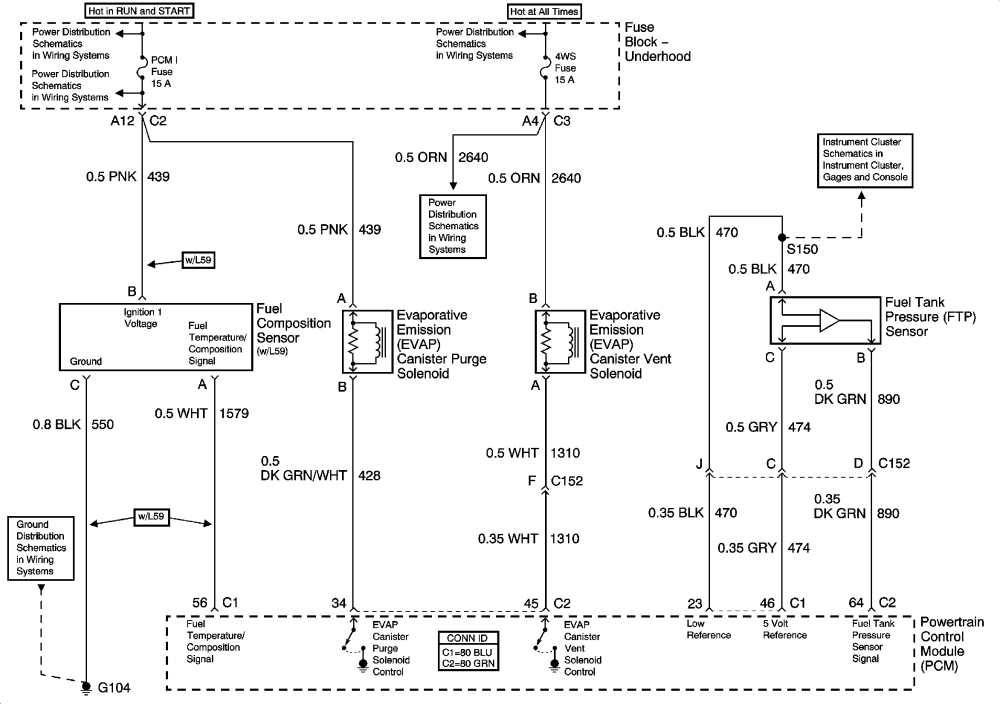

Attached Thumbnails
2003 Silverado 3500 evap question-03-60evap_zps5d64f103.gif
jwfirebird is offline   Reply With Quote
Old 04-08-2013, 01:16 AM   #4
Junior Member
Thread Starter

Join Date: Apr 2013
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Keilamym is on a distinguished road
Default

the fuel pump was the airtex e3501m that doesn't have the extra sensor. if it doesnt have the sensor, then does the truck actually need one? that was the curious part... if i can prove this was an option for the 2003 silverado, then i'll be ok.
Keilamym is offline   Reply With Quote
Old 04-08-2013, 07:33 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

not sure how it checks the evap if it doesnt have a pressure sensor

ACDELCO Part # 16238399
SENSOR,F/TNK PRESS NOT USED ON VEHICLES THAT ARE BOTH RPO FE9 AND ALSO HAVE A GVW OVER 8600 LBS.
jwfirebird is offline   Reply With Quote
Old 04-21-2013, 07:35 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2013
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Keilamym is on a distinguished road
Default

i called the dealership today and found out that california trucks has to have the FTPS.. :( so im dropping the tank and putting in an airtex e3500m.... CRAP!!!!!
Keilamym is offline   Reply With Quote
Old 04-21-2013, 09:13 PM   #7
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Thanks for following up with the fix, sorry you have to get another pump.
