Old 02-19-2006, 07:55 PM   #31
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
How much distance is safe to have the solenoid shut off valve from the injection nozzle.
I'd like to place it in the cool box but it would leave about 2-3 feet of line. I don't think it would syphon out beause it is not vented. What do you guys think?Bill?
Ideally as close to the nozzle as practical, but in light of the relatively small volume of juice in the ID of 1/4" OD tubing, anywhere in the Engine Bay is fine. Leave a low loop to make the siphon effect less noticable.
willwren is offline   Reply With Quote
Old 02-20-2006, 01:19 AM   #32
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Another question.
Should the pressure gauge take off between the pump discharge and the injection nozzle before or after the shut-off solenoid...or does it really matter
2000SilverBullet is offline   Reply With Quote
Old 02-20-2006, 02:13 AM   #33
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
Another question.
Should the pressure gauge take off between the pump discharge and the injection nozzle before or after the shut-off solenoid...or does it really matter
I'd put the gauge between the solonoid and the nozzle so you can see a momentary drop when the valve opens. Gives you some positive feedback that the system is actually functional. Would also show if a line was disconnected or broken anywhere between the pump and nozzle.

After the shutoff solonoid. Let the gauge tell you you're delivering.
willwren is offline   Reply With Quote
Old 02-20-2006, 02:36 AM   #34
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
chadow427 is on a distinguished road
Default

Quote:
Originally Posted by driverjohn2005
I'm sure you have Shadd watching this topic with much attention. Him and I were talking about this for his car when I was at his place in January.
chadow427 is offline   Reply With Quote
Old 02-20-2006, 02:46 AM   #35
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Chadow, you get my PM regarding this?
willwren is offline   Reply With Quote
Old 02-20-2006, 04:40 PM   #36
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
I'd put the gauge between the solonoid and the nozzle so you can see a momentary drop when the valve opens. Gives you some positive feedback that the system is actually functional. Would also show if a line was disconnected or broken anywhere between the pump and nozzle.

After the shutoff solonoid. Let the gauge tell you you're delivering.
That sort of makes sense but when the valve is closed, won't it see vacuum and when it opens it will see pressure. There would also be more fluid to suck out and have to be refilled. Only if it'* before the solenoid, will it see a momentary drop.
It it is before the valve and the valve doesn't open, it would not know, so putting it after would make sense.
Since I am going to leave the gauge in the engine bay, I won't be able to monitor while driving anyway.
2000SilverBullet is offline   Reply With Quote
Old 02-20-2006, 07:05 PM   #37
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If you're not using it in the cabin, put it between the pump and solonoid. That way if the ignition is on, you can see under the hood that you're primed.
willwren is offline   Reply With Quote
Old 02-20-2006, 08:20 PM   #38
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
chadow427 is on a distinguished road
Default

Yeah, I got it, just let me know!
chadow427 is offline   Reply With Quote
Old 02-22-2006, 02:14 AM   #39
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

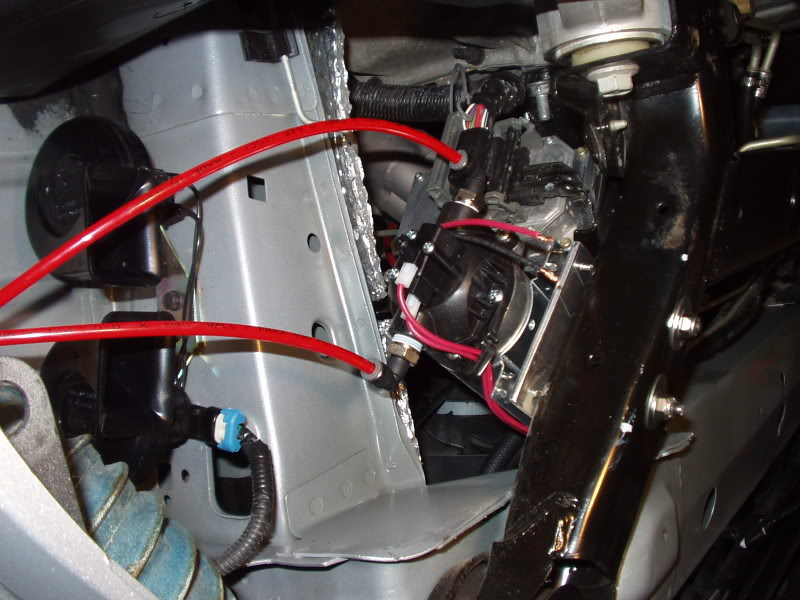

Name:  PumpMount.jpg
Views: 0
Size:  78.7 KB

Pump is mounted. Perfect fit.
2000SilverBullet is offline   Reply With Quote
Old 02-22-2006, 02:23 AM   #40
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Now there'* a tricky fit
Thats where my filter is, just above so there might be enough room?
PontiacDad is offline   Reply With Quote
