Correctamundo, to my fellow expertdude.

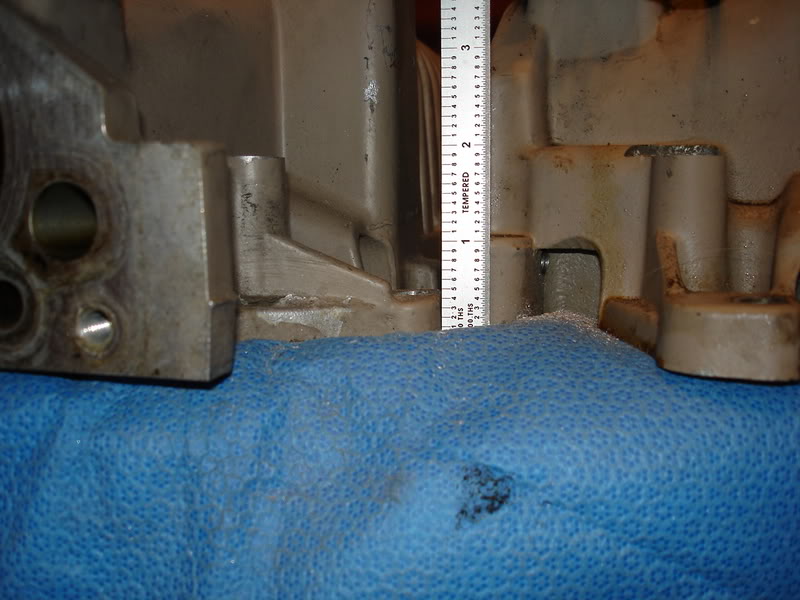

The Gen2 horizontal line about 0.4" JUST TO THE LEFT of the ruler.
The Gen3 horizontal line JUST TO THE RIGHT of the ruler.

The superchargers are rotated to have this 'foot' on each next to each other, as you see in the SECOND pic above.

Name:  compare1.jpg
Views: 2
Size:  68.2 KB
willwren is offline   Reply With Quote
Old 11-30-2006, 12:11 AM   #22
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The ruler is not touching the same spot on both.
J Wikoff is offline   Reply With Quote
Old 11-30-2006, 12:12 AM   #23
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
The ruler is not touching the same spot on both.
bingo.. bill.. take 2 identical pics, and ill layer em on top of eachother to show the difference

u drinking?
harofreak00 is offline   Reply With Quote
Old 11-30-2006, 12:18 AM   #24
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm drinking. John and Andrew are right.

Compare the height of the Gen2 JUST TO THE LEFT OF THE RULER to the height of the Gen3 at the FAR RIGHT OF THE PIC.

**** you guys.
willwren is offline   Reply With Quote
Old 11-30-2006, 12:20 AM   #25
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Or... just to the right of the ruler and far to the left of the ruler (it gets a little fuzzy to the left).
J Wikoff is offline   Reply With Quote
Old 11-30-2006, 02:16 AM   #26
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
Or... just to the right of the ruler and far to the left of the ruler (it gets a little fuzzy to the left).
Now those are great pictures and great info for people looking to see differences in both the 92/93 vs 94/95 superchargers. I still dont understand how the dealership adopted this 94/95 to my 1993 ssei. The one that has the long finned caseing is in my car and the one that I have sitting on my shelves next to my tool box looks like the caseing goes half way (I guess that is the one that orginally came with my car) in which the dealership gave back to me. Do you think that they changed the top end of my engine to a 1994/95. Like the LIM, TB, PCM, EGR and all the sensors? to make it all work.
bigbadbonneville is offline   Reply With Quote
Old 11-30-2006, 02:44 AM   #27
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by willwren
The definitive identification guide for Gen2 (92/93) and Gen3 (94/95) M62 Eaton Superchargers:

This is the 'foot' directly BEHIND the throttle body/inlet when facing the engine from the front. Measure the height. On the left is the Gen2 (92/93) on the right is the Gen3 (94/95):


Now the cooling fins. Notice how the Gen2 (92/93) fins on the LEFT supercharger extend all the way to the base? And the Gen3 (94/95) go only partway down:


Inlet comparison with the Gen2 (92/93) on the left and Gen3 (94/95) on the right:


The other telltale sign is the EGR inlet port. The Gen2 (92/93) is 0.5", and the Gen3 (94/95) is .625" (5/8").

Now which one do you have?
From the looks of the back end of the superchargers. The one on the left is the same as my supercharger with the long fins and is the same as the one with the fins that go halfway. Both my superchargers have the same back end that bolts to the TB. But none of the 2 that I have look anything on the right of your picture. Due to the fact of the small hole next to the Inlet of the TB and that TB looks alot larger then both of which I have. The small hole next to the TB on your picture is for the 94/95, but on Both of my Superchargers they are larger like the one on the left of your picture and I do have both caseings one that has the fins that go halfway and one that goes all they way down, like on these pictures you have. I'am so confused now. Do I have a hybrid supercharger on my hands for a later 1993 that is the same as 1994?
bigbadbonneville is offline   Reply With Quote
Old 11-30-2006, 08:27 AM   #28
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by bigbadbonneville
The one that has the long finned caseing is in my car and the one that I have sitting on my shelves next to my tool box looks like the caseing goes half way, which the dealership gave back to me.
If this statement is correct, the casing with fins all the way down (92/93) is on your car, and the (94/95) casing with fins only partway is on your shelf.

This means your car has the 92/93 supercharger and throttle body on it. Which would allow it to run and function properly with the current PCM.

Quote:
Originally Posted by willwren
Now the cooling fins. Notice how the Gen2 (92/93) fins on the LEFT supercharger extend all the way to the base? And the Gen3 (94/95) go only partway down:
BillBoost37 is offline   Reply With Quote
Old 11-30-2006, 09:44 AM   #29
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Correct. Your dealership misinformed you, and you actually have the correct part on your car. Unless you can call the dealer and have them look up the ticket on the repair for a better description, we may never understand the misunderstanding.
willwren is offline   Reply With Quote
Old 11-30-2006, 12:55 PM   #30
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by bigbadbonneville
Quote:
Originally Posted by willwren
The definitive identification guide for Gen2 (92/93) and Gen3 (94/95) M62 Eaton Superchargers:

This is the 'foot' directly BEHIND the throttle body/inlet when facing the engine from the front. Measure the height. On the left is the Gen2 (92/93) on the right is the Gen3 (94/95):


Now the cooling fins. Notice how the Gen2 (92/93) fins on the LEFT supercharger extend all the way to the base? And the Gen3 (94/95) go only partway down:


Inlet comparison with the Gen2 (92/93) on the left and Gen3 (94/95) on the right:
isnt the one on the left the 94/95 and the one on the right is the 92/93, The question I have is the TB Opening is larger on a 92/93 or is the opening for the TB Larger on the 94/95.

The other telltale sign is the EGR inlet port. The Gen2 (92/93) is 0.5", and the Gen3 (94/95) is .625" (5/8").

Now which one do you have?
From the looks of the back end of the superchargers. The one on the left is the same as my supercharger with the long fins and is the same as the one with the fins that go halfway. Both my superchargers have the same back end that bolts to the TB. But none of the 2 that I have look anything on the right of your picture. Due to the fact of the small hole next to the Inlet of the TB and that TB looks alot larger then both of which I have. The small hole next to the TB on your picture is for the 94/95, but on Both of my Superchargers they are larger like the one on the left of your picture and I do have both caseings one that has the fins that go halfway and one that goes all they way down, like on these pictures you have. I'am so confused now. Do I have a hybrid supercharger on my hands for a later 1993 that is the same as 1994?
bigbadbonneville is offline   Reply With Quote
