Old 11-29-2006, 05:55 PM   #11
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by bigbadbonneville
Quote:
Originally Posted by J Wikoff
Same bolt pattern. The coolant ports will be misaligned, and the diameter step is kinda severe causing turbulance.
Do you think maybe the dealership just took the parts off the 1995 and put into my 1993 case, like the front nose and rotors?
no the rotors are different, but the Nose is the same...the casing is different between the 92-93 and the 94-95

does your SC look like this


or this


can you see the difference in the Case??
1993 SLE is offline   Reply With Quote
Old 11-29-2006, 06:13 PM   #12
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by bigbadbonneville
Quote:
Originally Posted by J Wikoff
Same bolt pattern. The coolant ports will be misaligned, and the diameter step is kinda severe causing turbulance.
Do you think maybe the dealership just took the parts off the 1995 and put into my 1993 case, like the front nose and rotors?
no the rotors are different, but the Nose is the same...the casing is different between the 92-93 and the 94-95

does your SC look like this


or this
[img]http://superchargedv6.com/ebay/2.jpg[/img
can you see the difference in the Case??
I cant seem to see what the second photo looks like but from the Top the photo they both look like that my 93 and 95?
bigbadbonneville is offline   Reply With Quote
Old 11-29-2006, 06:14 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have a few superchargers at home. I'll put a Gen2 and a Gen3 side by side when I get home to point out the obvious 2 differences in the cases.
willwren is offline   Reply With Quote
Old 11-29-2006, 06:16 PM   #14
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by bigbadbonneville
Quote:
Originally Posted by J Wikoff
Same bolt pattern. The coolant ports will be misaligned, and the diameter step is kinda severe causing turbulance.
Do you think maybe the dealership just took the parts off the 1995 and put into my 1993 case, like the front nose and rotors?
no the rotors are different, but the Nose is the same...the casing is different between the 92-93 and the 94-95

does your SC look like this


or this


can you see the difference in the Case??
;Sorry Now I can see it, the bottom one looks like my 1993 and the top one looks similar to the one thats on my car now.
bigbadbonneville is offline   Reply With Quote
Old 11-29-2006, 06:20 PM   #15
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by willwren
I have a few superchargers at home. I'll put a Gen2 and a Gen3 side by side when I get home to point out the obvious 2 differences in the cases.
thank you Wilwren and also great weblinks and supercharger page. I did look at that. also did you know that our Throttle bodys are made in japan by Hitachi? LMFAO, I just looked underneith the 1995 TB on the self and saw it
bigbadbonneville is offline   Reply With Quote
Old 11-29-2006, 06:25 PM   #16
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Notice how the cooling fins go all the way to the base on the Gen2, but not on the Gen3? One of the pedestals for the bolts to mount it to the LIM on the TB end is shorter on the Gen3 than the Gen2 also.
willwren is offline   Reply With Quote
Old 11-29-2006, 06:29 PM   #17
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
bigbadbonneville is on a distinguished road
Default

Quote:
Originally Posted by willwren
Notice how the cooling fins go all the way to the base on the Gen2, but not on the Gen3? One of the pedestals for the bolts to mount it to the LIM on the TB end is shorter on the Gen3 than the Gen2 also.
Yes I do now see it. uhmm I dont know how they did this but they do have the one that is pictured on the top one on my car now and the one on the bottom looks like the one they gave back to me. (dealership)
bigbadbonneville is offline   Reply With Quote
Old 11-29-2006, 06:32 PM   #18
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll post some pics tonight to make sure for you.
willwren is offline   Reply With Quote
Old 11-29-2006, 11:54 PM   #19
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The definitive identification guide for Gen2 (92/93) and Gen3 (94/95) M62 Eaton Superchargers:

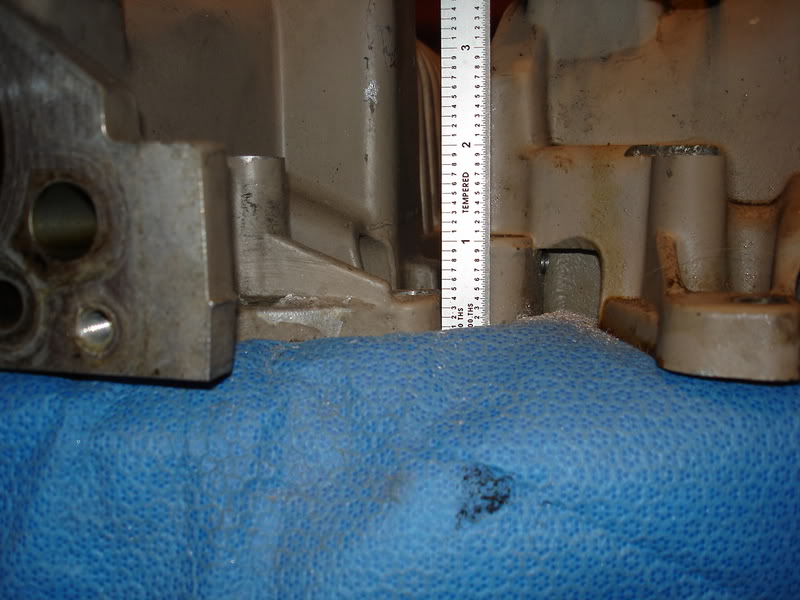

This is the 'foot' directly BEHIND the throttle body/inlet when facing the engine from the front. Measure the height. On the left is the Gen2 (92/93) on the right is the Gen3 (94/95):
Name:  compare1.jpg
Views: 3
Size:  68.2 KB

Now the cooling fins. Notice how the Gen2 (92/93) fins on the LEFT supercharger extend all the way to the base? And the Gen3 (94/95) go only partway down:

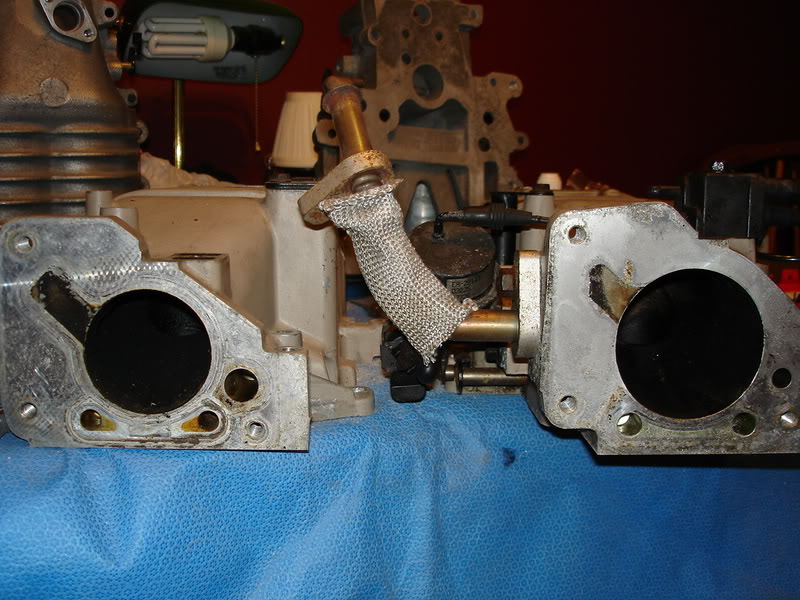

Inlet comparison with the Gen2 (92/93) on the left and Gen3 (94/95) on the right:
Name:  compare3.jpg
Views: 2
Size:  111.5 KB

The other telltale sign is the EGR inlet port. The Gen2 (92/93) is 0.5", and the Gen3 (94/95) is .625" (5/8").

Now which one do you have?
willwren is offline   Reply With Quote
Old 11-30-2006, 12:02 AM   #20
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

That first pic is a little misleading. The two places you should be comparing is the 1 1/8" tall part on the Gen 3 where the ruler is touching it and the part of the Gen 2 that is bare metal closest to the camera.
J Wikoff is offline   Reply With Quote
