Default Project: Blitz-Bird (pics)

The title is what I'm calling the car. It'* an Eaton M112 off of a Lightning F-150 that I'm gutting out and replacing the bearings on. Intentions are to strap it to the 5.4L PI shortblock with PI heads(9.4:1 CR). Modify the lower to convert from water/air to air/air. Got a mean deal on it so I couldn't pass it up. As you will see, the coating has fallen off of the rotors. It was also full of water a while, hence the rusting bearings in the tail, and the rusty rotor journals. Case looks good as far as I can tell. Whadda ya think? It'* goin in my 95 T-Bird.

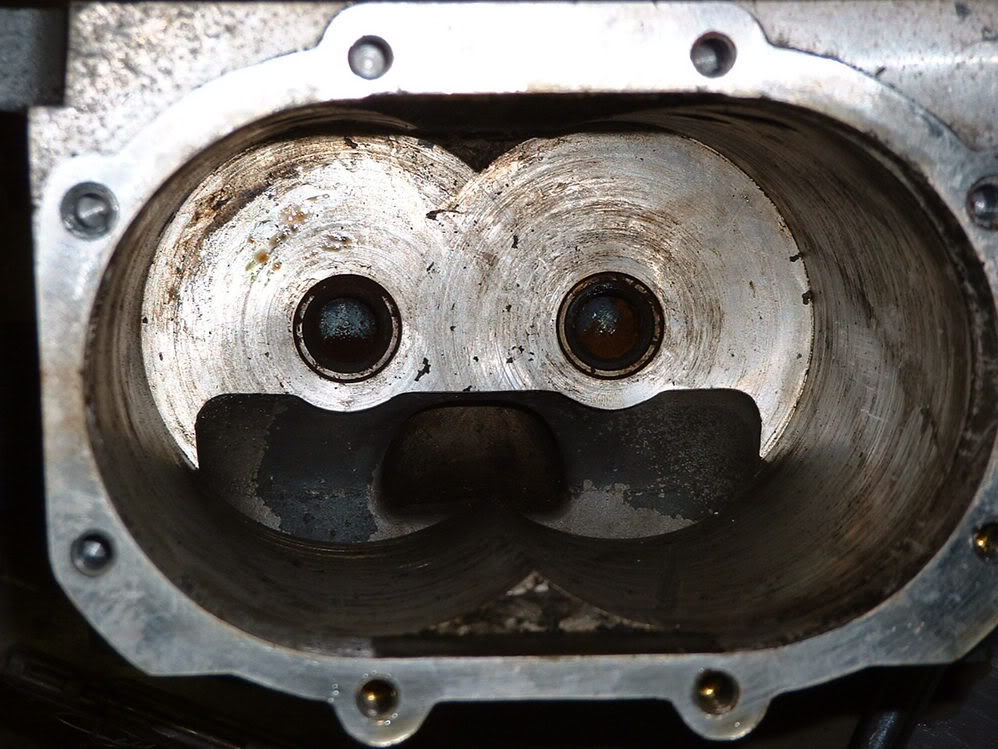

Case:
Name:  insidecase.jpg
Views: 0
Size:  126.4 KB

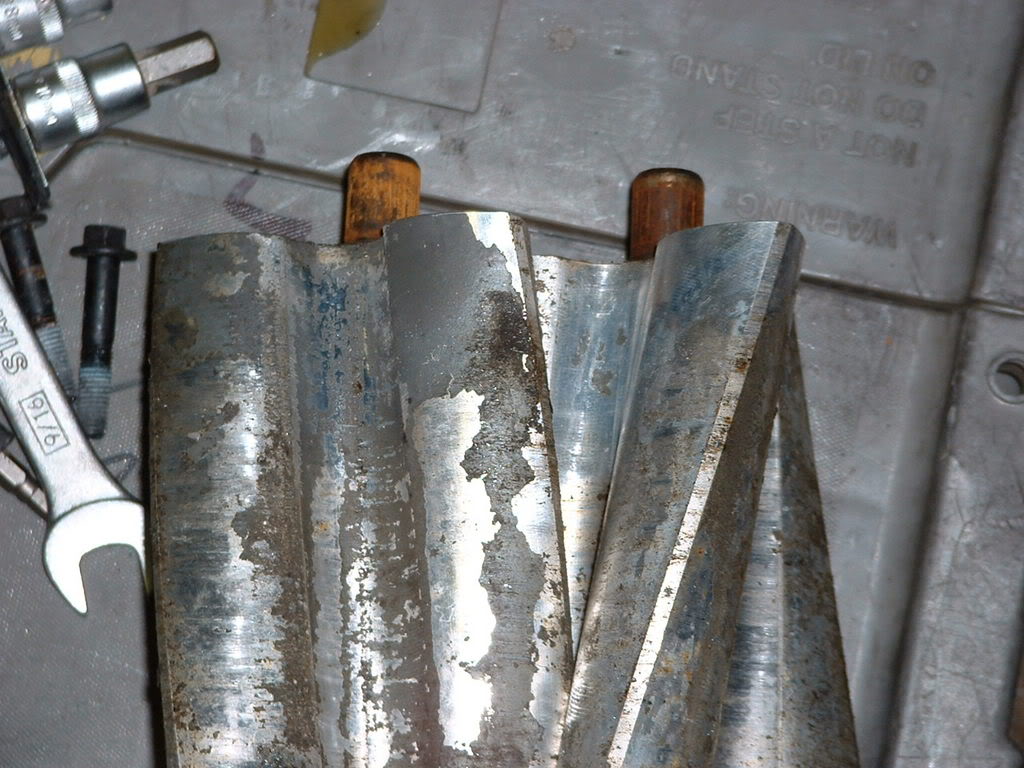

Rotors tail:
Name:  rustyjournals.jpg
Views: 0
Size:  131.0 KB

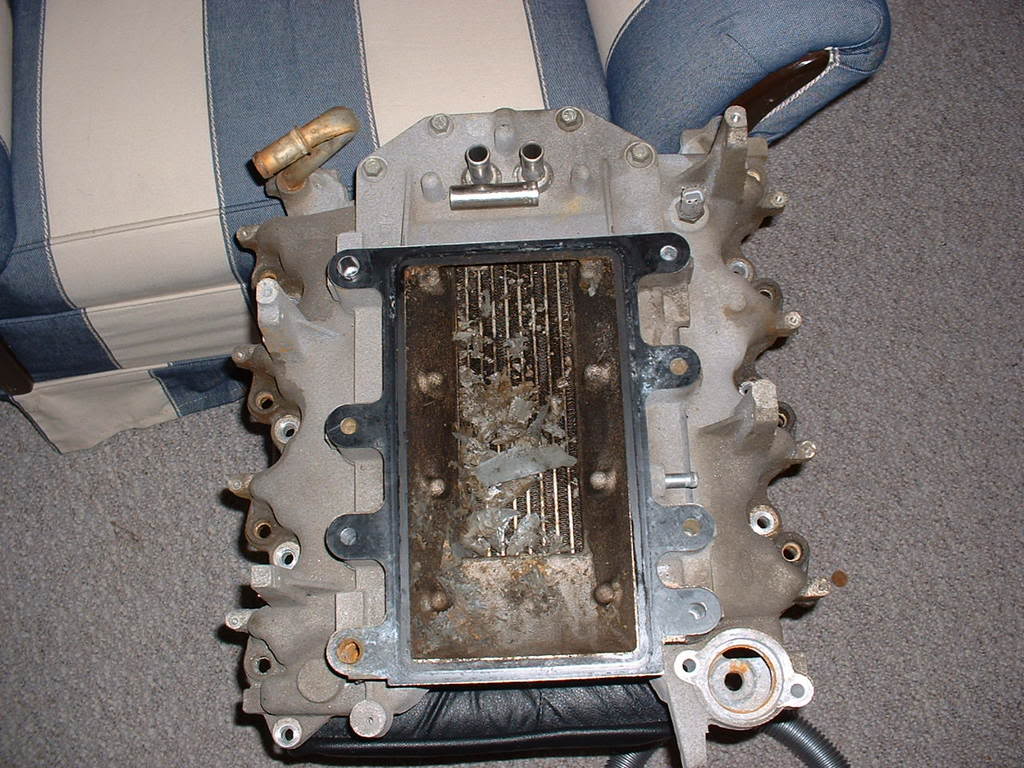

All the crap that fell off the rotors. This is just after taking the blower off. Gross huh?

Name:  insidelower.jpg
Views: 0
Size:  141.2 KB
MyLittleBlackBird is offline   Reply With Quote
Old 01-24-2006, 11:55 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

IC build into the LIM?

i love how ur working on it in the living room next to the nice furniture
harofreak00 is offline   Reply With Quote
Old 01-24-2006, 11:58 PM   #3
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Katrina Truck I take it? Looks like a fun project.
JimmyFloyd is offline   Reply With Quote
Old 01-25-2006, 12:17 AM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

I have no idea, I got the LIM and blower second hand from a guy that told me what it was when he got it. He didn't lie about it in the least. In fact, I'm very pleased. The intercooler for the Lightning'* is a water/air setup, so yeah, that is the radiator kinda thing, which I will remove. I want air/air intercooling. Much more effective. I really really hope I don't need to get the rotors recoated. I wouldn't imagine why I would have too, but I'm sure it'd help make more pony.... Time will tell and it depends how much it costs to get them redone.
MyLittleBlackBird is offline   Reply With Quote
Old 01-25-2006, 12:50 AM   #5
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Water to air is more effective but it'* more complicated..
95naSTA is offline   Reply With Quote
Old 01-25-2006, 01:09 AM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

Water to air is good if you can run R134 in it instead.
MyLittleBlackBird is offline   Reply With Quote
Old 01-25-2006, 12:14 PM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

Now that just gives me a brilliant idea. I think I'll reroute my A/C plumbing through the heat exchanger in the manifold and have an air conditioned intercooler! BRILLIANT! Just need a ignition on/off switch to turn the A/C pump on/off with the key.
MyLittleBlackBird is offline   Reply With Quote
Old 01-25-2006, 12:21 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I looked around on getting rotors coated and it looks like it'* easier to hang in and wait for Ed Morad to get some rotors in stock.

The efficiency will be down probably 2-3 lbs with the coating like you see it.
BillBoost37 is offline   Reply With Quote
Old 01-25-2006, 01:12 PM   #9
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

But does Ed stock M112 rotors? And if so, how much would they run? www.thehighspeedlab.com will coat them for $100. They want $150 to uncoat them! I think I'll get some acetone or something of the sort and clean them myself. Do any of you think the A/C intercooler will work? I'm looking for opinions as well as advice. I have never been lucky enough to play with a blower until now. This is all new stuff to me!
MyLittleBlackBird is offline   Reply With Quote
Old 01-25-2006, 01:30 PM   #10
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I think the Lightning used the AC on its intercooler. I guess they found that the cooler air created more power than the AC compressor robbed.
J Wikoff is offline   Reply With Quote
