Old 02-11-2007, 11:15 PM   #51
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Quote:
Originally Posted by willwren
The inner race of that bearing closest to the coupler is too small to slide off the input shaft to the pulley end?

Was that shaft splined?
Yes it was. It looks EXACTLY he same as the pics posted on rollong ferformance. I pressed it off and pressed it back on
Cheetah is offline   Reply With Quote
Old 02-11-2007, 11:20 PM   #52
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
Greg, you will have to replace that pulley. :(
It cannot be straightened and it certainly won't do it by itself.
It can be straightened!! I went back to the hobby shop today, threw the car in a bay and grabbed a torch. I started the car, held the tach ~2000 rpm. Then I took the torch, fired it up and put it up to the pulley, moving the torch vertically form the nose drive shaft to the top rim of the pulley and it straightened out!! only took about 45 seconds.
Cheetah is offline   Reply With Quote
Old 02-11-2007, 11:22 PM   #53
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Tell me you're joking. Please.

Do you know how much heat you just put on your nosedrive seal? And how weak that pulley is now? Please replace your nosedrive seal and the pulley ASAP. Drive the car in the meantime, but check your oil level and belt wear daily.
willwren is offline   Reply With Quote
Old 02-11-2007, 11:26 PM   #54
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Bill Bill Bill
BillBoost37 is offline   Reply With Quote
Old 02-11-2007, 11:29 PM   #55
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Kidding

But it sounds like the theory would work, doesn't it

I told that to boosty on the phone as something I was thinking about doing. His response was, ah...no

AND, speaking of Boosty, he has a good OEM 3.8 that he is sending me

Thank you Boosty
Cheetah is offline   Reply With Quote
Old 02-11-2007, 11:36 PM   #56
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Picture Time!!!

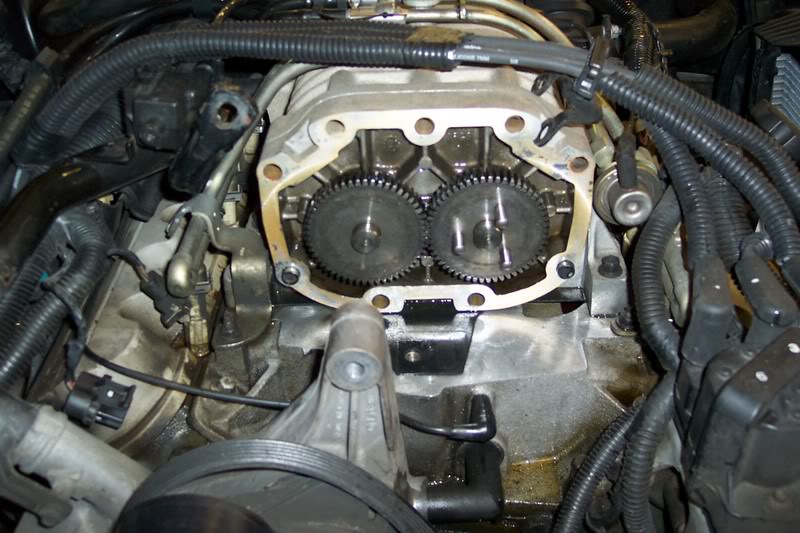

Right after I pulled the snout off
Name:  100_5244.jpg
Views: 0
Size:  84.9 KB

Rebuild Kit
Name:  100_5239.jpg
Views: 0
Size:  75.3 KB

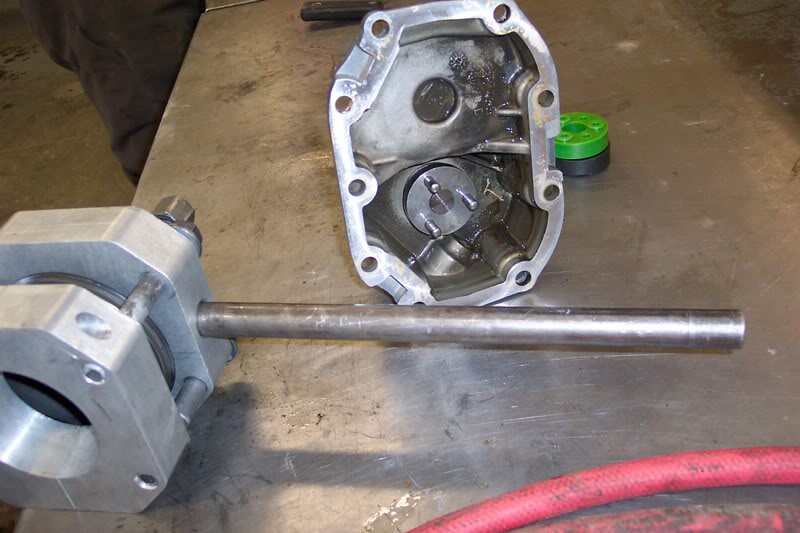

Inside housing of snout
Name:  100_5251.jpg
Views: 0
Size:  65.9 KB

The the coupler on the left and the olf on the right. No Egging
Name:  100_5248.jpg
Views: 0
Size:  35.4 KB

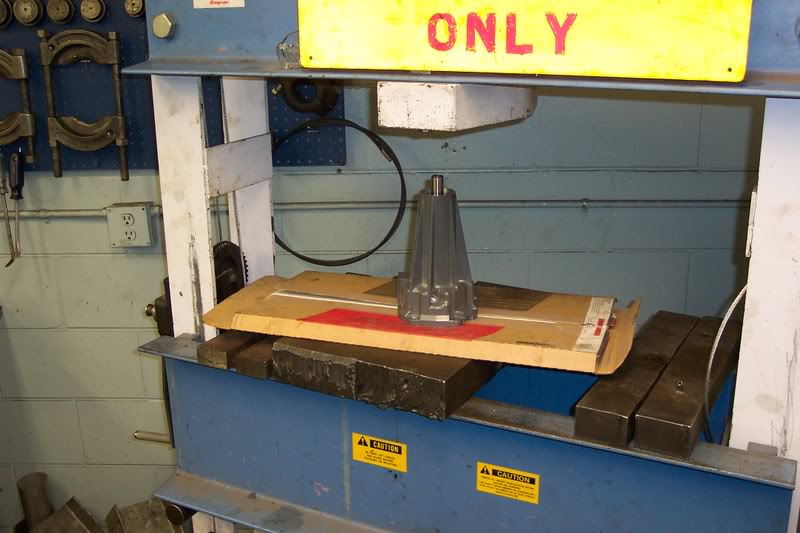

Hydraulic Press that I used for the bearings and shaft spline
Name:  000_0004.jpg
Views: 0
Size:  63.4 KB

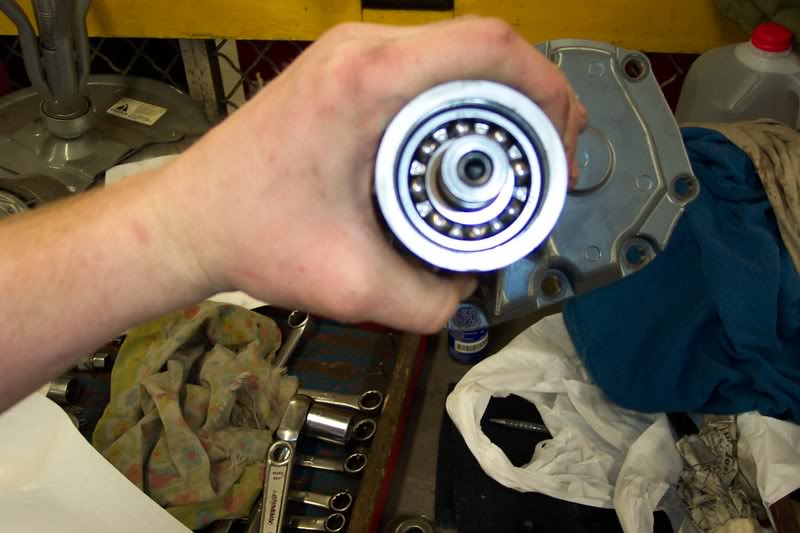

New end bearing before the seal
Name:  000_0001-2.jpg
Views: 0
Size:  60.3 KB

The RTV
Name:  000_0005-1.jpg
Views: 0
Size:  72.2 KB

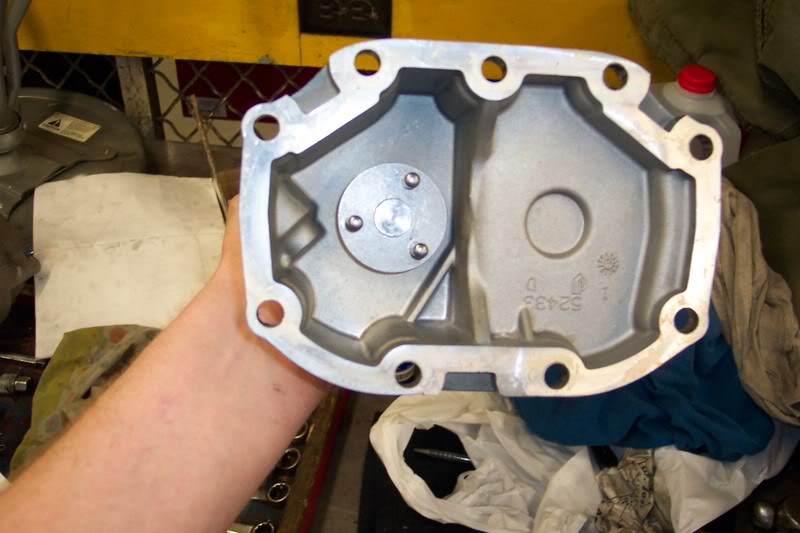

All clean
Name:  000_0002.jpg
Views: 0
Size:  56.0 KB

Me at the end of the night
Name:  000_0009-1.jpg
Views: 0
Size:  79.7 KB
Cheetah is offline   Reply With Quote
Old 02-11-2007, 11:39 PM   #57
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Is it just me or is one bolt in the puller further than the other? Looks like you might have pulled crooked
BillBoost37 is offline   Reply With Quote
Old 02-11-2007, 11:41 PM   #58
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

I believe I had started to take the puller apart, then decided to take some pictures. I think.

If I pulled crooked, that would expain the bent pulley
Cheetah is offline   Reply With Quote
Old 07-23-2009, 09:17 AM   #59
Junior Member

Join Date: Jul 2009
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
superolds is on a distinguished road
Default where

hey there
where did you get the snout seal at?
i have looked all over and cant find any
i called the manufactures and they said you cant replace just the seal
i know you can though...
but that'* all i need is the seal..
thanks
superolds is offline   Reply With Quote
Old 07-23-2009, 10:05 AM   #60
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Parts can be found at

Intense-Racing.com
ZZperformance.com
Rollingperformance.com
