Old 01-22-2008, 03:57 PM   #11
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Brad, leave the OEM coating on the SC and remove whatever FLOZ put on by whatever method necessary, up to and including bead blasting (with all orifices covered by tape).

The wrinkle can be applied directly to the OEM tan coating as long as you 'etch' the coating with CSC first.

If the FLOZ coating fights you, it'* not going anywhere. So in that case, etch with CSC and apply wrinkle.
willwren is offline   Reply With Quote
Old 01-22-2008, 04:00 PM   #12
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I wish I took pics of the Floz I got when it was "new". Full of metal shavings, but otherwise showed no signs of ever being used.
J Wikoff is offline   Reply With Quote
Old 01-22-2008, 04:01 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Reminds me of this:

http://www.williamwren.com/FLOZ.html

I need to update that page to reflect the new Ebay identities.
willwren is offline   Reply With Quote
Old 01-22-2008, 09:39 PM   #14
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Got in later than I thought I would tonight, so I didn't get a chance to work on Boozes car. So I worked on my 'charger instead

So I started cleaning up Floz'* mess at the outlet. Nothing but dremel drums.

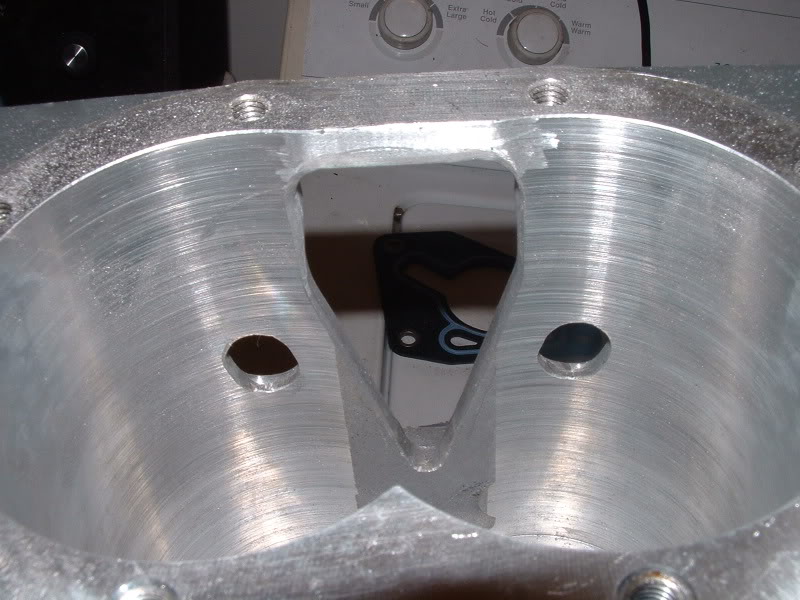

Name:  DSCF0007.jpg
Views: 0
Size:  82.6 KB

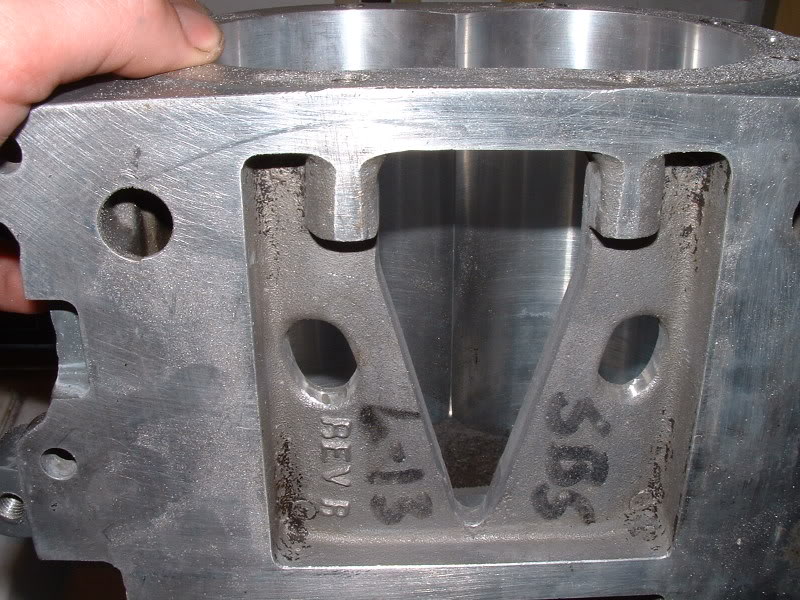

Name:  DSCF0008.jpg
Views: 0
Size:  116.8 KB

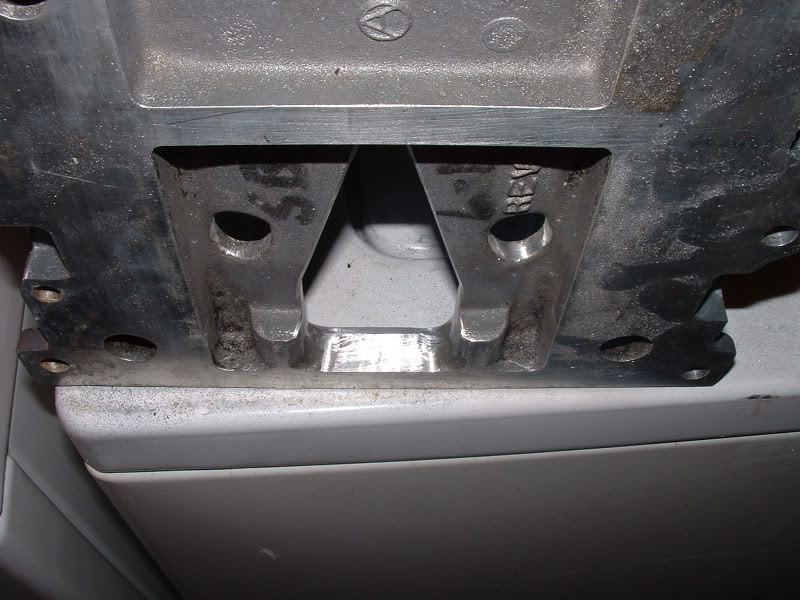

Name:  DSCF0009.jpg
Views: 0
Size:  96.2 KB

That'* all finished up. Now to start working on the throttle inlet. I gasket-matched it and ground down all the roughness for the most part. I gotta go get some fine drums to finish this part of it up.

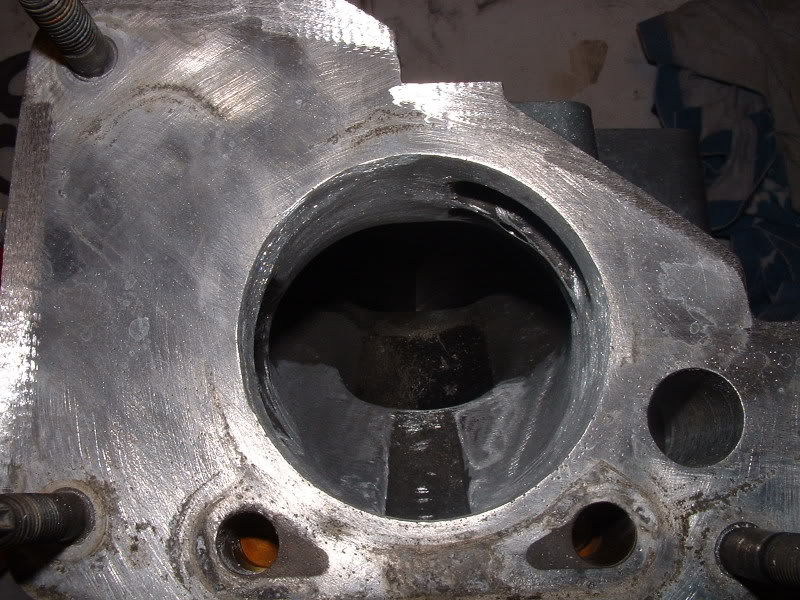

Name:  DSCF0010.jpg
Views: 0
Size:  119.2 KB
sandrock is offline   Reply With Quote
Old 01-22-2008, 10:08 PM   #15
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Brad, roll that outlet edge over some more on the LIM side.

LIGHTLY break the edge on the rotor side (you got that already it looks like) and then roll the LIM-closest edge to about a 1/8" to 3/16" radius. The smoother the better.

Smooth as much of the inlet as you can to the touch. Doesn't have to be like a mirror. Flush out the bypass shaft and bushings very well so the debris doesn't bind it up.
willwren is offline   Reply With Quote
