Default Dissection of a FLoz supercharger

I've had the */c off of the car before, but I have never really torn it down to the shell. Nor has it been this clean (soaked overnight in CSC). Now, probably for the first time, we get to see just how Floz did his 'chargers.

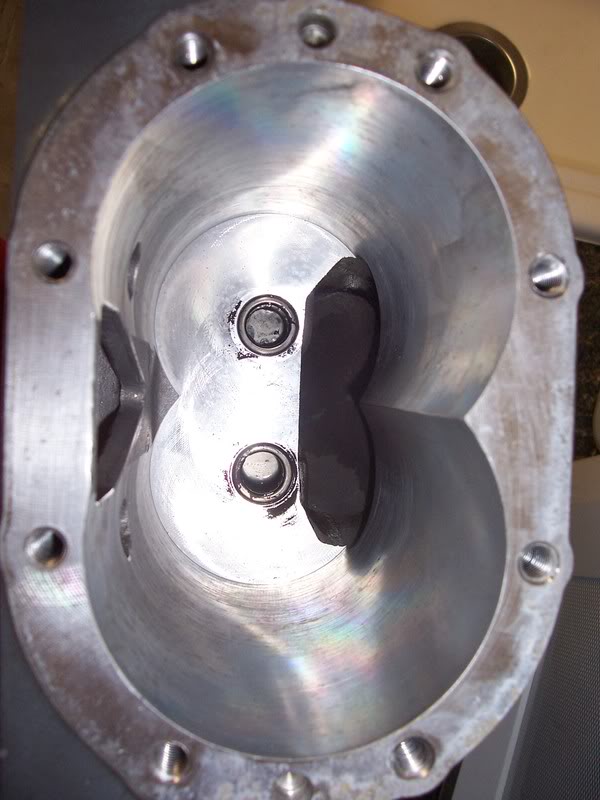

Name:  100_3554.jpg
Views: 2
Size:  59.9 KB

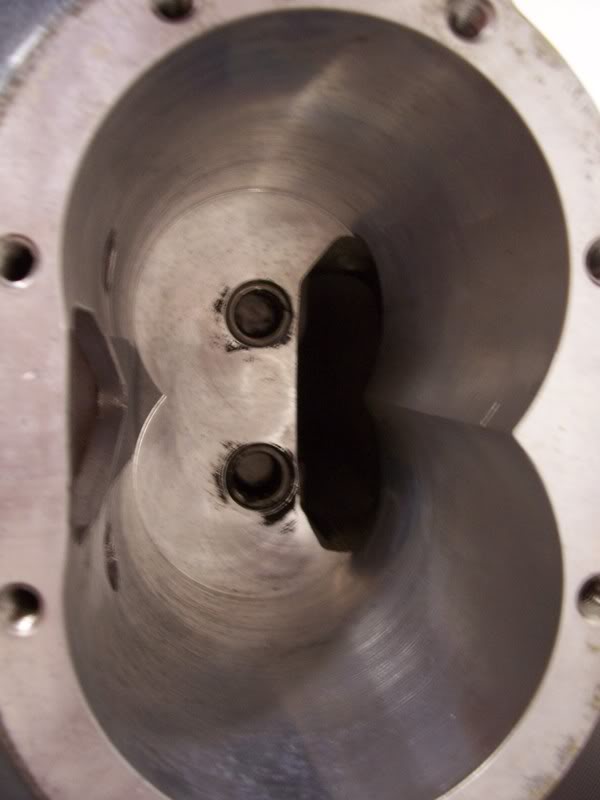

Name:  100_3555.jpg
Views: 2
Size:  36.2 KB

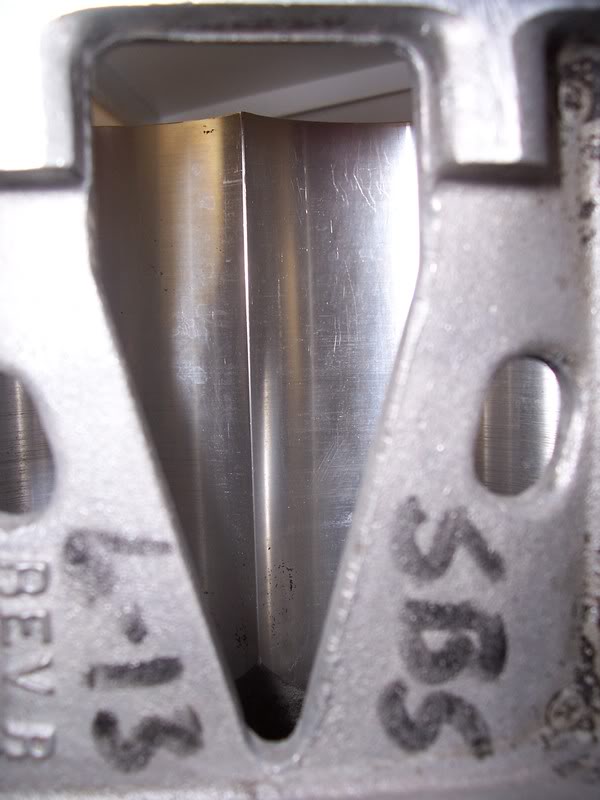

Name:  100_3556.jpg
Views: 2
Size:  52.5 KB

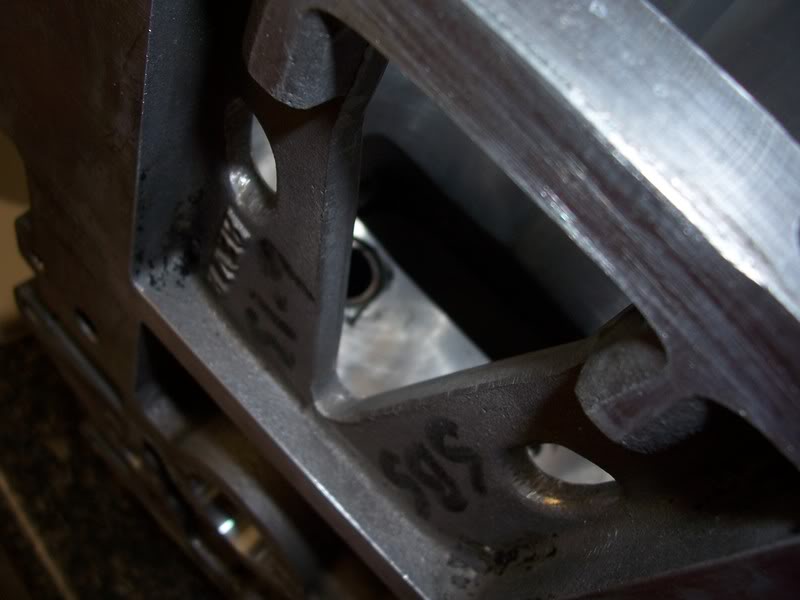

Name:  100_3557.jpg
Views: 2
Size:  41.9 KB

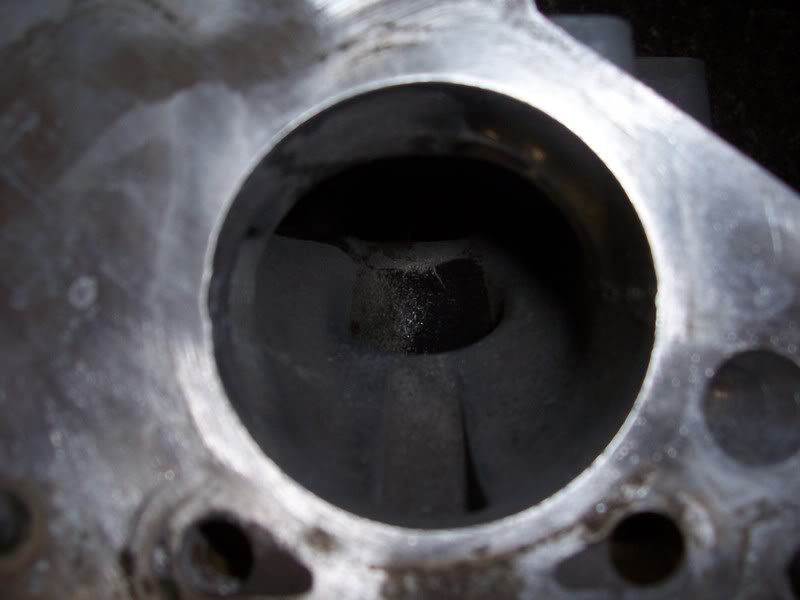

Name:  100_3558.jpg
Views: 2
Size:  35.6 KB

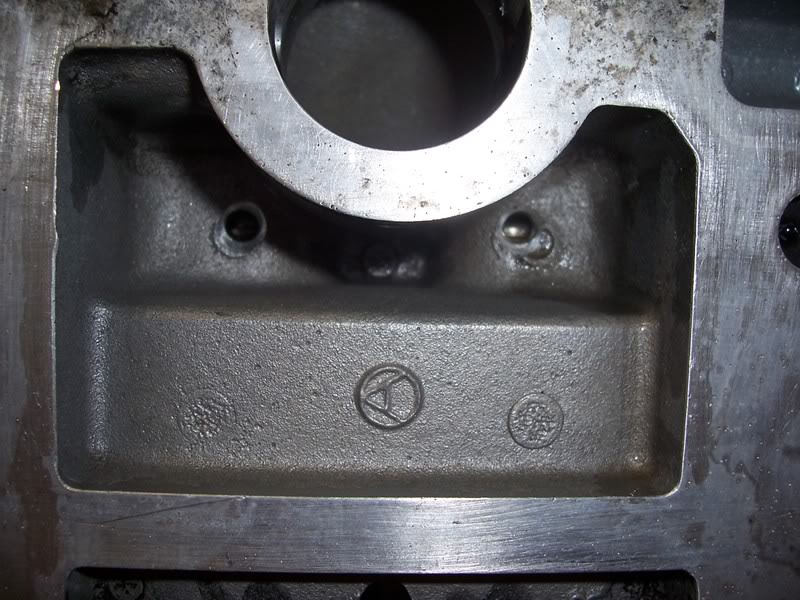

Name:  100_3559.jpg
Views: 2
Size:  107.2 KB

Note how the bearing passages aren't threaded. There is no way these bearings were replaced.
sandrock is offline   Reply With Quote
Old 01-20-2008, 09:55 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You can pull them with a slide hammer and collet. I have that setup now. I can demonstrate it tomorrow if you like.

This doesn't change the fact that I don't think he changed the bearings anyway. Betcha your coupler is black ABS (OEM, and never replaced either).
willwren is offline   Reply With Quote
Old 01-20-2008, 10:18 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Actually, that coupler was replaced. It was green, and in good shape. It'll go back in. Is there any improvement that can be done to it? I've given up on finding a Gen3 TB, so it'* time to get maximum flow out of this...abomination.
sandrock is offline   Reply With Quote
Old 01-20-2008, 11:10 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Are the rotor bores as smooth as they look? All three I've had apart have had way more scoring than that.
J Wikoff is offline   Reply With Quote
Old 01-21-2008, 07:56 AM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

They aren't bad. They are a little smoother than the Genny3 case I have. Not sure if this is the case or not, but maybe those aren't score marks....maybe bore machining?

I had planned on sticking in Gen3 rotors into the case, but the ones I have are losing their coating. Might as well stick with the Gen2 rotors in this case. Stock pulley is going back on until the OBD2 system has the bugs worked out and I have time to learn its capabilities.
sandrock is offline   Reply With Quote
Old 01-21-2008, 10:26 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The case looks like it was intentionally smoothed. Your marks go longitudinally in some areas. If that'* true, it removes material and hurts the efficiency of the charger.

All you need is a little inlet and outlet work, then the Magic Coating (wren'* special sauce).
willwren is offline   Reply With Quote
Old 01-22-2008, 01:33 PM   #7
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Alberta, Canada
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
Drunken Sailor is on a distinguished road
Default

If you look at most of his auctions on eBay, they say "Rotor needle bearings are repacked with high temp grease." Which means he'* squirting grease into them and shoving the rotors back in. Not changing them.

Under his American Supercharger name, where he sells his "premium full rebuilds", he doesn't tell you what parts he changes and what he doesn't. I'm sure that he doesn't change the rotor plate bearings and seals, though.
Drunken Sailor is offline   Reply With Quote
Old 01-22-2008, 01:39 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have this now for the needle bearings (required for a GenV):

http://www.harborfreight.com/cpi/cta...emnumber=95987
willwren is offline   Reply With Quote
Old 01-22-2008, 01:52 PM   #9
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I don't have pictures to show it, but the nosedrive WAS rebuilt. It had a blue anodized bearing at the pulley shaft. I too am doubting the plate bearings were replaced. Then again, those bearings typically don't go bad.

The needle bearings looked to be in pretty good shape, but I don't think I will chance keeping them. My only holdback is locating a hydraulic press (though we do have giant C-clamps in my shop at work). We also have pneumatic grease guns, so that will make extracting the bearings simple.

The hardest part is going to try to strip off the paint. I like the color, don't like the lack of knowledge on its ability to radiate heat. Painting the wrinkle finish on that may very well be detrimental. Aircraft stripper, as powerful as it is, did absolutely nothing to the finish except clean it a little bit.
sandrock is offline   Reply With Quote
Old 01-22-2008, 01:56 PM   #10
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I don't know if it'* blessing that the paint he used on mine dissolves in SC oil. Cheap bastard. The crap turned goldish green in areas. it started silver.
