Unknown Wire

Thread Tools

Search this Thread

Old 03-17-2007, 03:02 PM
  #11
Senior Member
Posts like a Supercharger
Thread Starter

99SSEI's Avatar

Join Date: Apr 2006
Location: Schaumburg, IL
Posts: 185
Likes: 0
Received 0 Likes on 0 Posts
99SSEI is on a distinguished road
Default

Hmm..is it under the PCM?
I appologize for the lack of knowledge, but what does a EVAP canister solenoid do?
Old 03-17-2007, 03:05 PM
  #12
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

Originally Posted by 99SSEI
Hmm..is it under the PCM?
I appologize for the lack of knowledge, but what does a EVAP canister solenoid do?
yes if you remove the push pins for the PCM Box, you will see the round canister

EVAP discription
Circuit Description
The EVAP purge valve allows manifold vacuum to purge the canister. The Powertrain Control Module (PCM) supplies a ground to energize the EVAP purge valve (purge ON). The EVAP purge valve control is Pulse Width Modulated (PWM) or turned ON and OFF several times a second. The duty cycle (pulse width) is determined by engine operating conditions including load, throttle position, coolant temperature and ambient temperature. The duty cycle is calculated by the PCM and the output is commanded when the appropriate conditions have been met:

Engine coolant temperature above 25°C (77°F).
After the engine has been running about 2 1/2 minutes on a cold start or 30 seconds on a warm start.
The vehicle is operating in closed loop fuel control.
Canister purge commanded duty cycle varies according to operating conditions determined by mass air flow, fuel trim, and. intake air temperature. Canister purge will be disabled if TP angle increases to above 33%. Canister purge will be re-enabled when TP angle decreases below 29%.
Old 03-17-2007, 03:08 PM
  #13
Senior Member
Posts like a Supercharger
Thread Starter

99SSEI's Avatar

Join Date: Apr 2006
Location: Schaumburg, IL
Posts: 185
Likes: 0
Received 0 Likes on 0 Posts
99SSEI is on a distinguished road
Default

AWESOME!!
Thanks for the knowledge! I don't have time to fix it now (off to work). Is it critical? Or can damage result from not being engaged?
Old 03-17-2007, 03:10 PM
  #14
Senior Member
True Car Nut

corvettecrazy's Avatar

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes on 0 Posts
corvettecrazy is on a distinguished road
Default

you will be fine without it.
Old 03-19-2007, 09:12 PM
  #15
Senior Member
Posts like a Supercharger
Thread Starter

99SSEI's Avatar

Join Date: Apr 2006
Location: Schaumburg, IL
Posts: 185
Likes: 0
Received 0 Likes on 0 Posts
99SSEI is on a distinguished road
Default

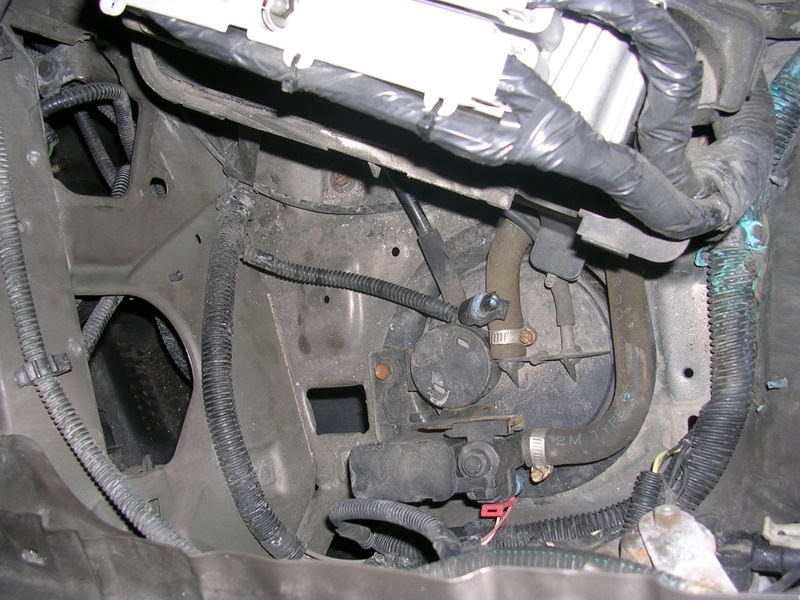

Okay, so I moved the PCM and the wire in question is not intended for the EVAP canister. Any ideas?? (wire w/ blue 2 conductor connector)

Name:  DSCN0746.jpg
Views: 12
Size:  86.6 KB
Old 03-19-2007, 09:22 PM
  #16
Senior Member
True Car Nut

Hans's Avatar

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Likes: 0
Received 1 Like on 1 Post
Hans is on a distinguished road
Default

this is for the "hood sensor" as I refer to it as. When shorted, the DIC notices a "hood open" condition.

1993 SLE - Having that electrical connector disconnected on the EVAP purge valve will cause a P1676
Old 03-19-2007, 09:27 PM
  #17
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

Originally Posted by Hans

1993 SLE - Having that electrical connector disconnected on the EVAP purge valve will cause a P1676
you may want to read again....i never stated anywhere that it would/would not cause a CE light.......
Old 03-19-2007, 09:52 PM
  #18
Senior Member
True Car Nut

Hans's Avatar

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Likes: 0
Received 1 Like on 1 Post
Hans is on a distinguished road
Default

The comment was directed toward corvette crazy. My bad. I did not bother reading the entire thread.
Old 03-19-2007, 10:15 PM
  #19
Senior Member
Posts like a Supercharger
Thread Starter

99SSEI's Avatar

Join Date: Apr 2006
Location: Schaumburg, IL
Posts: 185
Likes: 0
Received 0 Likes on 0 Posts
99SSEI is on a distinguished road
Default

I'll end the debate by letting everyone know it was the hood sensor.
Thanks everyone for your help!!
Old 03-19-2007, 11:31 PM
  #20
Senior Member
True Car Nut

Hans's Avatar

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Likes: 0
Received 1 Like on 1 Post
Hans is on a distinguished road
Default

Glad we got it figured out..you had me wondering WTF that was but then I remembered I pulled that harness when I was looking for PCM mounting ideas.
