Old 04-28-2006, 02:25 AM   #31
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

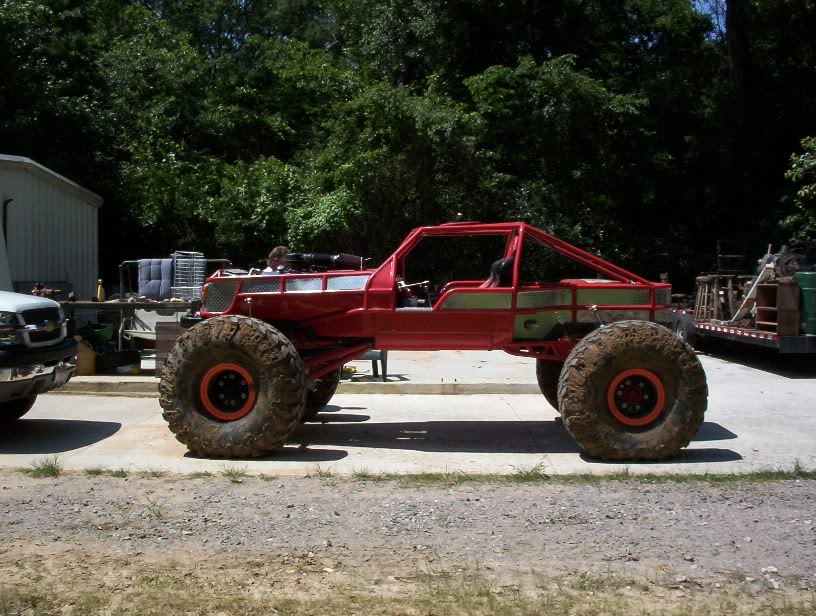

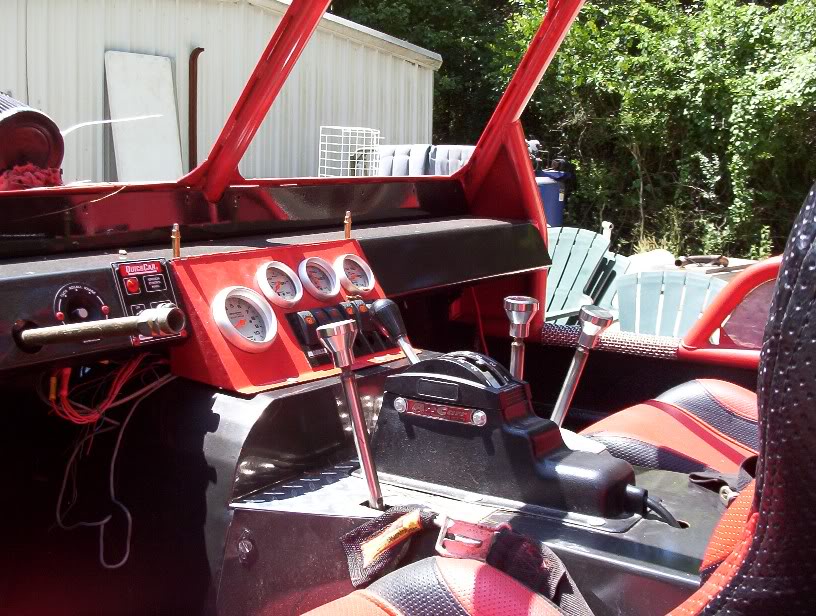

Here are a few I found of recent jobs I did for friends. The Red one has a s454 with GM TBI that we added and I wired along with the chassis wiring. I also added remote start.



Name:  Picture024.jpg
Views: 2
Size:  137.2 KB

Name:  Picture022.jpg
Views: 3
Size:  142.5 KB

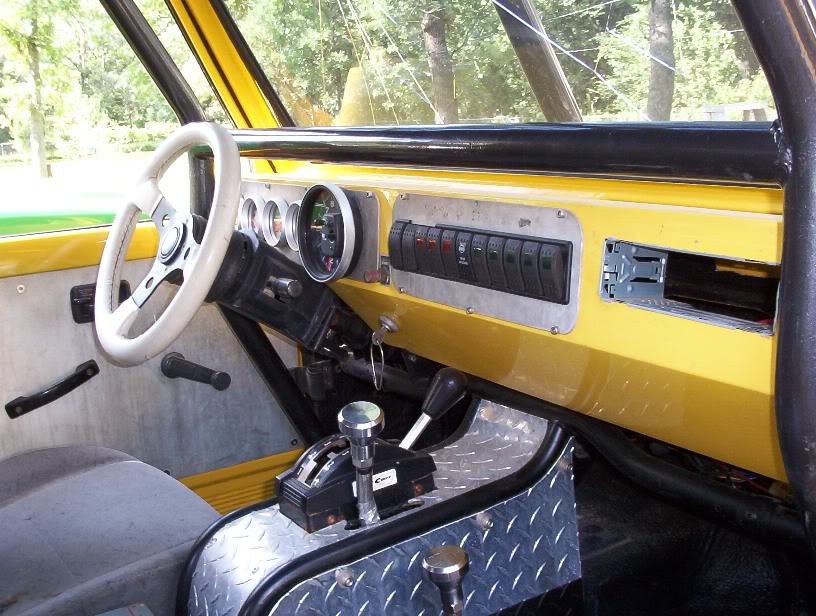

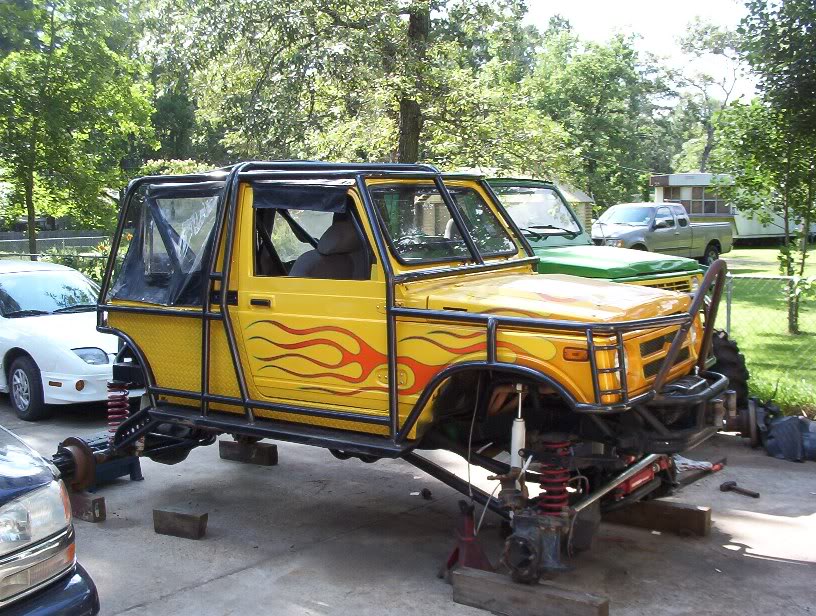

The Yellow one is has a switchpanel I made for him and wirred for an ARB airlocker, Fans, Front and Rear winches, Chassis lights, compressor, and a few other things (3-4 spares I think). It has a 98' 4.3L Vortec with a Marine intake (to get a 4bbl pattern then adapted to TBI, We used a painless harness on this one.

Name:  Picture019.jpg
Views: 2
Size:  127.8 KB

Name:  Picture032.jpg
Views: 2
Size:  160.5 KB

I haven't found any of the LED pics yet but 'll look in the morning. I had a pretty good spill last night and a sick 10month old so I gotta run.

Jeff
J57ltr is offline   Reply With Quote
Old 04-28-2006, 02:41 AM   #32
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Those are some sweet projects right there. I will have to get pictures of the formula SAE car that I wired/am wiring up.

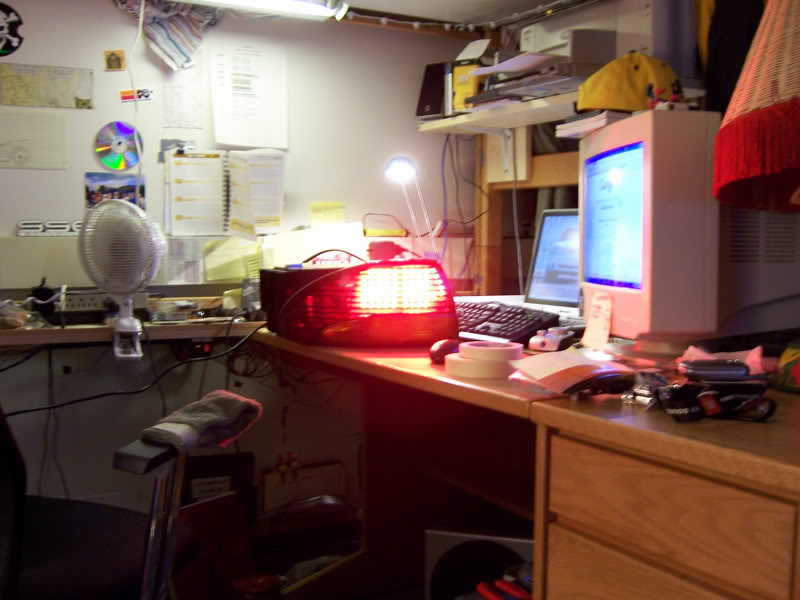

here is a peak at my project. Also a chance for me to claim it as the first...
Name:  000_0082.jpg
Views: 3
Size:  71.6 KB

excuase the organized clutter. It looks cleaner from straight on. And the fan is there to keep the PCB dust from going near my face and me breathing it in.
corvettecrazy is offline   Reply With Quote
Old 04-28-2006, 03:07 AM   #33
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

by the way, corvettecrazy'* tail light has been converted to LED.
phoenix_flame220 is offline   Reply With Quote
Old 04-28-2006, 03:12 AM   #34
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
by the way, corvettecrazy'* tail light has been converted to LED.

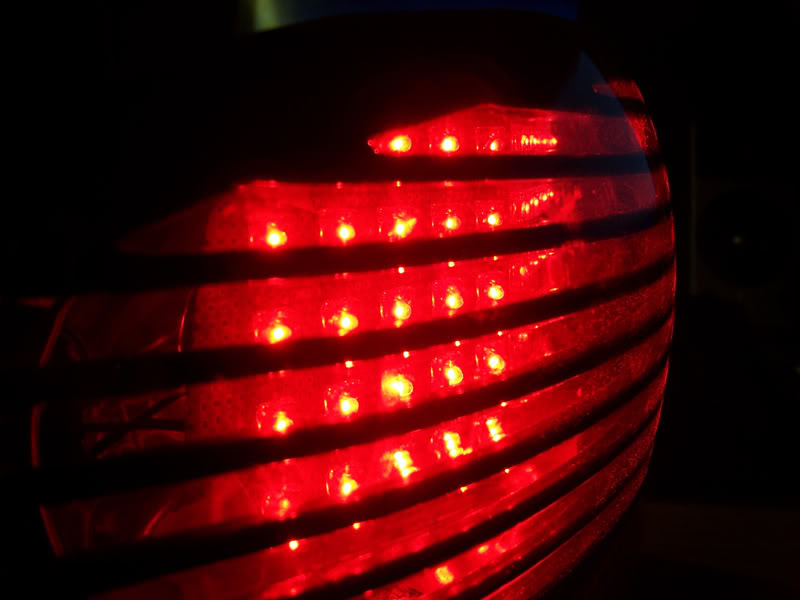

I guess I could zoom in a little
Name:  000_0087-2.jpg
Views: 3
Size:  52.3 KB
corvettecrazy is offline   Reply With Quote
Old 04-28-2006, 04:56 AM   #35
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
Quote:
Originally Posted by phoenix_flame220
by the way, corvettecrazy'* tail light has been converted to LED.
I guess I could zoom in a little
What was involved in your upgrade?
BLACK94SSEi is offline   Reply With Quote
Old 04-28-2006, 05:21 AM   #36
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

well that picture is only 2 of 10 circuit boards. Plus fitting and securing the boards into the TL and creating voltage regulating circuits. Its a LOT of work.

Firgure it this way. That one driver side TL has 46 LED'* currently. + 18 more for the 3rd section.(not made yet) so 64 LEDs. Now those LED'* have 2 cathodes and 2 anodes. (4 prongs to put it simply) which = 256 solder joints. + the passenger side. 512 joints. + the center section + the other circuitry. Its a good bit of work.

and that is just making the boards. Cutting open the tail lights, modding them, and putting them back together.

Its not for the faint of heart.
corvettecrazy is offline   Reply With Quote
Old 04-28-2006, 09:58 AM   #37
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

Corvette crazy that looks very good, I like it.

The only things I can find are some old cad drawings that are of the ones I did for the El Camino, and a bunch of module papaers, I'll scan and post them if you like later. I haven't gotten a good look around and right now I am going to take a nap.

Jeff
J57ltr is offline   Reply With Quote
Old 05-05-2006, 01:36 AM   #38
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Corvettecrazy aka LEDcrazy :P Nice job. If am going to first work on my back-up lights. I have stuck LED bulbs in them before and they worked great / looked great too. Your tail lights there are bad a$$ though.
Cheetah is offline   Reply With Quote
Old 05-06-2006, 04:47 AM   #39
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

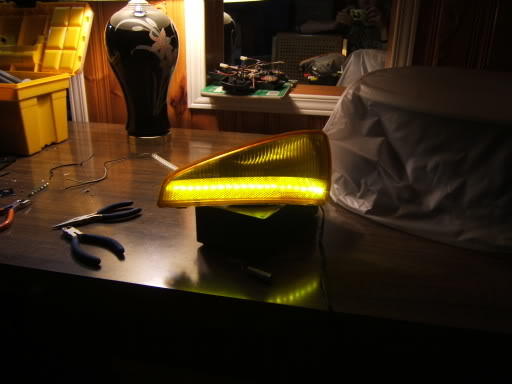

Heres a new design that I might use. Its a lot brighter thats for sure. I think I might stick with my original though... not sure, let me know what you guys think.

Name:  DSCF0335.jpg
Views: 4
Size:  27.5 KB
phoenix_flame220 is offline   Reply With Quote
Old 05-06-2006, 04:53 AM   #40
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
not sure, let me know what you guys think.
ummmm...yeah!
harofreak00 is offline   Reply With Quote
