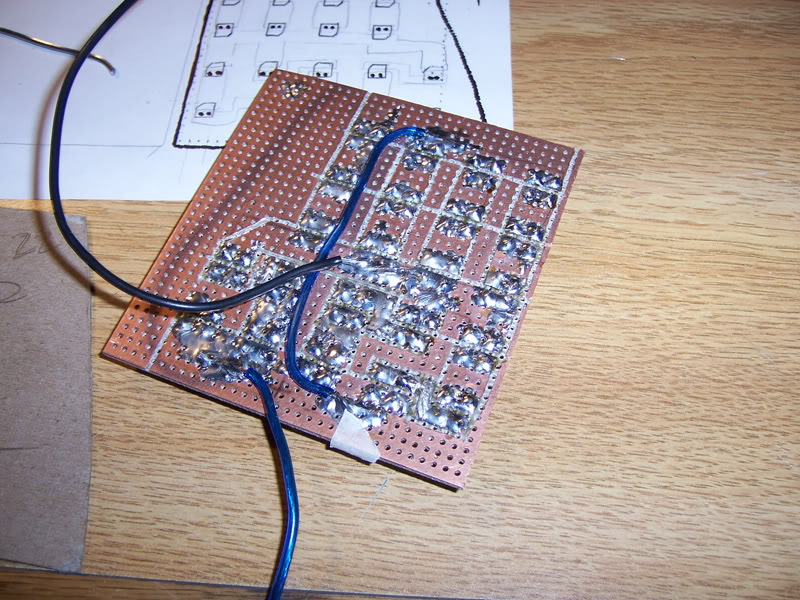

so I guess you think I lack circuit board skills???
Name:  000_0075.jpg
Views: 2
Size:  147.8 KB

yeah, I dont have etching stuff so I had to use my dremel. And I know I globbed on the solder.
corvettecrazy is offline   Reply With Quote
Old 04-27-2006, 12:55 AM   #22
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

No that'* perfectly acceptable I have built my own boards in the same fashon. I found that if I stripped a piece of wire (16-18ga) and cut one strand that I could bend it, tack it and solder an entire trace. Another method I like to use is just use a one sided board and after making the circuit place it in the bottom of a circuit box (or any suitable shaped dish, portion cups, parts container, what ever you have on hand), and use a potting compound which will weather proof it, but makes repair a bear. If you size all your componets right then they will usually last a very long time in this application. For loads such as the load resistor you simply cut a small area for a small heatsink and mount it flush with the inside and mount the resistor right up against it applying a liberal amount of heat sink compound. Then pour in the compound slowly (putting it in a vacuum chamber is best, but this method is good enough) Done like this itshould outlast the LED if you know what I mean .

Jeff
J57ltr is offline   Reply With Quote
Old 04-27-2006, 08:30 AM   #23
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Lets step back to the led'* I think were used originally. I read 30 degree somewhere. While I claim to know next to nothing about LED'* (I had an expert on hand that day) I do know that 30 degrees is a small viewing angle and you might benefit from say something like a 70 degree LED.
BillBoost37 is offline   Reply With Quote
Old 04-27-2006, 01:49 PM   #24
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

Tractor Trailer LED'* have a broader viewing angle than 30* but you have to remember most have a lens that difuses the light tso it is seen more easily from different angles. They are also DOT approved which the ones I (and just about everyone else) have done are not. They are close enough to fool most cops, but I did have a set that got a friend pulled over and issuesd a ticket because they were too bright.

Jeff
J57ltr is offline   Reply With Quote
Old 04-27-2006, 01:58 PM   #25
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by J57ltr
Tractor Trailer LED'* have a broader viewing angle than 30* but you have to remember most have a lens that difuses the light tso it is seen more easily from different angles. They are also DOT approved which the ones I (and just about everyone else) have done are not. They are close enough to fool most cops, but I did have a set that got a friend pulled over and issuesd a ticket because they were too bright.

Jeff

If I run my set up at the voltages I would like, I think I will be in the same boat as your friend

Another option for people who want to do small areas is regular trailer lights are available with LEDs.
corvettecrazy is offline   Reply With Quote
Old 04-27-2006, 03:10 PM   #26
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

I'll look around for some of the information I have. I think Lumnitex (sp) made the modules I posted and they were designed with the DOT in mind. I will have to search to find the DOT info I had but I remember that there was a statment on color (in wavelength) and intensity. Try Waytek they have some good lights even White for reverse lights (I think they are about 2" or 3" though).

Jeff
J57ltr is offline   Reply With Quote
Old 04-27-2006, 03:18 PM   #27
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by J57ltr
I'll look around for some of the information I have. I think Lumnitex (sp) made the modules I posted and they were designed with the DOT in mind. I will have to search to find the DOT info I had but I remember that there was a statment on color (in wavelength) and intensity. Try Waytek they have some good lights even White for reverse lights (I think they are about 2" or 3" though).

Jeff
can we get some more pictures of your custom stuff??
corvettecrazy is offline   Reply With Quote
Old 04-27-2006, 03:28 PM   #28
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: Houston
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
J57ltr is on a distinguished road
Default

Most of it is on my home computer and some of it has been lost in a HD crash , I have a bunch of pics from Alarm and fuel injection installations, and 4X4 stuff that I have done, which Iím not really into, but adding oddball things to them is really fun, Compressors and storage tanks, remote starts, switchpanels, things of that nature. Iíll look on my computers when I get home and see what I can scare up.

Jeff
J57ltr is offline   Reply With Quote
Old 04-27-2006, 03:40 PM   #29
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Look what I found. I may buy some for the Bonne when I have money again whoohoo!!
http://www.autodirectsave.com/1156_1157_LED_BULBS.asp
BLACK94SSEi is offline   Reply With Quote
Old 04-27-2006, 03:41 PM   #30
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

I chose 30 degree leds because I specifically want and LED effect. I do not want to simulate insandescents. The leds used in automotive are around a 70 - 90 degree viewing angle. I am almost finished my 3rd and final revision of my third brake light. Just waiting on a piece of smoked glass that I am getting cut. The LEDs I used in it are 70 degree.
phoenix_flame220 is offline   Reply With Quote
