Well, I got the fog lights changed today. No pics, my camera battery was dead and I didn't want to wait for it. I tried going in with the headlight assembly out and I could reach the bulb but without knowing what it looked like and being able to see it I couldn't get it done. I ended up taking the wheel well plastic out and did it that way. The first one sucked completely. I couldn't figure out how to get the bulb past the little wire holder. Once I got the first one done and knew what everything looked like and how it worked the second one was much easier. If I would have only known that you have to push that little wire towards the bulb and up to release it the first one would have been easy and I'm sure I would have been able to get it from the headlight area. Hopefully I won't have to do it again for some time but if I do I am sure it won't take more than a couple of minutes.
DONKY4444 is offline   Reply With Quote
Old 06-05-2007, 02:49 PM   #12
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

It'* great that you've got everything installed and buttoned up again!
ddalder is offline   Reply With Quote
Old 06-05-2007, 06:11 PM   #13
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jun 2005
Location: KALAMAZOO, MI
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
DONKY4444 is on a distinguished road
Default

Now I just can't wait until it gets dark so I can see how good they look. I went with GP Thunder 8500K bulbs. They are 100W compared to the factory 55W.
DONKY4444 is offline   Reply With Quote
Old 06-05-2007, 06:15 PM   #14
Senior Member
Posts like a Turbo

Join Date: Aug 2006
Location: bloomington, IN
Posts: 424
Thanks: 0
Thanked 0 Times in 0 Posts
Mista_SC is on a distinguished road
Default

if they're anything like the high beams, you'll see a light blue color, 8500k look great for DRL'*
Mista_SC is offline   Reply With Quote
Old 06-05-2007, 06:46 PM   #15
Senior Member
Certified GM nut

Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,936
Thanks: 0
Thanked 0 Times in 0 Posts
GXP_Vince is on a distinguished road
Default

yea i would definitly like to see some pictures of it. I probly will consider it also.
GXP_Vince is offline   Reply With Quote
Old 06-08-2007, 08:18 AM   #16
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jun 2005
Location: KALAMAZOO, MI
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
DONKY4444 is on a distinguished road
Default

I was wondering if there is a way to adjust the fog lights aim? It seems mine point very low to the ground. I know that they are projector beam lights but I still think they are very low.
DONKY4444 is offline   Reply With Quote
Old 06-08-2007, 01:13 PM   #17
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

Quote:
Originally Posted by DONKY4444
I was wondering if there is a way to adjust the fog lights aim? It seems mine point very low to the ground. I know that they are projector beam lights but I still think they are very low.
There is an adjustment screw located at the top rear of the fog light housing. I believe mine was marked with green paint. The head of the screw faces rearward and it looks like there is a washer underneath. Turning this screw changes the aim up/down.
ddalder is offline   Reply With Quote
Old 06-08-2007, 06:53 PM   #18
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jun 2005
Location: KALAMAZOO, MI
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
DONKY4444 is on a distinguished road
Default

Thank you. I will have to try it tonight or tomorrow.
DONKY4444 is offline   Reply With Quote
Old 06-09-2007, 11:54 PM   #19
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jun 2005
Location: KALAMAZOO, MI
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
DONKY4444 is on a distinguished road
Default

Here are pics of the 8500k bulbs I put in my car.

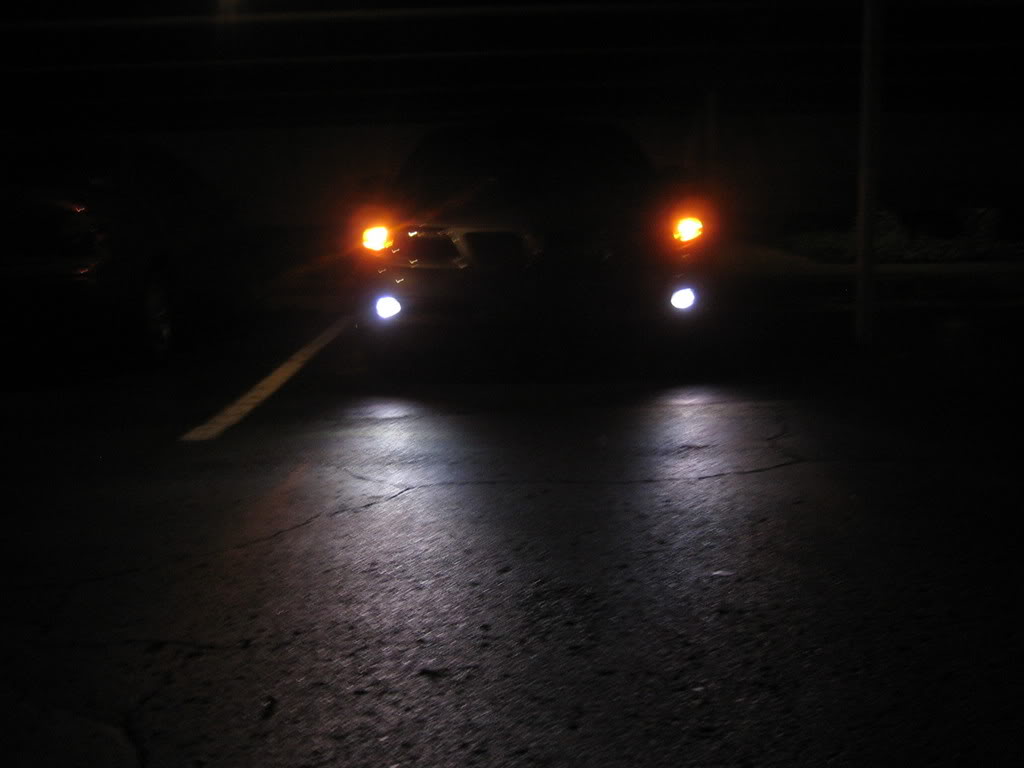

Name:  Picture006065.jpg
Views: 0
Size:  54.4 KB

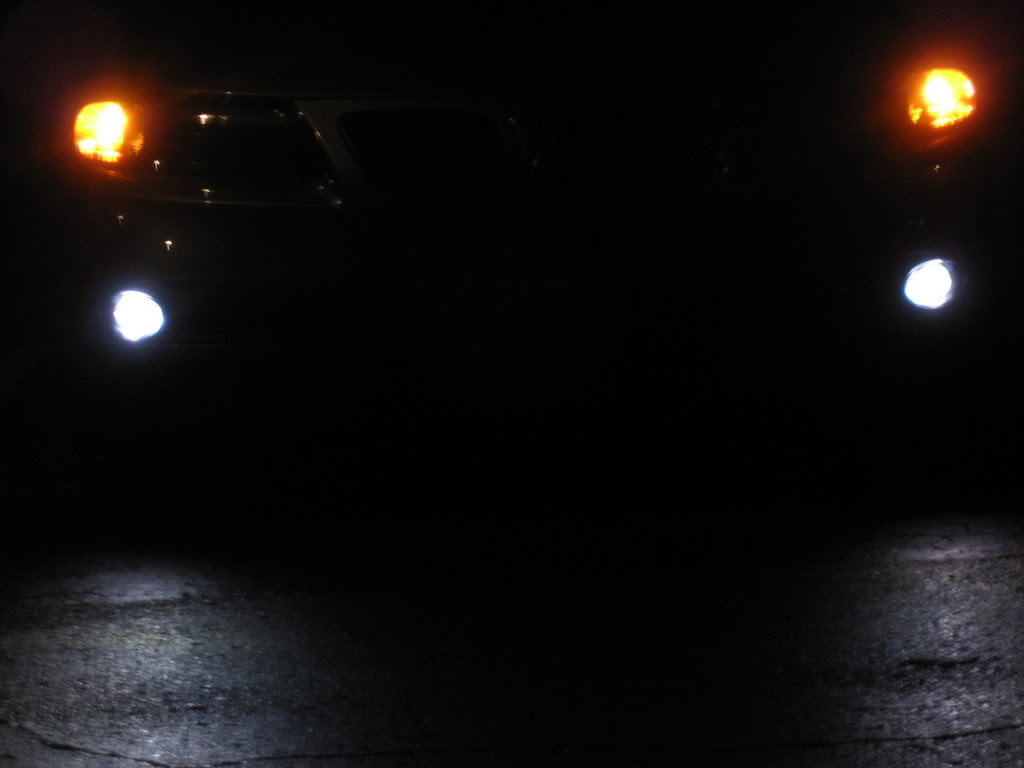

Name:  Picture006068.jpg
Views: 0
Size:  39.1 KB

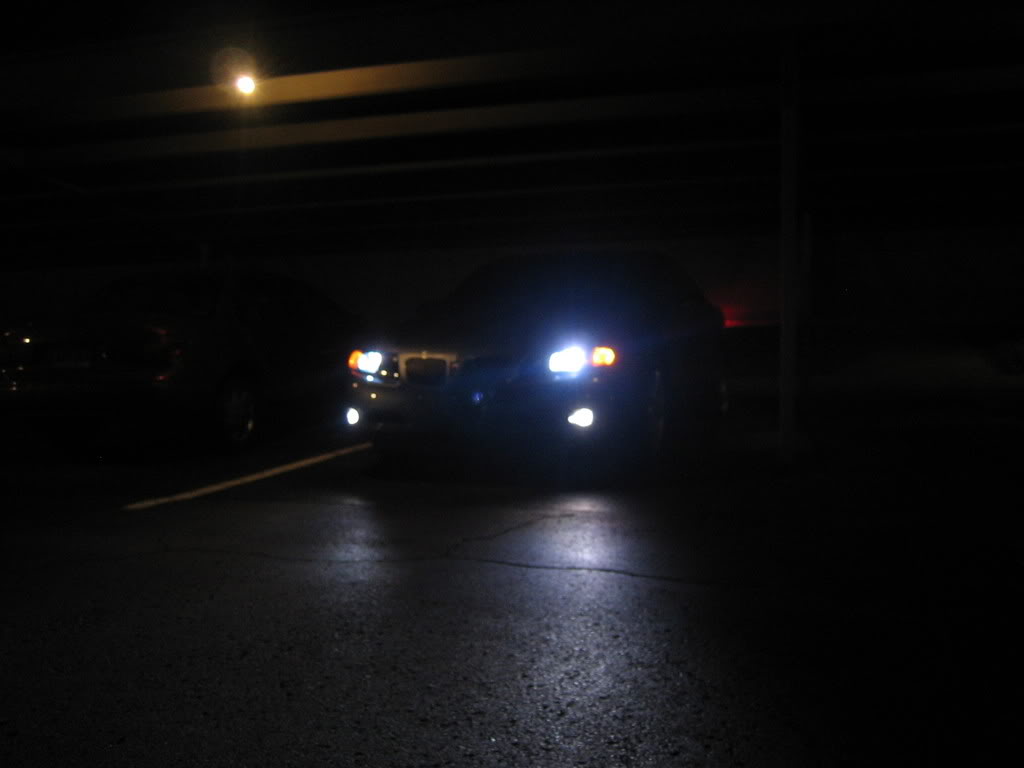

Name:  Picture006069.jpg
Views: 0
Size:  37.5 KB

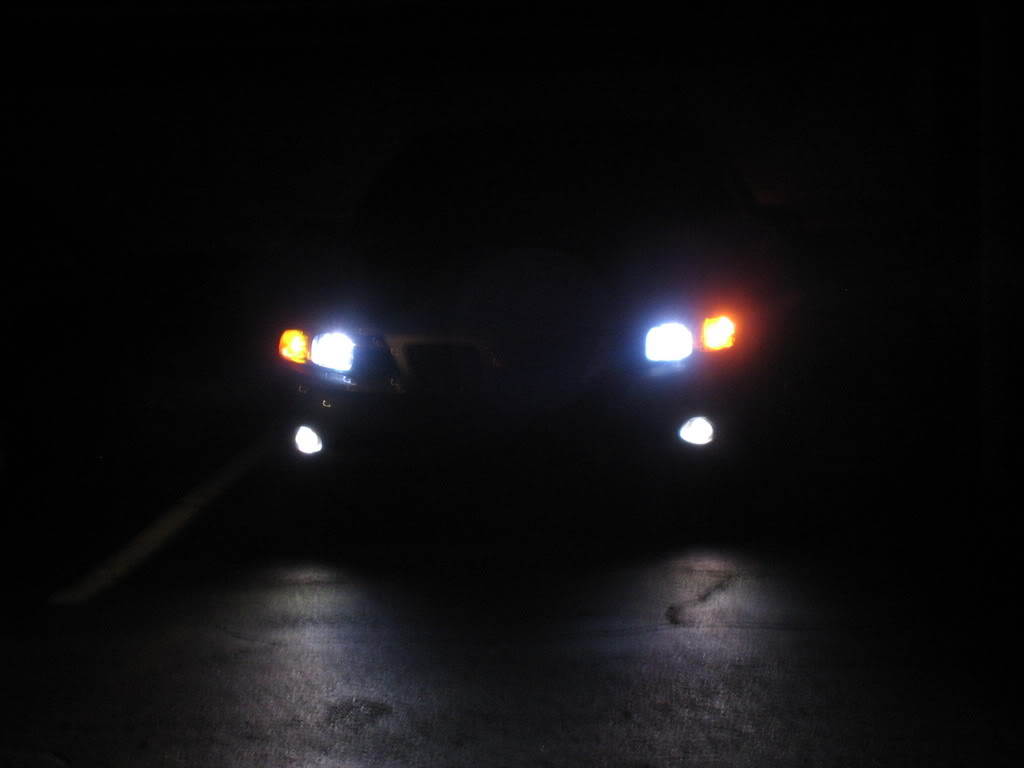

Name:  Picture006071.jpg
Views: 0
Size:  33.0 KB

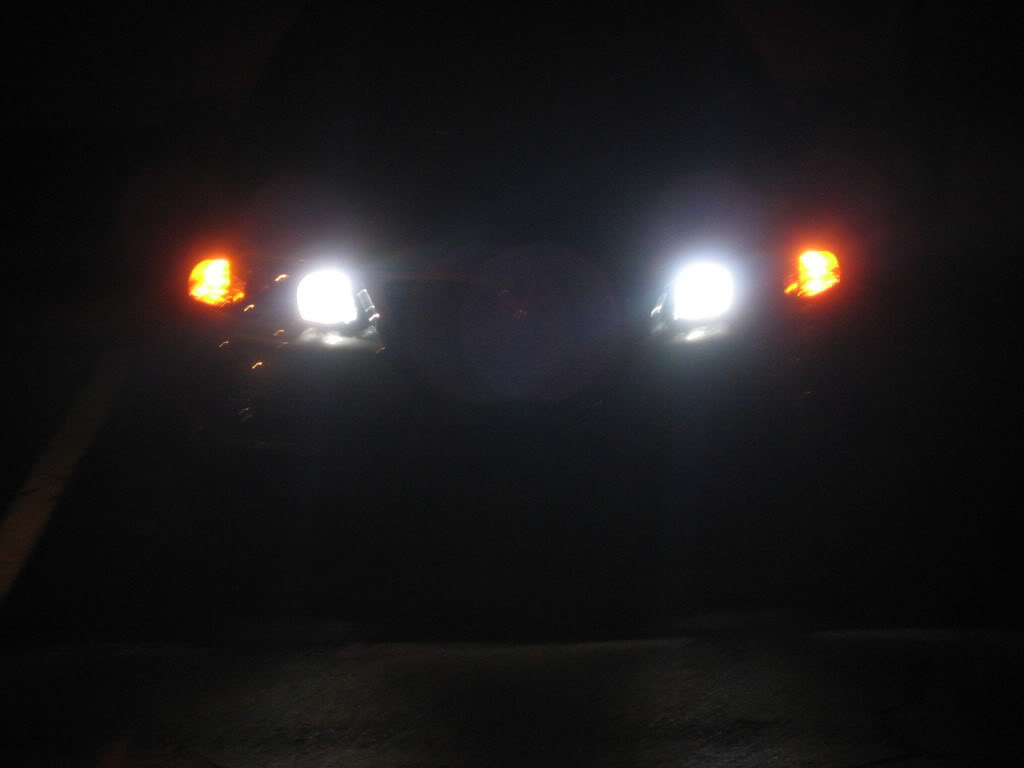

Name:  Picture006072.jpg
Views: 0
Size:  30.8 KB

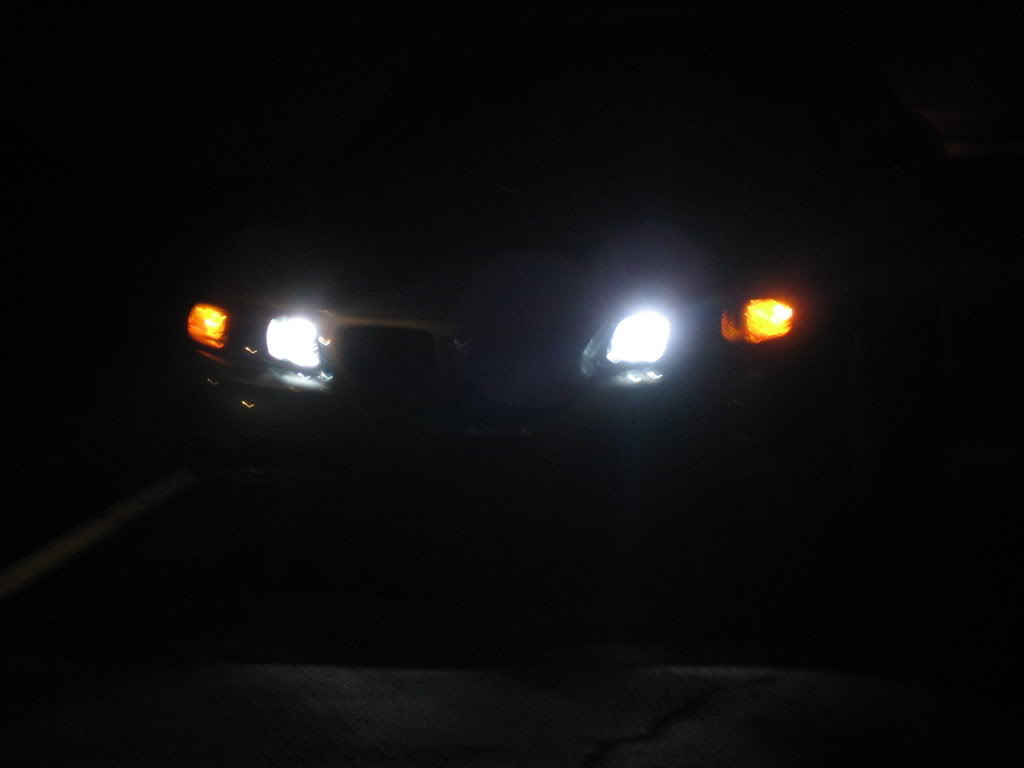

Name:  Picture006073.jpg
Views: 0
Size:  24.5 KB

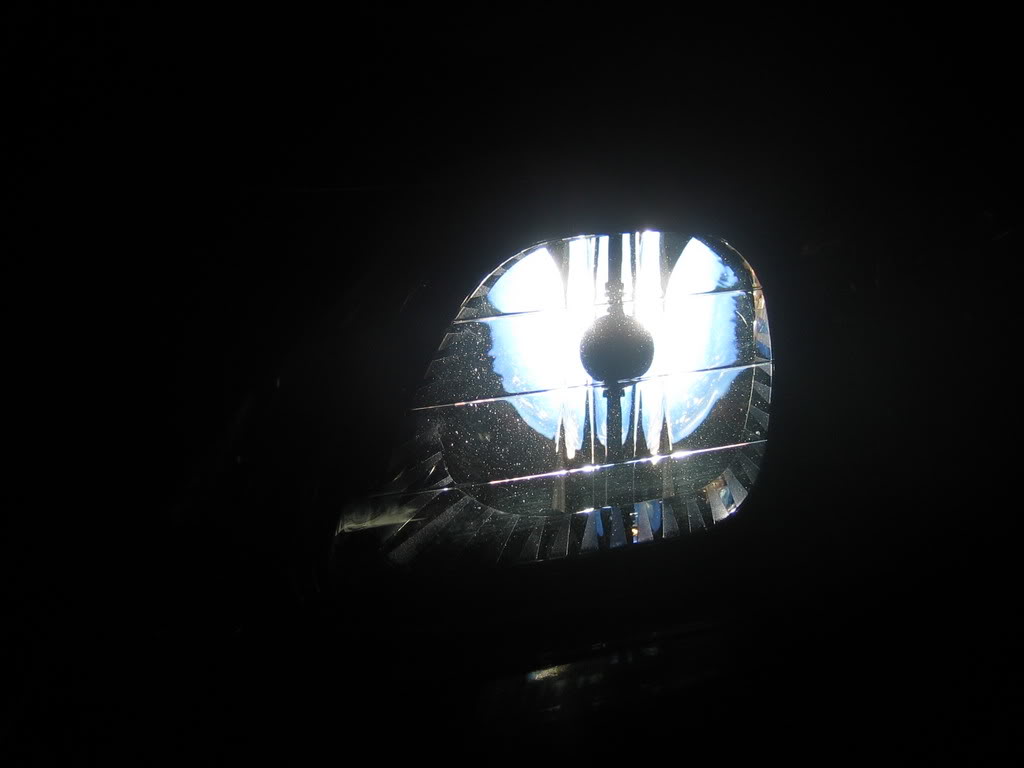

Name:  Picture006074.jpg
Views: 0
Size:  43.8 KB

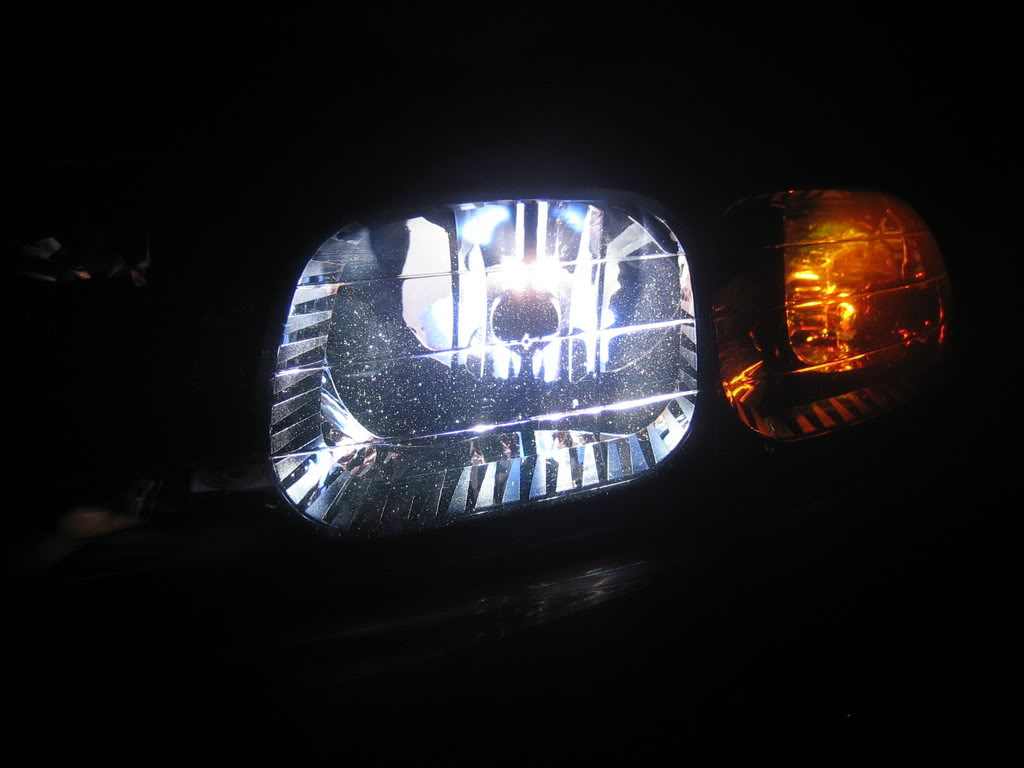

Name:  Picture006075.jpg
Views: 0
Size:  72.2 KB

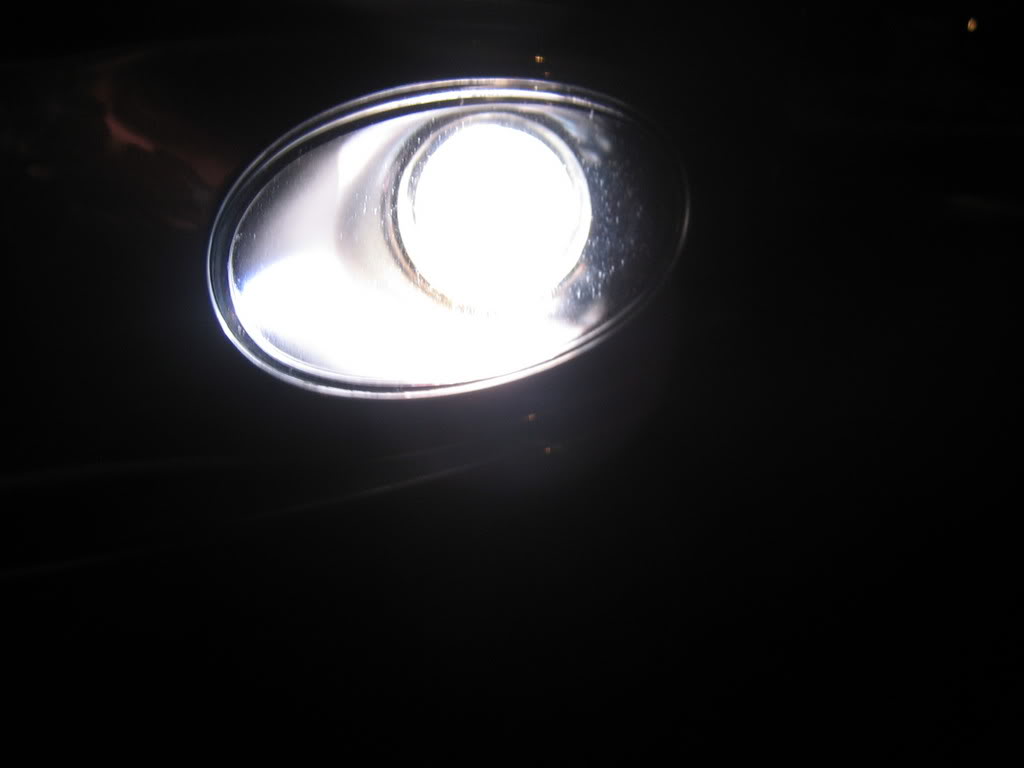

Name:  Picture006076.jpg
Views: 0
Size:  29.8 KB

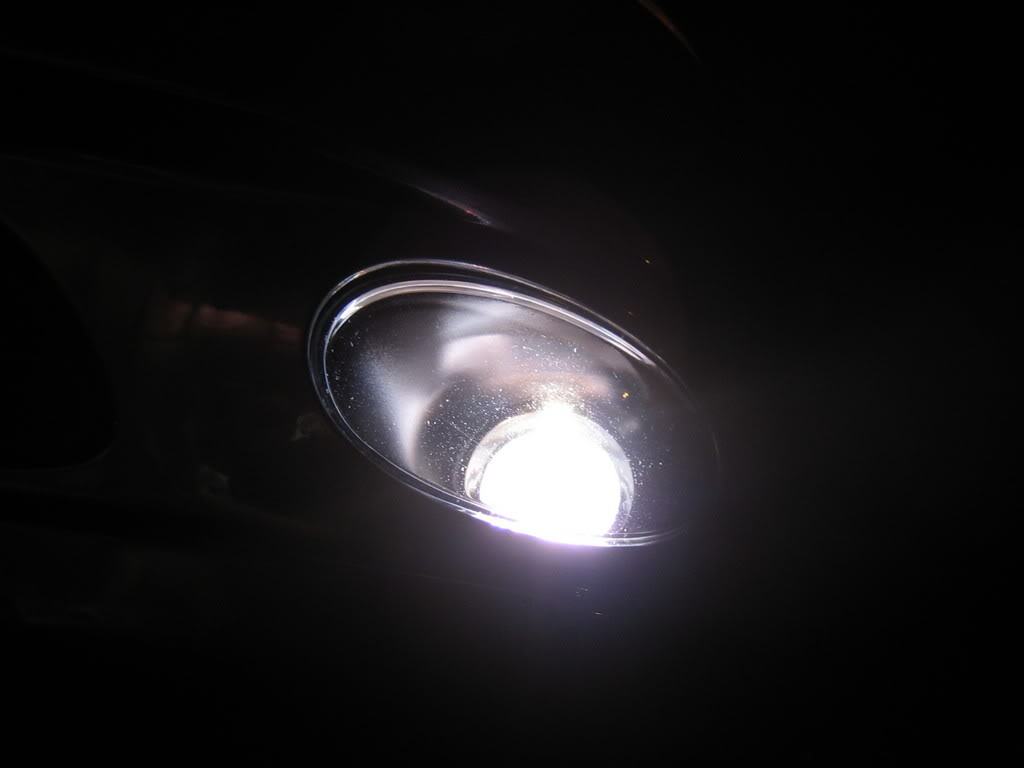

Name:  Picture006077.jpg
Views: 0
Size:  33.3 KB
DONKY4444 is offline   Reply With Quote
Old 06-10-2007, 10:41 AM   #20
Senior Member
Posts like a Turbo

Join Date: Aug 2006
Location: bloomington, IN
Posts: 424
Thanks: 0
Thanked 0 Times in 0 Posts
Mista_SC is on a distinguished road
Default

looks good, D..... doesn't look too blue like my DRL'* on brights how'd you run you brights without the lowbeams on too? didn't know that was possible?
