Default Foglight wire colors

I just bought a set of new foglights for my 02 SSEI. I attached them to the stock brackets and will be using the stock wiring. I was wondering about the wire colors. I'm assuming the purple wire is positive and the black negative, correct? Thanks...........



Explr1 is offline   Reply With Quote
Old 03-24-2006, 10:08 PM   #2
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

correct, PPL is + and BLK is -
toastedoats is offline   Reply With Quote
Old 03-24-2006, 10:13 PM   #3
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

What brand fog lights are those? Did you have to modify stock brackets to fit new lamps?
markwb is offline   Reply With Quote
Old 03-24-2006, 10:14 PM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by markwb
What brand fog lights are those? Did you have to modify stock brackets to fit new lamps?
they look like cyber whites.

all you have to do is screw the cyberwhite bracket to the stock one.
corvettecrazy is offline   Reply With Quote
Old 03-25-2006, 08:44 AM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
Quote:
Originally Posted by markwb
What brand fog lights are those? Did you have to modify stock brackets to fit new lamps?
they look like cyber whites.

all you have to do is screw the cyberwhite bracket to the stock one.
Yes, there Cyberwhites by Pilot. I removed the stock lights and aiming screws and drilled two holes in each bracket. Then I mounted the new brackets to the stock ones using stainless bolts/washers/nuts.
Explr1 is offline   Reply With Quote
Old 03-25-2006, 01:44 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Alright, sounds good. Do you still have use of the adjuster oem wing nuts for elevation? How'* the diameter of the new lights compared to the old oem'*? I'm thinking about doing the same mod to my rig.
markwb is offline   Reply With Quote
Old 03-25-2006, 08:44 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

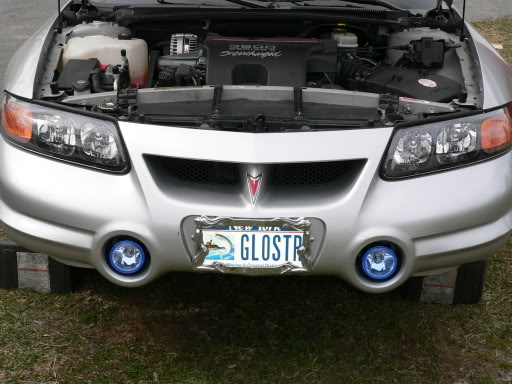

The lights are easy to adjust with the new brackets, so I removed the OEM adjuster. There slightly smaller by about a quarter of an inch. Heres a pic.

Name:  ssei035.jpg
Views: 7
Size:  52.5 KB
Explr1 is offline   Reply With Quote
Old 03-25-2006, 09:30 PM   #8
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Those Cyberwhites look good. Let us know what kind of light projection you get in front of the car as compared to the stock. The stock lights are really just ornamental, no functional value. They dont put out jack for useful light in front of the car.
markwb is offline   Reply With Quote
Old 03-25-2006, 09:33 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Mark...it'* well worth changing the lights.

When I did the cyberwhites. I had to use their brackets and the stock plus spacers to get the right height.

Hella Angel eyes fit right into the 92-99 and probably 00+ brackets and use the stock adjusters
BillBoost37 is offline   Reply With Quote
