Default Power Door Locks

The power lock button on both doors only lock / unlock the drivers door.. All other doors must be manually controlled. Does anyone know the possible cause?
kissmyss is offline   Reply With Quote
Old 07-07-2013, 07:22 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it would help to know what it is?
jwfirebird is offline   Reply With Quote
Old 07-07-2013, 08:30 PM   #3
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Probably a Monte Carlo SS, it would definitely help to know the year though.
WilliamE is offline   Reply With Quote
Old 07-07-2013, 09:58 PM   #4
Member
Posts like a V-Tak
Thread Starter

kissmyss's Avatar

Join Date: May 2011
Location: ny
Posts: 32
Thanks: 0
Thanked 1 Time in 1 Post
kissmyss is on a distinguished road
Default

Sorry, 05 Impala SS
kissmyss is offline   Reply With Quote
Old 07-08-2013, 07:38 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

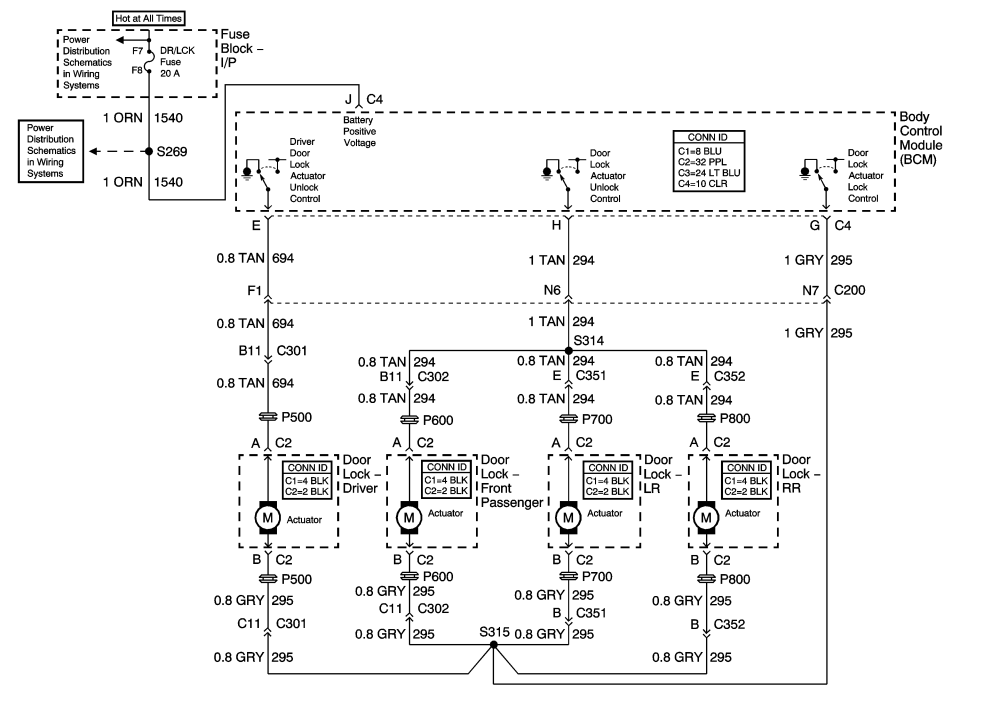

if the driver works you know the tan from BCM pin E and all the gray wires on the bottom are good. but if the others dont work i would look at the tan wire from BCM pin h
Attached Thumbnails
Power Door Locks-05implocks_zps77501c86.gif
jwfirebird is offline   Reply With Quote
Old 07-08-2013, 03:18 PM   #6
LA1
Member
Posts like a V-Tak

LA1's Avatar

Join Date: May 2013
Location: east coast
Posts: 99
Thanked 7 Times in 6 Posts
LA1 is on a distinguished road
Default

I had the driver side door lock stop working on an 03 Impala, I pulled all three of the connectors off of the BCM and did a continuity check from the BCM to the switch, found it was something in the left IP junction block which might be reresented by the "C" numbers in the schematic. What ever yours is will be something in common for both switches. Don't stick a probe into the contacts on the connector, since those connectors are not weather pack you probably can back probe the connectors.
LA1 is offline   Reply With Quote
Old 07-08-2013, 03:44 PM   #7
LA1
Member
Posts like a V-Tak

LA1's Avatar

Join Date: May 2013
Location: east coast
Posts: 99
Thanked 7 Times in 6 Posts
LA1 is on a distinguished road
Default

Might be a good idea to disconnect the negative battery cable. There may be current present with the ignition off, i think the way the PCM works is the door lock solenoids have the correct voltage applied, then when u press the switch the PCM connects the output to ground completing the circuit.
LA1 is offline   Reply With Quote
Old 07-09-2013, 06:39 PM   #8
Member
Posts like a V-Tak
Thread Starter

kissmyss's Avatar

Join Date: May 2011
Location: ny
Posts: 32
Thanks: 0
Thanked 1 Time in 1 Post
kissmyss is on a distinguished road
Default

Since the car is still under warranty, I'll let the dealer take care of it. I'll post the results, I'll check the connectors and wiring to make sure they're snug.
