Default Please help me understand this

3800..grand Prix.
Non super charged

Please help me understand these readings. There is of course the dreaded P0300....

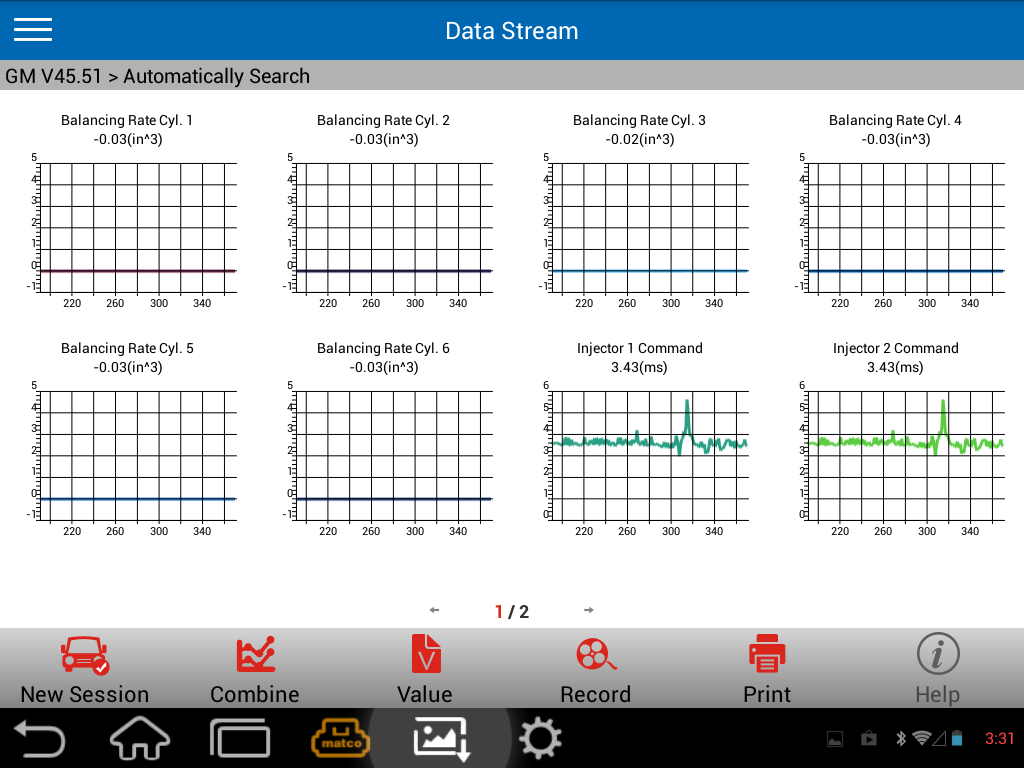

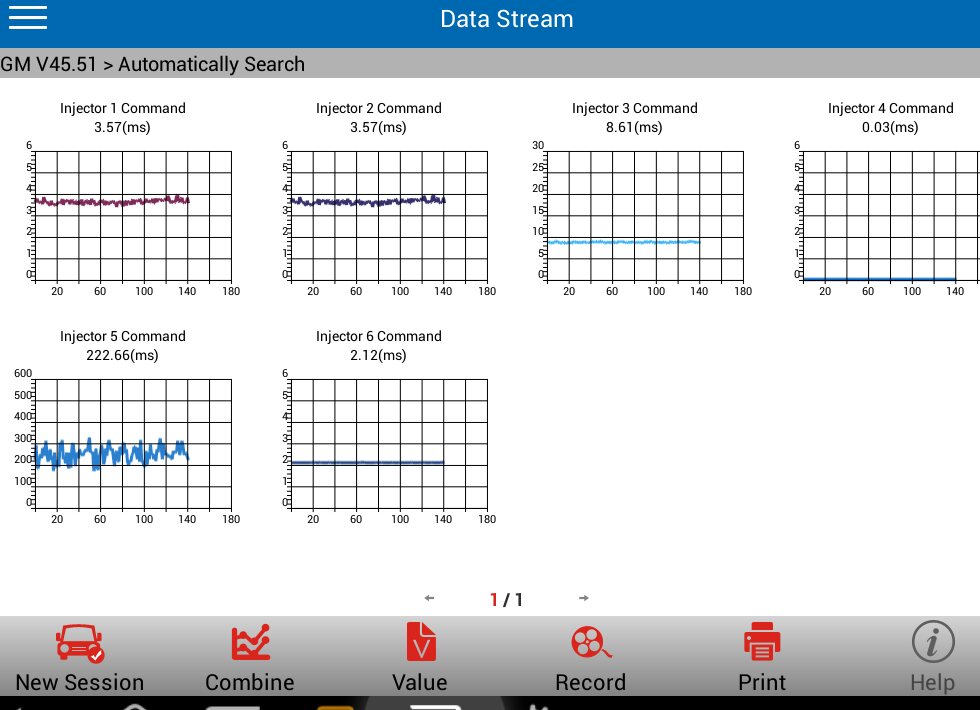

The screen shot is at idle. The higher numbered screen shot is running at 2000 rpms.

Thx
Attached Thumbnails
Please help me understand this-screenshot_2016-02-09-16-09-31.png   Please help me understand this-screenshot_2016-02-09-15-31-42.png   Please help me understand this-screenshot_2016-02-09-16-09-31_1.jpg
wolfdenauto is offline   Reply With Quote
Old 02-10-2016, 11:42 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,148
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Since this is a 3800, with only one O2 sensor controlling F/A mixture, all injectors should be commanded the SAME pulse-width.....four of them are way off.....

Do you have misfires on 4 cylinders? Have you looked at misfire data on a scan tool?

Have you taken resistance readings on the injectors? Should be around 12 ohms on a cold engine....
