Exclamation Need some help w/ distributor timing on a 80 350

Looking for some help on this. The engine is from a mid 80s camaro 350 block that has been bored 30 over. All of this was done by previous ow
Owners not by me. I'm requesting help on timingthe distributor. Model number is 1103381 0A78. I have confirmed this is a gm distributor. Just trying to time it to number 1 tdc. Feel free to email me at [email protected]

Thanks.
1970Elky is offline   Reply With Quote
Old 08-06-2011, 08:29 PM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

You should be at 0 degrees with number one facing just slightly to the driver side of being straight toi the front...Make sense?this should hopefully get you in the general area of where you need to be so you can do your dine tuning till your at 0..Also welcome to the forum Also i moved your thread to the chevrolet section for more visibility
sseidriver97 is offline   Reply With Quote
Old 08-06-2011, 09:23 PM   #3
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

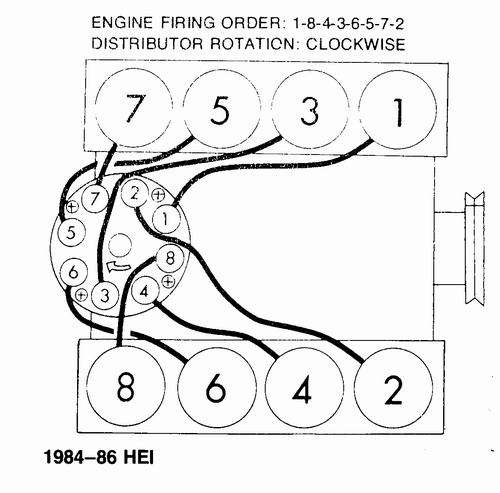

The way I set my distributor on my 350s is unhook the battery. Turn the crank with a socket and ratchet until the line on the harmonic balancer lines up with 0 on the timing marks. Take the distributor cap off and find which way the rotor is pointing. Which ever spot it'* pointing at is where the number 1 spark plug wire goes. Then next spot clockwise is 8. Firing order is 1 8 4 3 6 5 7 2

Attached Thumbnails
Need some help w/ distributor timing on a 80 350-47671012d1302906102-88-hesitation-stop-firing_order.gif
roboticjunky is offline   Reply With Quote
Old 08-07-2011, 11:05 PM   #4
Junior Member
Thread Starter

Join Date: Aug 2011
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
1970Elky is on a distinguished road
Default

Quote:
Originally Posted by 1970Elky View Post
Looking for some help on this. The engine is from a mid 80s camaro 350 block that has been bored 30 over. All of this was done by previous ow
Owners not by me. I'm requesting help on timingthe distributor. Model number is 1103381 0A78. I have confirmed this is a gm distributor. Just trying to time it to number 1 tdc. Feel free to email me at [email protected]

Thanks.
Well...Thank You all for your help. The El Camino is alive and running well. All that is left is to adjust the rockers. Next up is figuring out what the advance/retard will be for Turbo Blue. Should be interesting. Thanks again.

Josh and Joe
1970Elky is offline   Reply With Quote
Old 08-08-2011, 09:56 PM   #5
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

No problem..Please feel free to stick around post pictures and join where you like
