please help! fuse in the # 10 location of the under hood electrical center blows intermittently. I get dtcs p0100 and p1657. I know p0100 is the maf circuit voltage signal and the p1657 is for the reverse lock out. I have disconnected harness connecters starting with o2 sensor down by trans etc. I cannot get the fuse to blow. replaced jet performance maf with stock maf and no change
wpgome00 is offline   Reply With Quote
Old 07-26-2014, 05:14 PM   #2
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jul 2014
Location: Hemet, CA
Posts: 10
Thanked 1 Time in 1 Post
wpgome00 is on a distinguished road
Default

Quote:
Originally Posted by wpgome00 View Post
please help! fuse in the # 10 location of the under hood electrical center blows intermittently. I get dtcs p0100 and p1657. I know p0100 is the maf circuit voltage signal and the p1657 is for the reverse lock out. I have disconnected harness connecters starting with o2 sensor down by trans etc. I cannot get the fuse to blow. replaced jet performance maf with stock maf and no change
123456
wpgome00 is offline   Reply With Quote
Old 07-26-2014, 06:31 PM   #3
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

What is that fuse labeled as?
Mike is offline   Reply With Quote
Old 07-26-2014, 09:50 PM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

shake the wiring harness, sometimes you have wires that only chafe to ground when the car is shaking. may have to look at the back of the fuse box, with the battery terminals disconnected, there are a bunch of bare wire/pins back there might be touching something
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
wpgome00 (07-27-2014)
Old 07-27-2014, 01:30 AM   #5
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

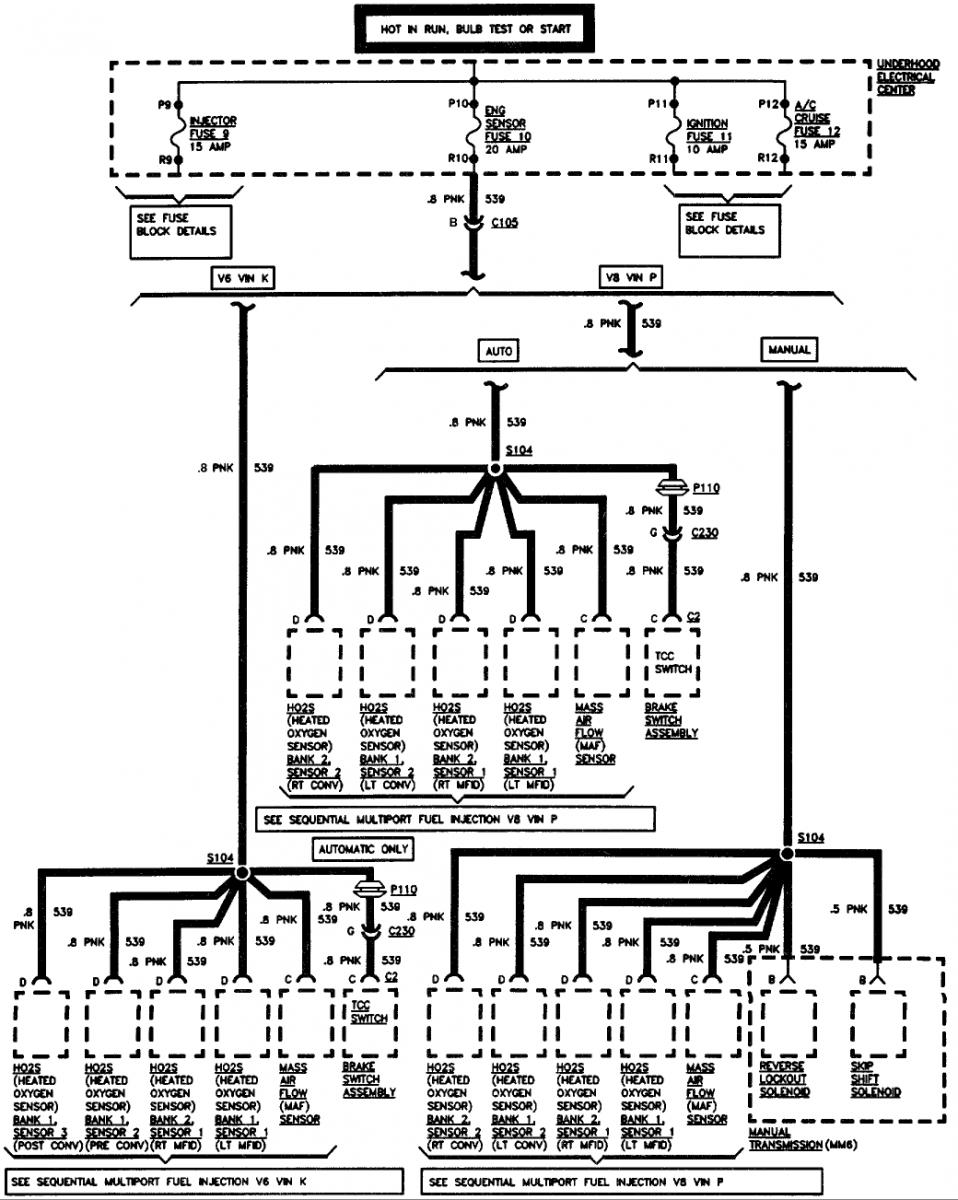

Fuse 10 engine sensor schematic. Start unplugging components one at a time until the short is found and also check harness over.
