Default 2015 Chevrolet Equinox LT
I have purchased leather powered seats out of a 2015 equinox and want to replace my cloth seats. Driver seat is powered and passenger seat is manual. Looking for wiring diagrams, I am an electrician. Can you help?
Rickbigo is offline
Reply Like
The following users liked this post:
CathedralCub (05-02-2018)
Old 05-02-2018, 03:57 PM
  #2
Senior Member


True Car Nut

CathedralCub's Avatar

Join Date: Feb 2015
Location: Earth
Posts: 5,538
Received 872 Likes on 801 Posts
CathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to behold
Default
Originally Posted by Rickbigo
I have purchased leather powered seats out of a 2015 equinox and want to replace my cloth seats. Driver seat is powered and passenger seat is manual. Looking for wiring diagrams, I am an electrician. Can you help?
Assuming these came from a donor car that isn't going to be used again: Did you get the car-end of the plug?
CathedralCub is offline
Reply Like
Old 05-02-2018, 09:22 PM
  #3
Senior Member

True Car Nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,878
Received 1,084 Likes on 832 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default
Confused......are both new seats power?

Your old seats, both manual, driver power/pass manual, or both power?
Tech II is offline
Reply Like
Old 05-03-2018, 07:08 AM
  #4
Junior Member
Thread Starter

Rickbigo's Avatar

Join Date: May 2018
Posts: 4
Likes: 0
Received 1 Like on 1 Post
Rickbigo is on a distinguished road
Default
Originally Posted by CathedralCub
Assuming these came from a donor car that isn't going to be used again: Did you get the car-end of the plug?
yes, I got about a foot of the harness from donor car on each seat
Rickbigo is offline
Reply Like
Old 05-03-2018, 07:11 AM
  #5
Junior Member
Thread Starter

Rickbigo's Avatar

Join Date: May 2018
Posts: 4
Likes: 0
Received 1 Like on 1 Post
Rickbigo is on a distinguished road
Default
Originally Posted by Tech II
Confused......are both new seats power?

Your old seats, both manual, driver power/pass manual, or both power?
yes both new seats are 8 way powered and driver side also has heat. Old seats - driver was powered 4 way and passenger seat was all manual
Rickbigo is offline
Reply Like
Old 05-03-2018, 09:12 AM
  #6
Senior Member

True Car Nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,878
Received 1,084 Likes on 832 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute

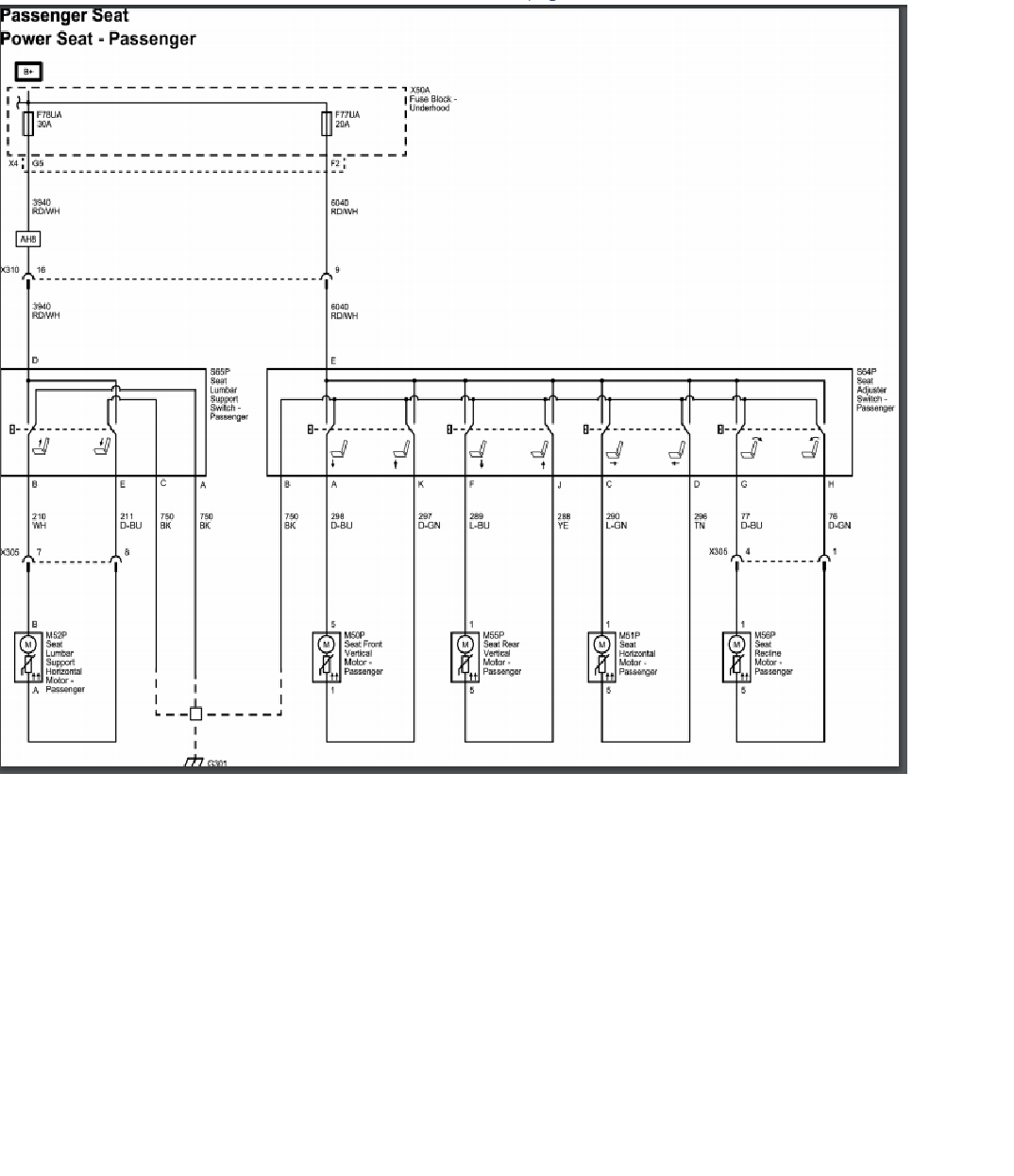

Default






Tech II is offline
Reply Like
Old 05-03-2018, 10:19 AM
  #7
Junior Member
Thread Starter

Rickbigo's Avatar

Join Date: May 2018
Posts: 4
Likes: 0
Received 1 Like on 1 Post
Rickbigo is on a distinguished road
Default
Originally Posted by Tech II






Is there a pin out for connectors 308 and 310?
